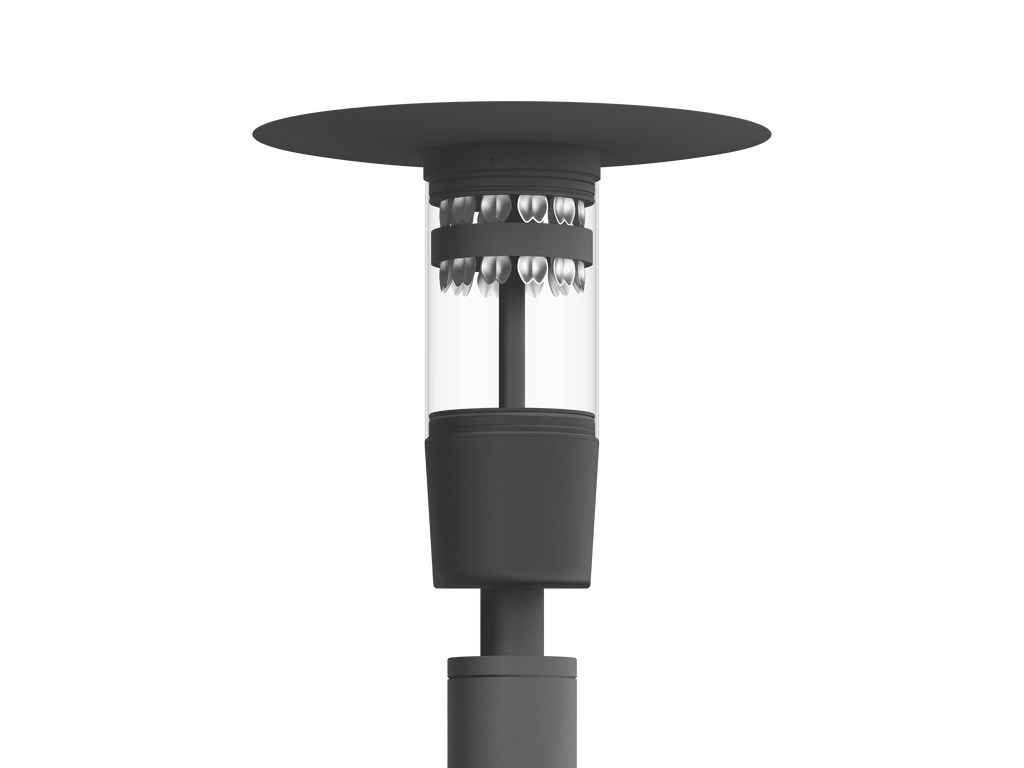

    PIRUS, 360°, 2 Module

    PIRUS, 360°, 2 ModulePIRUS, 360°, 2 ModulePIRUS, 360°, 2 Module

    LP4075.844-EN

    CEUKCAIK08IP65Class I

    Downloads

    PIRUS, 360°, 2 ModulePIRUS, 360°, 2 ModulePIRUS, 360°, 2 Module
    Light distribution
    [SYM] 118°
    Luminaire luminous flux
    4035 - 4940 lm
    Rated input power
    52 W
    CCT
    2700K, 3000K, 4000K
    CRI
    Ra70, Ra80
    Control
    On/Off, DALI, AutoDIM, StepDIM
    Product colours
    BlackDark greyAnthracite greyLight greyWhiteBronzeCustom colour (Please specify RAL code)
    Extras
    Consult the factory
    120-277V 50/60Hz

    Luminaire efficacy
    77 - 90 lm/W
    Colour deviation
    3 SDCM, 4 SDCM
    BUG rating
    B2-U0-G1
    Lifetime L90B50 (hour)
    >60, 000
    Housing
    Marine grade aluminum housing
    Driver
    Integral LED driver
    Input voltage
    220-240V 50/60Hz
    Configurator
    Project name
    Type
    Quantity
    Date
    Note
    Variant order code

    LP4075.844-EN-SYM-700-___-___-EN-C1-___-___




    Variants
    Light distribution
    [SYM]
    Symmetric
    118°

    Rated input power
    [700]
    52 W

    Colour temperature
    [827]
    2700 K CRI 80
    [830]
    3000 K CRI 80
    [740]
    4000 K CRI 70
    [840]
    4000 K CRI 80
    Options
    Control
    [ONOFF]
    On/Off
    [DALI]
    DALI
    [AUTO]
    AutoDIM
    [STEP]
    StepDIM

    Product colours
    [HM1]Black
    Black
    [HM2]Dark grey
    Dark grey
    [HM3]Anthracite grey
    Anthracite grey
    [HM4]Light grey
    Light grey
    [HM5]White
    White
    [HM6]Bronze
    Bronze
    [CC]Custom colour (Please specify RAL code)
    Custom colour (Please specify RAL code)
    Extras
    Consult the factory
    [UNI]
    120-277V 50/60Hz


    Technical details


    Certificates
    CE, UKCA
    Mounting
    Direct pole top mounting for 60mm top diameter
    Finishing
    Chromate conversion pretreatment followed by electrostatic powder coating
    Fasteners
    Stainless steel (AISI 304 / EN 1.4301 grade)
    Gasket
    Silicone
    Glass / Diffusor
    UV stable, bio-based polycarbonate diffusor
    Impact protection
    IK08
    Ingress protection
    IP65
    Insulation class
    Class I
    Wind catching area (EPA)
    0.14 m²
    Weight
    8.59 kg
    Driver surge protection
    10/6 kV
    Power factor
    > 0.95
    Through wiring
    Single cable entry
    Operating temperature
    -40...50°C
    Cable
    0.5 m of flexible cable

    Extras

    120-277V 50/60Hz

    [UNI]

    120-277V 50/60Hz

    Consult the factory

    Poles (To be ordered separately)

    Cylindrical aluminum poles with flange plate
    Diameter / Dimensions
    Height
    Spigot diameter
    Diameter / Dimensions: Ø114mm, Ø122mm, Ø148mm, Ø165mm
    Height: 3m, 4m, 5m, 6m, 7m, 8m, 9m
    Spigot diameter: Ø114mm, Ø122mm, Ø148mm, Ø165mm
    Conical aluminum poles with embedded base
    Diameter / Dimensions
    Height
    Spigot diameter
    Diameter / Dimensions: Ø114mm, Ø122mm, Ø148mm, Ø165mm, Ø180mm, Ø200mm
    Height: 3m, 4m, 5m, 6m, 7m, 8m, 9m, 10m, 11m, 12m
    Spigot diameter: Ø60mm, Ø76mm, Ø90mm
    Conical aluminum poles with flange plate
    Diameter / Dimensions
    Height
    Spigot diameter
    Diameter / Dimensions: Ø114mm, Ø122mm, Ø148mm, Ø165mm, Ø180mm, Ø200mm
    Height: 3m, 4m, 5m, 6m, 7m, 8m, 9m, 10m, 11m, 12m
    Spigot diameter: Ø60mm, Ø76mm, Ø90mm
    Cylindrical aluminium poles with embedded base
    Diameter / Dimensions
    Height
    Spigot diameter
    Diameter / Dimensions: Ø114mm, Ø122mm, Ø148mm, Ø165mm
    Height: 3m, 4m, 5m, 6m, 7m, 8m, 9m
    Spigot diameter: Ø114mm, Ø122mm, Ø148mm, Ø165mm
    All flux and power values derived following appropriate IES, CIE and applicable standards.
    Descriptions
    Variants

    Light distribution

    Drive current

    Symmetric
    [SYM]

    Symmetric

    Drive current

    700 mA
    [700]

    700 mA

    Colour temperature

    2700 K CRI 80
    [827]

    2700 K CRI 80

    3000 K CRI 80
    [830]

    3000 K CRI 80

    4000 K CRI 70
    [740]

    4000 K CRI 70

    4000 K CRI 80
    [840]

    4000 K CRI 80

    Options

    Control

    Product colours

    On/Off
    [ONOFF]

    On/Off

    DALI
    [DALI]

    DALI

    AutoDIM
    [AUTO]

    AutoDIM

    StepDIM
    [STEP]

    StepDIM

    Product colours

    Black
    [HM1]

    Black

    Dark grey
    [HM2]

    Dark grey

    Anthracite grey
    [HM3]

    Anthracite grey

    Light grey
    [HM4]

    Light grey

    White
    [HM5]

    White

    Bronze
    [HM6]

    Bronze

    Custom colour (Please specify RAL code)
    [CC]

    Custom colour (Please specify RAL code)
