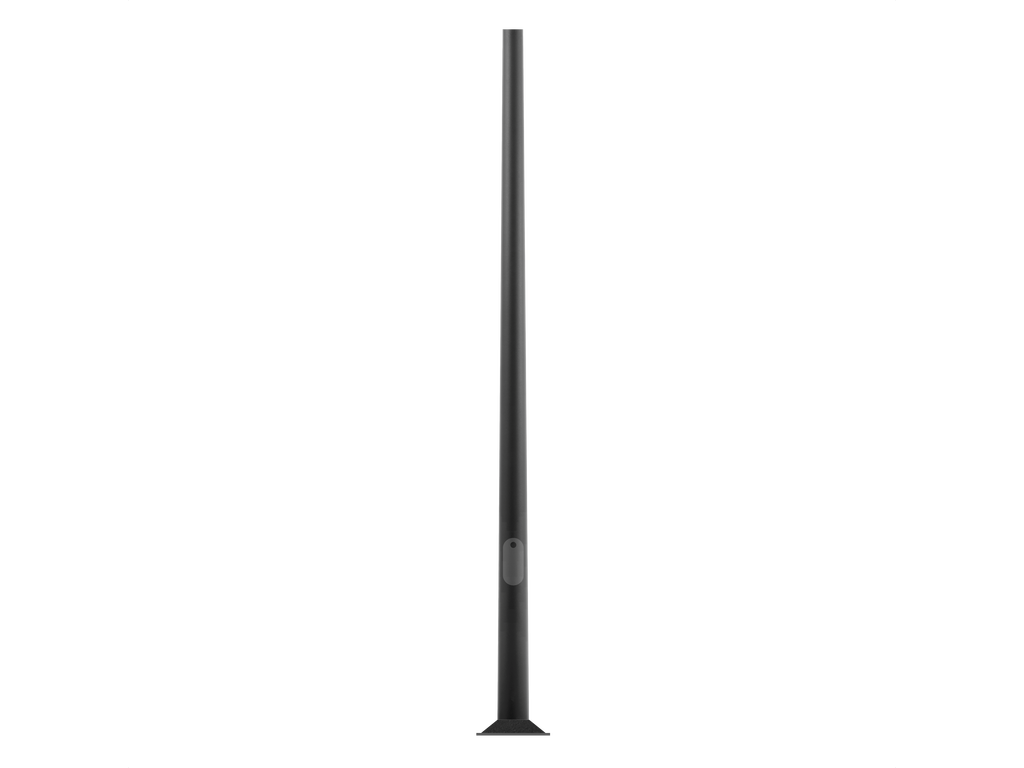

    Conical aluminum poles with flange plate

    CEUKCA
    Conical aluminum poles with flange plate
    Conical aluminum poles with flange plate

    Products

    Product code
    D
    Spigot diameter (S)
    Height (H)
    Weight
    SL
    AD
    OP
    Product spec sheet
    Product code: PAFK.D114-EN-H03-S60
    D: Ø114mm
    Spigot diameter (S): Ø60mm
    Height (H): 3m
    Weight: 12.7 kg
    SL: 1.8m
    AD: 400*85mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D114-EN-H03-S76
    D: Ø114mm
    Spigot diameter (S): Ø76mm
    Height (H): 3m
    Weight: 12.7 kg
    SL: 1.8m
    AD: 400*85mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D114-EN-H04-S60
    D: Ø114mm
    Spigot diameter (S): Ø60mm
    Height (H): 4m
    Weight: 14.8 kg
    SL: 1.8m
    AD: 400*85mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D114-EN-H04-S76
    D: Ø114mm
    Spigot diameter (S): Ø76mm
    Height (H): 4m
    Weight: 14.8 kg
    SL: 1.8m
    AD: 400*85mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D114-EN-H05-S60
    D: Ø114mm
    Spigot diameter (S): Ø60mm
    Height (H): 5m
    Weight: 17.3 kg
    SL: 1.8m
    AD: 400*85mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D114-EN-H05-S76
    D: Ø114mm
    Spigot diameter (S): Ø76mm
    Height (H): 5m
    Weight: 17.3 kg
    SL: 1.8m
    AD: 400*85mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D122-EN-H03-S60
    D: Ø122mm
    Spigot diameter (S): Ø60mm
    Height (H): 3m
    Weight: 12.7 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D122-EN-H03-S76
    D: Ø122mm
    Spigot diameter (S): Ø76mm
    Height (H): 3m
    Weight: 12.7 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D122-EN-H04-S60
    D: Ø122mm
    Spigot diameter (S): Ø60mm
    Height (H): 4m
    Weight: 15.5 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D122-EN-H04-S76
    D: Ø122mm
    Spigot diameter (S): Ø76mm
    Height (H): 4m
    Weight: 15.5 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D122-EN-H05-S60
    D: Ø122mm
    Spigot diameter (S): Ø60mm
    Height (H): 5m
    Weight: 18.1 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D122-EN-H05-S76
    D: Ø122mm
    Spigot diameter (S): Ø76mm
    Height (H): 5m
    Weight: 18.7 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D122-EN-H06-S60
    D: Ø122mm
    Spigot diameter (S): Ø60mm
    Height (H): 6m
    Weight: 20.3 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D122-EN-H06-S76
    D: Ø122mm
    Spigot diameter (S): Ø76mm
    Height (H): 6m
    Weight: 21.1 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D148-EN-H06-S60
    D: Ø148mm
    Spigot diameter (S): Ø60mm
    Height (H): 6m
    Weight: 31.6 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D148-EN-H06-S76
    D: Ø148mm
    Spigot diameter (S): Ø76mm
    Height (H): 6m
    Weight: 25.3 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D148-EN-H07-S60
    D: Ø148mm
    Spigot diameter (S): Ø60mm
    Height (H): 7m
    Weight: 28.8 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D148-EN-H07-S76
    D: Ø148mm
    Spigot diameter (S): Ø76mm
    Height (H): 7m
    Weight: 27.8 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D148-EN-H08-S60
    D: Ø148mm
    Spigot diameter (S): Ø60mm
    Height (H): 8m
    Weight: 30.3 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D148-EN-H08-S76
    D: Ø148mm
    Spigot diameter (S): Ø76mm
    Height (H): 8m
    Weight: 31.5 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D165-EN-H06-S76
    D: Ø165mm
    Spigot diameter (S): Ø76mm
    Height (H): 6m
    Weight: 27 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D165-EN-H06-S90
    D: Ø165mm
    Spigot diameter (S): Ø90mm
    Height (H): 6m
    Weight: 27.8 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D165-EN-H07-S76
    D: Ø165mm
    Spigot diameter (S): Ø76mm
    Height (H): 7m
    Weight: 30.7 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D165-EN-H07-S90
    D: Ø165mm
    Spigot diameter (S): Ø90mm
    Height (H): 7m
    Weight: 31.6 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D165-EN-H08-S76
    D: Ø165mm
    Spigot diameter (S): Ø76mm
    Height (H): 8m
    Weight: 33.7 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D165-EN-H08-S90
    D: Ø165mm
    Spigot diameter (S): Ø90mm
    Height (H): 8m
    Weight: 34.7 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D165-EN-H9-S76
    D: Ø165mm
    Spigot diameter (S): Ø76mm
    Height (H): 9m
    Weight: 38.3 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D165-EN-H9-S90
    D: Ø165mm
    Spigot diameter (S): Ø90mm
    Height (H): 9m
    Weight: 39.5 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D180-EN-H08-S76
    D: Ø180mm
    Spigot diameter (S): Ø76mm
    Height (H): 8m
    Weight: 46.1 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D180-EN-H08-S90
    D: Ø180mm
    Spigot diameter (S): Ø90mm
    Height (H): 8m
    Weight: 47.5 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D180-EN-H10-S76
    D: Ø180mm
    Spigot diameter (S): Ø76mm
    Height (H): 10m
    Weight: 57.5 kg
    SL: 2.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D180-EN-H10-S90
    D: Ø180mm
    Spigot diameter (S): Ø90mm
    Height (H): 10m
    Weight: 59.1 kg
    SL: 2.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D180-EN-H9-S76
    D: Ø180mm
    Spigot diameter (S): Ø76mm
    Height (H): 9m
    Weight: 51.5 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D180-EN-H9-S90
    D: Ø180mm
    Spigot diameter (S): Ø90mm
    Height (H): 9m
    Weight: 53.1 kg
    SL: 1.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D200-EN-H10-S76
    D: Ø200mm
    Spigot diameter (S): Ø76mm
    Height (H): 10m
    Weight: 73.9 kg
    SL: 4.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D200-EN-H10-S90
    D: Ø200mm
    Spigot diameter (S): Ø90mm
    Height (H): 10m
    Weight: 76 kg
    SL: 2.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D200-EN-H11-S76
    D: Ø200mm
    Spigot diameter (S): Ø76mm
    Height (H): 11m
    Weight: 84 kg
    SL: 2.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D200-EN-H11-S90
    D: Ø200mm
    Spigot diameter (S): Ø90mm
    Height (H): 11m
    Weight: 86.1 kg
    SL: 2.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D200-EN-H12-S76
    D: Ø200mm
    Spigot diameter (S): Ø76mm
    Height (H): 12m
    Weight: 92.3 kg
    SL: 4.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
    Product code: PAFK.D200-EN-H12-S90
    D: Ø200mm
    Spigot diameter (S): Ø90mm
    Height (H): 12m
    Weight: 94.3 kg
    SL: 4.8m
    AD: 400*90mm
    OP: 500mm
    Product spec sheet:
