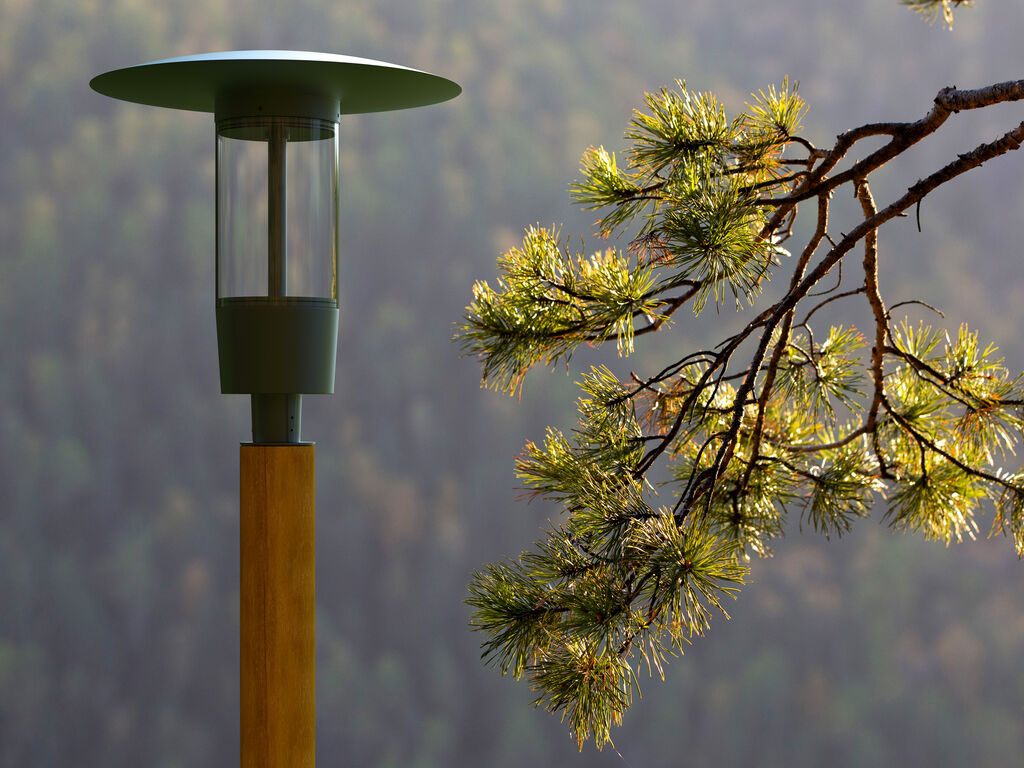

PIRUS

NEW
PIRUSPIRUS
PIRUSPIRUS

LP4075.538-EN

CEUKCAIK08IP65Class I
Variants
Light distribution
[] , [SYM] 124°
Delivered lumens flux
4486 - 6906 lm
Rated input power
50 - 70 W
Colour temperature
2700 K CRI 80, 3000 K CRI 80, 4000 K CRI 70, 4000 K CRI 80
Lifetime L90B50 (hour)
>60, 000
Lifetime L80B50 (hour)
>60, 000
Options
Control
On/Off, DALI, AutoDIM, StepDIM *
Product colours
BlackDark greyAnthracite greyLight greyWhiteBronzeCustom colour (Please specify RAL code)
Extras
External surge protection
10 kV
Light output
Constant light output
Consult the factory
120-277V 50/60Hz
* Please check the specific variant for each control type.

Technical details



Certificates
CE, UKCA
Mounting
Direct pole top mounting for 60mm top diameter
Housing
Corrosion resistant, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Silicone
Glass / Diffusor
UV stable, bio-based polycarbonate diffusor
Impact protection
IK08
Ingress protection
IP65
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
10 kg
Driver
Internal LED driver
Driver surge protection
10/6 kV
Power factor
> 0.95
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
0.5 m of flexible cable

Downloads


Variants


Light distribution
[]
Symmetric
[SYM] Symmetric - 124°
Delivered lumens flux
4486 lm
4780 lm
6533 lm
6906 lm
Rated input power
50 W
70 W
Colour temperature
2700 K CRI 80
3000 K CRI 80
4000 K CRI 70
4000 K CRI 80

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LP4075.538-EN-SYM-1050-740
Light distribution: []
Delivered lumens flux:
Rated input power:
Colour temperature:
Control:
Variant code: LP4075.538-EN-SYM-1050-827
Light distribution: [SYM] Symmetric - 124°
Delivered lumens flux: 6533 lm
Rated input power: 70 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4075.538-EN-SYM-1050-827
Light distribution
[SYM] 124°
Delivered lumens flux
6533 lm
Rated input power
70 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
93 lm/W
Lamp
132 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>60,000
Lifetime L80B50 (hour)
>60,000
Variant code: LP4075.538-EN-SYM-1050-830
Light distribution: [SYM] Symmetric - 124°
Delivered lumens flux: 6906 lm
Rated input power: 70 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4075.538-EN-SYM-1050-830
Light distribution
[SYM] 124°
Delivered lumens flux
6906 lm
Rated input power
70 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
99 lm/W
Lamp
132 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>60,000
Lifetime L80B50 (hour)
>60,000
Variant code: LP4075.538-EN-SYM-1050-840
Light distribution: [SYM] Symmetric - 124°
Delivered lumens flux: 6906 lm
Rated input power: 70 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4075.538-EN-SYM-1050-840
Light distribution
[SYM] 124°
Delivered lumens flux
6906 lm
Rated input power
70 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
99 lm/W
Lamp
132 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>60,000
Lifetime L80B50 (hour)
>60,000
Variant code: LP4075.538-EN-SYM-700-740
Light distribution: [SYM] Symmetric - 124°
Delivered lumens flux: 4780 lm
Rated input power: 50 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4075.538-EN-SYM-700-740
Light distribution
[SYM] 124°
Delivered lumens flux
4780 lm
Rated input power
50 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
96 lm/W
Lamp
132 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>60,000
Lifetime L80B50 (hour)
>60,000
Variant code: LP4075.538-EN-SYM-700-827
Light distribution: [SYM] Symmetric - 124°
Delivered lumens flux: 4486 lm
Rated input power: 50 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4075.538-EN-SYM-700-827
Light distribution
[SYM] 124°
Delivered lumens flux
4486 lm
Rated input power
50 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
90 lm/W
Lamp
132 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>60,000
Lifetime L80B50 (hour)
>60,000
Variant code: LP4075.538-EN-SYM-700-830
Light distribution: [SYM] Symmetric - 124°
Delivered lumens flux: 4780 lm
Rated input power: 50 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4075.538-EN-SYM-700-830
Light distribution
[SYM] 124°
Delivered lumens flux
4780 lm
Rated input power
50 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
96 lm/W
Lamp
132 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>60,000
Lifetime L80B50 (hour)
>60,000
Variant code: LP4075.538-EN-SYM-700-840
Light distribution: [SYM] Symmetric - 124°
Delivered lumens flux: 4780 lm
Rated input power: 50 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4075.538-EN-SYM-700-840
Light distribution
[SYM] 124°
Delivered lumens flux
4780 lm
Rated input power
50 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
96 lm/W
Lamp
132 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>60,000
Lifetime L80B50 (hour)
>60,000

Poles (To be ordered separately)


All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Symmetric
[SYM]

Symmetric

Drive current


700 mA
[700]

700 mA

1050 mA
[1050]

1050 mA

Colour temperature


2700 K CRI 80
[827]

2700 K CRI 80

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

4000 K CRI 80
[840]

4000 K CRI 80

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

DALI
[DALI]

DALI

AutoDIM
[AUTO]

AutoDIM

StepDIM
[STEP]

StepDIM

Product colours


Black
[HM1]

Black

Dark grey
[HM2]

Dark grey

Anthracite grey
[HM3]

Anthracite grey

Light grey
[HM4]

Light grey

White
[HM5]

White

Bronze
[HM6]

Bronze

Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)

Extras

External surge protection

Light output


10 kV
[SP10]

10 kV

Light output


Constant light output
[CLO]

Constant light output

Consult the factory


120-277V 50/60Hz
[UNI]

120-277V 50/60Hz
