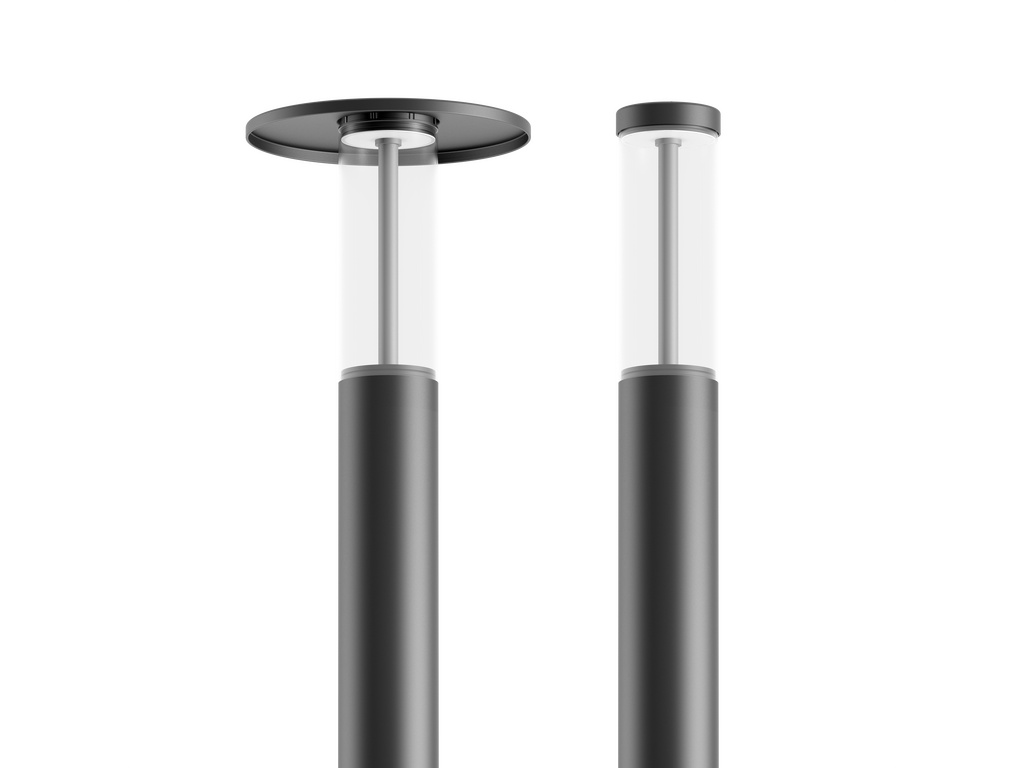

VLORA

UPCOMING
VLORAVLORA
VLORAVLORA

LL6058.550-EN

CEUKCAIK07IP65Class I
Variants
Light distribution
[SYM] 108
Delivered lumens flux
1731 - 3038 lm
Rated input power
23 - 34 W
Colour temperature
2200 K CRI 80, 2700 K CRI 80, 3000 K CRI 80, 4000 K CRI 70
Lifetime L90B50 (hour)
>102 000
Lifetime L80B50 (hour)
>102 000
Options
Control
On/Off, DALI, AutoDIM, StepDIM
Product colours
BlackDark greyAnthracite greyLight greyWhiteBronzeCustom colour (Please specify RAL code)
Height
3m, 4m
Extras
External surge protection
10 kV
Light output
Constant light output
Consult the factory
Class II
Luminaire body options
Double powder coating

Technical details



Certificates
CE, UKCA
Housing
Corrosion resistant, die-cast, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Silicone
Lens / Reflector
UV stable, bio-based polycarbonate diffusor
Glass / Diffusor
Custom Design PMMA Diffusor
Impact protection
IK07
Ingress protection
IP65
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
19.87 kg (3 m), 23.61 kg (4 m)
LED module
Mid power LEDs on metal-core PCB
Driver
Integral LED driver
Driver surge protection
10/6 kV
Power factor
> 0.95
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
0.5 m of flexible cable

Downloads


Variants


Light distribution
Symmetric
[SYM] Symmetric - 108
Delivered lumens flux
1731 lm
1955 lm
2066 lm
2178 lm
2415 lm
2727 lm
2883 lm
3038 lm
Rated input power
23 W
34 W
Colour temperature
2200 K CRI 80
2700 K CRI 80
3000 K CRI 80
4000 K CRI 70

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LL6058.550-EN-SYM-350-740
Light distribution: [SYM] Symmetric - 108
Delivered lumens flux: 2178 lm
Rated input power: 23 W
Colour temperature: 4000 K CRI 70
Control:
LL6058.550-EN-SYM-350-740
Light distribution
[SYM] 108
Delivered lumens flux
2178 lm
Rated input power
23 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
95 lm/W
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102 000
Lifetime L80B50 (hour)
>102 000
Variant code: LL6058.550-EN-SYM-350-822
Light distribution: [SYM] Symmetric - 108
Delivered lumens flux: 1731 lm
Rated input power: 23 W
Colour temperature: 2200 K CRI 80
Control:
LL6058.550-EN-SYM-350-822
Light distribution
[SYM] 108
Delivered lumens flux
1731 lm
Rated input power
23 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
75 lm/W
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102 000
Lifetime L80B50 (hour)
>102 000
Variant code: LL6058.550-EN-SYM-350-827
Light distribution: [SYM] Symmetric - 108
Delivered lumens flux: 1955 lm
Rated input power: 23 W
Colour temperature: 2700 K CRI 80
Control:
LL6058.550-EN-SYM-350-827
Light distribution
[SYM] 108
Delivered lumens flux
1955 lm
Rated input power
23 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
85 lm/W
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102 000
Lifetime L80B50 (hour)
>102 000
Variant code: LL6058.550-EN-SYM-350-830
Light distribution: [SYM] Symmetric - 108
Delivered lumens flux: 2066 lm
Rated input power: 23 W
Colour temperature: 3000 K CRI 80
Control:
LL6058.550-EN-SYM-350-830
Light distribution
[SYM] 108
Delivered lumens flux
2066 lm
Rated input power
23 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
90 lm/W
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102 000
Lifetime L80B50 (hour)
>102 000
Variant code: LL6058.550-EN-SYM-500-740
Light distribution: [SYM] Symmetric - 108
Delivered lumens flux: 3038 lm
Rated input power: 34 W
Colour temperature: 4000 K CRI 70
Control:
LL6058.550-EN-SYM-500-740
Light distribution
[SYM] 108
Delivered lumens flux
3038 lm
Rated input power
34 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
89 lm/W
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102 000
Lifetime L80B50 (hour)
>102 000
Variant code: LL6058.550-EN-SYM-500-822
Light distribution: [SYM] Symmetric - 108
Delivered lumens flux: 2415 lm
Rated input power: 34 W
Colour temperature: 2200 K CRI 80
Control:
LL6058.550-EN-SYM-500-822
Light distribution
[SYM] 108
Delivered lumens flux
2415 lm
Rated input power
34 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
71 lm/W
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102 000
Lifetime L80B50 (hour)
>102 000
Variant code: LL6058.550-EN-SYM-500-827
Light distribution: [SYM] Symmetric - 108
Delivered lumens flux: 2727 lm
Rated input power: 34 W
Colour temperature: 2700 K CRI 80
Control:
LL6058.550-EN-SYM-500-827
Light distribution
[SYM] 108
Delivered lumens flux
2727 lm
Rated input power
34 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
80 lm/W
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102 000
Lifetime L80B50 (hour)
>102 000
Variant code: LL6058.550-EN-SYM-500-830
Light distribution: [SYM] Symmetric - 108
Delivered lumens flux: 2883 lm
Rated input power: 34 W
Colour temperature: 3000 K CRI 80
Control:
LL6058.550-EN-SYM-500-830
Light distribution
[SYM] 108
Delivered lumens flux
2883 lm
Rated input power
34 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
85 lm/W
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102 000
Lifetime L80B50 (hour)
>102 000

Accessories (To be ordered separately)


Extras


10 kV

[SP10]

10 kV

External surge protection
Constant light output

[CLO]

Constant light output

Light output
Class II

[C2]

Class II

Consult the factory
Double powder coating

[DPC]

Double powder coating

Luminaire body options

All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Symmetric
[SYM]

Symmetric

Drive current


350 mA
[350]

350 mA

500 mA
[500]

500 mA

Colour temperature


2200 K CRI 80
[822]

2200 K CRI 80

2700 K CRI 80
[827]

2700 K CRI 80

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

DALI
[DALI]

DALI

AutoDIM
[AUTO]

AutoDIM

StepDIM
[STEP]

StepDIM

Product colours


Black
[HM1]

Black

Dark grey
[HM2]

Dark grey

Anthracite grey
[HM3]

Anthracite grey

Light grey
[HM4]

Light grey

White
[HM5]

White

Bronze
[HM6]

Bronze

Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)
