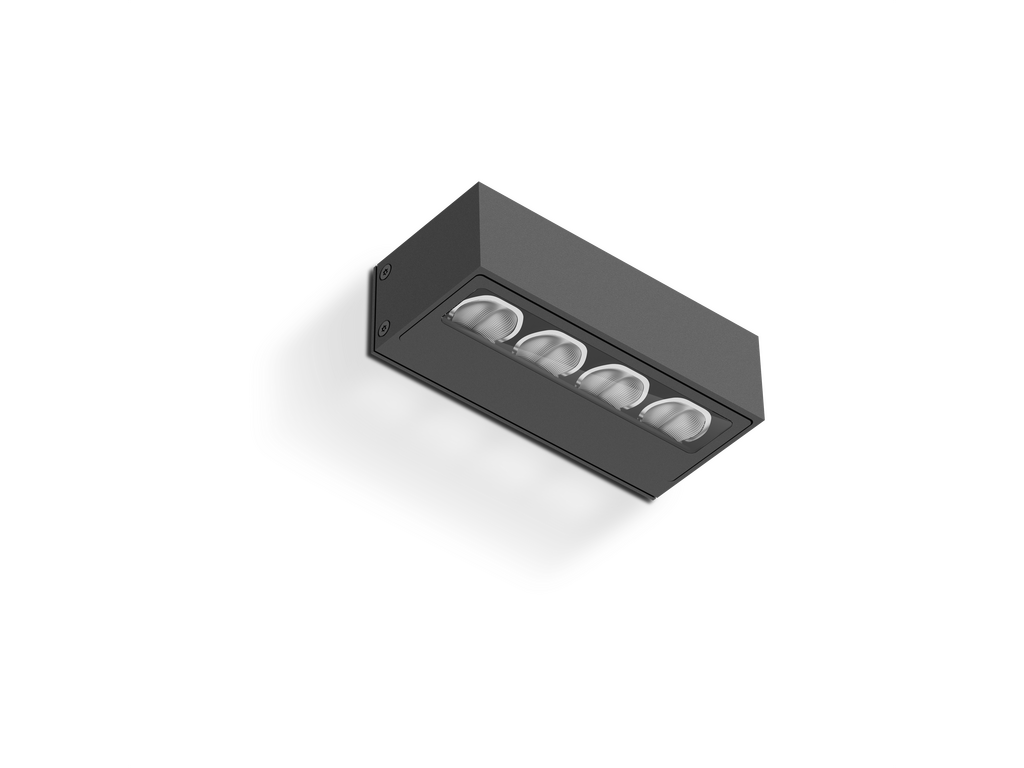

DOGO Forward

QUICK-SHIP
DOGO ForwardDOGO Forward
DOGO ForwardDOGO Forward

LW6048.575-EN

CEDarkSky FriendlyUKCAIK08IP65Class I
Variants
Light distribution

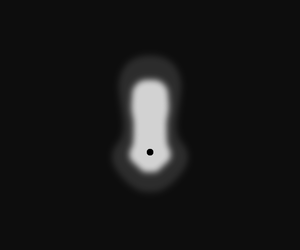

[SLFW] 111x53°
Delivered lumens flux
805 - 2256 lm
Rated input power
10 - 20 W
Colour temperature
2200 K CRI 80, 2700 K CRI 80, 3000 K CRI 80, 4000 K CRI 70, 4000 K CRI 80
BUG rating
B0-U0-G1, B0-U0-G0
Lifetime L90B50 (hour)
>42, 000
Lifetime L80B50 (hour)
>42, 000
Options
Control
On/Off
Product colours
BlackDark greyAnthracite greyLight greyWhiteBronzeCustom colour (Please specify RAL code)
Extras
Mounting options
Extra surface mounting adaptor for a flat wall
Consult the factory
120-277V 50/60Hz
Luminaire body options
Double powder coating

Technical details



Certificates
DarkSky Friendly, CE, UKCA
Mounting
Surface or wall mountable
Housing
Corrosion resistant, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Silicone
Lens / Reflector
High reflectance aluminium coating, multifaceted micro reflector
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP65
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
1.1 kg
LED module
High power LEDs on metal-core PCB
Driver
Integral driver (OnOff), Remote Driver (DALI)
Driver surge protection
1/1 kV
Power factor
> 0.90
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
0.2 m of flexible cable
Packing box dimensions
11*20*7 cm
Notes
3000K CCT or warmer must be selected to be DarkSky International certified., QUICK SHIP: Some variants will be delivered faster. Please consult the factory.

Downloads


Variants


Light distribution
Special linear, Forward throw
[SLFW] Special linear, Forward throw - 111x53°
Delivered lumens flux
805 lm
963 lm
993 lm
1068 lm
1128 lm
1549 lm
1925 lm
1985 lm
2136 lm
2256 lm
Rated input power
10 W
20 W
Colour temperature
2200 K CRI 80
2700 K CRI 80
3000 K CRI 80
4000 K CRI 70
4000 K CRI 80

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LW6048.575-EN-SLFW-350-740
Light distribution: [SLFW] Special linear, Forward throw - 111x53°
Delivered lumens flux: 1128 lm
Rated input power: 10 W
Colour temperature: 4000 K CRI 70
Control: On/Off
LW6048.575-EN-SLFW-350-740
Light distribution
[SLFW] 111x53°
Delivered lumens flux
1128 lm
Rated input power
10 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
112 lm/W
Lamp
4 LED
BUG rating
B0-U0-G1
Lifetime L90B50 (hour)
>42,000
Lifetime L80B50 (hour)
>42,000
Variant code: LW6048.575-EN-SLFW-350-822
Light distribution: [SLFW] Special linear, Forward throw - 111x53°
Delivered lumens flux: 805 lm
Rated input power: 10 W
Colour temperature: 2200 K CRI 80
Control: On/Off
LW6048.575-EN-SLFW-350-822
Light distribution
[SLFW] 111x53°
Delivered lumens flux
805 lm
Rated input power
10 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
80 lm/W
Lamp
4 LED
BUG rating
B0-U0-G0
Lifetime L90B50 (hour)
>42,000
Lifetime L80B50 (hour)
>42,000
Variant code: LW6048.575-EN-SLFW-350-827
Light distribution: [SLFW] Special linear, Forward throw - 111x53°
Delivered lumens flux: 963 lm
Rated input power: 10 W
Colour temperature: 2700 K CRI 80
Control: On/Off
LW6048.575-EN-SLFW-350-827
Light distribution
[SLFW] 111x53°
Delivered lumens flux
963 lm
Rated input power
10 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
96 lm/W
Lamp
4 LED
BUG rating
B0-U0-G1
Lifetime L90B50 (hour)
>42,000
Lifetime L80B50 (hour)
>42,000
Variant code: LW6048.575-EN-SLFW-350-830
Light distribution: [SLFW] Special linear, Forward throw - 111x53°
Delivered lumens flux: 993 lm
Rated input power: 10 W
Colour temperature: 3000 K CRI 80
Control: On/Off
LW6048.575-EN-SLFW-350-830
Light distribution
[SLFW] 111x53°
Delivered lumens flux
993 lm
Rated input power
10 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
99 lm/W
Lamp
4 LED
BUG rating
B0-U0-G1
Lifetime L90B50 (hour)
>42,000
Lifetime L80B50 (hour)
>42,000
Variant code: LW6048.575-EN-SLFW-350-840
Light distribution: [SLFW] Special linear, Forward throw - 111x53°
Delivered lumens flux: 1068 lm
Rated input power: 10 W
Colour temperature: 4000 K CRI 80
Control: On/Off
LW6048.575-EN-SLFW-350-840
Light distribution
[SLFW] 111x53°
Delivered lumens flux
1068 lm
Rated input power
10 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
106 lm/W
Lamp
4 LED
BUG rating
B0-U0-G1
Lifetime L90B50 (hour)
>42,000
Lifetime L80B50 (hour)
>42,000
Variant code: LW6048.575-EN-SLFW-700-740
Light distribution: [SLFW] Special linear, Forward throw - 111x53°
Delivered lumens flux: 2256 lm
Rated input power: 20 W
Colour temperature: 4000 K CRI 70
Control: On/Off
LW6048.575-EN-SLFW-700-740
Light distribution
[SLFW] 111x53°
Delivered lumens flux
2256 lm
Rated input power
20 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
112 lm/W
Lamp
4 LED
BUG rating
B0-U0-G1
Lifetime L90B50 (hour)
>42,000
Lifetime L80B50 (hour)
>42,000
Variant code: LW6048.575-EN-SLFW-700-822
Light distribution: [SLFW] Special linear, Forward throw - 111x53°
Delivered lumens flux: 1549 lm
Rated input power: 20 W
Colour temperature: 2200 K CRI 80
Control: On/Off
LW6048.575-EN-SLFW-700-822
Light distribution
[SLFW] 111x53°
Delivered lumens flux
1549 lm
Rated input power
20 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
77 lm/W
Lamp
4 LED
BUG rating
B0-U0-G1
Lifetime L90B50 (hour)
>42,000
Lifetime L80B50 (hour)
>42,000
Variant code: LW6048.575-EN-SLFW-700-827
Light distribution: [SLFW] Special linear, Forward throw - 111x53°
Delivered lumens flux: 1925 lm
Rated input power: 20 W
Colour temperature: 2700 K CRI 80
Control: On/Off
LW6048.575-EN-SLFW-700-827
Light distribution
[SLFW] 111x53°
Delivered lumens flux
1925 lm
Rated input power
20 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
96 lm/W
Lamp
4 LED
BUG rating
B0-U0-G1
Lifetime L90B50 (hour)
>42,000
Lifetime L80B50 (hour)
>42,000
Variant code: LW6048.575-EN-SLFW-700-830
Light distribution: [SLFW] Special linear, Forward throw - 111x53°
Delivered lumens flux: 1985 lm
Rated input power: 20 W
Colour temperature: 3000 K CRI 80
Control: On/Off
LW6048.575-EN-SLFW-700-830
Light distribution
[SLFW] 111x53°
Delivered lumens flux
1985 lm
Rated input power
20 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
99 lm/W
Lamp
4 LED
BUG rating
B0-U0-G1
Lifetime L90B50 (hour)
>42,000
Lifetime L80B50 (hour)
>42,000
Variant code: LW6048.575-EN-SLFW-700-840
Light distribution: [SLFW] Special linear, Forward throw - 111x53°
Delivered lumens flux: 2136 lm
Rated input power: 20 W
Colour temperature: 4000 K CRI 80
Control: On/Off
LW6048.575-EN-SLFW-700-840
Light distribution
[SLFW] 111x53°
Delivered lumens flux
2136 lm
Rated input power
20 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
106 lm/W
Lamp
4 LED
BUG rating
B0-U0-G1
Lifetime L90B50 (hour)
>42,000
Lifetime L80B50 (hour)
>42,000

Accessories (To be ordered separately)


Accessories (To be ordered separately)


Extras


Extra surface mounting adaptor for a flat wall

[ESMA]

Extra surface mounting adaptor for a flat wall

Mounting options
120-277V 50/60Hz

[UNI]

120-277V 50/60Hz

Consult the factory
Double powder coating

[DPC]

Double powder coating

Luminaire body options
All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Special linear, Forward throw
[SLFW]

Special linear, Forward throw

Drive current


350 mA
[350]

350 mA

700 mA
[700]

700 mA

Colour temperature


2200 K CRI 80
[822]

2200 K CRI 80

2700 K CRI 80
[827]

2700 K CRI 80

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

4000 K CRI 80
[840]

4000 K CRI 80

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

Product colours


Black
[HM1]

Black

Dark grey
[HM2]

Dark grey

Anthracite grey
[HM3]

Anthracite grey

Light grey
[HM4]

Light grey

White
[HM5]

White

Bronze
[HM6]

Bronze

Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)
