IN-LIGHT ML 4 Module

PHASED-OUT
IN-LIGHT ML 4 ModuleIN-LIGHT ML 4 Module
IN-LIGHT ML 4 ModuleIN-LIGHT ML 4 Module

LW2029.674-EN

CEUKCAIK08IP66Class I
Variants

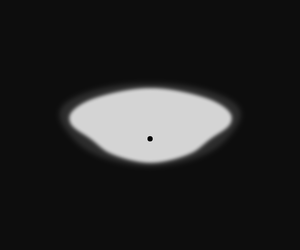

Light distribution
[EL] 130x85°
Delivered lumens flux
10561 - 15900 lm
Rated input power
95 - 135 W
Colour temperature
3000 K CRI 80, 4000 K CRI 70
BUG rating
B3-U0-G2
Lifetime L90B50 (hour)
>60, 000
Lifetime L80B50 (hour)
>60, 000
Options
Control
On/Off, DALI, AutoDIM, StepDIM
Product colours
BlackDark greyAnthracite greyLight greyWhiteBronzeCustom colour (Please specify RAL code)
Extras
Consult the factory
Class II, 120-277V 50/60Hz
Luminaire body options
Double powder coating

Technical details



Certificates
CE, UKCA
Mounting
Direct tray mountable
Housing
Corrosion resistant, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Silicone
Lens / Reflector
High reflectance aluminium coating, multifaceted micro reflector
Glass / Diffusor
Bio-based, enriched with bisphenol A diffusor
Impact protection
IK08
Ingress protection
IP66
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
9.9 kg
LED module
Multi-chip high power LEDs on metal-core PCB
Driver
Internal LED driver
Driver surge protection
8/6 kV
Power factor
> 0.99
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
1 m of halogen-free cable
Notes
This product can be supplied with Insulation class (Class II) upon request. Please contact factory.

Downloads


Variants


Light distribution
Elliptical
[EL] Elliptical - 130x85°
Delivered lumens flux
10561 lm
11355 lm
14788 lm
15900 lm
Rated input power
95 W
135 W
Colour temperature
3000 K CRI 80
4000 K CRI 70

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LW2029.674-EN-EL-500-740
Light distribution: [EL] Elliptical - 130x85°
Delivered lumens flux: 11355 lm
Rated input power: 95 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[EL] 130x85°
Delivered lumens flux
11355 lm
Rated input power
95 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
120 lm/W
Lamp
16 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G2
Lifetime L90B50 (hour)
>60,000
Lifetime L80B50 (hour)
>60,000
Variant code: LW2029.674-EN-EL-500-830
Light distribution: [EL] Elliptical - 130x85°
Delivered lumens flux: 10561 lm
Rated input power: 95 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[EL] 130x85°
Delivered lumens flux
10561 lm
Rated input power
95 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
111 lm/W
Lamp
16 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G2
Lifetime L90B50 (hour)
>60,000
Lifetime L80B50 (hour)
>60,000
Variant code: LW2029.674-EN-EL-700-740
Light distribution: [EL] Elliptical - 130x85°
Delivered lumens flux: 15900 lm
Rated input power: 135 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[EL] 130x85°
Delivered lumens flux
15900 lm
Rated input power
135 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
118 lm/W
Lamp
16 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G2
Lifetime L90B50 (hour)
>60,000
Lifetime L80B50 (hour)
>60,000
Variant code: LW2029.674-EN-EL-700-830
Light distribution: [EL] Elliptical - 130x85°
Delivered lumens flux: 14788 lm
Rated input power: 135 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[EL] 130x85°
Delivered lumens flux
14788 lm
Rated input power
135 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
110 lm/W
Lamp
16 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G2
Lifetime L90B50 (hour)
>60,000
Lifetime L80B50 (hour)
>60,000

Extras


Class II

[C2]

Class II

Consult the factory
120-277V 50/60Hz

[UNI]

120-277V 50/60Hz

Consult the factory
Double powder coating

[DPC]

Double powder coating

Luminaire body options
All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Elliptical
[EL]

Elliptical

Drive current


500 mA
[500]

500 mA

700 mA
[700]

700 mA

Colour temperature


3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

DALI
[DALI]

DALI

AutoDIM
[AUTO]

AutoDIM

StepDIM
[STEP]

StepDIM

Product colours


Black
[HM1]

Black

Dark grey
[HM2]

Dark grey

Anthracite grey
[HM3]

Anthracite grey

Light grey
[HM4]

Light grey

White
[HM5]

White

Bronze
[HM6]

Bronze

Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)
