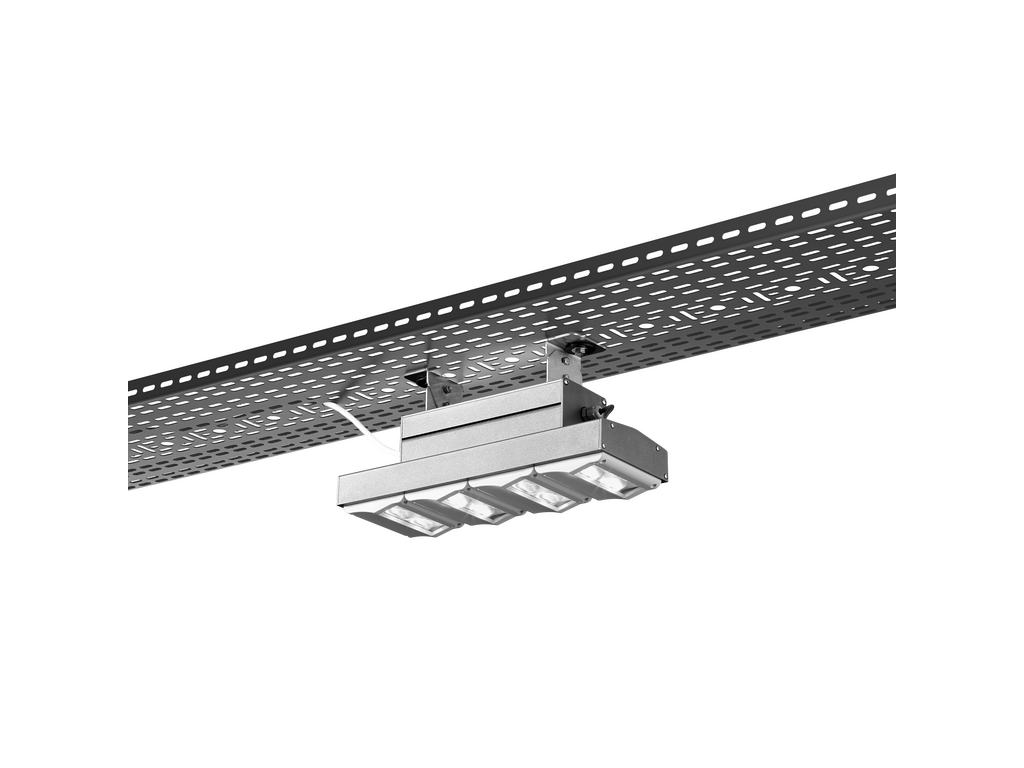

    T-LIGHT ML 4 CB Module

    PHASED-OUT
    T-LIGHT ML 4 CB ModuleT-LIGHT ML 4 CB Module

    LT2029.651-EN

    CEUKCAIK08IP66Class I

    Downloads

    T-LIGHT ML 4 CB ModuleT-LIGHT ML 4 CB Module

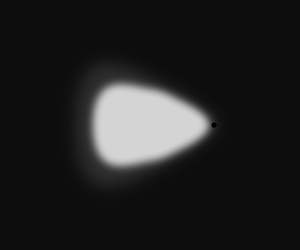

    Light distribution
    [T-CB-C]
    Luminaire luminous flux
    7394 - 7950 lm
    Rated input power
    70 W
    CCT
    3000K, 4000K
    CRI
    Ra70, Ra80
    Control
    On/Off, DALI, AutoDIM, StepDIM
    Product colours
    BlackDark greyAnthracite greyLight greyWhiteBronzeCustom colour (Please specify RAL code)
    Extras
    Consult the factory
    Class II, 120-277V 50/60Hz
    Luminaire body options
    Double powder coating

    Luminaire efficacy
    106 - 114 lm/W
    Colour deviation
    3 SDCM, 4 SDCM
    Lifetime L90B50 (hour)
    >60, 000
    Housing
    Marine grade aluminum housing
    Driver
    Integral LED driver
    Input voltage
    220-240V 50/60Hz
    Notes
    This product can be supplied with Insulation class (Class II) upon request. Please contact factory.
    Configurator
    Project name
    Type
    Quantity
    Date
    Note
    Variant order code

    LT2029.651-EN-T-CB-C-700-___-___-EN-C1-___-___-___

    Variants required



    Variants
    Light distribution
    [T-CB-C]
    Tunnel, Counter beam, Type C

    Rated input power
    [700]
    70 W

    Colour temperature
    [830]
    3000 K CRI 80
    [740]
    4000 K CRI 70
    Options
    Control
    [ONOFF]
    On/Off
    [DALI]
    DALI
    [AUTO]
    AutoDIM
    [STEP]
    StepDIM

    Product colours
    [HM1]Black
    Black
    [HM2]Dark grey
    Dark grey
    [HM3]Anthracite grey
    Anthracite grey
    [HM4]Light grey
    Light grey
    [HM5]White
    White
    [HM6]Bronze
    Bronze
    [CC]Custom colour (Please specify RAL code)
    Custom colour (Please specify RAL code)
    Extras
    Consult the factory
    [C2]
    Class II
    [UNI]
    120-277V 50/60Hz
    Luminaire body options
    [DPC]
    Double powder coating


    Variants required

    Technical details


    Certificates
    CE, UKCA
    Mounting
    Direct tray mountable
    Finishing
    Chromate conversion pretreatment followed by electrostatic powder coating
    Fasteners
    Stainless steel (AISI 304 / EN 1.4301 grade)
    Gasket
    Silicone
    Lens / Reflector
    High reflectance aluminium coating, multifaceted micro reflector
    Glass / Diffusor
    Bio-based, enriched with bisphenol A diffusor
    Impact protection
    IK08
    Ingress protection
    IP66
    Insulation class
    Class I
    Weight
    5.64 kg
    LED module
    Multi-chip high power LEDs on metal-core PCB
    Driver surge protection
    10/6 kV
    Power factor
    > 0.95
    Through wiring
    Single cable entry
    Operating temperature
    -40...50°C
    Cable
    1 m of halogen-free cable

    Extras

    Class II

    [C2]

    Class II

    Consult the factory
    120-277V 50/60Hz

    [UNI]

    120-277V 50/60Hz

    Consult the factory
    Double powder coating

    [DPC]

    Double powder coating

    Luminaire body options
    All flux and power values derived following appropriate IES, CIE and applicable standards.
    Descriptions
    Variants

    Light distribution

    Drive current

    Tunnel, Counter beam, Type C
    [T-CB-C]

    Tunnel, Counter beam, Type C

    Drive current

    700 mA
    [700]

    700 mA

    Colour temperature

    3000 K CRI 80
    [830]

    3000 K CRI 80

    4000 K CRI 70
    [740]

    4000 K CRI 70

    Options

    Control

    Product colours

    On/Off
    [ONOFF]

    On/Off

    DALI
    [DALI]

    DALI

    AutoDIM
    [AUTO]

    AutoDIM

    StepDIM
    [STEP]

    StepDIM

    Product colours

    Black
    [HM1]

    Black

    Dark grey
    [HM2]

    Dark grey

    Anthracite grey
    [HM3]

    Anthracite grey

    Light grey
    [HM4]

    Light grey

    White
    [HM5]

    White

    Bronze
    [HM6]

    Bronze

    Custom colour (Please specify RAL code)
    [CC]

    Custom colour (Please specify RAL code)
