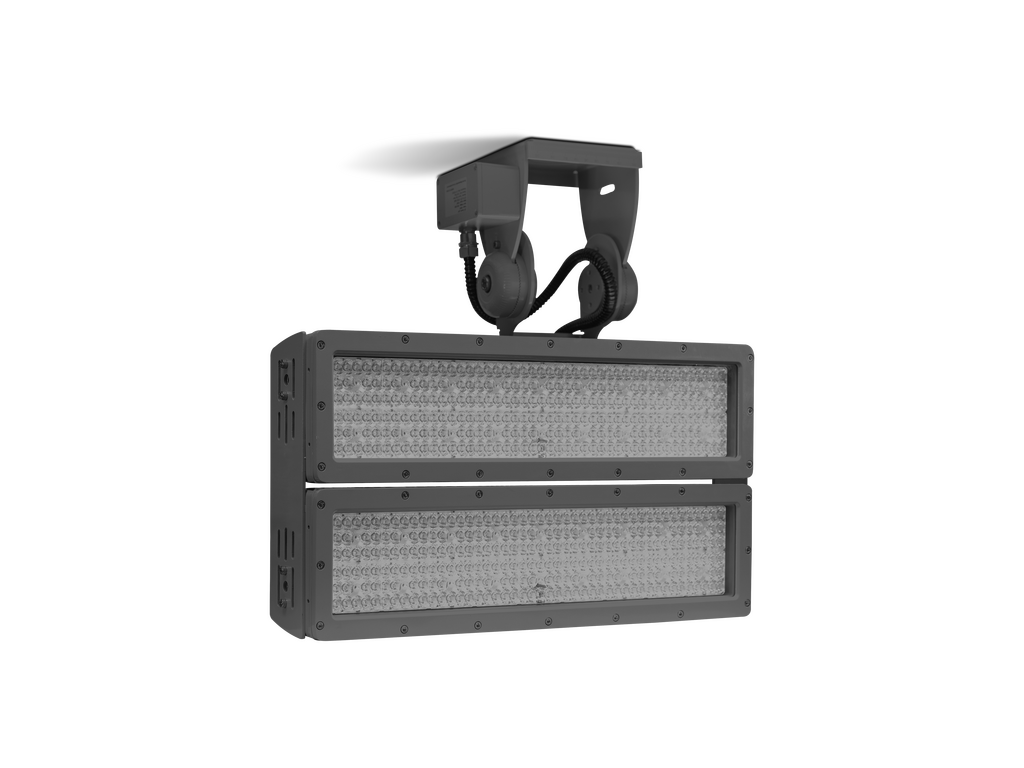

REGIO V2 IN N 2 Module

UPCOMING
REGIO V2 IN N 2 ModuleREGIO V2 IN N 2 Module
REGIO V2 IN N 2 ModuleREGIO V2 IN N 2 Module

LF8039.520-EN

CEUKCAIK08IP66Class I
Variants
Light distribution
[EL] 20x30°, [N] 15°
Delivered lumens flux
81426 - 107048 lm
Rated input power
780 W
Colour temperature
2700 K CRI 80, 3000 K CRI 80, 4000 K CRI 70, 4000 K CRI 80, 5700 K CRI 90
Lifetime L90B10 (hour)
>52, 000
Lifetime L90B50 (hour)
>52, 000
Options
Control
On/Off, DALI
Product colours
Anthracite greyLight greyCustom colour (Please specify RAL code)
Extras
Consult the factory
120-277V 50/60Hz

Technical details



Certificates
CE, UKCA
Mounting
Direct tray mountable
Tilt angle
90°
Rotation angle
±63°
Housing
Corrosion resistant, die-cast, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Silicone
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP66
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
19.0 kg
Driver
Remote LED driver
Driver surge protection
10/6 kV
Power factor
> 0.99
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
1 m of flexible cable

Downloads


Variants


Light distribution
Narrow
[N] Narrow - 15°
Elliptical
[EL] Elliptical - 20x30°
Delivered lumens flux
81426 lm
83067 lm
83237 lm
84789 lm
89196 lm
91139 lm
96911 lm
99104 lm
106448 lm
107048 lm
Rated input power
780 W
Colour temperature
2700 K CRI 80
3000 K CRI 80
4000 K CRI 70
4000 K CRI 80
5700 K CRI 90

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LF8039.520-EN-N-2170-740
Light distribution: [N] Narrow - 15°
Delivered lumens flux: 106448 lm
Rated input power: 780 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LF8039.520-EN-N-2170-740
Light distribution
[N] 15°
Delivered lumens flux
106448 lm
Rated input power
780 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
136 lm/W
Lamp
336 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B10 (hour)
>52,000
Lifetime L90B50 (hour)
>52,000
Variant code: LF8039.520-EN-N-2170-827
Light distribution: [N] Narrow - 15°
Delivered lumens flux: 83067 lm
Rated input power: 780 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LF8039.520-EN-N-2170-827
Light distribution
[N] 15°
Delivered lumens flux
83067 lm
Rated input power
780 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
106 lm/W
Lamp
336 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B10 (hour)
>52,000
Lifetime L90B50 (hour)
>52,000
Variant code: LF8039.520-EN-N-2170-830
Light distribution: [N] Narrow - 15°
Delivered lumens flux: 89196 lm
Rated input power: 780 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LF8039.520-EN-N-2170-830
Light distribution
[N] 15°
Delivered lumens flux
89196 lm
Rated input power
780 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
114 lm/W
Lamp
336 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B10 (hour)
>52,000
Lifetime L90B50 (hour)
>52,000
Variant code: LF8039.520-EN-N-2170-840
Light distribution: [N] Narrow - 15°
Delivered lumens flux: 96911 lm
Rated input power: 780 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
LF8039.520-EN-N-2170-840
Light distribution
[N] 15°
Delivered lumens flux
96911 lm
Rated input power
780 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
124 lm/W
Lamp
336 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B10 (hour)
>52,000
Lifetime L90B50 (hour)
>52,000
Variant code: LF8039.520-EN-N-2170-957
Light distribution: [N] Narrow - 15°
Delivered lumens flux: 81426 lm
Rated input power: 780 W
Colour temperature: 5700 K CRI 90
Control: On/Off, DALI
LF8039.520-EN-N-2170-957
Light distribution
[N] 15°
Delivered lumens flux
81426 lm
Rated input power
780 W
Colour temperature
5700 K CRI 90
Luminaire efficacy
104 lm/W
Lamp
336 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B10 (hour)
>52,000
Lifetime L90B50 (hour)
>52,000
Variant code: LF8039.520-EN-EL-2170-740
Light distribution: [EL] Elliptical - 20x30°
Delivered lumens flux: 107048 lm
Rated input power: 780 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LF8039.520-EN-EL-2170-740
Light distribution
[EL] 20x30°
Delivered lumens flux
107048 lm
Rated input power
780 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
137 lm/W
Lamp
336 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B10 (hour)
>52,000
Lifetime L90B50 (hour)
>52,000
Variant code: LF8039.520-EN-EL-2170-827
Light distribution: [EL] Elliptical - 20x30°
Delivered lumens flux: 84789 lm
Rated input power: 780 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LF8039.520-EN-EL-2170-827
Light distribution
[EL] 20x30°
Delivered lumens flux
84789 lm
Rated input power
780 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
109 lm/W
Lamp
336 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B10 (hour)
>52,000
Lifetime L90B50 (hour)
>52,000
Variant code: LF8039.520-EN-EL-2170-830
Light distribution: [EL] Elliptical - 20x30°
Delivered lumens flux: 91139 lm
Rated input power: 780 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LF8039.520-EN-EL-2170-830
Light distribution
[EL] 20x30°
Delivered lumens flux
91139 lm
Rated input power
780 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
117 lm/W
Lamp
336 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B10 (hour)
>52,000
Lifetime L90B50 (hour)
>52,000
Variant code: LF8039.520-EN-EL-2170-840
Light distribution: [EL] Elliptical - 20x30°
Delivered lumens flux: 99104 lm
Rated input power: 780 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
LF8039.520-EN-EL-2170-840
Light distribution
[EL] 20x30°
Delivered lumens flux
99104 lm
Rated input power
780 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
127 lm/W
Lamp
336 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B10 (hour)
>52,000
Lifetime L90B50 (hour)
>52,000
Variant code: LF8039.520-EN-EL-2170-957
Light distribution: [EL] Elliptical - 20x30°
Delivered lumens flux: 83237 lm
Rated input power: 780 W
Colour temperature: 5700 K CRI 90
Control: On/Off, DALI
LF8039.520-EN-EL-2170-957
Light distribution
[EL] 20x30°
Delivered lumens flux
83237 lm
Rated input power
780 W
Colour temperature
5700 K CRI 90
Luminaire efficacy
107 lm/W
Lamp
336 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B10 (hour)
>52,000
Lifetime L90B50 (hour)
>52,000

Accessories (To be ordered separately)


Accessories (To be ordered separately)


Extras


120-277V 50/60Hz

[UNI]

120-277V 50/60Hz

Consult the factory

All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Narrow
[N]

Narrow

Elliptical
[EL]

Elliptical

Drive current


2170 mA
[2170]

2170 mA

Colour temperature


2700 K CRI 80
[827]

2700 K CRI 80

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

4000 K CRI 80
[840]

4000 K CRI 80

5700 K CRI 90
[957]

5700 K CRI 90

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

DALI
[DALI]

DALI

Product colours


Anthracite grey
[HM3]

Anthracite grey

Light grey
[HM4]

Light grey

Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)
