REGIO 3 Module

REGIO 3 ModuleREGIO 3 ModuleREGIO 3 ModuleREGIO 3 ModuleREGIO 3 Module
REGIO 3 ModuleREGIO 3 ModuleREGIO 3 ModuleREGIO 3 ModuleREGIO 3 Module

LF8035.523-EN

CEUKCAIK08IP66Class I
Variants
Light distribution
[] 26°, [EL] 15x40°, [M] 50°, [MN] 30°, [N] 22°, [W] 111°
Delivered lumens flux
70115 - 99033 lm
Rated input power
687 W
Colour temperature
2700 K CRI 80, 3000 K CRI 80, 4000 K CRI 70, 4000 K CRI 80, 5700 K CRI 90
Lifetime L90B50 (hour)
>102, 000
Lifetime L80B50 (hour)
>102, 000
Options
Control
On/Off, DALI
Product colours
Anthracite greyLight greyCustom colour (Please specify RAL code)
Extras
Consult the factory
120-277V 50/60Hz
Luminaire body options
Double powder coating

Technical details



Certificates
CE, UKCA
Mounting
Surface mountable via a bracket
Tilt angle
+45°/-45°
Housing
Corrosion resistant, die-cast, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Silicone rubber
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP66
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Wind catching area (EPA)
0.25 m²
Weight
36.2 kg
LED module
High power LEDs on metal-core PCB
Driver
Internal LED driver
Driver surge protection
10/10 kV
Power factor
> 0.99
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
1 m of flexible cable

Downloads


Variants


Light distribution
Narrow
[N] Narrow - 22°
[] - 26°
Elliptical

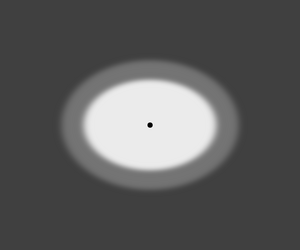

[EL] Elliptical - 15x40°
Wide
[W] Wide - 111°
Medium narrow
[MN] Medium narrow - 30°
Medium
[M] Medium - 50°
Delivered lumens flux
70115 lm
72161 lm
75826 lm
76726 lm
80640 lm
83185 lm
83469 lm
85617 lm
89964 lm
91028 lm
95676 lm
99033 lm
Rated input power
687 W
Colour temperature
2700 K CRI 80
3000 K CRI 80
4000 K CRI 70
4000 K CRI 80
5700 K CRI 90

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LF8035.523-EN-N-700-740
Light distribution: [N] Narrow - 22°
Delivered lumens flux: 99033 lm
Rated input power: 687 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LF8035.523-EN-N-700-740
Light distribution
[N] 22°
Delivered lumens flux
99033 lm
Rated input power
687 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
144 lm/W
Lamp
324 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-N-700-827
Light distribution: [N] Narrow - 22°
Delivered lumens flux: 83469 lm
Rated input power: 687 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LF8035.523-EN-N-700-827
Light distribution
[N] 22°
Delivered lumens flux
83469 lm
Rated input power
687 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
121 lm/W
Lamp
324 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-N-700-830
Light distribution: [N] Narrow - 22°
Delivered lumens flux: 83469 lm
Rated input power: 687 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LF8035.523-EN-N-700-830
Light distribution
[N] 22°
Delivered lumens flux
83469 lm
Rated input power
687 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
121 lm/W
Lamp
324 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-N-700-840
Light distribution: [N] Narrow - 22°
Delivered lumens flux: 83469 lm
Rated input power: 687 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
Light distribution
[N] 22°
Delivered lumens flux
83469 lm
Rated input power
687 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
121 lm/W
Lamp
324 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-N-700-957
Light distribution: [N] Narrow - 22°
Delivered lumens flux: 83469 lm
Rated input power: 687 W
Colour temperature: 5700 K CRI 90
Control: On/Off, DALI
LF8035.523-EN-N-700-957
Light distribution
[N] 22°
Delivered lumens flux
83469 lm
Rated input power
687 W
Colour temperature
5700 K CRI 90
Luminaire efficacy
121 lm/W
Lamp
324 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-MN-700-740
Light distribution: [MN] Medium narrow - 30°
Delivered lumens flux: 91028 lm
Rated input power: 687 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LF8035.523-EN-MN-700-740
Light distribution
[MN] 30°
Delivered lumens flux
91028 lm
Rated input power
687 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
132 lm/W
Lamp
324 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-MN-700-827
Light distribution: [MN] Medium narrow - 30°
Delivered lumens flux: 76726 lm
Rated input power: 687 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LF8035.523-EN-MN-700-827
Light distribution
[MN] 30°
Delivered lumens flux
76726 lm
Rated input power
687 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
111 lm/W
Lamp
324 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-MN-700-830
Light distribution: [MN] Medium narrow - 30°
Delivered lumens flux: 76726 lm
Rated input power: 687 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LF8035.523-EN-MN-700-830
Light distribution
[MN] 30°
Delivered lumens flux
76726 lm
Rated input power
687 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
111 lm/W
Lamp
324 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-MN-700-840
Light distribution: [MN] Medium narrow - 30°
Delivered lumens flux: 76726 lm
Rated input power: 687 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
Light distribution
[MN] 30°
Delivered lumens flux
76726 lm
Rated input power
687 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
111 lm/W
Lamp
324 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-MN-700-957
Light distribution: [MN] Medium narrow - 30°
Delivered lumens flux: 76726 lm
Rated input power: 687 W
Colour temperature: 5700 K CRI 90
Control: On/Off, DALI
LF8035.523-EN-MN-700-957
Light distribution
[MN] 30°
Delivered lumens flux
76726 lm
Rated input power
687 W
Colour temperature
5700 K CRI 90
Luminaire efficacy
111 lm/W
Lamp
324 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-M-700-740
Light distribution: [M] Medium - 50°
Delivered lumens flux: 83185 lm
Rated input power: 687 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
Light distribution
[M] 50°
Delivered lumens flux
83185 lm
Rated input power
687 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
121 lm/W
Lamp
324 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-M-700-827
Light distribution: [M] Medium - 50°
Delivered lumens flux: 70115 lm
Rated input power: 687 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
Light distribution
[M] 50°
Delivered lumens flux
70115 lm
Rated input power
687 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
102 lm/W
Lamp
324 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-M-700-830
Light distribution: [M] Medium - 50°
Delivered lumens flux: 70115 lm
Rated input power: 687 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
Light distribution
[M] 50°
Delivered lumens flux
70115 lm
Rated input power
687 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
102 lm/W
Lamp
324 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-M-700-840
Light distribution: [M] Medium - 50°
Delivered lumens flux: 70115 lm
Rated input power: 687 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
Light distribution
[M] 50°
Delivered lumens flux
70115 lm
Rated input power
687 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
102 lm/W
Lamp
324 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-M-700-957
Light distribution: [M] Medium - 50°
Delivered lumens flux: 70115 lm
Rated input power: 687 W
Colour temperature: 5700 K CRI 90
Control: On/Off, DALI
Light distribution
[M] 50°
Delivered lumens flux
70115 lm
Rated input power
687 W
Colour temperature
5700 K CRI 90
Luminaire efficacy
102 lm/W
Lamp
324 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-W-700-740
Light distribution: [W] Wide - 111°
Delivered lumens flux: 89964 lm
Rated input power: 687 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LF8035.523-EN-W-700-740
Light distribution
[W] 111°
Delivered lumens flux
89964 lm
Rated input power
687 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
130 lm/W
Lamp
324 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-W-700-827
Light distribution: [W] Wide - 111°
Delivered lumens flux: 75826 lm
Rated input power: 687 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LF8035.523-EN-W-700-827
Light distribution
[W] 111°
Delivered lumens flux
75826 lm
Rated input power
687 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
110 lm/W
Lamp
324 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-W-700-830
Light distribution: [W] Wide - 111°
Delivered lumens flux: 75826 lm
Rated input power: 687 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LF8035.523-EN-W-700-830
Light distribution
[W] 111°
Delivered lumens flux
75826 lm
Rated input power
687 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
110 lm/W
Lamp
324 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-W-700-840
Light distribution: [W] Wide - 111°
Delivered lumens flux: 75826 lm
Rated input power: 687 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
Light distribution
[W] 111°
Delivered lumens flux
75826 lm
Rated input power
687 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
110 lm/W
Lamp
324 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-W-700-957
Light distribution: [W] Wide - 111°
Delivered lumens flux: 75826 lm
Rated input power: 687 W
Colour temperature: 5700 K CRI 90
Control: On/Off, DALI
LF8035.523-EN-W-700-957
Light distribution
[W] 111°
Delivered lumens flux
75826 lm
Rated input power
687 W
Colour temperature
5700 K CRI 90
Luminaire efficacy
110 lm/W
Lamp
324 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-EL-700-740
Light distribution: [EL] Elliptical - 15x40°
Delivered lumens flux: 85617 lm
Rated input power: 687 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
Light distribution
[EL] 15x40°
Delivered lumens flux
85617 lm
Rated input power
687 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
124 lm/W
Lamp
324 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-EL-700-827
Light distribution: [EL] Elliptical - 15x40°
Delivered lumens flux: 72161 lm
Rated input power: 687 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
Light distribution
[EL] 15x40°
Delivered lumens flux
72161 lm
Rated input power
687 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
105 lm/W
Lamp
324 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-EL-700-830
Light distribution: [EL] Elliptical - 15x40°
Delivered lumens flux: 72161 lm
Rated input power: 687 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
Light distribution
[EL] 15x40°
Delivered lumens flux
72161 lm
Rated input power
687 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
105 lm/W
Lamp
324 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-EL-700-840
Light distribution: [EL] Elliptical - 15x40°
Delivered lumens flux: 72161 lm
Rated input power: 687 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
Light distribution
[EL] 15x40°
Delivered lumens flux
72161 lm
Rated input power
687 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
105 lm/W
Lamp
324 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-EL-700-957
Light distribution: [EL] Elliptical - 15x40°
Delivered lumens flux: 72161 lm
Rated input power: 687 W
Colour temperature: 5700 K CRI 90
Control: On/Off, DALI
Light distribution
[EL] 15x40°
Delivered lumens flux
72161 lm
Rated input power
687 W
Colour temperature
5700 K CRI 90
Luminaire efficacy
105 lm/W
Lamp
324 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-N2-700-740
Light distribution: [] - 26°
Delivered lumens flux: 95676 lm
Rated input power: 687 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
Delivered lumens flux
95676 lm
Rated input power
687 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
139 lm/W
Lamp
324 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-N2-700-827
Light distribution: [] - 26°
Delivered lumens flux: 80640 lm
Rated input power: 687 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
Delivered lumens flux
80640 lm
Rated input power
687 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
117 lm/W
Lamp
324 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-N2-700-830
Light distribution: [] - 26°
Delivered lumens flux: 80640 lm
Rated input power: 687 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
Delivered lumens flux
80640 lm
Rated input power
687 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
117 lm/W
Lamp
324 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-N2-700-840
Light distribution: [] - 26°
Delivered lumens flux: 80640 lm
Rated input power: 687 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
Delivered lumens flux
80640 lm
Rated input power
687 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
117 lm/W
Lamp
324 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LF8035.523-EN-N2-700-957
Light distribution: [] - 26°
Delivered lumens flux: 80640 lm
Rated input power: 687 W
Colour temperature: 5700 K CRI 90
Control: On/Off, DALI
Delivered lumens flux
80640 lm
Rated input power
687 W
Colour temperature
5700 K CRI 90
Luminaire efficacy
117 lm/W
Lamp
324 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000

All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Narrow
[N]

Narrow

Medium narrow
[MN]

Medium narrow

Medium
[M]

Medium

Wide
[W]

Wide

Elliptical
[EL]

Elliptical

Drive current


700 mA
[700]

700 mA

Colour temperature


2700 K CRI 80
[827]

2700 K CRI 80

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

4000 K CRI 80
[840]

4000 K CRI 80

5700 K CRI 90
[957]

5700 K CRI 90

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

DALI
[DALI]

DALI

Product colours


Anthracite grey
[HM3]

Anthracite grey

Light grey
[HM4]

Light grey

Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)

Extras

Consult the factory

Luminaire body options


120-277V 50/60Hz
[UNI]

120-277V 50/60Hz

Luminaire body options


Double powder coating
[DPC]

Double powder coating
