GOLEDO-T 32 LED

GOLEDO-T 32 LEDGOLEDO-T 32 LEDGOLEDO-T 32 LED
GOLEDO-T 32 LEDGOLEDO-T 32 LEDGOLEDO-T 32 LED

LT2037.761-US

ULIK08IP66Class I
Variants
Light distribution
[T-SYM-A] , [T-ASYM-A] , [T-CB-A]
Nominal LED lumens flux
8904 - 11008 lm
Nominal LED power
64 W (700 mA)
Rated luminaire lumens flux
6835 - 8500 lm
Rated luminaire power
70 W
Colour temperature
4000 K CRI 70, 3000 K CRI 80, 2200 K CRI 70
BUG rating
B3-U0-G3
Lifetime L90B50
>145, 000 hours
Lifetime L80B50
>145, 000 hours
Options
Control
On/Off, 1-10V, DALI, AstroDIM
Input voltage
120-277V 50/60Hz
Insulation class
Class I
Product colours
Black (Textured)Dark grey (Textured)Anthracite grey (Textured)Light grey (Textured)White (Textured)Bronze (Textured)Custom Colour (Please specify RAL code)
Extras
Finishing options
Double coating
Light output
Constant light output

Mounting
Standard strap connection. Sliding mounting bracket is optional through extra
Housing
Corrosion resistant die-cast aluminum housing
Finishing
Electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Gasket
Silicone
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP66
Weight
19.5 lb
LED module
High power LEDs on metal-core PCB
Driver
Thermally-separated internal LED driver
Driver surge protection
6/4 kV
Power factor
> 0.98
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
1 m of halogen-free cable

Downloads


Variants


Light distribution
Tunnel, Asymmetric, Type A
[T-ASYM-A] Tunnel, Asymmetric, Type A
Tunnel, Counter beam, Type A
[T-CB-A] Tunnel, Counter beam, Type A
Tunnel, Symmetric, Type A
[T-SYM-A] Tunnel, Symmetric, Type A
Nominal LED lumens flux
11008 lm
10496 lm
8904 lm
Nominal LED power
64 W
Colour temperature
4000 K CRI 70
3000 K CRI 80
2200 K CRI 70

Variant code

Variant name

Optic

Nominal LED lumens flux




Variant code: LT2037.761-US-T-ASYM-A-700-722
Variant name: LED 32 - 64W - 700mA - 2200K CRI 70
Optic: [T-ASYM-A] Tunnel, Asymmetric, Type A
Nominal LED lumens flux: 8904 lm
Nominal LED lumens flux
8904 lm
Nominal LED power
64 W
Rated luminaire lumens flux
6835 lm
Rated luminaire power
70 W
Luminaire efficacy
98 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50
>145,000 hours
Lifetime L80B50
>145,000 hours
Variant code: LT2037.761-US-T-ASYM-A-700-740
Variant name: LED 32 - 64W - 700mA - 4000K CRI 70
Optic: [T-ASYM-A] Tunnel, Asymmetric, Type A
Nominal LED lumens flux: 11008 lm
Nominal LED lumens flux
11008 lm
Nominal LED power
64 W
Rated luminaire lumens flux
8450 lm
Rated luminaire power
70 W
Luminaire efficacy
121 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G3
Lifetime L90B50
>145,000 hours
Lifetime L80B50
>145,000 hours
Variant code: LT2037.761-US-T-ASYM-A-700-830
Variant name: LED 32 - 64W - 700mA - 3000K CRI 80
Optic: [T-ASYM-A] Tunnel, Asymmetric, Type A
Nominal LED lumens flux: 10496 lm
Nominal LED lumens flux
10496 lm
Nominal LED power
64 W
Rated luminaire lumens flux
7689 lm
Rated luminaire power
70 W
Luminaire efficacy
110 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G3
Lifetime L90B50
>145,000 hours
Lifetime L80B50
>145,000 hours
Variant code: LT2037.761-US-T-CB-A-700-722
Variant name: LED 32 - 64W - 700mA - 2200K CRI 70
Optic: [T-CB-A] Tunnel, Counter beam, Type A
Nominal LED lumens flux: 8904 lm
Nominal LED lumens flux
8904 lm
Nominal LED power
64 W
Rated luminaire lumens flux
6835 lm
Rated luminaire power
70 W
Luminaire efficacy
98 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50
>145,000 hours
Lifetime L80B50
>145,000 hours
Variant code: LT2037.761-US-T-CB-A-700-740
Variant name: LED 32 - 64W - 700mA - 4000K CRI 70
Optic: [T-CB-A] Tunnel, Counter beam, Type A
Nominal LED lumens flux: 11008 lm
Nominal LED lumens flux
11008 lm
Nominal LED power
64 W
Rated luminaire lumens flux
8500 lm
Rated luminaire power
70 W
Luminaire efficacy
121 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G3
Lifetime L90B50
>145,000 hours
Lifetime L80B50
>145,000 hours
Variant code: LT2037.761-US-T-CB-A-700-830
Variant name: LED 32 - 64W - 700mA - 3000K CRI 80
Optic: [T-CB-A] Tunnel, Counter beam, Type A
Nominal LED lumens flux: 10496 lm
Nominal LED lumens flux
10496 lm
Nominal LED power
64 W
Rated luminaire lumens flux
8136 lm
Rated luminaire power
70 W
Luminaire efficacy
116 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G3
Lifetime L90B50
>145,000 hours
Lifetime L80B50
>145,000 hours
Variant code: LT2037.761-US-T-SYM-A-700-722
Variant name: LED 32 - 64W - 700mA - 2200K CRI 70
Optic: [T-SYM-A] Tunnel, Symmetric, Type A
Nominal LED lumens flux: 8904 lm
Nominal LED lumens flux
8904 lm
Nominal LED power
64 W
Rated luminaire lumens flux
6835 lm
Rated luminaire power
70 W
Luminaire efficacy
98 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50
>145,000 hours
Lifetime L80B50
>145,000 hours
Variant code: LT2037.761-US-T-SYM-A-700-740
Variant name: LED 32 - 64W - 700mA - 4000K CRI 70
Optic: [T-SYM-A] Tunnel, Symmetric, Type A
Nominal LED lumens flux: 11008 lm
Nominal LED lumens flux
11008 lm
Nominal LED power
64 W
Rated luminaire lumens flux
8499 lm
Rated luminaire power
70 W
Luminaire efficacy
121 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G3
Lifetime L90B50
>145,000 hours
Lifetime L80B50
>145,000 hours
Variant code: LT2037.761-US-T-SYM-A-700-830
Variant name: LED 32 - 64W - 700mA - 3000K CRI 80
Optic: [T-SYM-A] Tunnel, Symmetric, Type A
Nominal LED lumens flux: 10496 lm
Nominal LED lumens flux
10496 lm
Nominal LED power
64 W
Rated luminaire lumens flux
7734 lm
Rated luminaire power
70 W
Luminaire efficacy
110 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G3
Lifetime L90B50
>145,000 hours
Lifetime L80B50
>145,000 hours
All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current

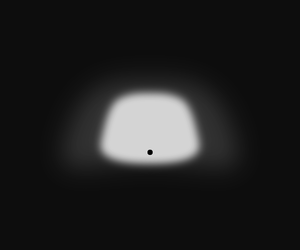

Tunnel, Asymmetric, Type A
[T-ASYM-A]

Tunnel, Asymmetric, Type A

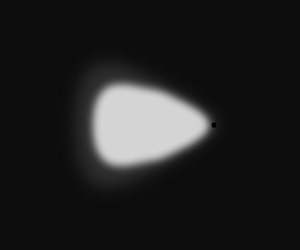

Tunnel, Counter beam, Type A
[T-CB-A]

Tunnel, Counter beam, Type A

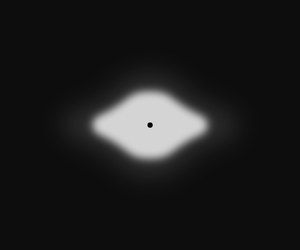

Tunnel, Symmetric, Type A
[T-SYM-A]

Tunnel, Symmetric, Type A

Drive current


700 mA
[700]

700 mA

Colour temperature


2200 K CRI 70
[722]

2200 K CRI 70

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Input voltage


On/Off
[ONOFF]

On/Off

1-10V
[1-10V]

1-10V

DALI
[DALI]

DALI

AstroDIM
[ASTRO]

AstroDIM

Input voltage


120-277V 50/60Hz
[UNI]

120-277V 50/60Hz

Insulation class

Product colours


Class I
[C1]

Class I

Product colours


Black (Textured)
[HM1]

Black (Textured)

Dark grey (Textured)
[HM2]

Dark grey (Textured)

Anthracite grey (Textured)
[HM3]

Anthracite grey (Textured)

Light grey (Textured)
[HM4]

Light grey (Textured)

White (Textured)
[HM5]

White (Textured)

Bronze (Textured)
[HM6]

Bronze (Textured)

Custom Colour (Please specify RAL code)
[CC]

Custom Colour (Please specify RAL code)

Extras

Finishing options

Light output


Double coating
[DC]

Double coating

Light output


Constant light output
[CLO]

Constant light output
