T-LIGHT 2 Module

T-LIGHT 2 ModuleT-LIGHT 2 Module
T-LIGHT 2 ModuleT-LIGHT 2 Module

LT2029.672-EN

CEIK08IP66Class IClass II
Variants
Light distribution
[T-ASYM-C] 130° x 85°, [T-SYM-C] 130° x 85°
Nominal lumens flux
9800 lm, 9120 lm, 9600 lm, 8920 lm
Power
64 W (700 mA)
Colour temperature
4000 K CRI 70, 3000 K CRI 80
Options
Control
On/Off, 1-10V, DALI, StepDIM
Input voltage
220-240V 50/60Hz
Insulation class
Class I, Class II
Product colours
Black (Textured)Dark grey (Textured)Anthracite grey (Textured)Light grey (Textured)White (Textured)Bronze (Textured)Custom Colour (Please specify RAL code)
Extras
Finishing option
Double coating
Light output
Constant light output

Mounting
Direct tray mountable
Housing
Corrosion resistant aluminum housing
Finishing
Electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Gasket
Silicone
Lens / Reflector
High reflectance aluminium coating, multifaceted micro reflector
Glass / Diffusor
Bio-based, enriched with bisphenol A diffusor
Impact protection
IK08
Ingress protection
IP66
LED module
Multi-chip high power LEDs on metal-core PCB
Driver
Thermally-separated internal LED driver
Driver surge protection
10/6 kV
Power factor
> 0.95
Through wiring
Single cable entry
Cable
1 m of halogen-free cable

Downloads


Variants


Light distribution
Tunnel, Asymmetric, Type C
[T-ASYM-C] Tunnel, Asymmetric, Type C - 130° x 85°
Tunnel, Symmetric, Type C
[T-SYM-C] Tunnel, Symmetric, Type C - 130° x 85°
Nominal lumens flux
9800 lm
9120 lm
9600 lm
8920 lm
Power
64 W
Colour temperature
4000 K CRI 70
3000 K CRI 80

Variant code

Variant name

Optic

Nominal lumens flux


Variant code: LT2029.672-EN-T-ASYM-C-700-740
Variant name: MILESTONE 8 - 64W - 700mA - 4000K CRI 70
Optic: [T-ASYM-C] Tunnel, Asymmetric, Type C - 130° x 85°
Nominal lumens flux: 9800 lm
Variant code: LT2029.672-EN-T-ASYM-C-700-830
Variant name: MILESTONE 8 - 64W - 700mA - 3000K CRI 80
Optic: [T-ASYM-C] Tunnel, Asymmetric, Type C - 130° x 85°
Nominal lumens flux: 9120 lm
Variant code: LT2029.672-EN-T-SYM-C-700-740
Variant name: MILESTONE 8 - 64W - 700mA - 4000K CRI 70
Optic: [T-SYM-C] Tunnel, Symmetric, Type C - 130° x 85°
Nominal lumens flux: 9600 lm
Variant code: LT2029.672-EN-T-SYM-C-700-830
Variant name: MILESTONE 8 - 64W - 700mA - 3000K CRI 80
Optic: [T-SYM-C] Tunnel, Symmetric, Type C - 130° x 85°
Nominal lumens flux: 8920 lm

Descriptions
Variants

Light distribution

Drive current

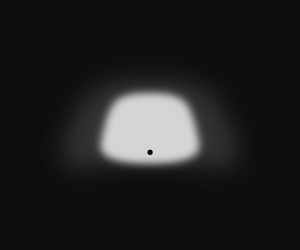

Tunnel, Asymmetric, Type C
[T-ASYM-C]

Tunnel, Asymmetric, Type C

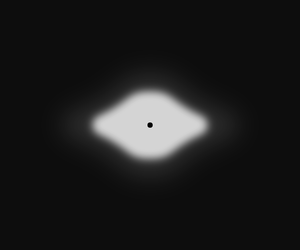

Tunnel, Symmetric, Type C
[T-SYM-C]

Tunnel, Symmetric, Type C

Drive current


700 mA
[700]

700 mA

Colour temperature


3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Input voltage


On/Off
[ONOFF]

On/Off

1-10V
[DIM]

1-10V

DALI
[DALI]

DALI

StepDIM
[STEP]

StepDIM

Input voltage


220-240V 50/60Hz
[EN]

220-240V 50/60Hz

Insulation class

Product colours


Class I
[C1]

Class I

Class II
[C2]

Class II

Product colours


Black (Textured)
[HM1]

Black (Textured)

Dark grey (Textured)
[HM2]

Dark grey (Textured)

Anthracite grey (Textured)
[HM3]

Anthracite grey (Textured)

Light grey (Textured)
[HM4]

Light grey (Textured)

White (Textured)
[HM5]

White (Textured)

Bronze (Textured)
[HM6]

Bronze (Textured)

Custom Colour (Please specify RAL code)
[CC]

Custom Colour (Please specify RAL code)

Extras

Finishing option

Light output


Double coating
[DC]

Double coating

Light output


Constant light output
[CLO]

Constant light output
