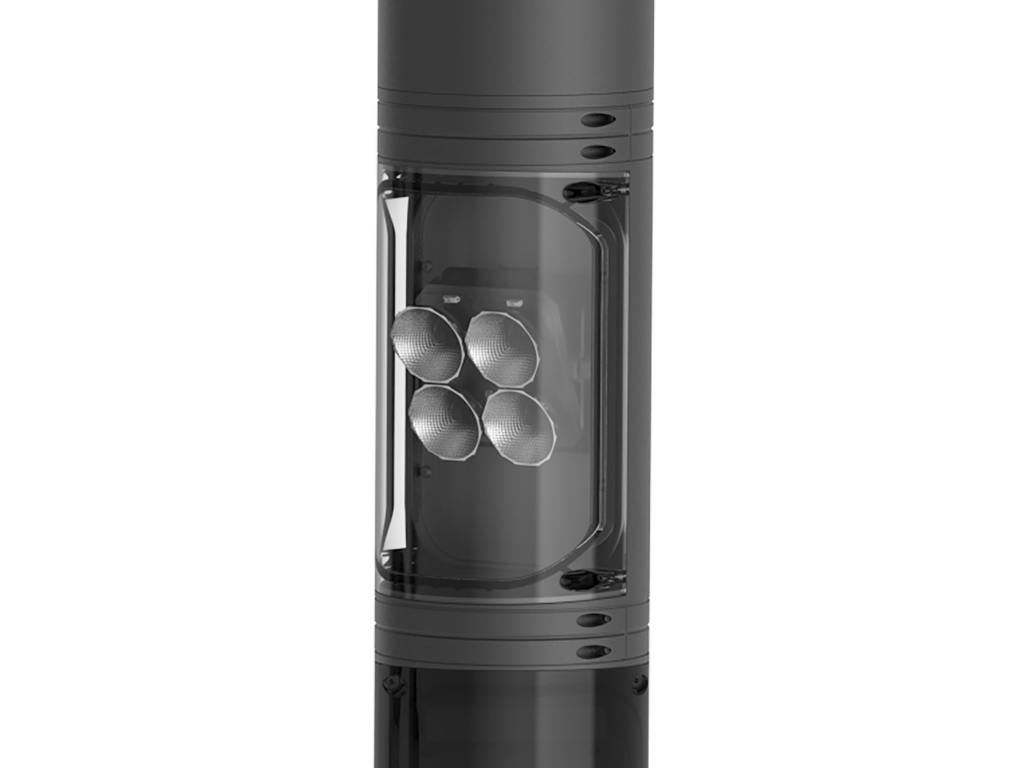

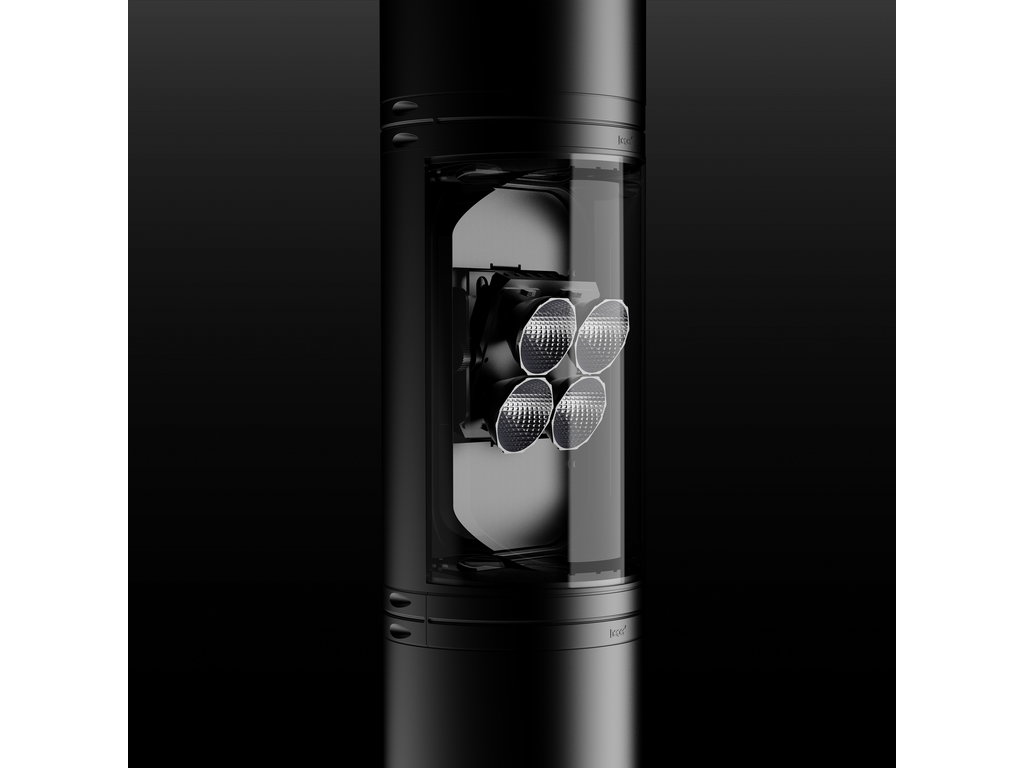

URBAN UNITS Adjustable Floodlight Module

URBAN UNITS  Adjustable Floodlight ModuleURBAN UNITS  Adjustable Floodlight Module
URBAN UNITS  Adjustable Floodlight ModuleURBAN UNITS  Adjustable Floodlight Module

LP4053.695-EN

CEUKCAIK08IP65Class I
Variants
Light distribution
[N] 26°, [S] 7°
Delivered lumens flux
3355 - 4076 lm
Rated input power
35 W
Colour temperature
2700 K CRI 80, 3000 K CRI 80, 4000 K CRI 70, 4000 K CRI 80
BUG rating
B0-U5-G5
Lifetime L90B50 (hour)
>72, 600
Lifetime L80B50 (hour)
>72, 600
Options
Control
On/Off, DALI, AutoDIM, StepDIM
Product colours
BlackDark greyAnthracite greyLight greyWhiteBronzeCustom colour (Please specify RAL code)
Extras
Consult the factory
120-277V 50/60Hz
Luminaire body options
Double powder coating

Technical details



Certificates
CE, UKCA
Tilt angle
+30°/-30°
Housing
Corrosion resistant, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Silicone
Lens / Reflector
High reflectance aluminium coating
Glass / Diffusor
UV stable, bio-based polycarbonate diffusor
Impact protection
IK08
Ingress protection
IP65
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
5.55 kg
LED module
Multi-chip high power LEDs on metal-core PCB
Driver
Internal LED driver
Driver surge protection
10/6 kV
Power factor
> 0.95
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
0.2 m of flexible cable
Notes
Tilt angle adjustment of the module must be done in the factory environment and by the technical team. Please let your sales representative know about the angle degree information.

Downloads


Variants


Light distribution
Spot
[S] Spot - 7°
Narrow
[N] Narrow - 26°
Delivered lumens flux
3355 lm
3397 lm
3810 lm
4076 lm
Rated input power
35 W
Colour temperature
2700 K CRI 80
3000 K CRI 80
4000 K CRI 70
4000 K CRI 80

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LP4053.695-EN-S-700-740
Light distribution: [S] Spot - 7°
Delivered lumens flux: 4076 lm
Rated input power: 35 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4053.695-EN-S-700-740
Light distribution
[S] 7°
Delivered lumens flux
4076 lm
Rated input power
35 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
101 lm/W
Lamp
4 LED
MacAdam Ellipse
5 SDCM
BUG rating
B0-U5-G5
Lifetime L90B50 (hour)
>72,600
Lifetime L80B50 (hour)
>72,600
Variant code: LP4053.695-EN-S-700-827
Light distribution: [S] Spot - 7°
Delivered lumens flux: 3355 lm
Rated input power: 35 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4053.695-EN-S-700-827
Light distribution
[S] 7°
Delivered lumens flux
3355 lm
Rated input power
35 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
83 lm/W
Lamp
4 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B50 (hour)
>72,600
Lifetime L80B50 (hour)
>72,600
Variant code: LP4053.695-EN-S-700-830
Light distribution: [S] Spot - 7°
Delivered lumens flux: 3397 lm
Rated input power: 35 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4053.695-EN-S-700-830
Light distribution
[S] 7°
Delivered lumens flux
3397 lm
Rated input power
35 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
84 lm/W
Lamp
4 LED
MacAdam Ellipse
5 SDCM
BUG rating
B0-U5-G5
Lifetime L90B50 (hour)
>72,600
Lifetime L80B50 (hour)
>72,600
Variant code: LP4053.695-EN-S-700-840
Light distribution: [S] Spot - 7°
Delivered lumens flux: 3810 lm
Rated input power: 35 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4053.695-EN-S-700-840
Light distribution
[S] 7°
Delivered lumens flux
3810 lm
Rated input power
35 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
95 lm/W
Lamp
4 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B50 (hour)
>72,600
Lifetime L80B50 (hour)
>72,600
Variant code: LP4053.695-EN-N-700-740
Light distribution: [N] Narrow - 26°
Delivered lumens flux: 4076 lm
Rated input power: 35 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4053.695-EN-N-700-740
Light distribution
[N] 26°
Delivered lumens flux
4076 lm
Rated input power
35 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
101 lm/W
Lamp
4 LED
MacAdam Ellipse
5 SDCM
BUG rating
B0-U5-G5
Lifetime L90B50 (hour)
>72,600
Lifetime L80B50 (hour)
>72,600
Variant code: LP4053.695-EN-N-700-827
Light distribution: [N] Narrow - 26°
Delivered lumens flux: 3355 lm
Rated input power: 35 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4053.695-EN-N-700-827
Light distribution
[N] 26°
Delivered lumens flux
3355 lm
Rated input power
35 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
83 lm/W
Lamp
4 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B50 (hour)
>72,600
Lifetime L80B50 (hour)
>72,600
Variant code: LP4053.695-EN-N-700-830
Light distribution: [N] Narrow - 26°
Delivered lumens flux: 3397 lm
Rated input power: 35 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4053.695-EN-N-700-830
Light distribution
[N] 26°
Delivered lumens flux
3397 lm
Rated input power
35 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
84 lm/W
Lamp
4 LED
MacAdam Ellipse
5 SDCM
BUG rating
B0-U5-G5
Lifetime L90B50 (hour)
>72,600
Lifetime L80B50 (hour)
>72,600
Variant code: LP4053.695-EN-N-700-840
Light distribution: [N] Narrow - 26°
Delivered lumens flux: 3810 lm
Rated input power: 35 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4053.695-EN-N-700-840
Light distribution
[N] 26°
Delivered lumens flux
3810 lm
Rated input power
35 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
95 lm/W
Lamp
4 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B50 (hour)
>72,600
Lifetime L80B50 (hour)
>72,600

Extras


120-277V 50/60Hz

[UNI]

120-277V 50/60Hz

Consult the factory
Double powder coating

[DPC]

Double powder coating

Luminaire body options

Poles (Included)



All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Spot
[S]

Spot

Narrow
[N]

Narrow

Drive current


700 mA
[700]

700 mA

Colour temperature


2700 K CRI 80
[827]

2700 K CRI 80

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

4000 K CRI 80
[840]

4000 K CRI 80

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

DALI
[DALI]

DALI

AutoDIM
[AUTO]

AutoDIM

StepDIM
[STEP]

StepDIM

Product colours


Black
[HM1]

Black

Dark grey
[HM2]

Dark grey

Anthracite grey
[HM3]

Anthracite grey

Light grey
[HM4]

Light grey

White
[HM5]

White

Bronze
[HM6]

Bronze

Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)
