DOMINO AFX 2 Module

NEW
DOMINO AFX 2 ModuleDOMINO AFX 2 Module
DOMINO AFX 2 ModuleDOMINO AFX 2 Module

LP4034.862-EN

CEIK08IP66Class I
Variants
Light distribution
[P4] 20x78°, [T1] 111x48°, [T2] 133x48°, [T2] 149x54°, [T3] 143x63°, [T4] 117x64°, [T5] 117°
Nominal LED lumens flux
5025 - 11010 lm
Nominal LED power
30 W (350 mA) - 64 W (700 mA)
Rated luminaire lumens flux
3785 - 9085 lm
Rated luminaire power
34 - 71 W
Colour temperature
2700 K CRI 80, 3000 K CRI 80, 4000 K CRI 70, 4000 K CRI 80
BUG rating
B1-U0-G1, B2-U0-G1, B2-U1-G1, B3-U0-G1, B1-U0-G0, B1-U1-G1, B2-U0-G0, B3-U0-G0
Lifetime L90B50 (hour)
>102, 000
Lifetime L80B50 (hour)
>102, 000
Options
Control
On/Off, DALI, AutoDIM, StepDIM
Input voltage
220-240V 50/60Hz, 120-277V 50/60Hz
Product colours
Black (Textured)Dark grey (Textured)Anthracite grey (Textured)Light grey (Textured)White (Textured)Bronze (Textured)Custom colour (Please specify RAL code)
Height
3 m, 4 m, 5 m, 6 m, Custom height (Please specify)
Extras
Finishing options
Marine grade coating
Light output
Constant light output

Technical details



Certificates
CE
Mounting
Surface mountable
Housing
Corrosion resistant, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Gasket
Liquid silicone
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP66
Insulation class
Class I
Weight
42.8 kg (4 m), 59.6 kg (5 m)
LED module
High power LEDs on metal-core PCB
Driver
Internal LED driver
Driver surge protection
10/6 kV
Power factor
> 0.95
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
0.5 m of flexible cable
Pole detail
Poles are supplied with flange plate. Flange cover and anchorage can be ordered separately. Embedded base is optional

Downloads


Variants


Light distribution
Type I, Asymmetric, Side throw
[T1] Type I, Asymmetric, Side throw - 111x48°

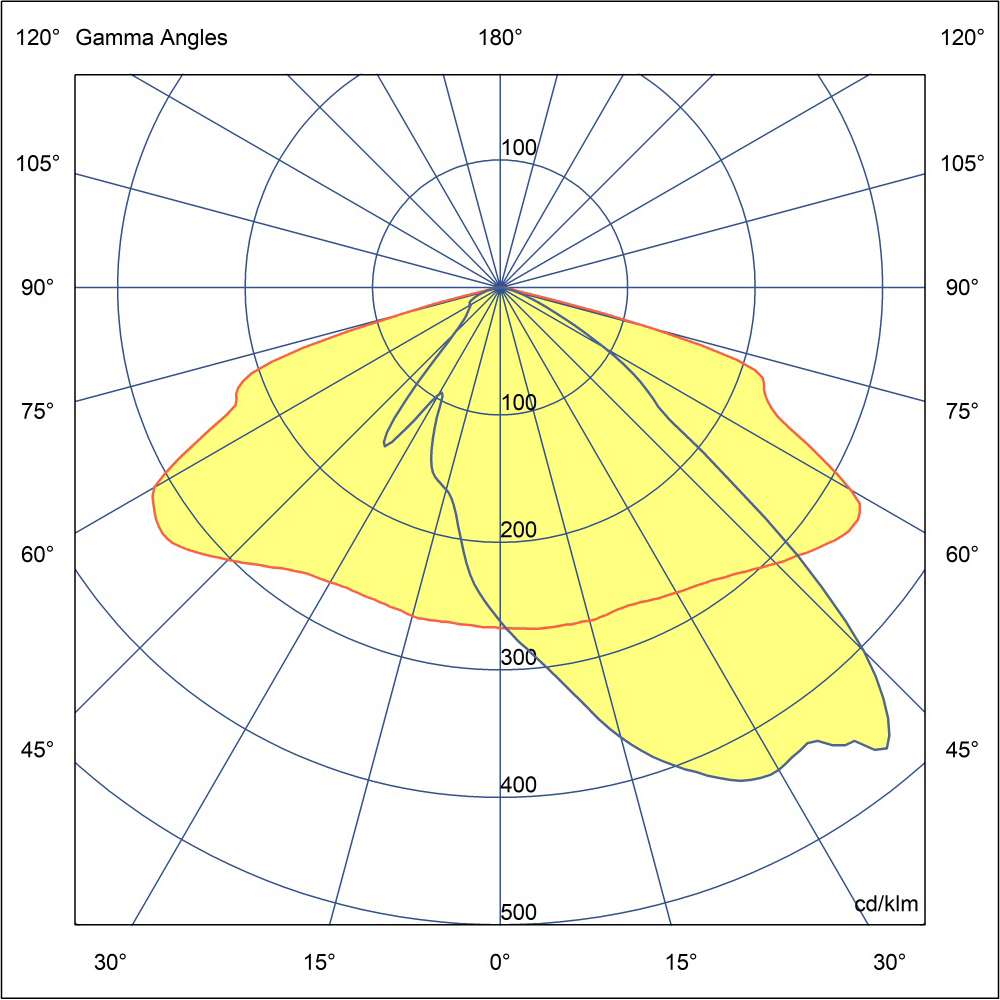

Type II, Asymmetric, Side throw
[T2] Type II, Asymmetric, Side throw - 133x48°
Type II, Asymmetric, Side throw
[T2] Type II, Asymmetric, Side throw - 149x54°
Type III, Asymmetric, Side throw
[T3] Type III, Asymmetric, Side throw - 143x63°
Type IV, Asymmetric, Forward throw
[T4] Type IV, Asymmetric, Forward throw - 117x64°
Type V, Symmetric
[T5] Type V, Symmetric - 117°
Special pedestrian road distribution-right side traffic
[P4] Special pedestrian road distribution-right side traffic - 20x78°
Nominal LED lumens flux
5025 lm
5730 lm
7170 lm
8400 lm
9280 lm
11010 lm
Nominal LED power
30 W
46 W
64 W
Colour temperature
2700 K CRI 80
3000 K CRI 80
4000 K CRI 70
4000 K CRI 80

Variant code

Variant name

Optic

Nominal LED lumens flux




Variant code: LP4034.862-EN-T1-350-740
Variant name: AreaFlex 32 - 30 W - 350 mA - 4000 K CRI 70
Optic: [T1] Type I, Asymmetric, Side throw - 111x48°
Nominal LED lumens flux: 5730 lm
Nominal LED lumens flux
5730 lm
Nominal LED power
30 W
Rated luminaire lumens flux
4830 lm
Rated luminaire power
34 W
Luminaire efficacy
142 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T1-350-827
Variant name: AreaFlex 32 - 30 W - 350 mA - 2700 K CRI 80
Optic: [T1] Type I, Asymmetric, Side throw - 111x48°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
4235 lm
Rated luminaire power
34 W
Luminaire efficacy
125 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T1-350-830
Variant name: AreaFlex 32 - 30 W - 350 mA - 3000 K CRI 80
Optic: [T1] Type I, Asymmetric, Side throw - 111x48°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
4235 lm
Rated luminaire power
34 W
Luminaire efficacy
125 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T1-350-840
Variant name: AreaFlex 32 - 30 W - 350 mA - 4000 K CRI 80
Optic: [T1] Type I, Asymmetric, Side throw - 111x48°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
4235 lm
Rated luminaire power
34 W
Luminaire efficacy
125 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T1-500-740
Variant name: AreaFlex 32 - 46 W - 500 mA - 4000 K CRI 70
Optic: [T1] Type I, Asymmetric, Side throw - 111x48°
Nominal LED lumens flux: 8400 lm
Nominal LED lumens flux
8400 lm
Nominal LED power
46 W
Rated luminaire lumens flux
6785 lm
Rated luminaire power
50 W
Luminaire efficacy
135 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T1-500-827
Variant name: AreaFlex 32 - 46 W - 500 mA - 2700 K CRI 80
Optic: [T1] Type I, Asymmetric, Side throw - 111x48°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5790 lm
Rated luminaire power
50 W
Luminaire efficacy
115 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T1-500-830
Variant name: AreaFlex 32 - 46 W - 500 mA - 3000 K CRI 80
Optic: [T1] Type I, Asymmetric, Side throw - 111x48°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5790 lm
Rated luminaire power
50 W
Luminaire efficacy
115 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T1-500-840
Variant name: AreaFlex 32 - 46 W - 500 mA - 4000 K CRI 80
Optic: [T1] Type I, Asymmetric, Side throw - 111x48°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5790 lm
Rated luminaire power
50 W
Luminaire efficacy
115 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T1-700-740
Variant name: AreaFlex 32 - 64 W - 700 mA - 4000 K CRI 70
Optic: [T1] Type I, Asymmetric, Side throw - 111x48°
Nominal LED lumens flux: 11010 lm
Nominal LED lumens flux
11010 lm
Nominal LED power
64 W
Rated luminaire lumens flux
8925 lm
Rated luminaire power
70 W
Luminaire efficacy
128 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T1-700-827
Variant name: AreaFlex 32 - 64 W - 700 mA - 2700 K CRI 80
Optic: [T1] Type I, Asymmetric, Side throw - 111x48°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
7500 lm
Rated luminaire power
70 W
Luminaire efficacy
107 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T1-700-830
Variant name: AreaFlex 32 - 64 W - 700 mA - 3000 K CRI 80
Optic: [T1] Type I, Asymmetric, Side throw - 111x48°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
7500 lm
Rated luminaire power
70 W
Luminaire efficacy
107 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T1-700-840
Variant name: AreaFlex 32 - 64 W - 700 mA - 4000 K CRI 80
Optic: [T1] Type I, Asymmetric, Side throw - 111x48°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
7500 lm
Rated luminaire power
70 W
Luminaire efficacy
107 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-350-740
Variant name: AreaFlex 32 - 30 W - 350 mA - 4000 K CRI 70
Optic: [T2] Type II, Asymmetric, Side throw - 133x48°
Nominal LED lumens flux: 5730 lm
Nominal LED lumens flux
5730 lm
Nominal LED power
30 W
Rated luminaire lumens flux
4510 lm
Rated luminaire power
34 W
Luminaire efficacy
133 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-350-827
Variant name: AreaFlex 32 - 30 W - 350 mA - 2700 K CRI 80
Optic: [T2] Type II, Asymmetric, Side throw - 133x48°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
3955 lm
Rated luminaire power
34 W
Luminaire efficacy
116 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-350-830
Variant name: AreaFlex 32 - 30 W - 350 mA - 3000 K CRI 80
Optic: [T2] Type II, Asymmetric, Side throw - 133x48°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
3955 lm
Rated luminaire power
34 W
Luminaire efficacy
116 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-350-840
Variant name: AreaFlex 32 - 30 W - 350 mA - 4000 K CRI 80
Optic: [T2] Type II, Asymmetric, Side throw - 133x48°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
3955 lm
Rated luminaire power
34 W
Luminaire efficacy
116 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-500-740
Variant name: AreaFlex 32 - 46 W - 500 mA - 4000 K CRI 70
Optic: [T2] Type II, Asymmetric, Side throw - 133x48°
Nominal LED lumens flux: 8400 lm
Nominal LED lumens flux
8400 lm
Nominal LED power
46 W
Rated luminaire lumens flux
6880 lm
Rated luminaire power
50 W
Luminaire efficacy
137 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-500-827
Variant name: AreaFlex 32 - 46 W - 500 mA - 2700 K CRI 80
Optic: [T2] Type II, Asymmetric, Side throw - 133x48°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5870 lm
Rated luminaire power
50 W
Luminaire efficacy
117 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-500-830
Variant name: AreaFlex 32 - 46 W - 500 mA - 3000 K CRI 80
Optic: [T2] Type II, Asymmetric, Side throw - 133x48°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5870 lm
Rated luminaire power
50 W
Luminaire efficacy
117 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-500-840
Variant name: AreaFlex 32 - 46 W - 500 mA - 4000 K CRI 80
Optic: [T2] Type II, Asymmetric, Side throw - 133x48°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5870 lm
Rated luminaire power
50 W
Luminaire efficacy
117 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-700-740
Variant name: AreaFlex 32 - 64 W - 700 mA - 4000 K CRI 70
Optic: [T2] Type II, Asymmetric, Side throw - 133x48°
Nominal LED lumens flux: 11010 lm
Nominal LED lumens flux
11010 lm
Nominal LED power
64 W
Rated luminaire lumens flux
9085 lm
Rated luminaire power
70 W
Luminaire efficacy
130 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-700-827
Variant name: AreaFlex 32 - 64 W - 700 mA - 2700 K CRI 80
Optic: [T2] Type II, Asymmetric, Side throw - 133x48°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
6980 lm
Rated luminaire power
71 W
Luminaire efficacy
99 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-700-830
Variant name: AreaFlex 32 - 64 W - 700 mA - 3000 K CRI 80
Optic: [T2] Type II, Asymmetric, Side throw - 133x48°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
6980 lm
Rated luminaire power
71 W
Luminaire efficacy
99 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-700-840
Variant name: AreaFlex 32 - 64 W - 700 mA - 4000 K CRI 80
Optic: [T2] Type II, Asymmetric, Side throw - 133x48°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
6980 lm
Rated luminaire power
70 W
Luminaire efficacy
99 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-2-350-740
Variant name: AreaFlex 32 - 30 W - 350 mA - 4000 K CRI 70
Optic: [T2] Type II, Asymmetric, Side throw - 149x54°
Nominal LED lumens flux: 5730 lm
Nominal LED lumens flux
5730 lm
Nominal LED power
30 W
Rated luminaire lumens flux
4585 lm
Rated luminaire power
34 W
Luminaire efficacy
135 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-2-350-827
Variant name: AreaFlex 32 - 30 W - 350 mA - 2700 K CRI 80
Optic: [T2] Type II, Asymmetric, Side throw - 149x54°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
4020 lm
Rated luminaire power
34 W
Luminaire efficacy
118 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-2-350-830
Variant name: AreaFlex 32 - 30 W - 350 mA - 3000 K CRI 80
Optic: [T2] Type II, Asymmetric, Side throw - 149x54°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
4020 lm
Rated luminaire power
34 W
Luminaire efficacy
118 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-2-350-840
Variant name: AreaFlex 32 - 30 W - 350 mA - 4000 K CRI 80
Optic: [T2] Type II, Asymmetric, Side throw - 149x54°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
4020 lm
Rated luminaire power
34 W
Luminaire efficacy
118 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-2-500-740
Variant name: AreaFlex 32 - 46 W - 500 mA - 4000 K CRI 70
Optic: [T2] Type II, Asymmetric, Side throw - 149x54°
Nominal LED lumens flux: 8400 lm
Nominal LED lumens flux
8400 lm
Nominal LED power
46 W
Rated luminaire lumens flux
6635 lm
Rated luminaire power
50 W
Luminaire efficacy
132 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-2-500-827
Variant name: AreaFlex 32 - 46 W - 500 mA - 2700 K CRI 80
Optic: [T2] Type II, Asymmetric, Side throw - 149x54°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5665 lm
Rated luminaire power
50 W
Luminaire efficacy
113 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-2-500-830
Variant name: AreaFlex 32 - 46 W - 500 mA - 3000 K CRI 80
Optic: [T2] Type II, Asymmetric, Side throw - 149x54°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5665 lm
Rated luminaire power
50 W
Luminaire efficacy
113 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-2-500-840
Variant name: AreaFlex 32 - 46 W - 500 mA - 4000 K CRI 80
Optic: [T2] Type II, Asymmetric, Side throw - 149x54°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5665 lm
Rated luminaire power
50 W
Luminaire efficacy
113 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-2-700-740
Variant name: AreaFlex 32 - 64 W - 700 mA - 4000 K CRI 70
Optic: [T2] Type II, Asymmetric, Side throw - 149x54°
Nominal LED lumens flux: 11010 lm
Nominal LED lumens flux
11010 lm
Nominal LED power
64 W
Rated luminaire lumens flux
8675 lm
Rated luminaire power
70 W
Luminaire efficacy
124 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-2-700-827
Variant name: AreaFlex 32 - 64 W - 700 mA - 2700 K CRI 80
Optic: [T2] Type II, Asymmetric, Side throw - 149x54°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
7600 lm
Rated luminaire power
70 W
Luminaire efficacy
108 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-2-700-830
Variant name: AreaFlex 32 - 64 W - 700 mA - 3000 K CRI 80
Optic: [T2] Type II, Asymmetric, Side throw - 149x54°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
7600 lm
Rated luminaire power
70 W
Luminaire efficacy
108 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T2-2-700-840
Variant name: AreaFlex 32 - 64 W - 700 mA - 4000 K CRI 80
Optic: [T2] Type II, Asymmetric, Side throw - 149x54°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
7600 lm
Rated luminaire power
70 W
Luminaire efficacy
108 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T3-350-740
Variant name: AreaFlex 32 - 30 W - 350 mA - 4000 K CRI 70
Optic: [T3] Type III, Asymmetric, Side throw - 143x63°
Nominal LED lumens flux: 5730 lm
Nominal LED lumens flux
5730 lm
Nominal LED power
30 W
Rated luminaire lumens flux
4315 lm
Rated luminaire power
34 W
Luminaire efficacy
127 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T3-350-827
Variant name: AreaFlex 32 - 30 W - 350 mA - 2700 K CRI 80
Optic: [T3] Type III, Asymmetric, Side throw - 143x63°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
3785 lm
Rated luminaire power
34 W
Luminaire efficacy
111 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T3-350-830
Variant name: AreaFlex 32 - 30 W - 350 mA - 3000 K CRI 80
Optic: [T3] Type III, Asymmetric, Side throw - 143x63°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
3785 lm
Rated luminaire power
34 W
Luminaire efficacy
111 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T3-350-840
Variant name: AreaFlex 32 - 30 W - 350 mA - 4000 K CRI 80
Optic: [T3] Type III, Asymmetric, Side throw - 143x63°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
3785 lm
Rated luminaire power
34 W
Luminaire efficacy
111 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T3-500-740
Variant name: AreaFlex 32 - 46 W - 500 mA - 4000 K CRI 70
Optic: [T3] Type III, Asymmetric, Side throw - 143x63°
Nominal LED lumens flux: 8400 lm
Nominal LED lumens flux
8400 lm
Nominal LED power
46 W
Rated luminaire lumens flux
6315 lm
Rated luminaire power
50 W
Luminaire efficacy
126 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T3-500-827
Variant name: AreaFlex 32 - 46 W - 500 mA - 2700 K CRI 80
Optic: [T3] Type III, Asymmetric, Side throw - 143x63°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5390 lm
Rated luminaire power
50 W
Luminaire efficacy
107 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T3-500-830
Variant name: AreaFlex 32 - 46 W - 500 mA - 3000 K CRI 80
Optic: [T3] Type III, Asymmetric, Side throw - 143x63°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5390 lm
Rated luminaire power
50 W
Luminaire efficacy
107 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T3-500-840
Variant name: AreaFlex 32 - 46 W - 500 mA - 4000 K CRI 80
Optic: [T3] Type III, Asymmetric, Side throw - 143x63°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5390 lm
Rated luminaire power
50 W
Luminaire efficacy
107 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T3-700-740
Variant name: AreaFlex 32 - 64 W - 700 mA - 4000 K CRI 70
Optic: [T3] Type III, Asymmetric, Side throw - 143x63°
Nominal LED lumens flux: 11010 lm
Nominal LED lumens flux
11010 lm
Nominal LED power
64 W
Rated luminaire lumens flux
8240 lm
Rated luminaire power
71 W
Luminaire efficacy
116 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T3-700-827
Variant name: AreaFlex 32 - 64 W - 700 mA - 2700 K CRI 80
Optic: [T3] Type III, Asymmetric, Side throw - 143x63°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
6980 lm
Rated luminaire power
71 W
Luminaire efficacy
98 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T3-700-830
Variant name: AreaFlex 32 - 64 W - 700 mA - 3000 K CRI 80
Optic: [T3] Type III, Asymmetric, Side throw - 143x63°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
6980 lm
Rated luminaire power
71 W
Luminaire efficacy
98 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T3-700-840
Variant name: AreaFlex 32 - 64 W - 700 mA - 4000 K CRI 80
Optic: [T3] Type III, Asymmetric, Side throw - 143x63°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
6980 lm
Rated luminaire power
71 W
Luminaire efficacy
98 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T4-350-740
Variant name: AreaFlex 32 - 30 W - 350 mA - 4000 K CRI 70
Optic: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Nominal LED lumens flux: 5730 lm
Nominal LED lumens flux
5730 lm
Nominal LED power
30 W
Rated luminaire lumens flux
4520 lm
Rated luminaire power
34 W
Luminaire efficacy
133 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T4-350-827
Variant name: AreaFlex 32 - 30 W - 350 mA - 2700 K CRI 80
Optic: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
3965 lm
Rated luminaire power
34 W
Luminaire efficacy
117 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T4-350-830
Variant name: AreaFlex 32 - 30 W - 350 mA - 3000 K CRI 80
Optic: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
3965 lm
Rated luminaire power
34 W
Luminaire efficacy
117 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T4-350-840
Variant name: AreaFlex 32 - 30 W - 350 mA - 4000 K CRI 80
Optic: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
3965 lm
Rated luminaire power
34 W
Luminaire efficacy
117 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T4-500-740
Variant name: AreaFlex 32 - 46 W - 500 mA - 4000 K CRI 70
Optic: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Nominal LED lumens flux: 8400 lm
Nominal LED lumens flux
8400 lm
Nominal LED power
46 W
Rated luminaire lumens flux
6565 lm
Rated luminaire power
50 W
Luminaire efficacy
131 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T4-500-827
Variant name: AreaFlex 32 - 46 W - 500 mA - 2700 K CRI 80
Optic: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5605 lm
Rated luminaire power
50 W
Luminaire efficacy
112 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T4-500-830
Variant name: AreaFlex 32 - 46 W - 500 mA - 3000 K CRI 80
Optic: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5605 lm
Rated luminaire power
50 W
Luminaire efficacy
112 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T4-500-840
Variant name: AreaFlex 32 - 46 W - 500 mA - 4000 K CRI 80
Optic: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5605 lm
Rated luminaire power
50 W
Luminaire efficacy
112 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T4-700-740
Variant name: AreaFlex 32 - 64 W - 700 mA - 4000 K CRI 70
Optic: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Nominal LED lumens flux: 11010 lm
Nominal LED lumens flux
11010 lm
Nominal LED power
64 W
Rated luminaire lumens flux
8705 lm
Rated luminaire power
71 W
Luminaire efficacy
123 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T4-700-827
Variant name: AreaFlex 32 - 64 W - 700 mA - 2700 K CRI 80
Optic: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
7255 lm
Rated luminaire power
70 W
Luminaire efficacy
102 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T4-700-830
Variant name: AreaFlex 32 - 64 W - 700 mA - 3000 K CRI 80
Optic: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
7255 lm
Rated luminaire power
70 W
Luminaire efficacy
102 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T4-700-840
Variant name: AreaFlex 32 - 64 W - 700 mA - 4000 K CRI 80
Optic: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
7255 lm
Rated luminaire power
71 W
Luminaire efficacy
102 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T5-350-740
Variant name: AreaFlex 32 - 30 W - 350 mA - 4000 K CRI 70
Optic: [T5] Type V, Symmetric - 117°
Nominal LED lumens flux: 5730 lm
Nominal LED lumens flux
5730 lm
Nominal LED power
30 W
Rated luminaire lumens flux
4690 lm
Rated luminaire power
34 W
Luminaire efficacy
138 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T5-350-827
Variant name: AreaFlex 32 - 30 W - 350 mA - 2700 K CRI 80
Optic: [T5] Type V, Symmetric - 117°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
4115 lm
Rated luminaire power
34 W
Luminaire efficacy
121 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T5-350-830
Variant name: AreaFlex 32 - 30 W - 350 mA - 3000 K CRI 80
Optic: [T5] Type V, Symmetric - 117°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
4115 lm
Rated luminaire power
34 W
Luminaire efficacy
121 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T5-350-840
Variant name: AreaFlex 32 - 30 W - 350 mA - 4000 K CRI 80
Optic: [T5] Type V, Symmetric - 117°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
4115 lm
Rated luminaire power
34 W
Luminaire efficacy
121 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T5-500-740
Variant name: AreaFlex 32 - 46 W - 500 mA - 4000 K CRI 70
Optic: [T5] Type V, Symmetric - 117°
Nominal LED lumens flux: 8400 lm
Nominal LED lumens flux
8400 lm
Nominal LED power
46 W
Rated luminaire lumens flux
6920 lm
Rated luminaire power
50 W
Luminaire efficacy
138 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T5-500-827
Variant name: AreaFlex 32 - 46 W - 500 mA - 2700 K CRI 80
Optic: [T5] Type V, Symmetric - 117°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5910 lm
Rated luminaire power
50 W
Luminaire efficacy
118 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T5-500-830
Variant name: AreaFlex 32 - 46 W - 500 mA - 3000 K CRI 80
Optic: [T5] Type V, Symmetric - 117°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5910 lm
Rated luminaire power
50 W
Luminaire efficacy
118 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T5-500-840
Variant name: AreaFlex 32 - 46 W - 500 mA - 4000 K CRI 80
Optic: [T5] Type V, Symmetric - 117°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5910 lm
Rated luminaire power
50 W
Luminaire efficacy
118 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T5-700-740
Variant name: AreaFlex 32 - 64 W - 700 mA - 4000 K CRI 70
Optic: [T5] Type V, Symmetric - 117°
Nominal LED lumens flux: 11010 lm
Nominal LED lumens flux
11010 lm
Nominal LED power
64 W
Rated luminaire lumens flux
8940 lm
Rated luminaire power
70 W
Luminaire efficacy
128 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T5-700-827
Variant name: AreaFlex 32 - 64 W - 700 mA - 2700 K CRI 80
Optic: [T5] Type V, Symmetric - 117°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
7645 lm
Rated luminaire power
71 W
Luminaire efficacy
109 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T5-700-830
Variant name: AreaFlex 32 - 64 W - 700 mA - 3000 K CRI 80
Optic: [T5] Type V, Symmetric - 117°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
7645 lm
Rated luminaire power
71 W
Luminaire efficacy
109 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-T5-700-840
Variant name: AreaFlex 32 - 64 W - 700 mA - 4000 K CRI 80
Optic: [T5] Type V, Symmetric - 117°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
7645 lm
Rated luminaire power
70 W
Luminaire efficacy
109 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-P4-350-740
Variant name: AreaFlex 32 - 30 W - 350 mA - 4000 K CRI 70
Optic: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Nominal LED lumens flux: 5730 lm
Nominal LED lumens flux
5730 lm
Nominal LED power
30 W
Rated luminaire lumens flux
4690 lm
Rated luminaire power
34 W
Luminaire efficacy
138 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-P4-350-827
Variant name: AreaFlex 32 - 30 W - 350 mA - 2700 K CRI 80
Optic: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
4115 lm
Rated luminaire power
34 W
Luminaire efficacy
121 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-P4-350-830
Variant name: AreaFlex 32 - 30 W - 350 mA - 3000 K CRI 80
Optic: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
4115 lm
Rated luminaire power
34 W
Luminaire efficacy
121 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-P4-350-840
Variant name: AreaFlex 32 - 30 W - 350 mA - 4000 K CRI 80
Optic: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Nominal LED lumens flux: 5025 lm
Nominal LED lumens flux
5025 lm
Nominal LED power
30 W
Rated luminaire lumens flux
4115 lm
Rated luminaire power
34 W
Luminaire efficacy
121 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-P4-500-740
Variant name: AreaFlex 32 - 46 W - 500 mA - 4000 K CRI 70
Optic: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Nominal LED lumens flux: 8400 lm
Nominal LED lumens flux
8400 lm
Nominal LED power
46 W
Rated luminaire lumens flux
6830 lm
Rated luminaire power
50 W
Luminaire efficacy
136 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-P4-500-827
Variant name: AreaFlex 32 - 46 W - 500 mA - 2700 K CRI 80
Optic: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5830 lm
Rated luminaire power
50 W
Luminaire efficacy
116 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-P4-500-830
Variant name: AreaFlex 32 - 46 W - 500 mA - 3000 K CRI 80
Optic: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5830 lm
Rated luminaire power
50 W
Luminaire efficacy
116 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-P4-500-840
Variant name: AreaFlex 32 - 46 W - 500 mA - 4000 K CRI 80
Optic: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Nominal LED lumens flux: 7170 lm
Nominal LED lumens flux
7170 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5830 lm
Rated luminaire power
50 W
Luminaire efficacy
116 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-P4-700-740
Variant name: AreaFlex 32 - 64 W - 700 mA - 4000 K CRI 70
Optic: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Nominal LED lumens flux: 11010 lm
Nominal LED lumens flux
11010 lm
Nominal LED power
64 W
Rated luminaire lumens flux
9025 lm
Rated luminaire power
71 W
Luminaire efficacy
127 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-P4-700-827
Variant name: AreaFlex 32 - 64 W - 700 mA - 2700 K CRI 80
Optic: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
7545 lm
Rated luminaire power
70 W
Luminaire efficacy
106 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-P4-700-830
Variant name: AreaFlex 32 - 64 W - 700 mA - 3000 K CRI 80
Optic: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
7545 lm
Rated luminaire power
70 W
Luminaire efficacy
106 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.862-EN-P4-700-840
Variant name: AreaFlex 32 - 64 W - 700 mA - 4000 K CRI 80
Optic: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Nominal LED lumens flux: 9280 lm
Nominal LED lumens flux
9280 lm
Nominal LED power
64 W
Rated luminaire lumens flux
7545 lm
Rated luminaire power
71 W
Luminaire efficacy
106 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000

Poles (Included)


All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Type I, Asymmetric, Side throw
[T1]

Type I, Asymmetric, Side throw

Type II, Asymmetric, Side throw
[T2]

Type II, Asymmetric, Side throw

Type III, Asymmetric, Side throw
[T3]

Type III, Asymmetric, Side throw

Type IV, Asymmetric, Forward throw
[T4]

Type IV, Asymmetric, Forward throw

Type V, Symmetric
[T5]

Type V, Symmetric

Special pedestrian road distribution-right side traffic
[P4]

Special pedestrian road distribution-right side traffic

Drive current


350 mA
[350]

350 mA

500 mA
[500]

500 mA

700 mA
[700]

700 mA

Colour temperature


2700 K CRI 80
[827]

2700 K CRI 80

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

4000 K CRI 80
[840]

4000 K CRI 80

Options

Control

Input voltage


On/Off
[ONOFF]

On/Off

DALI
[DALI]

DALI

AutoDIM
[AUTO]

AutoDIM

StepDIM
[STEP]

StepDIM

Input voltage


220-240V 50/60Hz
[EN]

220-240V 50/60Hz

120-277V 50/60Hz
[UNI]

120-277V 50/60Hz

Product colours


Product colours


Black (Textured)
[HM1]

Black (Textured)

Dark grey (Textured)
[HM2]

Dark grey (Textured)

Anthracite grey (Textured)
[HM3]

Anthracite grey (Textured)

Light grey (Textured)
[HM4]

Light grey (Textured)

White (Textured)
[HM5]

White (Textured)

Bronze (Textured)
[HM6]

Bronze (Textured)

Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)

Extras

Finishing options

Light output


Marine grade coating
[MG]

Marine grade coating

Light output


Constant light output
[CLO]

Constant light output
