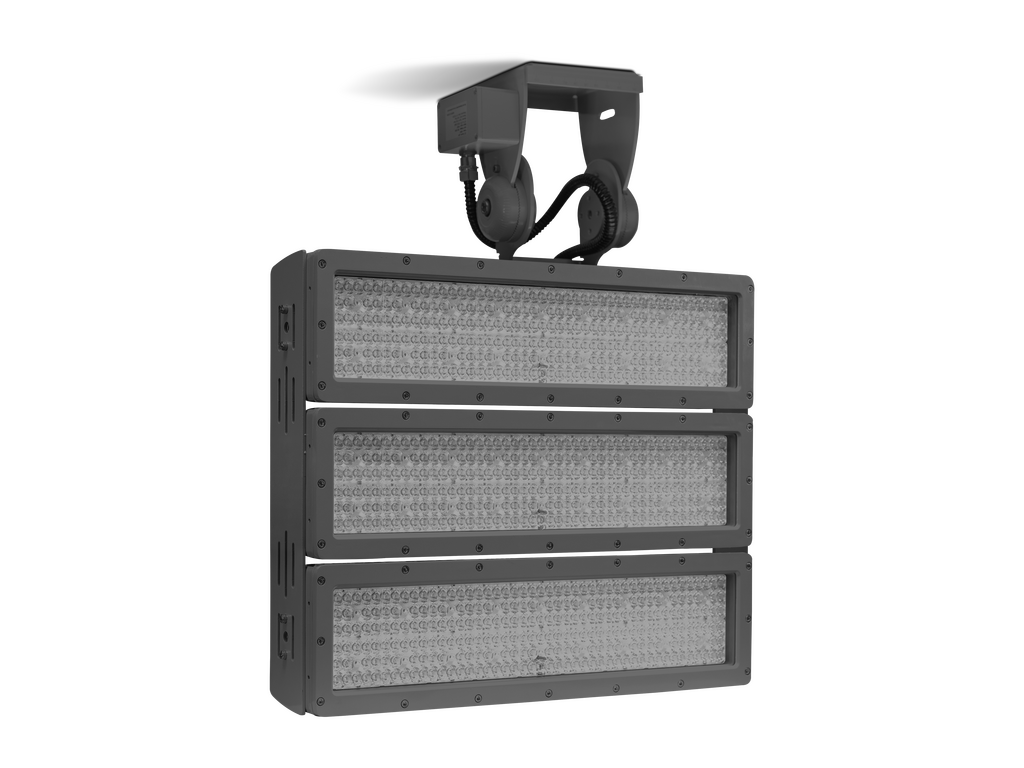

REGIO V2 IN HP 3 Module

Name: REGIO V2 IN HP 3 Module
Brand: HEPER
SKU: LF8039.543-EN
Availability: InStock

PHASED-OUT

LF8039.543-EN

Downloads

Photometry files (IES)

0.11 MB ZIP

Photometry files (LDT)

0.07 MB ZIP

Technical drawing

0.1 MB PDF

Technical drawing (Image)

0.12 MB PNG

Certificate files

1.12 MB ZIP

Light distribution

[EL-2] 35x85°, [MN] 30°

Luminaire luminous flux

210653 - 267096 lm

Rated input power

1780 W

CCT

2700K, 3000K, 4000K, 5700K

CRI

Ra70, Ra80, Ra90

Control

On/Off, DALI

Product colours

Extras

Consult the factory

120-277V 50/60Hz

Luminaire efficacy

118 - 150 lm/W

Colour deviation

3 SDCM, 4 SDCM

Lifetime L90B10 (hour)

>52, 000

Housing

Marine grade aluminum housing

Driver

Remote LED driver

Input voltage

220-240V 50/60Hz

Configurator

Project name

Type

Quantity

Date

Note

Variant order code

LF8039.543-EN-_-1837-_-_-EN-C1-_-___

Variants required

Variants

Light distribution

[EL-2]
Elliptical
35x85°

[MN]
Medium narrow
30°

Rated input power

[1837]
1780 W

Colour temperature

[827]
2700 K CRI 80

[830]
3000 K CRI 80

[740]
4000 K CRI 70

[840]
4000 K CRI 80

[957]
5700 K CRI 90

Options

Control

[ONOFF]
On/Off

[DALI]
DALI

Product colours

[HM3]

Anthracite grey

[HM4]

Light grey

[CC]

Custom colour (Please specify RAL code)

Extras

Consult the factory

[UNI]
120-277V 50/60Hz

Variants required

Technical details

Certificates

CE, UKCA

Mounting

Direct tray mountable

Tilt angle

90°

Rotation angle

±63°

Finishing

Chromate conversion pretreatment followed by electrostatic powder coating

Fasteners

Stainless steel (AISI 304 / EN 1.4301 grade)

Gasket

Silicone

Glass / Diffusor

Tempered safety glass

Impact protection

IK08

Ingress protection

IP66

Insulation class

Class I

Weight

27.1 kg

Driver surge protection

10/6 kV

Power factor

> 0.99

Through wiring

Single cable entry

Operating temperature

-40...50°C

Cable

1 m of flexible cable

Accessories (To be ordered separately)

Optical accessories

Visor for REGIO V2 3 Module

100139032

Extras

[UNI]

120-277V 50/60Hz

Consult the factory

All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions

Variants

Light distribution

Drive current

[MN]

Medium narrow

[EL-2]

Elliptical

Drive current

[1837]

1837 mA

Colour temperature

[827]

2700 K CRI 80

[830]

3000 K CRI 80

[740]

4000 K CRI 70

[840]

4000 K CRI 80

[957]

5700 K CRI 90

Options

Control

Product colours

[ONOFF]

On/Off

[DALI]

DALI

Product colours

[HM3]

Anthracite grey

[HM4]

Light grey

[CC]

Custom colour (Please specify RAL code)

REGIO V2 IN HP 3 Module
