LIA
LB6059.599-EN
Variants
Light distribution
Delivered lumens flux
256 - 582 lm
Rated input power
14 - 29 W
Colour temperature
2700 K CRI 80, 3000 K CRI 80, 4000 K CRI 70, 4000 K CRI 80
BUG rating
B0-U0-G1, B0-U0-G0
Lifetime L90B50 (hour)
>55, 000
Lifetime L80B50 (hour)
>55, 000
Options
Control
On/Off
Product colours

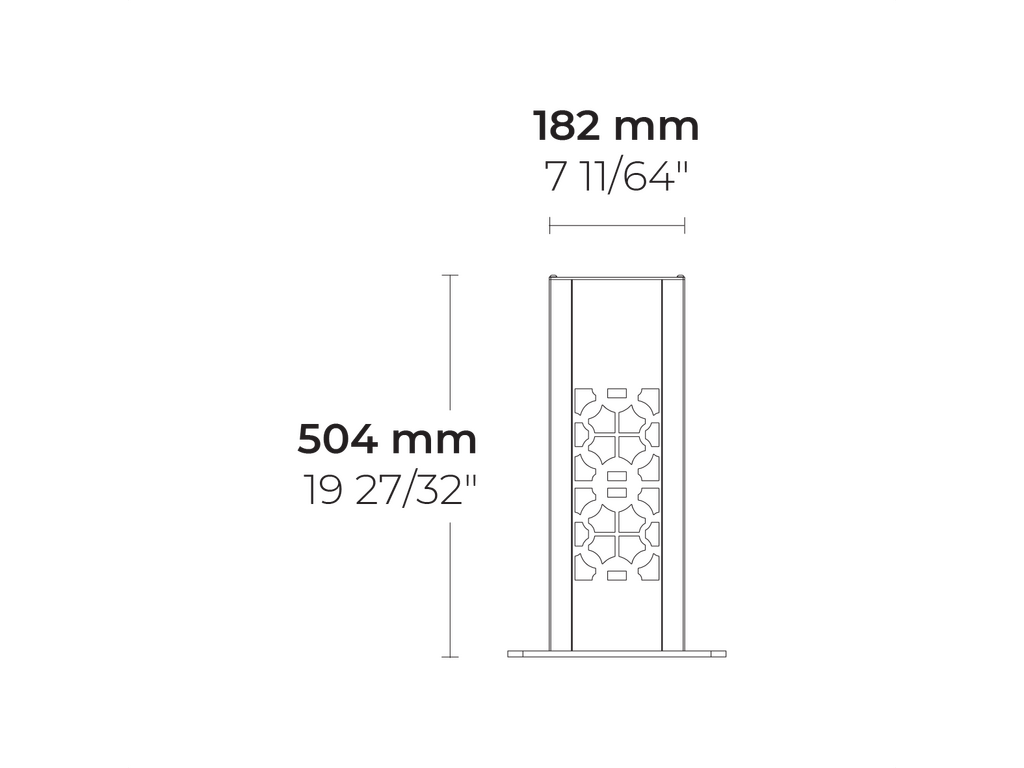

Height
50cm
Extras
Consult the factory
Custom pattern
Luminaire body options
Double powder coating
Technical details
Certificates
CE, UKCA
Mounting
Surface mountable
Housing
Corrosion resistant, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Silicone
Lens / Reflector
Glass lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP66
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
6.84 kg
LED module
Multi-chip high power LEDs on metal-core PCB
Driver
Internal LED driver
Driver surge protection
4/2 kV
Power factor
> 0.90
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
0.5 m of flexible cable
Downloads
Variants
Light distribution
[SYM-4L] Symmetric, Special effect: 4 lines - 50°
Delivered lumens flux
256 lm
267 lm
274 lm
290 lm
366 lm
381 lm
392 lm
415 lm
513 lm
535 lm
550 lm
582 lm
Rated input power
14 W
21 W
29 W
Colour temperature
2700 K CRI 80
3000 K CRI 80
4000 K CRI 70
4000 K CRI 80
Variant code
Light distribution
Delivered lumens flux
Rated input power
Colour temperature
Control
Variant code: LB6059.599-EN-SYM-4L-350-740
Light distribution: [SYM-4L] Symmetric, Special effect: 4 lines - 50°
Delivered lumens flux: 290 lm
Rated input power: 14 W
Colour temperature: 4000 K CRI 70
Control: On/Off
Light distribution
[SYM-4L] 50°
Delivered lumens flux
290 lm
Rated input power
14 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
20 lm/W
Lamp
1 COB
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>55,000
Lifetime L80B50 (hour)
>55,000
Variant code: LB6059.599-EN-SYM-4L-350-827
Light distribution: [SYM-4L] Symmetric, Special effect: 4 lines - 50°
Delivered lumens flux: 256 lm
Rated input power: 14 W
Colour temperature: 2700 K CRI 80
Control: On/Off
Light distribution
[SYM-4L] 50°
Delivered lumens flux
256 lm
Rated input power
14 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
18 lm/W
Lamp
1 COB
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>55,000
Lifetime L80B50 (hour)
>55,000
Variant code: LB6059.599-EN-SYM-4L-350-830
Light distribution: [SYM-4L] Symmetric, Special effect: 4 lines - 50°
Delivered lumens flux: 267 lm
Rated input power: 14 W
Colour temperature: 3000 K CRI 80
Control: On/Off
Light distribution
[SYM-4L] 50°
Delivered lumens flux
267 lm
Rated input power
14 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
19 lm/W
Lamp
1 COB
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>55,000
Lifetime L80B50 (hour)
>55,000
Variant code: LB6059.599-EN-SYM-4L-350-840
Light distribution: [SYM-4L] Symmetric, Special effect: 4 lines - 50°
Delivered lumens flux: 274 lm
Rated input power: 14 W
Colour temperature: 4000 K CRI 80
Control: On/Off
Light distribution
[SYM-4L] 50°
Delivered lumens flux
274 lm
Rated input power
14 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
19 lm/W
Lamp
1 COB
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>55,000
Lifetime L80B50 (hour)
>55,000
Variant code: LB6059.599-EN-SYM-4L-500-740
Light distribution: [SYM-4L] Symmetric, Special effect: 4 lines - 50°
Delivered lumens flux: 415 lm
Rated input power: 21 W
Colour temperature: 4000 K CRI 70
Control: On/Off
Light distribution
[SYM-4L] 50°
Delivered lumens flux
415 lm
Rated input power
21 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
19 lm/W
Lamp
1 COB
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>55,000
Lifetime L80B50 (hour)
>55,000
Variant code: LB6059.599-EN-SYM-4L-500-827
Light distribution: [SYM-4L] Symmetric, Special effect: 4 lines - 50°
Delivered lumens flux: 366 lm
Rated input power: 21 W
Colour temperature: 2700 K CRI 80
Control: On/Off
Light distribution
[SYM-4L] 50°
Delivered lumens flux
366 lm
Rated input power
21 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
17 lm/W
Lamp
1 COB
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>55,000
Lifetime L80B50 (hour)
>55,000
Variant code: LB6059.599-EN-SYM-4L-500-830
Light distribution: [SYM-4L] Symmetric, Special effect: 4 lines - 50°
Delivered lumens flux: 381 lm
Rated input power: 21 W
Colour temperature: 3000 K CRI 80
Control: On/Off
Light distribution
[SYM-4L] 50°
Delivered lumens flux
381 lm
Rated input power
21 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
18 lm/W
Lamp
1 COB
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>55,000
Lifetime L80B50 (hour)
>55,000
Variant code: LB6059.599-EN-SYM-4L-500-840
Light distribution: [SYM-4L] Symmetric, Special effect: 4 lines - 50°
Delivered lumens flux: 392 lm
Rated input power: 21 W
Colour temperature: 4000 K CRI 80
Control: On/Off
Light distribution
[SYM-4L] 50°
Delivered lumens flux
392 lm
Rated input power
21 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
18 lm/W
Lamp
1 COB
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>55,000
Lifetime L80B50 (hour)
>55,000
Variant code: LB6059.599-EN-SYM-4L-700-740
Light distribution: [SYM-4L] Symmetric, Special effect: 4 lines - 50°
Delivered lumens flux: 582 lm
Rated input power: 29 W
Colour temperature: 4000 K CRI 70
Control: On/Off
Light distribution
[SYM-4L] 50°
Delivered lumens flux
582 lm
Rated input power
29 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
20 lm/W
Lamp
1 COB
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>55,000
Lifetime L80B50 (hour)
>55,000
Variant code: LB6059.599-EN-SYM-4L-700-827
Light distribution: [SYM-4L] Symmetric, Special effect: 4 lines - 50°
Delivered lumens flux: 513 lm
Rated input power: 29 W
Colour temperature: 2700 K CRI 80
Control: On/Off
Light distribution
[SYM-4L] 50°
Delivered lumens flux
513 lm
Rated input power
29 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
17 lm/W
Lamp
1 COB
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>55,000
Lifetime L80B50 (hour)
>55,000
Variant code: LB6059.599-EN-SYM-4L-700-830
Light distribution: [SYM-4L] Symmetric, Special effect: 4 lines - 50°
Delivered lumens flux: 535 lm
Rated input power: 29 W
Colour temperature: 3000 K CRI 80
Control: On/Off
Light distribution
[SYM-4L] 50°
Delivered lumens flux
535 lm
Rated input power
29 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
19 lm/W
Lamp
1 COB
MacAdam Ellipse
3 SDCM
BUG rating
B0-U0-G1
Lifetime L90B50 (hour)
>55,000
Lifetime L80B50 (hour)
>55,000
Variant code: LB6059.599-EN-SYM-4L-700-840
Light distribution: [SYM-4L] Symmetric, Special effect: 4 lines - 50°
Delivered lumens flux: 550 lm
Rated input power: 29 W
Colour temperature: 4000 K CRI 80
Control: On/Off
Light distribution
[SYM-4L] 50°
Delivered lumens flux
550 lm
Rated input power
29 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
19 lm/W
Lamp
1 COB
MacAdam Ellipse
3 SDCM
BUG rating
B0-U0-G0
Lifetime L90B50 (hour)
>55,000
Lifetime L80B50 (hour)
>55,000
Accessories (To be ordered separately)
Accessories (To be ordered separately)
Anchorages
628I003
628I003
Descriptions
Variants
Light distribution
Drive current
[SYM-4L]
Symmetric, Special effect: 4 lines
Drive current
[350]
350 mA
[500]
500 mA
[700]
700 mA
Colour temperature
[827]
2700 K CRI 80
[830]
3000 K CRI 80
[740]
4000 K CRI 70
[840]
4000 K CRI 80
Options
Control
Product colours
[ONOFF]
On/Off
Product colours
[HM1]
Black
[HM2]
Dark grey
[HM3]
Anthracite grey
[HM4]
Light grey
[HM5]
White
[HM6]
Bronze
[CC]
Custom colour (Please specify RAL code)
Extras
Consult the factory
Luminaire body options
[CP]
Custom pattern
Luminaire body options
[DPC]
Double powder coating
