LB6052.509-US



Variants
Light distribution

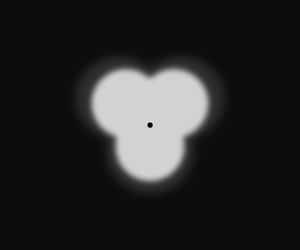

[SYM-3L] 360° x 65°
Nominal LED lumens flux
3210 - 3600 lm
Nominal LED power
24 W (700 mA)
Rated luminaire lumens flux
1600 - 1900 lm
Rated luminaire power
28 W
Colour temperature
4000 K CRI 70, 3000 K CRI 80
BUG rating
B1-U0-G1
Lifetime L90B50
>72, 600 hours
Lifetime L80B50
>72, 600 hours
Options
Control
On/Off
Input voltage
120-277V 50/60Hz
Insulation class
Class I
Product colours







Extras
Finishing options
Double coating
Housing
Corrosion resistant aluminum housing
Finishing
Electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Gasket
Liquid silicone
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK05
Ingress protection
IP65
Wind catching area (EPA)
N/A
Weight
68 lb
LED module
Multi-chip high power LEDs on metal-core PCB
Driver
Internal LED driver
Driver surge protection
6/6 kV
Power factor
> 0.95
Through wiring
Single cable entry
Downloads
Variants
Light distribution

[SYM-3L] Symmetric, 360°, Special effect: 3 lines - 360° x 65°
Nominal LED lumens flux
3600 lm
3210 lm
Nominal LED power
24 W
Colour temperature
4000 K CRI 70
3000 K CRI 80
Variant code
Variant name
Optic
Nominal LED lumens flux
Variant code: LB6052.509-US-SYM-3L-700-740
Variant name: LED 3 - 24W - 700mA - 4000K CRI 70
Optic: [SYM-3L] Symmetric, 360°, Special effect: 3 lines - 360° x 65°
Nominal LED lumens flux: 3600 lm
Nominal LED lumens flux
3600 lm
Nominal LED power
24 W
Rated luminaire lumens flux
1900 lm
Rated luminaire power
28 W
Luminaire efficacy
68 lm/W
Lamp
3 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50
>72,600 hours
Lifetime L80B50
>72,600 hours
Variant code: LB6052.509-US-SYM-3L-700-830
Variant name: LED 3 - 24W - 700mA - 3000K CRI 80
Optic: [SYM-3L] Symmetric, 360°, Special effect: 3 lines - 360° x 65°
Nominal LED lumens flux: 3210 lm
Nominal LED lumens flux
3210 lm
Nominal LED power
24 W
Rated luminaire lumens flux
1600 lm
Rated luminaire power
28 W
Luminaire efficacy
57 lm/W
Lamp
3 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50
>72,600 hours
Lifetime L80B50
>72,600 hours
All flux and power values derived following appropriate IES, CIE and applicable standards.
Descriptions
Variants
Light distribution
Drive current

[SYM-3L]
Symmetric, 360°, Special effect: 3 lines
Drive current

[700]
700 mA
Colour temperature

[830]
3000 K CRI 80

[740]
4000 K CRI 70
Options
Control
Input voltage

[ONOFF]
On/Off
Input voltage

[UNI]
120-277V 50/60Hz
Insulation class
Product colours

[C1]
Class I
Product colours

[HM1]
Black (Textured)

[HM2]
Dark grey (Textured)

[HM3]
Anthracite grey (Textured)

[HM4]
Light grey (Textured)

[HM5]
White (Textured)

[HM6]
Bronze (Textured)

[CC]
Custom Colour (Please specify RAL code)
Extras
Finishing options

[DC]
Double coating
