POLSO

POLSOPOLSO
POLSOPOLSO

LB6052.509-EN

CEUKCAIK05IP65Class I
Variants
Light distribution
[SYM-3L] 38x117°
Nominal LED lumens flux
1515 - 3690 lm
Nominal LED power
12 W (350 mA) - 24 W (700 mA)
Rated luminaire lumens flux
354 - 863 lm
Rated luminaire power
14 - 28 W
Colour temperature
2700 K CRI 80, 3000 K CRI 80, 4000 K CRI 70, 4000 K CRI 80
BUG rating
B0-U1-G0, B1-U1-G0
Lifetime L90B50 (hour)
>72, 600
Lifetime L80B50 (hour)
>72, 600
Options
Control
On/Off, DALI, AutoDIM, StepDIM
Input voltage
220-240V 50/60Hz, 120-277V 50/60Hz
Product colours
Black (Textured)Dark grey (Textured)Anthracite grey (Textured)Light grey (Textured)White (Textured)Bronze (Textured)Custom colour (Please specify RAL code)
Extras
Luminaire body options
Marine grade coating

Technical details



Certificates
CE, UKCA
Housing
Corrosion resistant, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Liquid silicone
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK05
Ingress protection
IP65
Insulation class
Class I
Weight
30.8 kg
LED module
Multi-chip high power LEDs on metal-core PCB
Driver
Internal LED driver
Driver surge protection
6/6 kV
Power factor
> 0.95
Through wiring
Single cable entry
Operating temperature
-40...50°C

Downloads


Variants


Light distribution
Symmetric, 360°, Special effect: 3 lines
[SYM-3L] Symmetric, 360°, Special effect: 3 lines - 38x117°
Nominal LED lumens flux
1515 lm
1537 lm
1725 lm
1845 lm
3030 lm
3075 lm
3450 lm
3690 lm
Nominal LED power
12 W
24 W
Colour temperature
2700 K CRI 80
3000 K CRI 80
4000 K CRI 70
4000 K CRI 80

Variant code

Variant name

Light distribution

Nominal LED lumens flux




Variant code: LB6052.509-EN-SYM-3L-350-740
Variant name: LED 3 - 12W - 350mA - 4000K CRI 70
Light distribution: [SYM-3L] Symmetric, 360°, Special effect: 3 lines - 38x117°
Nominal LED lumens flux: 1845 lm
LB6052.509-EN-SYM-3L-350-740
Nominal LED lumens flux
1845 lm
Nominal LED power
12 W
Rated luminaire lumens flux
431 lm
Rated luminaire power
14 W
Luminaire efficacy
30 lm/W
Lamp
3 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>72,600
Lifetime L80B50 (hour)
>72,600
Variant code: LB6052.509-EN-SYM-3L-350-827
Variant name: LED 3 - 12W - 350mA - 2700K CRI 80
Light distribution: [SYM-3L] Symmetric, 360°, Special effect: 3 lines - 38x117°
Nominal LED lumens flux: 1515 lm
LB6052.509-EN-SYM-3L-350-827
Nominal LED lumens flux
1515 lm
Nominal LED power
12 W
Rated luminaire lumens flux
354 lm
Rated luminaire power
14 W
Luminaire efficacy
25 lm/W
Lamp
3 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>72,600
Lifetime L80B50 (hour)
>72,600
Variant code: LB6052.509-EN-SYM-3L-350-830
Variant name: LED 3 - 12W - 350mA - 3000K CRI 80
Light distribution: [SYM-3L] Symmetric, 360°, Special effect: 3 lines - 38x117°
Nominal LED lumens flux: 1537 lm
LB6052.509-EN-SYM-3L-350-830
Nominal LED lumens flux
1537 lm
Nominal LED power
12 W
Rated luminaire lumens flux
359 lm
Rated luminaire power
14 W
Luminaire efficacy
25 lm/W
Lamp
3 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>72,600
Lifetime L80B50 (hour)
>72,600
Variant code: LB6052.509-EN-SYM-3L-350-840
Variant name: LED 3 - 12W - 350mA - 4000K CRI 80
Light distribution: [SYM-3L] Symmetric, 360°, Special effect: 3 lines - 38x117°
Nominal LED lumens flux: 1725 lm
LB6052.509-EN-SYM-3L-350-840
Nominal LED lumens flux
1725 lm
Nominal LED power
12 W
Rated luminaire lumens flux
403 lm
Rated luminaire power
14 W
Luminaire efficacy
28 lm/W
Lamp
3 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>72,600
Lifetime L80B50 (hour)
>72,600
Variant code: LB6052.509-EN-SYM-3L-700-740
Variant name: LED 3 - 24W - 700 mA - 4000K CRI 70
Light distribution: [SYM-3L] Symmetric, 360°, Special effect: 3 lines - 38x117°
Nominal LED lumens flux: 3690 lm
LB6052.509-EN-SYM-3L-700-740
Nominal LED lumens flux
3690 lm
Nominal LED power
24 W
Rated luminaire lumens flux
863 lm
Rated luminaire power
28 W
Luminaire efficacy
30 lm/W
Lamp
3 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U1-G0
Lifetime L90B50 (hour)
>72,600
Lifetime L80B50 (hour)
>72,600
Variant code: LB6052.509-EN-SYM-3L-700-827
Variant name: LED 3 - 24W - 700 mA - 2700K CRI 80
Light distribution: [SYM-3L] Symmetric, 360°, Special effect: 3 lines - 38x117°
Nominal LED lumens flux: 3030 lm
LB6052.509-EN-SYM-3L-700-827
Nominal LED lumens flux
3030 lm
Nominal LED power
24 W
Rated luminaire lumens flux
709 lm
Rated luminaire power
28 W
Luminaire efficacy
25 lm/W
Lamp
3 LED
MacAdam Ellipse
4 SDCM
BUG rating
B0-U1-G0
Lifetime L90B50 (hour)
>72,600
Lifetime L80B50 (hour)
>72,600
Variant code: LB6052.509-EN-SYM-3L-700-830
Variant name: LED 3 - 24W - 700 mA - 3000K CRI 80
Light distribution: [SYM-3L] Symmetric, 360°, Special effect: 3 lines - 38x117°
Nominal LED lumens flux: 3075 lm
LB6052.509-EN-SYM-3L-700-830
Nominal LED lumens flux
3075 lm
Nominal LED power
24 W
Rated luminaire lumens flux
719 lm
Rated luminaire power
28 W
Luminaire efficacy
25 lm/W
Lamp
3 LED
MacAdam Ellipse
4 SDCM
BUG rating
B0-U1-G0
Lifetime L90B50 (hour)
>72,600
Lifetime L80B50 (hour)
>72,600
Variant code: LB6052.509-EN-SYM-3L-700-840
Variant name: LED 3 - 24W - 700 mA - 4000K CRI 80
Light distribution: [SYM-3L] Symmetric, 360°, Special effect: 3 lines - 38x117°
Nominal LED lumens flux: 3450 lm
LB6052.509-EN-SYM-3L-700-840
Nominal LED lumens flux
3450 lm
Nominal LED power
24 W
Rated luminaire lumens flux
807 lm
Rated luminaire power
28 W
Luminaire efficacy
28 lm/W
Lamp
3 LED
MacAdam Ellipse
4 SDCM
BUG rating
B0-U1-G0
Lifetime L90B50 (hour)
>72,600
Lifetime L80B50 (hour)
>72,600

Accessories (To be ordered separately)


Accessories (To be ordered separately)

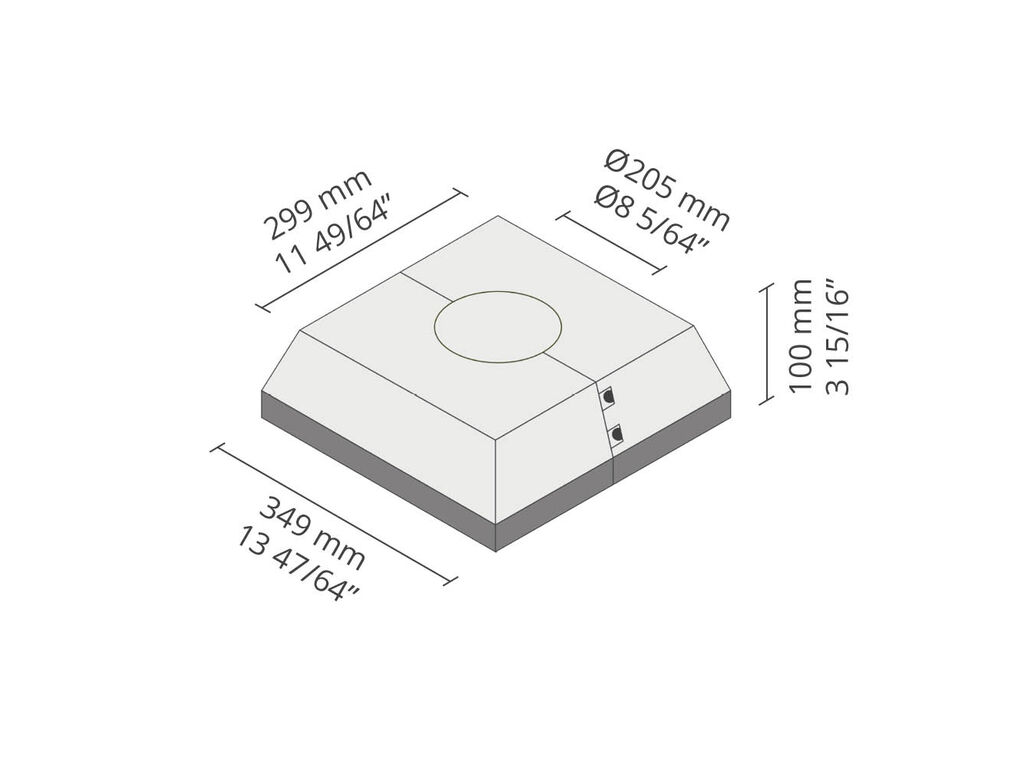

Flange covers (Circular pole)
C1J2K

C1J2K

C1J2K

All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Symmetric, 360°, Special effect: 3 lines
[SYM-3L]

Symmetric, 360°, Special effect: 3 lines

Drive current


350 mA
[350]

350 mA

700 mA
[700]

700 mA

Colour temperature


2700 K CRI 80
[827]

2700 K CRI 80

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

4000 K CRI 80
[840]

4000 K CRI 80

Options

Control

Input voltage


On/Off
[ONOFF]

On/Off

DALI
[DALI]

DALI

AutoDIM
[AUTO]

AutoDIM

StepDIM
[STEP]

StepDIM

Input voltage


220-240V 50/60Hz
[EN]

220-240V 50/60Hz

120-277V 50/60Hz
[UNI]

120-277V 50/60Hz

Product colours


Product colours


Black (Textured)
[HM1]

Black (Textured)

Dark grey (Textured)
[HM2]

Dark grey (Textured)

Anthracite grey (Textured)
[HM3]

Anthracite grey (Textured)

Light grey (Textured)
[HM4]

Light grey (Textured)

White (Textured)
[HM5]

White (Textured)

Bronze (Textured)
[HM6]

Bronze (Textured)

Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)

Extras

Luminaire body options


Marine grade coating
[MG]

Marine grade coating
