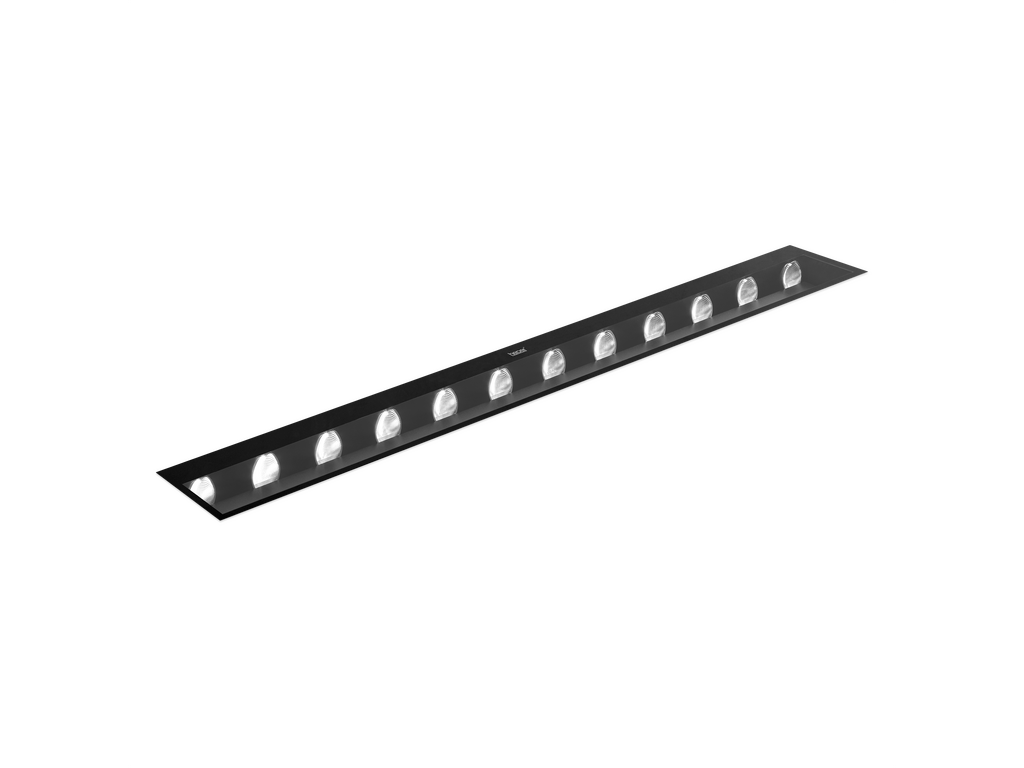

    ZETA 12 Dyno

    ZETA 12 DynoZETA 12 Dyno

    LR9012.584-US

    Downloads

    ZETA 12 DynoZETA 12 Dyno
    Light distribution
    [WW] 45x85°
    Luminaire luminous flux
    2388 - 2649 lm
    Rated input power
    30 W
    CCT
    2700K, 3000K, 4000K
    CRI
    Ra80
    Control
    On/Off, 0-10V
    Product colors
    Stainless steel
    Luminaire efficacy
    76 - 88 lm/W
    Color deviation
    3 SDCM, 4 SDCM
    Lifetime L90 (hour)
    >42, 000
    Housing
    Stainless steel housing (AISI 316L / EN 1.4404 grade)
    Driver
    Integral LED driver
    Input voltage
    120-277V 50/60Hz
    Configurator
    Project name
    Type
    Quantity
    Date
    Note
    Configuration order code

    LR9012.584-US-WW-700-___-___-SS

    Variants required



    Configurations
    Light distribution
    [WW]
    Wall-wash
    45x85°

    Rated input power
    [700]
    30 W

    Color temperature
    [827]
    2700 K CRI 80
    [830]
    3000 K CRI 80
    [840]
    4000 K CRI 80
    Options
    Control
    [ONOFF]
    On/Off
    [0-10V]
    0-10V

    Product colors
    [SS]Stainless steel
    Stainless steel


    Variants required

    Technical details

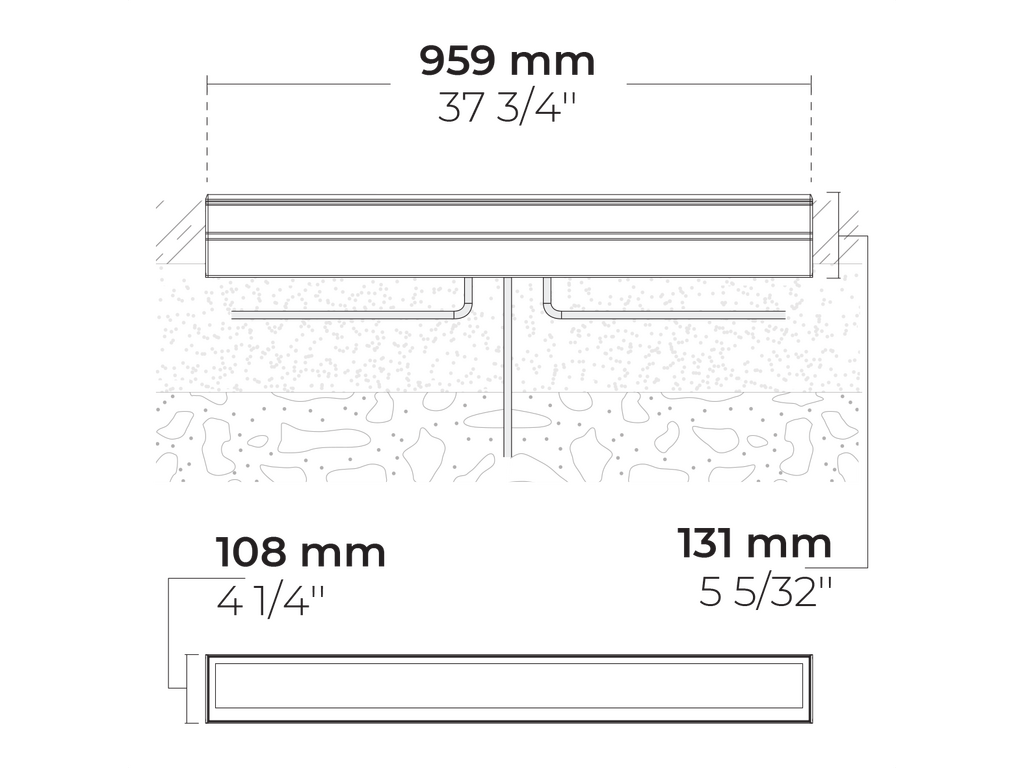

    Mounting
    Ground recessed mountable
    Fasteners
    Stainless steel (AISI 304 / EN 1.4301 grade)
    Gasket
    Silicone
    Lens / Reflector
    High reflectance aluminium coating, multifaceted micro reflector
    Glass / Diffusor
    Tempered safety glass
    Impact protection
    IK08
    Ingress protection
    IP67
    Insulation class
    Class I
    Weight
    17.3 lbs
    LED module
    High power LEDs on metal-core PCB
    Driver surge protection
    4/4 kV
    Power factor
    > 0.97
    Through wiring
    Single power cord entry
    Operating temperature
    -40...50°C
    Power cord
    12" of rubber-sheated power cord

    Accessories (Included)

    Accessories (To be ordered separately)

    Accessories (To be ordered separately)

    All flux and power values derived following appropriate IES, CIE and applicable standards.
    Descriptions
    Configurations

    Light distribution

    Drive current

    Wall-wash
    [WW]

    Wall-wash

    Drive current

    700 mA
    [700]

    700 mA

    Color temperature

    2700 K CRI 80
    [827]

    2700 K CRI 80

    3000 K CRI 80
    [830]

    3000 K CRI 80

    4000 K CRI 80
    [840]

    4000 K CRI 80

    Options

    Control

    Product colors

    On/Off
    [ONOFF]

    On/Off

    0-10V
    [0-10V]

    0-10V

    Product colors

    Stainless steel
    [SS]

    Stainless steel
