PUNTO S W Duo

PUNTO S W DuoPUNTO S W Duo
PUNTO S W DuoPUNTO S W Duo

LW7036.519-US

ULIK08IP65Class I
Configurations
Light distribution
[S-S] 7°, [N-N] 26°
Nominal LED lumens flux
2280 lm, 2450 lm
Nominal LED power
16 W (700 mA)
Color temperature
3000 K CRI 80, 4000 K CRI 70
Options
Control
On/Off, 1-10V
Input voltage
120-277V 50/60Hz
Insulation class
Class I
Product colors
Black (Textured)Dark gray (Textured)Anthracite gray (Textured)Light gray (Textured)White (Textured)Bronze (Textured)Custom Colour (Please specify RAL code)

Mounting
Wall mountable
Housing
Corrosion resistant aluminum housing
Finishing
Electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Gasket
Silicone rubber
Lens / Reflector
High reflectance aluminium coating
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP65
Weight
3.3 lb
LED module
Multi-chip high power LEDs on metal-core PCB
Driver
Thermally-separated internal LED driver
Driver surge protection
2/2 kV
Power factor
> 0.90
Through wiring
Single cable entry
Cable
7 7/8" of flexible cable

Downloads


Configurations


Light distribution

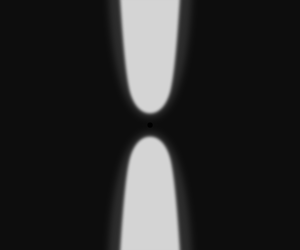

Narrow - NEMA Type 2 (Up & Down)
[N-N] Narrow - NEMA Type 2 (Up & Down) - 26°

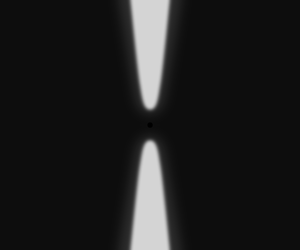

Spot - NEMA Type 0 (Up & Down)
[S-S] Spot - NEMA Type 0 (Up & Down) - 7°
Nominal LED lumens flux
2280 lm
2450 lm
Nominal LED power
16 W
Color temperature
3000 K CRI 80
4000 K CRI 70

Configuration code

Configurations name

Optic

Nominal LED lumens flux


Configuration code: LW7036.519-US-N-N-700-740
Configurations name: HYBRID 2 - 16W - 700mA - 4000K CRI 70
Optic: [N-N] Narrow - NEMA Type 2 (Up & Down) - 26°
Nominal LED lumens flux: 2450 lm
LW7036.519-US-N-N-700-740
Rated luminaire lumens flux
2030 lm
Rated luminaire power
18 W
Luminaire efficacy
113 lm/W
Lamp
2 LED
Color Deviation
3 SDCM
BUG rating
B5-U5-G0
Configuration code: LW7036.519-US-N-N-700-830
Configurations name: HYBRID 2 - 16W - 700mA - 3000K CRI 80
Optic: [N-N] Narrow - NEMA Type 2 (Up & Down) - 26°
Nominal LED lumens flux: 2280 lm
LW7036.519-US-N-N-700-830
Rated luminaire lumens flux
1888 lm
Rated luminaire power
18 W
Luminaire efficacy
105 lm/W
Lamp
2 LED
Color Deviation
3 SDCM
BUG rating
B5-U5-G0
Configuration code: LW7036.519-US-S-S-700-740
Configurations name: HYBRID 2 - 16W - 700mA - 4000K CRI 70
Optic: [S-S] Spot - NEMA Type 0 (Up & Down) - 7°
Nominal LED lumens flux: 2450 lm
LW7036.519-US-S-S-700-740
Rated luminaire lumens flux
2030 lm
Rated luminaire power
18 W
Luminaire efficacy
113 lm/W
Lamp
2 LED
Color Deviation
3 SDCM
BUG rating
B5-U5-G0
Configuration code: LW7036.519-US-S-S-700-830
Configurations name: HYBRID 2 - 16W - 700mA - 3000K CRI 80
Optic: [S-S] Spot - NEMA Type 0 (Up & Down) - 7°
Nominal LED lumens flux: 2280 lm
LW7036.519-US-S-S-700-830
Rated luminaire lumens flux
1888 lm
Rated luminaire power
18 W
Luminaire efficacy
105 lm/W
Lamp
2 LED
Color Deviation
3 SDCM
BUG rating
B5-U5-G0

Accessories (To be ordered separately)


Accessories (To be ordered separately)


Optical accessories
Visor for PUNTO S

Visor for PUNTO S

100139013


Descriptions
Configurations

Light distribution

Drive current


Narrow - NEMA Type 2 (Up & Down)
[N-N]

Narrow - NEMA Type 2 (Up & Down)

Spot - NEMA Type 0 (Up & Down)
[S-S]

Spot - NEMA Type 0 (Up & Down)

Drive current


700 mA
[700]

700 mA

Color temperature


3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Input voltage


On/Off
[ONOFF]

On/Off

1-10V
[DIM]

1-10V

Input voltage


120-277V 50/60Hz
[UNI]

120-277V 50/60Hz

Insulation class

Product colors


Class I
[C1]

Class I

Product colors


Black (Textured)
[HM1]

Black (Textured)

Dark gray (Textured)
[HM2]

Dark gray (Textured)

Anthracite gray (Textured)
[HM3]

Anthracite gray (Textured)

Light gray (Textured)
[HM4]

Light gray (Textured)

White (Textured)
[HM5]

White (Textured)

Bronze (Textured)
[HM6]

Bronze (Textured)

Custom Colour (Please specify RAL code)
[CC]

Custom Colour (Please specify RAL code)
