TERRA

TERRATERRA
TERRATERRA

LP4024.539-US

IK07IP65Class I
Configurations
Light distribution
[ASYM-LE] 180° x 30°, [SYM-LE] 360° x 45°
Nominal lumens flux
3240 lm, 3120 lm, 6480 lm, 6240 lm
Power
24 W (700 mA), 48 W (700 mA)
Color temperature
4000 K CRI 70, 3000 K CRI 80
Options
Control
On/Off, 1-10V
Input voltage
120-277V 50/60Hz
Insulation class
Class I
Product colors
Black (Textured)Dark gray (Textured)Anthracite gray (Textured)Light gray (Textured)White (Textured)Bronze (Textured)Custom Colour (Please specify RAL code)
Extras
External surge protection
10 kV
Finishing option
Double coating
Light output
Constant light output

Mounting
Direct pole or side bracket mountable. Tenon: Ø2 1/4" x 4"
Housing
Corrosion resistant aluminum housing
Finishing
Electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Gasket
EPDM gasket (Shore A 20-25)
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK07
Ingress protection
IP65
Wind catching area (EPA)
4.2 ft²
LED module
High power LEDs on metal-core PCB
Driver
Internal LED driver
Driver surge protection
1/1 kV
Power factor
> 0.99
Through wiring
Single cable entry
Cable
19 11/16" of flexible cable

Downloads


Configurations


Light distribution

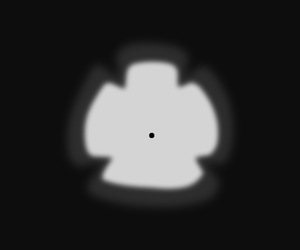

Asymmetric, 180°,  Special effect: Leaf
[ASYM-LE] Asymmetric, 180°, Special effect: Leaf - 180° x 30°

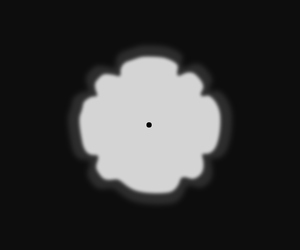

Symmetric, 360°, Special effect: Leaf
[SYM-LE] Symmetric, 360°, Special effect: Leaf - 360° x 45°
Nominal lumens flux
3240 lm
3120 lm
6480 lm
6240 lm
Power
24 W
48 W
Color temperature
4000 K CRI 70
3000 K CRI 80

Configuration code

Configurations name

Optic

Nominal lumens flux


Configuration code: LP4024.539-US-ASYM-LE-700-740
Configurations name: LED 12 - 24W - 700mA - 4000K CRI 70
Optic: [ASYM-LE] Asymmetric, 180°, Special effect: Leaf - 180° x 30°
Nominal lumens flux: 3240 lm
LP4024.539-US-ASYM-LE-700-740
Delivered lumens flux
2224 lm
Rated input power
28 W
Efficacy
79 lm/W
Lamp
12 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Configuration code: LP4024.539-US-ASYM-LE-700-830
Configurations name: LED 12 - 24W - 700mA - 3000K CRI 80
Optic: [ASYM-LE] Asymmetric, 180°, Special effect: Leaf - 180° x 30°
Nominal lumens flux: 3120 lm
LP4024.539-US-ASYM-LE-700-830
Delivered lumens flux
2068 lm
Rated input power
28 W
Efficacy
74 lm/W
Lamp
12 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Configuration code: LP4024.539-US-SYM-LE-700-740
Configurations name: LED 24 - 48W - 700mA - 4000K CRI 70
Optic: [SYM-LE] Symmetric, 360°, Special effect: Leaf - 360° x 45°
Nominal lumens flux: 6480 lm
LP4024.539-US-SYM-LE-700-740
Delivered lumens flux
4080 lm
Rated input power
52 W
Efficacy
78 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G2
Configuration code: LP4024.539-US-SYM-LE-700-830
Configurations name: LED 24 - 48W - 700mA - 3000K CRI 80
Optic: [SYM-LE] Symmetric, 360°, Special effect: Leaf - 360° x 45°
Nominal lumens flux: 6240 lm
LP4024.539-US-SYM-LE-700-830
Delivered lumens flux
3794 lm
Rated input power
52 W
Efficacy
73 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1

Poles



Descriptions
Configurations

Light distribution

Drive current


Asymmetric, 180°,  Special effect: Leaf
[ASYM-LE]

Asymmetric, 180°, Special effect: Leaf

Symmetric, 360°, Special effect: Leaf
[SYM-LE]

Symmetric, 360°, Special effect: Leaf

Drive current


700 mA
[700]

700 mA

Color temperature


3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Input voltage


On/Off
[ONOFF]

On/Off

1-10V
[DIM]

1-10V

Input voltage


120-277V 50/60Hz
[UNI]

120-277V 50/60Hz

Insulation class

Product colors


Class I
[C1]

Class I

Product colors


Black (Textured)
[HM1]

Black (Textured)

Dark gray (Textured)
[HM2]

Dark gray (Textured)

Anthracite gray (Textured)
[HM3]

Anthracite gray (Textured)

Light gray (Textured)
[HM4]

Light gray (Textured)

White (Textured)
[HM5]

White (Textured)

Bronze (Textured)
[HM6]

Bronze (Textured)

Custom Colour (Please specify RAL code)
[CC]

Custom Colour (Please specify RAL code)

Extras

External surge protection

Finishing option


10 kV
[SP10-US]

10 kV

Finishing option


Double coating
[DC]

Double coating

Light output


Constant light output
[CLO]

Constant light output
