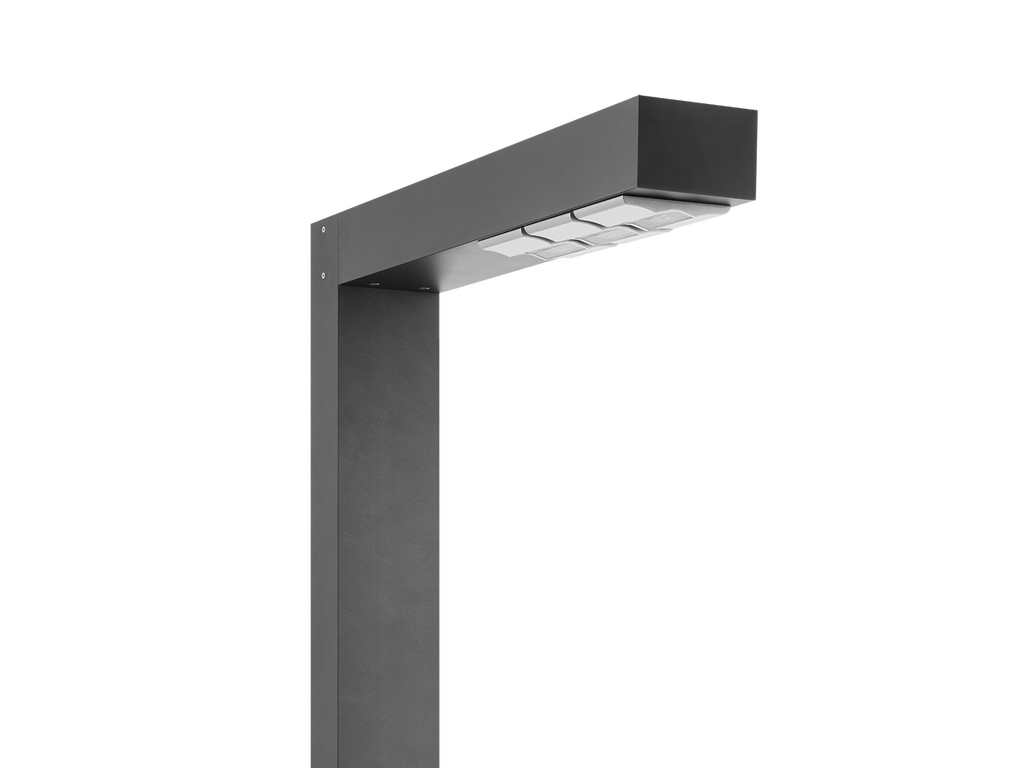

DOMINO ML EVO 3 Module

Name: DOMINO ML EVO 3 Module
Brand: HEPER
SKU: LP4034.683-US
Availability: InStock

LP4034.683-US

Downloads

Product Spec Sheet

0.29 MB PDF

Family Information Sheet

Photometry files (IES)

0.04 MB ZIP

Technical drawing

0.05 MB PDF

Technical drawing (Image)

Light distribution

[T2] 130x85°

Luminaire luminous flux

8733 - 11036 lm

Rated input power

104 W

CCT

2700K, 3000K, 4000K

CRI

Ra80

Control

On/Off, 0-10V

Product colors

Height

Custom height (Please specify), 8', 10', 12', 14', 16', 18', 20', 25'

Extras

Connectivity

Motion sensor, 7 Pin NEMA socket

Light output

Backlight Shield, Prismatic Glass

Electrical connection

GFCI Receptacle

Luminaire body options

Double powder coating

Luminaire efficacy

84 - 106 lm/W

Color deviation

3 SDCM, 4 SDCM

BUG rating

B2-U0-G2, B2-U0-G1

Lifetime L90 (hour)

>60, 000

Housing

Marine grade aluminum housing

Driver

Integral LED driver

Input voltage

120-277V 50/60Hz

Configurator

Project name

Type

Quantity

Date

Note

Configuration order code

LP4034.683-US-T2-700-_-_-_-_-_-_-_-_

Variants required

Configurations

Light distribution

[T2]
Type II
130x85°

Rated input power

[700]
104 W

Color temperature

[827]
2700 K CRI 80

[830]
3000 K CRI 80

[840]
4000 K CRI 80

Options

Control

[ONOFF]
On/Off

[0-10V]
0-10V

Product colors

[HM1]

Black

[HM2]

Dark gray

[HM3]

Anthracite gray

[HM4]

Light gray

[HM5]

White

[HM6]

Bronze

[CC]

Custom color (Please specify RAL code)

Height

[HC]
Custom height (Please specify)

[HF08]
8'

[HF10]
10'

[HF12]
12'

[HF14]
14'

[HF16]
16'

[HF18]
18'

[HF20]
20'

[HF25]
25'

Extras

Connectivity

[MS]
Motion sensor

[NM7]
7 Pin NEMA socket

Light output

[BS]
Backlight Shield

[PG]
Prismatic Glass

Electrical connection

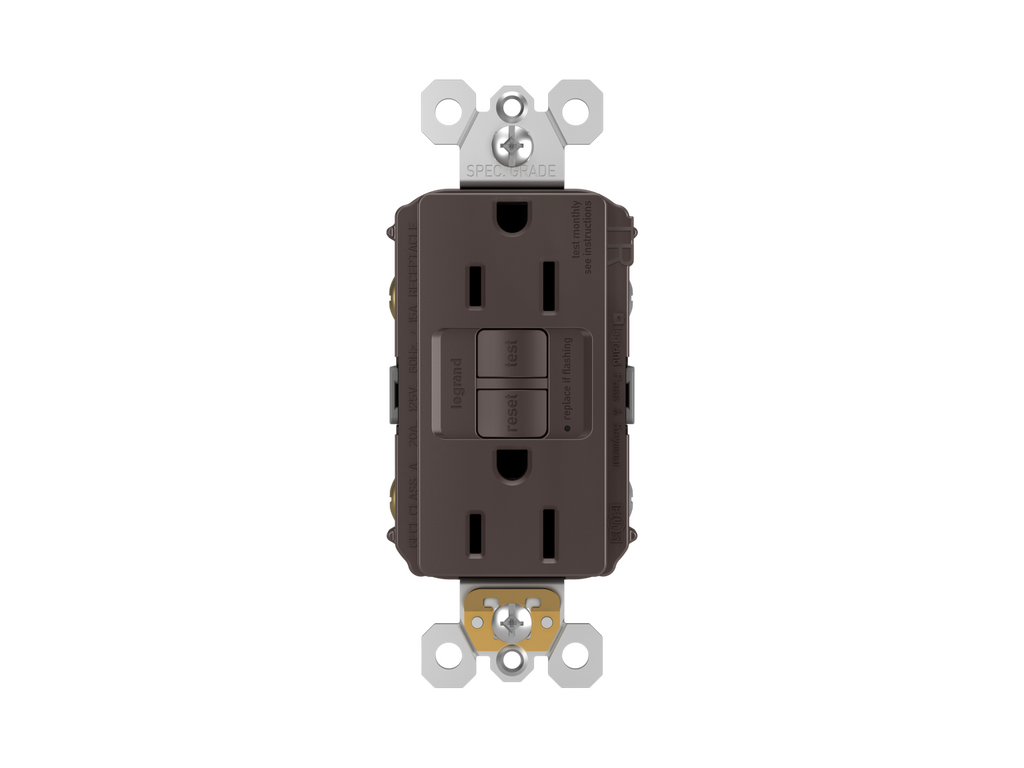

[GFCI]
GFCI Receptacle

Luminaire body options

[DPC]
Double powder coating

Variants required

Technical details

Mounting

Surface mountable

Finishing

Chromate conversion pretreatment followed by electrostatic powder coating

Fasteners

Stainless steel (AISI 304 / EN 1.4301 grade)

Gasket

Silicone

Lens / Reflector

High reflectance aluminium coating, multifaceted micro reflector

Glass / Diffusor

Bio-based, enriched with bisphenol A diffusor

Impact protection

IK08

Ingress protection

IP66

Insulation class

Class I

Weight

155.76 lbs (13'), 166.98 lbs (16.5'), 178.2 lbs (20' )

LED module

Multi-chip high power LEDs on metal-core PCB

Driver surge protection

6/6 kV

Power factor

> 0.95

Through wiring

Single power cord entry

Operating temperature

-40...50°C

Pole detail

Poles are supplied with flange plate. Flange cover and anchorage can be ordered separately. Embedded base is optional

Extras

[MS]

Motion sensor

Connectivity

[NM7]

7 Pin NEMA socket

Connectivity

[BS]

Backlight Shield

Light output

[PG]

Prismatic Glass

Light output

[GFCI]

GFCI Receptacle

Electrical connection

[DPC]

Double powder coating

Luminaire body options

Poles (Included)

Product specific poles with base plate

Product code

Height

Diameter / Dimensions

Spigot / End diameter

Product code: PAFD.DMN-US-HF08

Height: 8'

Diameter / Dimensions: 7.3x4.7"

Spigot / End diameter:

Product code: PAFD.DMN-US-HF12

Height: 12'

Diameter / Dimensions: 7.3x4.7"

Spigot / End diameter:

Product code: PAFD.DMN-US-HF14

Height: 14'

Diameter / Dimensions: 7.3x4.7"

Spigot / End diameter:

Product code: PAFD.DMN-US-HF16

Height: 16'

Diameter / Dimensions: 7.3x4.7"

Spigot / End diameter:

Product code: PAFD.DMN-US-HF18

Height: 18'

Diameter / Dimensions: 7.3x4.7"

Spigot / End diameter:

Product code: PAFD.DMN-US-HF20

Height: 20'

Diameter / Dimensions: 7.3x4.7"

Spigot / End diameter:

Product code: PAFD.DMN-US-HF25

Height: 25'

Diameter / Dimensions: 7.3x4.7"

Spigot / End diameter:

All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions

Configurations

Light distribution

Drive current

[T2]

Type II

Drive current

[700]

700 mA

Color temperature

[827]

2700 K CRI 80

[830]

3000 K CRI 80

[840]

4000 K CRI 80

Options

Control

Product colors

[ONOFF]

On/Off

[0-10V]

0-10V

Product colors

[HM1]

Black

[HM2]

Dark gray

[HM3]

Anthracite gray

[HM4]

Light gray

[HM5]

White

[HM6]

Bronze

[CC]

Custom color (Please specify RAL code)
