    PINA W

    PINA WPINA W
    PINA WPINA W

    LW8034.003-US

    Configurations
    Light distribution
    [M] 60°, [MN] 36°, [N] 25°, [VN] 10°
    Delivered lumens flux
    368 - 410 lm
    Rated input power
    7.5 W
    Color temperature
    2700 K CRI 90, 3000 K CRI 90, 4000 K CRI 90
    BUG rating
    B1-U0-G0
    Options
    Control
    On/Off, Phase dimming
    Product colors
    BlackDark grayAnthracite grayLight grayWhiteBronzeCustom color (Please specify RAL code)

    Technical details


    Listings and Ratings
    ETL-pending
    Mounting
    Wall mountable
    Housing
    Corrosion resistant, marine grade aluminum housing
    Finishing
    Chromate conversion pretreatment followed by electrostatic powder coating
    Fasteners
    Stainless steel (AISI 304 / EN 1.4301 grade)
    Gasket
    Silicone
    Glass / Diffusor
    Tempered safety glass
    Impact protection
    IK06
    Ingress protection
    IP65
    Input voltage
    120-277V 50/60Hz
    Insulation class
    Class I
    Weight
    1.5 lbs
    Driver
    Internal LED driver
    Power factor
    > 0.93
    Through wiring
    Single power cord entry
    Power cord
    8" of flexible power cord
    Packing box dimensions
    4 21/64"*7 3/32"*2 3/4"
    Notes

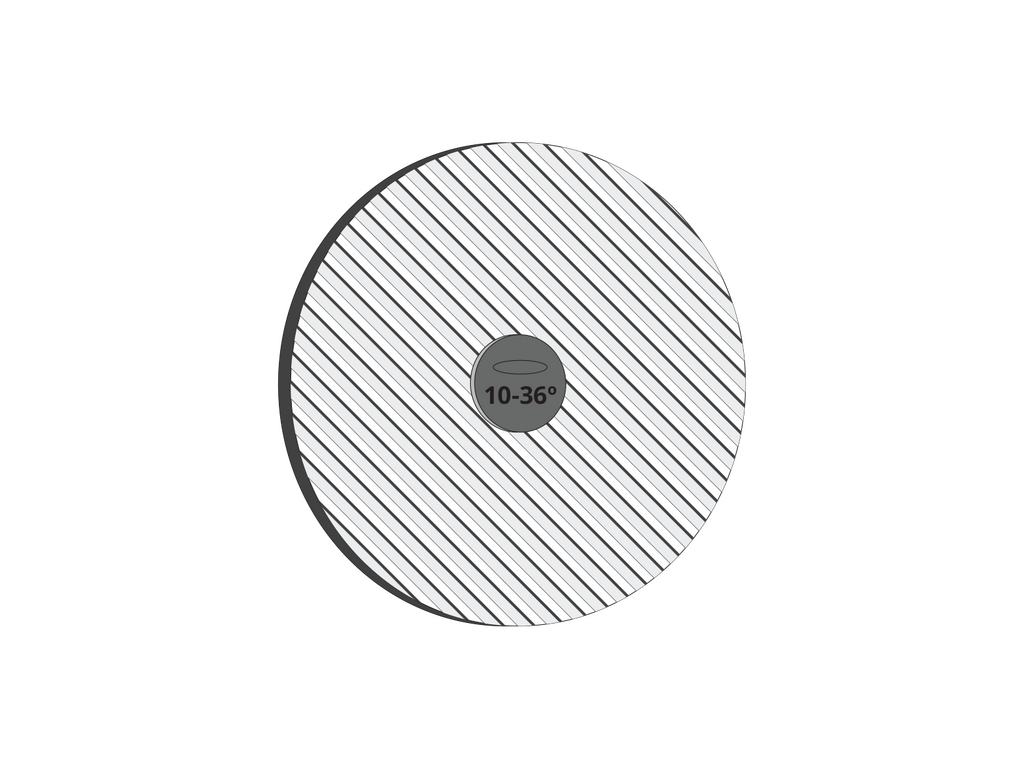

    Louver Snap Lens can not be combined with other lenses.

    Downloads

    Configurations

    Light distribution
    Very narrow - NEMA Type 1
    [VN] Very narrow - NEMA Type 1 - 10°
    Narrow - NEMA Type 2
    [N] Narrow - NEMA Type 2 - 25°
    Medium narrow - NEMA Type 3
    [MN] Medium narrow - NEMA Type 3 - 36°
    Medium - NEMA Type 4
    [M] Medium - NEMA Type 4 - 60°
    Delivered lumens flux
    368 lm
    390 lm
    410 lm
    Rated input power
    7.5 W
    Color temperature
    2700 K CRI 90
    3000 K CRI 90
    4000 K CRI 90

    Configuration code

    Light distribution

    Delivered lumens flux

    Rated input power

    Color temperature

    Control

    Configuration code: LW8034.003-US-VN-927
    Light distribution: [VN] Very narrow - NEMA Type 1 - 10°
    Delivered lumens flux: 368 lm
    Rated input power: 7.5 W
    Color temperature: 2700 K CRI 90
    Control: On/Off, Phase dimming
    LW8034.003-US-VN-927
    Light distribution
    [VN] 10°
    Delivered lumens flux
    368 lm
    Rated input power
    7.5 W
    Color temperature
    2700 K CRI 90
    Luminaire efficacy
    49 lm/W
    Lamp
    1 LAMP
    Color Deviation
    5 SDCM
    Configuration code: LW8034.003-US-VN-930
    Light distribution: [VN] Very narrow - NEMA Type 1 - 10°
    Delivered lumens flux: 390 lm
    Rated input power: 7.5 W
    Color temperature: 3000 K CRI 90
    Control: On/Off, Phase dimming
    Light distribution
    [VN] 10°
    Delivered lumens flux
    390 lm
    Rated input power
    7.5 W
    Color temperature
    3000 K CRI 90
    Luminaire efficacy
    52 lm/W
    Lamp
    1 LAMP
    Color Deviation
    5 SDCM
    BUG rating
    B1-U0-G0
    Configuration code: LW8034.003-US-VN-940
    Light distribution: [VN] Very narrow - NEMA Type 1 - 10°
    Delivered lumens flux: 410 lm
    Rated input power: 7.5 W
    Color temperature: 4000 K CRI 90
    Control: On/Off, Phase dimming
    Light distribution
    [VN] 10°
    Delivered lumens flux
    410 lm
    Rated input power
    7.5 W
    Color temperature
    4000 K CRI 90
    Luminaire efficacy
    55 lm/W
    Lamp
    1 LAMP
    Color Deviation
    5 SDCM
    BUG rating
    B1-U0-G0
    Configuration code: LW8034.003-US-MN-930
    Light distribution: [N] Narrow - NEMA Type 2 - 25°
    Delivered lumens flux: 390 lm
    Rated input power: 7.5 W
    Color temperature: 3000 K CRI 90
    Control: On/Off, Phase dimming
    Light distribution
    [N] 25°
    Delivered lumens flux
    390 lm
    Rated input power
    7.5 W
    Color temperature
    3000 K CRI 90
    Luminaire efficacy
    52 lm/W
    Lamp
    1 LAMP
    Color Deviation
    5 SDCM
    BUG rating
    B1-U0-G0
    Configuration code: LW8034.003-US-MN-940
    Light distribution: [N] Narrow - NEMA Type 2 - 25°
    Delivered lumens flux: 410 lm
    Rated input power: 7.5 W
    Color temperature: 4000 K CRI 90
    Control: On/Off, Phase dimming
    Light distribution
    [N] 25°
    Delivered lumens flux
    410 lm
    Rated input power
    7.5 W
    Color temperature
    4000 K CRI 90
    Luminaire efficacy
    55 lm/W
    Lamp
    1 LAMP
    Color Deviation
    5 SDCM
    BUG rating
    B1-U0-G0
    Configuration code: LW8034.003-US-N-927
    Light distribution: [N] Narrow - NEMA Type 2 - 25°
    Delivered lumens flux: 368 lm
    Rated input power: 7.5 W
    Color temperature: 2700 K CRI 90
    Control: On/Off, Phase dimming
    LW8034.003-US-N-927
    Light distribution
    [N] 25°
    Delivered lumens flux
    368 lm
    Rated input power
    7.5 W
    Color temperature
    2700 K CRI 90
    Luminaire efficacy
    49 lm/W
    Lamp
    1 LAMP
    Color Deviation
    5 SDCM
    Configuration code: LW8034.003-US-MN-927
    Light distribution: [MN] Medium narrow - NEMA Type 3 - 36°
    Delivered lumens flux: 368 lm
    Rated input power: 7.5 W
    Color temperature: 2700 K CRI 90
    Control: On/Off, Phase dimming
    LW8034.003-US-MN-927
    Light distribution
    [MN] 36°
    Delivered lumens flux
    368 lm
    Rated input power
    7.5 W
    Color temperature
    2700 K CRI 90
    Luminaire efficacy
    49 lm/W
    Lamp
    1 LAMP
    Color Deviation
    5 SDCM
    Configuration code: LW8034.003-US-N-930
    Light distribution: [MN] Medium narrow - NEMA Type 3 - 36°
    Delivered lumens flux: 390 lm
    Rated input power: 7.5 W
    Color temperature: 3000 K CRI 90
    Control: On/Off, Phase dimming
    Light distribution
    [MN] 36°
    Delivered lumens flux
    390 lm
    Rated input power
    7.5 W
    Color temperature
    3000 K CRI 90
    Luminaire efficacy
    52 lm/W
    Lamp
    1 LAMP
    Color Deviation
    5 SDCM
    BUG rating
    B1-U0-G0
    Configuration code: LW8034.003-US-N-940
    Light distribution: [MN] Medium narrow - NEMA Type 3 - 36°
    Delivered lumens flux: 410 lm
    Rated input power: 7.5 W
    Color temperature: 4000 K CRI 90
    Control: On/Off, Phase dimming
    Light distribution
    [MN] 36°
    Delivered lumens flux
    410 lm
    Rated input power
    7.5 W
    Color temperature
    4000 K CRI 90
    Luminaire efficacy
    55 lm/W
    Lamp
    1 LAMP
    Color Deviation
    5 SDCM
    BUG rating
    B1-U0-G0
    Configuration code: LW8034.003-US-M-927
    Light distribution: [M] Medium - NEMA Type 4 - 60°
    Delivered lumens flux: 368 lm
    Rated input power: 7.5 W
    Color temperature: 2700 K CRI 90
    Control: On/Off, Phase dimming
    LW8034.003-US-M-927
    Light distribution
    [M] 60°
    Delivered lumens flux
    368 lm
    Rated input power
    7.5 W
    Color temperature
    2700 K CRI 90
    Luminaire efficacy
    49 lm/W
    Lamp
    1 LAMP
    Color Deviation
    5 SDCM
    Configuration code: LW8034.003-US-M-930
    Light distribution: [M] Medium - NEMA Type 4 - 60°
    Delivered lumens flux: 390 lm
    Rated input power: 7.5 W
    Color temperature: 3000 K CRI 90
    Control: On/Off, Phase dimming
    Light distribution
    [M] 60°
    Delivered lumens flux
    390 lm
    Rated input power
    7.5 W
    Color temperature
    3000 K CRI 90
    Luminaire efficacy
    52 lm/W
    Lamp
    1 LAMP
    Color Deviation
    5 SDCM
    BUG rating
    B1-U0-G0
    Configuration code: LW8034.003-US-M-940
    Light distribution: [M] Medium - NEMA Type 4 - 60°
    Delivered lumens flux: 410 lm
    Rated input power: 7.5 W
    Color temperature: 4000 K CRI 90
    Control: On/Off, Phase dimming
    Light distribution
    [M] 60°
    Delivered lumens flux
    410 lm
    Rated input power
    7.5 W
    Color temperature
    4000 K CRI 90
    Luminaire efficacy
    55 lm/W
    Lamp
    1 LAMP
    Color Deviation
    5 SDCM
    BUG rating
    B1-U0-G0

    Related products

    All flux and power values derived following appropriate IES, CIE and applicable standards.
    Descriptions
    Configurations

    Light distribution

    Drive current

    Very narrow - NEMA Type 1
    [VN]

    Very narrow - NEMA Type 1

    Narrow - NEMA Type 2
    [N]

    Narrow - NEMA Type 2

    Medium narrow - NEMA Type 3
    [MN]

    Medium narrow - NEMA Type 3

    Medium - NEMA Type 4
    [M]

    Medium - NEMA Type 4

    Drive current

    Lamp
    [L]

    Lamp

    Color temperature

    2700 K CRI 90
    [927]

    2700 K CRI 90

    3000 K CRI 90
    [930]

    3000 K CRI 90

    4000 K CRI 90
    [940]

    4000 K CRI 90

    Options

    Control

    Product colors

    On/Off
    [ONOFF]

    On/Off

    Phase dimming
    [PD]

    Phase dimming

    Product colors

    Black
    [HM1]

    Black

    Dark gray
    [HM2]

    Dark gray

    Anthracite gray
    [HM3]

    Anthracite gray

    Light gray
    [HM4]

    Light gray

    White
    [HM5]

    White

    Bronze
    [HM6]

    Bronze

    Custom color (Please specify RAL code)
    [CC]

    Custom color (Please specify RAL code)
