PINA W Duo

PINA W DuoPINA W Duo
PINA W DuoPINA W Duo

LW8033.003-EN

CEIK07IP65Class I
Configurations
Light distribution
[M-M] 60°, [N-N] 25°
Nominal lumens flux
820 lm, 780 lm
Power
15 W
Options
Control
On/Off
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Product colors
Black (Textured)Dark gray (Textured)Anthracite gray (Textured)Light gray (Textured)White (Textured)Bronze (Textured)Custom Colour (Please specify RAL code)

Mounting
Wall mountable
Housing
Corrosion resistant aluminum housing
Finishing
Electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Gasket
Silicone
Glass / Diffusor
Tempered safety glass
Impact protection
IK07
Ingress protection
IP65
Power factor
> 0.80
Through wiring
Single cable entry
Cable
7 7/8" of flexible cable

Downloads


Configurations


Light distribution

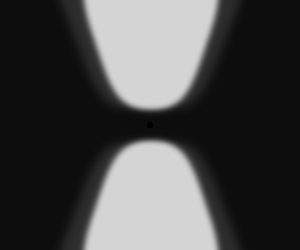

Medium (Up & Down)
[M-M] Medium (Up & Down) - 60°
Narrow - NEMA Type 2 (Up & Down)
[N-N] Narrow - NEMA Type 2 (Up & Down) - 25°
Nominal lumens flux
820 lm
780 lm
Power
15 W

Configuration code

Configurations name

Optic

Nominal lumens flux


Configuration code: LW8033.003-EN-M-930
Configurations name: LAMP 2 - 15W - 3000K CRI 90
Optic: [M-M] Medium (Up & Down) - 60°
Nominal lumens flux: 780 lm
LW8033.003-EN-M-930
Delivered lumens flux
702 lm
Rated input power
15 W
Lamp
2 LAMP
MacAdam Ellipse
5 SDCM
BUG rating
B3-U5-G0
Configuration code: LW8033.003-EN-M-940
Configurations name: LAMP 2 - 15W - 4000K CRI 90
Optic: [M-M] Medium (Up & Down) - 60°
Nominal lumens flux: 820 lm
LW8033.003-EN-M-940
Delivered lumens flux
738 lm
Rated input power
15 W
Lamp
2 LAMP
MacAdam Ellipse
5 SDCM
BUG rating
B1-U3-G0
Configuration code: LW8033.003-EN-N-930
Configurations name: LAMP 2 - 15W - 3000K CRI 90
Optic: [N-N] Narrow - NEMA Type 2 (Up & Down) - 25°
Nominal lumens flux: 780 lm
LW8033.003-EN-N-930
Delivered lumens flux
702 lm
Rated input power
15 W
Lamp
2 LAMP
MacAdam Ellipse
5 SDCM
BUG rating
B1-U3-G0
Configuration code: LW8033.003-EN-N-940
Configurations name: LAMP 2 - 15W - 4000K CRI 90
Optic: [N-N] Narrow - NEMA Type 2 (Up & Down) - 25°
Nominal lumens flux: 820 lm
LW8033.003-EN-N-940
Delivered lumens flux
738 lm
Rated input power
15 W
Lamp
2 LAMP
MacAdam Ellipse
5 SDCM
BUG rating
B1-U3-G0

Descriptions
Configurations

Light distribution

Drive current


Medium (Up & Down)
[M-M]

Medium (Up & Down)

Narrow - NEMA Type 2 (Up & Down)
[N-N]

Narrow - NEMA Type 2 (Up & Down)

Drive current


Color temperature


Options

Control

Input voltage


On/Off
[ONOFF]

On/Off

Input voltage


220-240V 50/60Hz
[EN]

220-240V 50/60Hz

Insulation class

Product colors


Class I
[C1]

Class I

Product colors


Black (Textured)
[HM1]

Black (Textured)

Dark gray (Textured)
[HM2]

Dark gray (Textured)

Anthracite gray (Textured)
[HM3]

Anthracite gray (Textured)

Light gray (Textured)
[HM4]

Light gray (Textured)

White (Textured)
[HM5]

White (Textured)

Bronze (Textured)
[HM6]

Bronze (Textured)

Custom Colour (Please specify RAL code)
[CC]

Custom Colour (Please specify RAL code)
