DOGO Side

DOGO SideDOGO Side
DOGO SideDOGO Side

LW6048.585-EN

CEIK08IP65Class I
Variants
Light distribution

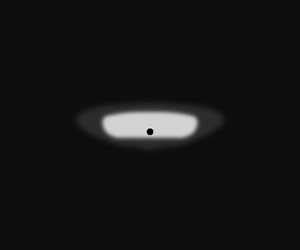

[SLSW] 180° x 45°
Nominal lumens flux
700 lm, 635 lm
Power
4 W (350 mA)
Color temperature
4000 K CRI 70, 3000 K CRI 80
Options
Control
On/Off
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Product colors
Black (Textured)Dark gray (Textured)Anthracite gray (Textured)Light gray (Textured)White (Textured)Bronze (Textured)Custom Colour (Please specify RAL code)

Mounting
Surface or wall mountable
Housing
Corrosion resistant aluminum housing
Finishing
Electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Gasket
Silicone
Lens / Reflector
High reflectance aluminium coating, multifaceted micro reflector
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP65
LED module
High power LEDs on metal-core PCB
Driver
Internal LED driver
Driver surge protection
1/1 kV
Power factor
> 0.60
Through wiring
Single cable entry
Cable
7 7/8" of flexible cable

Downloads


Variants


Light distribution
Special linear, Side throw
[SLSW] Special linear, Side throw - 180° x 45°
Nominal lumens flux
700 lm
635 lm
Power
4 W
Color temperature
4000 K CRI 70
3000 K CRI 80

Variant code

Variant name

Optic

Nominal lumens flux


Variant code: LW6048.585-EN-SLSW-350-740
Variant name: DYNO 2 - 4W - 350mA - 4000K CRI 70
Optic: [SLSW] Special linear, Side throw - 180° x 45°
Nominal lumens flux: 700 lm
LW6048.585-EN-SLSW-350-740
Delivered lumens flux
547 lm
Rated input power
5 W
Efficacy
105 lm/W
Lamp
2 LED
MacAdam Ellipse
3 SDCM
BUG rating
B0-U0-G0
Variant code: LW6048.585-EN-SLSW-350-830
Variant name: DYNO 2 - 4W - 350mA - 3000K CRI 80
Optic: [SLSW] Special linear, Side throw - 180° x 45°
Nominal lumens flux: 635 lm
LW6048.585-EN-SLSW-350-830
Delivered lumens flux
496 lm
Rated input power
5 W
Efficacy
99 lm/W
Lamp
2 LED
MacAdam Ellipse
3 SDCM
BUG rating
B0-U0-G0

Descriptions
Variants

Light distribution

Drive current


Special linear, Side throw
[SLSW]

Special linear, Side throw

Drive current


350 mA
[350]

350 mA

Color temperature


3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Input voltage


On/Off
[ONOFF]

On/Off

Input voltage


220-240V 50/60Hz
[EN]

220-240V 50/60Hz

Insulation class

Product colors


Class I
[C1]

Class I

Product colors


Black (Textured)
[HM1]

Black (Textured)

Dark gray (Textured)
[HM2]

Dark gray (Textured)

Anthracite gray (Textured)
[HM3]

Anthracite gray (Textured)

Light gray (Textured)
[HM4]

Light gray (Textured)

White (Textured)
[HM5]

White (Textured)

Bronze (Textured)
[HM6]

Bronze (Textured)

Custom Colour (Please specify RAL code)
[CC]

Custom Colour (Please specify RAL code)
