HANDRA Side

HANDRA SideHANDRA Side
HANDRA SideHANDRA Side

LH5005.595-US

IK10IP65Class I
Configurations
Light distribution
[SLSH] 30° x 55°
Nominal lumens flux
109 lm, 114 lm
Power
1 W (350 mA)
Color temperature
3000 K CRI 80, 4000 K CRI 70
Options
Control
On/Off
Input voltage
120-277V 50/60Hz
Insulation class
Class I
Product colors
Black (Textured)Dark gray (Textured)Anthracite gray (Textured)Light gray (Textured)White (Textured)Bronze (Textured)Custom Colour (Please specify RAL code)

Housing
Corrosion resistant die-cast aluminum housing
Finishing
Electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Gasket
Liquid gasket
Lens / Reflector
High reflectance aluminium coating
Glass / Diffusor
Tempered safety glass
Impact protection
IK10
Ingress protection
IP65
LED module
High power LEDs on metal-core PCB
Driver
External LED driver
Driver surge protection
3/3 kV
Power factor
> 0.40
Through wiring
Single cable entry
Cable
7 7/8" of flexible cable

Downloads


Configurations


Light distribution
Special linear, Side throw

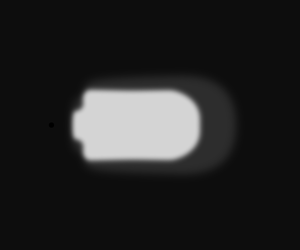

[SLSH] Special linear, Side throw - 30° x 55°
Nominal lumens flux
109 lm
114 lm
Power
1 W
Color temperature
3000 K CRI 80
4000 K CRI 70

Configuration code

Configurations name

Optic

Nominal lumens flux


Configuration code: LH5005.595-US-SLSH-350-740
Configurations name: MDBW 1 - 1W - 350mA - 4000K CRI 70
Optic: [SLSH] Special linear, Side throw - 30° x 55°
Nominal lumens flux: 114 lm
LH5005.595-US-SLSH-350-740
Delivered lumens flux
56 lm
Rated input power
2 W
Efficacy
28 lm/W
Lamp
1 LED
MacAdam Ellipse
3 SDCM
Configuration code: LH5005.595-US-SLSH-350-830
Configurations name: MDBW 1 - 1W - 350mA - 3000K CRI 80
Optic: [SLSH] Special linear, Side throw - 30° x 55°
Nominal lumens flux: 109 lm
LH5005.595-US-SLSH-350-830
Delivered lumens flux
52 lm
Rated input power
2 W
Efficacy
26 lm/W
Lamp
1 LED
MacAdam Ellipse
3 SDCM

Descriptions
Configurations

Light distribution

Drive current


Special linear, Side throw
[SLSH]

Special linear, Side throw

Drive current


350 mA
[350]

350 mA

Color temperature


3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Input voltage


On/Off
[ONOFF]

On/Off

Input voltage


120-277V 50/60Hz
[UNI]

120-277V 50/60Hz

Insulation class

Product colors


Class I
[C1]

Class I

Product colors


Black (Textured)
[HM1]

Black (Textured)

Dark gray (Textured)
[HM2]

Dark gray (Textured)

Anthracite gray (Textured)
[HM3]

Anthracite gray (Textured)

Light gray (Textured)
[HM4]

Light gray (Textured)

White (Textured)
[HM5]

White (Textured)

Bronze (Textured)
[HM6]

Bronze (Textured)

Custom Colour (Please specify RAL code)
[CC]

Custom Colour (Please specify RAL code)
