PINA Flood

PINA FloodPINA Flood
PINA FloodPINA Flood

LF8033.003-EN

CEIK07IP65Class I
Configurations
Light distribution
[M] 60°, [N] 25°, [VN] 10°, [MN] 36°
Nominal lumens flux
410 lm, 390 lm, 370 lm
Power
7.5 W
Options
Control
On/Off
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Product colors
Black (Textured)Dark gray (Textured)Anthracite gray (Textured)Light gray (Textured)White (Textured)Bronze (Textured)Custom Colour (Please specify RAL code)

Tilt angle
-45°/+45°
Housing
Corrosion resistant aluminum housing
Finishing
Electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Gasket
Silicone
Glass / Diffusor
Tempered safety glass
Impact protection
IK07
Ingress protection
IP65
Power factor
> 0.80
Through wiring
Single cable entry
Cable
0.4 m of flexible cable

Downloads


Configurations


Light distribution
Very narrow - NEMA Type 1
[VN] Very narrow - NEMA Type 1 - 10°
Narrow - NEMA Type 2
[N] Narrow - NEMA Type 2 - 25°
Medium narrow - NEMA Type 3

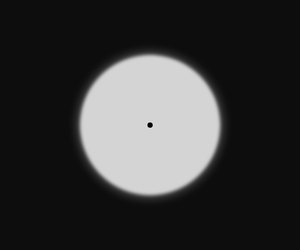

[MN] Medium narrow - NEMA Type 3 - 36°
Medium - NEMA Type 4
[M] Medium - NEMA Type 4 - 60°
Nominal lumens flux
410 lm
390 lm
370 lm
Power
7.5 W

Configuration code

Configurations name

Optic

Nominal lumens flux


Configuration code: LF8033.003-EN-M-930
Configurations name: LAMP 1 - 7.5W - 3000K CRI 90
Optic: [M] Medium - NEMA Type 4 - 60°
Nominal lumens flux: 390 lm
LF8033.003-EN-M-930
Delivered lumens flux
351 lm
Rated input power
7.5 W
Efficacy
47 lm/W
Lamp
1 LAMP
MacAdam Ellipse
5 SDCM
Configuration code: LF8033.003-EN-M-940
Configurations name: LAMP 1 - 7.5W - 4000K CRI 90
Optic: [M] Medium - NEMA Type 4 - 60°
Nominal lumens flux: 410 lm
LF8033.003-EN-M-940
Delivered lumens flux
369 lm
Rated input power
7.5 W
Efficacy
49 lm/W
Lamp
1 LAMP
MacAdam Ellipse
5 SDCM
Configuration code: LF8033.003-EN-MN-930
Configurations name: LAMP 1 - 7.5W - 3000K CRI 90
Optic: [MN] Medium narrow - NEMA Type 3 - 36°
Nominal lumens flux: 390 lm
LF8033.003-EN-MN-930
Delivered lumens flux
351 lm
Rated input power
7.5 W
Efficacy
47 lm/W
Lamp
1 LAMP
MacAdam Ellipse
5 SDCM
Configuration code: LF8033.003-EN-MN-940
Configurations name: LAMP 1 - 7.5W - 4000K CRI 90
Optic: [MN] Medium narrow - NEMA Type 3 - 36°
Nominal lumens flux: 410 lm
LF8033.003-EN-MN-940
Delivered lumens flux
369 lm
Rated input power
7.5 W
Efficacy
49 lm/W
Lamp
1 LAMP
MacAdam Ellipse
5 SDCM
Configuration code: LF8033.003-EN-N-930
Configurations name: LAMP 1 - 7.5W - 3000K CRI 90
Optic: [N] Narrow - NEMA Type 2 - 25°
Nominal lumens flux: 390 lm
LF8033.003-EN-N-930
Delivered lumens flux
351 lm
Rated input power
7.5 W
Efficacy
47 lm/W
Lamp
1 LAMP
MacAdam Ellipse
5 SDCM
Configuration code: LF8033.003-EN-N-940
Configurations name: LAMP 1 - 7.5W - 4000K CRI 90
Optic: [N] Narrow - NEMA Type 2 - 25°
Nominal lumens flux: 410 lm
LF8033.003-EN-N-940
Delivered lumens flux
369 lm
Rated input power
7.5 W
Efficacy
49 lm/W
Lamp
1 LAMP
MacAdam Ellipse
5 SDCM
Configuration code: LF8033.003-EN-VN-930
Configurations name: LAMP 1 - 7.5W - 3000K CRI 90
Optic: [VN] Very narrow - NEMA Type 1 - 10°
Nominal lumens flux: 370 lm
LF8033.003-EN-VN-930
Delivered lumens flux
333 lm
Rated input power
7.5 W
Efficacy
44 lm/W
Lamp
1 LAMP
MacAdam Ellipse
5 SDCM
Configuration code: LF8033.003-EN-VN-940
Configurations name: LAMP 1 - 7.5W - 4000K CRI 90
Optic: [VN] Very narrow - NEMA Type 1 - 10°
Nominal lumens flux: 390 lm
LF8033.003-EN-VN-940
Delivered lumens flux
351 lm
Rated input power
7.5 W
Efficacy
47 lm/W
Lamp
1 LAMP
MacAdam Ellipse
5 SDCM

Accessories (To be ordered separately)


Accessories (To be ordered separately)


Mounting accessories
Spike for PINA F

Spike for PINA F

100992106


Descriptions
Configurations

Light distribution

Drive current


Very narrow - NEMA Type 1
[VN]

Very narrow - NEMA Type 1

Narrow - NEMA Type 2
[N]

Narrow - NEMA Type 2

Medium narrow - NEMA Type 3
[MN]

Medium narrow - NEMA Type 3

Medium - NEMA Type 4
[M]

Medium - NEMA Type 4

Drive current


Color temperature


Options

Control

Input voltage


On/Off
[ONOFF]

On/Off

Input voltage


220-240V 50/60Hz
[EN]

220-240V 50/60Hz

Insulation class

Product colors


Class I
[C1]

Class I

Product colors


Black (Textured)
[HM1]

Black (Textured)

Dark gray (Textured)
[HM2]

Dark gray (Textured)

Anthracite gray (Textured)
[HM3]

Anthracite gray (Textured)

Light gray (Textured)
[HM4]

Light gray (Textured)

White (Textured)
[HM5]

White (Textured)

Bronze (Textured)
[HM6]

Bronze (Textured)

Custom Colour (Please specify RAL code)
[CC]

Custom Colour (Please specify RAL code)
