LC2029.672-Sym-EN





Configurations
Light distribution
[TVS-S] 130° x 170°
Nominal LED lumens flux
6370 - 9600 lm
Nominal LED power
46 W (500 mA) - 64 W (700 mA)
Rated luminaire lumens flux
5281 - 7950 lm
Rated luminaire power
50 - 70 W
Color temperature
4000 K CRI 70, 3000 K CRI 80
BUG rating
B2-U0-G2
Lifetime L90
>60, 000 hours
Lifetime L80
>60, 000 hours
Options
Control
On/Off, DALI
Input voltage
220-240V 50/60Hz, 120-277V 50/60Hz
Insulation class
Class I, Class II
Product colors







Extras
Finishing options
Double coating
Light output
Constant light output
Mounting
Catenary wire mounting
Housing
Corrosion resistant die-cast aluminum housing
Finishing
Electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Gasket
Silicone
Lens / Reflector
High reflectance aluminium coating, multifaceted micro reflector
Glass / Diffusor
Bio-based, enriched with bisphenol A diffusor
Impact protection
IK08
Ingress protection
IP66
Weight
3,65 kg
LED module
Multi-chip high power LEDs on metal-core PCB
Driver
Thermally-separated internal LED driver
Driver surge protection
10/6 kV
Power factor
> 0.95
Through wiring
Single cable entry
Cable
39 3/8" of halogen-free cable
Downloads
Configurations
Light distribution

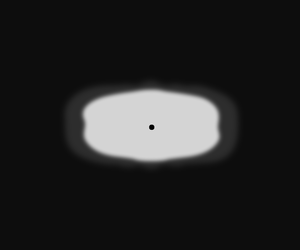

[TVS-S] Symmetric, Side throw, Short - 130° x 170°
Nominal LED lumens flux
9600 lm
8920 lm
6856 lm
6370 lm
Nominal LED power
64 W
46 W
Color temperature
4000 K CRI 70
3000 K CRI 80
Configuration code
Configurations name
Optic
Nominal LED lumens flux
Configuration code: LC2029.672-EN-TVS-S-500-740
Configurations name: MILESTONE 8 - 46W - 500mA - 4000K CRI 70
Optic: [TVS-S] Symmetric, Side throw, Short - 130° x 170°
Nominal LED lumens flux: 6856 lm
Nominal LED lumens flux
6856 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5678 lm
Rated luminaire power
50 W
Luminaire efficacy
116 lm/W
Lamp
8 LED
Color Deviation
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90
>60,000 hours
Lifetime L80
>60,000 hours
Configuration code: LC2029.672-EN-TVS-S-500-830
Configurations name: MILESTONE 8 - 46W - 500mA - 3000K CRI 80
Optic: [TVS-S] Symmetric, Side throw, Short - 130° x 170°
Nominal LED lumens flux: 6370 lm
Nominal LED lumens flux
6370 lm
Nominal LED power
46 W
Rated luminaire lumens flux
5281 lm
Rated luminaire power
50 W
Luminaire efficacy
108 lm/W
Lamp
8 LED
Color Deviation
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90
>60,000 hours
Lifetime L80
>60,000 hours
Configuration code: LC2029.672-EN-TVS-S-700-740
Configurations name: MILESTONE 8 - 64W - 700mA - 4000K CRI 70
Optic: [TVS-S] Symmetric, Side throw, Short - 130° x 170°
Nominal LED lumens flux: 9600 lm
Nominal LED lumens flux
9600 lm
Nominal LED power
64 W
Rated luminaire lumens flux
7950 lm
Rated luminaire power
70 W
Luminaire efficacy
114 lm/W
Lamp
8 LED
Color Deviation
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90
>60,000 hours
Lifetime L80
>60,000 hours
Configuration code: LC2029.672-EN-TVS-S-700-830
Configurations name: MILESTONE 8 - 64W - 700mA - 3000K CRI 80
Optic: [TVS-S] Symmetric, Side throw, Short - 130° x 170°
Nominal LED lumens flux: 8920 lm
Nominal LED lumens flux
8920 lm
Nominal LED power
64 W
Rated luminaire lumens flux
7394 lm
Rated luminaire power
70 W
Luminaire efficacy
106 lm/W
Lamp
8 LED
Color Deviation
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90
>60,000 hours
Lifetime L80
>60,000 hours
All flux and power values derived following appropriate IES, CIE and applicable standards.
Descriptions
Configurations
Light distribution
Drive current

[TVS-S]
Symmetric, Side throw, Short
Drive current

[500]
500 mA

[700]
700 mA
Color temperature

[830]
3000 K CRI 80

[740]
4000 K CRI 70
Options
Control
Input voltage

[ONOFF]
On/Off

[DALI]
DALI
Input voltage

[EN]
220-240V 50/60Hz

[UNI]
120-277V 50/60Hz
Insulation class
Product colors

[C1]
Class I

[C2]
Class II
Product colors

[HM1]
Black (Textured)

[HM2]
Dark gray (Textured)

[HM3]
Anthracite gray (Textured)

[HM4]
Light gray (Textured)

[HM5]
White (Textured)

[HM6]
Bronze (Textured)

[CC]
Custom Colour (Please specify RAL code)
Extras
Finishing options
Light output

[DC]
Double coating
Light output

[CLO]
Constant light output
