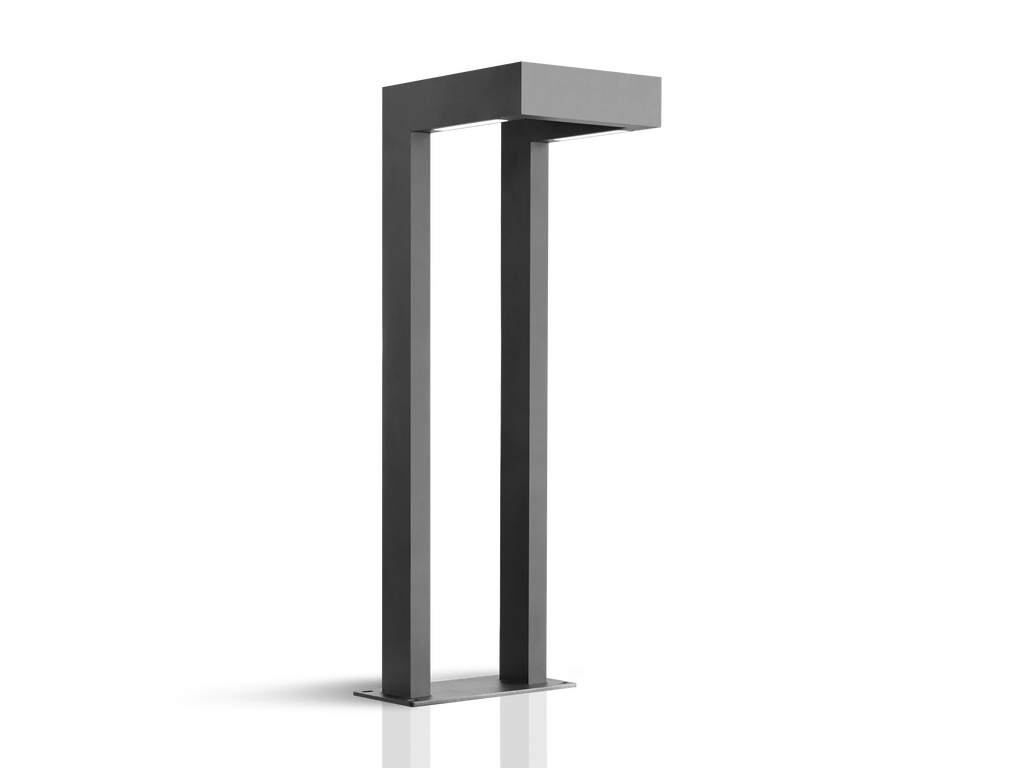

    LENA

    PHASED-OUT
    LENALENA

    LB6049.563-US

    Downloads

    LENALENA
    Light distribution
    [SYM] 360°
    Luminaire luminous flux
    850 lm
    Rated input power
    15 W
    CCT
    3000K
    CRI
    Ra80
    Control
    On/Off
    Product colors
    BlackDark grayAnthracite grayLight grayWhiteBronzeCustom color (Please specify RAL code)
    Luminaire efficacy
    57 lm/W
    Color deviation
    3 SDCM
    BUG rating
    B1-U0-G0
    Lifetime L90B10 (hour)
    >102, 000
    Driver
    Integral LED driver
    Input voltage
    120-277V 50/60Hz
    Configurator
    Project name
    Type
    Quantity
    Date
    Note
    Configuration order code

    LB6049.563-US-SYM-350-830-ONOFF-___

    Variants required
    Luminaire luminous flux: 850 lm

    Configurations
    Light distribution
    [SYM]
    Symmetric
    360°

    Rated input power
    [350]
    15 W

    Color temperature
    [830]
    3000 K CRI 80
    Options
    Control
    [ONOFF]
    On/Off

    Product colors
    [HM1]Black
    Black
    [HM2]Dark gray
    Dark gray
    [HM3]Anthracite gray
    Anthracite gray
    [HM4]Light gray
    Light gray
    [HM5]White
    White
    [HM6]Bronze
    Bronze
    [CC]Custom color (Please specify RAL code)
    Custom color (Please specify RAL code)


    Variants required

    Technical details


    Finishing
    Chromate conversion pretreatment followed by electrostatic powder coating
    Fasteners
    Stainless steel (AISI 304 / EN 1.4301 grade)
    Glass / Diffusor
    UV stable, bio-based polycarbonate diffusor
    Impact protection
    IK05
    Ingress protection
    IP65
    Insulation class
    Class I
    Weight
    15.67 lbs
    LED module
    High power LEDs on metal-core PCB
    Driver surge protection
    1/1 kV
    Power factor
    > 0.90
    Operating temperature
    -30...50°C

    Accessories (To be ordered separately)

    Accessories (To be ordered separately)

    All flux and power values derived following appropriate IES, CIE and applicable standards.
    Descriptions
    Configurations

    Light distribution

    Drive current

    Symmetric
    [SYM]

    Symmetric

    Drive current

    350 mA
    [350]

    350 mA

    Color temperature

    3000 K CRI 80
    [830]

    3000 K CRI 80

    Options

    Control

    Product colors

    On/Off
    [ONOFF]

    On/Off

    Product colors

    Black
    [HM1]

    Black

    Dark gray
    [HM2]

    Dark gray

    Anthracite gray
    [HM3]

    Anthracite gray

    Light gray
    [HM4]

    Light gray

    White
    [HM5]

    White

    Bronze
    [HM6]

    Bronze

    Custom color (Please specify RAL code)
    [CC]

    Custom color (Please specify RAL code)
