    DRAGO Side

    DRAGO SideDRAGO SideDRAGO Side
    DRAGO SideDRAGO SideDRAGO Side

    LB6048.585-US

    Configurations
    Light distribution
    [SLSB] 145x45°
    Delivered lumens flux
    360 - 1050 lm
    Rated input power
    5 - 10 W
    Color temperature
    2200 K CRI 80, 2700 K CRI 80, 3000 K CRI 80, 4000 K CRI 70, 4000 K CRI 80
    BUG rating
    B0-U0-G0, B1-U0-G1
    Lifetime L90 (hour)
    >42, 000
    Lifetime L80 (hour)
    >42, 000
    Options
    Control
    On/Off, 0-10V *
    Product colors
    BlackDark grayAnthracite grayLight grayWhiteBronzeCustom color (Please specify RAL code)
    Height
    0.8', 2.6'
    Extras
    Consult the factory
    Emergency kit, Motion sensor
    Luminaire body options
    Double powder coating
    * Please check the specific variant for each control type.

    Technical details


    Listings and Ratings
    DarkSky Friendly
    Mounting
    Surface mountable
    Housing
    Corrosion resistant, extruded, marine grade aluminum housing
    Finishing
    Chromate conversion pretreatment followed by electrostatic powder coating
    Fasteners
    Stainless steel (AISI 304 / EN 1.4301 grade)
    Gasket
    Liquid silicone
    Lens / Reflector
    High reflectance aluminium coating, multifaceted micro reflector
    Glass / Diffusor
    Tempered safety glass
    Impact protection
    IK08
    Ingress protection
    IP65
    Input voltage
    110-120V 50/60Hz
    Insulation class
    Class I
    Weight
    7.76 lbs (0.8'), 9.9 lbs (2.6')
    LED module
    High power LEDs on metal-core PCB
    Driver
    Internal LED driver
    Driver surge protection
    3/3 kV
    Power factor
    > 0.90
    Through wiring
    Single power cord entry
    Operating temperature
    -40...50°C
    Power cord
    20" of outdoor use rated flexible power cord
    Notes
    3000K CCT or warmer must be selected to be DarkSky International certified.

    Downloads

    Configurations

    Light distribution

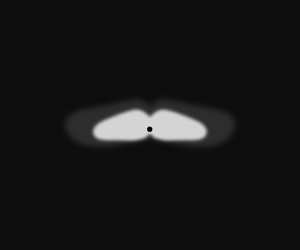

    Special linear, Side throw
    [SLSB] Special linear, Side throw - 145x45°
    Delivered lumens flux
    360 lm
    448 lm
    462 lm
    497 lm
    525 lm
    721 lm
    896 lm
    924 lm
    994 lm
    1050 lm
    Rated input power
    5 W
    10 W
    Color temperature
    2200 K CRI 80
    2700 K CRI 80
    3000 K CRI 80
    4000 K CRI 70
    4000 K CRI 80

    Configuration code

    Light distribution

    Delivered lumens flux

    Rated input power

    Color temperature

    Control

    Configuration code: LB6048.585-US-SLSB-350-740
    Light distribution: [SLSB] Special linear, Side throw - 145x45°
    Delivered lumens flux: 525 lm
    Rated input power: 5 W
    Color temperature: 4000 K CRI 70
    Control: On/Off
    LB6048.585-US-SLSB-350-740
    Light distribution
    [SLSB] 145x45°
    Delivered lumens flux
    525 lm
    Rated input power
    5 W
    Color temperature
    4000 K CRI 70
    Luminaire efficacy
    105 lm/W
    Lamp
    2 LED
    Color Deviation
    3 SDCM
    BUG rating
    B0-U0-G0
    Lifetime L90 (hour)
    >42,000
    Lifetime L80 (hour)
    >42,000
    Configuration code: LB6048.585-US-SLSB-350-822
    Light distribution: [SLSB] Special linear, Side throw - 145x45°
    Delivered lumens flux: 360 lm
    Rated input power: 5 W
    Color temperature: 2200 K CRI 80
    Control: On/Off
    LB6048.585-US-SLSB-350-822
    Light distribution
    [SLSB] 145x45°
    Delivered lumens flux
    360 lm
    Rated input power
    5 W
    Color temperature
    2200 K CRI 80
    Luminaire efficacy
    72 lm/W
    Lamp
    2 LED
    Color Deviation
    3 SDCM
    BUG rating
    B0-U0-G0
    Lifetime L90 (hour)
    >42,000
    Lifetime L80 (hour)
    >42,000
    Configuration code: LB6048.585-US-SLSB-350-827
    Light distribution: [SLSB] Special linear, Side throw - 145x45°
    Delivered lumens flux: 448 lm
    Rated input power: 5 W
    Color temperature: 2700 K CRI 80
    Control: On/Off
    LB6048.585-US-SLSB-350-827
    Light distribution
    [SLSB] 145x45°
    Delivered lumens flux
    448 lm
    Rated input power
    5 W
    Color temperature
    2700 K CRI 80
    Luminaire efficacy
    89 lm/W
    Lamp
    2 LED
    Color Deviation
    3 SDCM
    BUG rating
    B0-U0-G0
    Lifetime L90 (hour)
    >42,000
    Lifetime L80 (hour)
    >42,000
    Configuration code: LB6048.585-US-SLSB-350-830
    Light distribution: [SLSB] Special linear, Side throw - 145x45°
    Delivered lumens flux: 462 lm
    Rated input power: 5 W
    Color temperature: 3000 K CRI 80
    Control: On/Off
    LB6048.585-US-SLSB-350-830
    Light distribution
    [SLSB] 145x45°
    Delivered lumens flux
    462 lm
    Rated input power
    5 W
    Color temperature
    3000 K CRI 80
    Luminaire efficacy
    92 lm/W
    Lamp
    2 LED
    Color Deviation
    3 SDCM
    BUG rating
    B0-U0-G0
    Lifetime L90 (hour)
    >42,000
    Lifetime L80 (hour)
    >42,000
    Configuration code: LB6048.585-US-SLSB-350-840
    Light distribution: [SLSB] Special linear, Side throw - 145x45°
    Delivered lumens flux: 497 lm
    Rated input power: 5 W
    Color temperature: 4000 K CRI 80
    Control: On/Off
    LB6048.585-US-SLSB-350-840
    Light distribution
    [SLSB] 145x45°
    Delivered lumens flux
    497 lm
    Rated input power
    5 W
    Color temperature
    4000 K CRI 80
    Luminaire efficacy
    99 lm/W
    Lamp
    2 LED
    Color Deviation
    3 SDCM
    BUG rating
    B0-U0-G0
    Lifetime L90 (hour)
    >42,000
    Lifetime L80 (hour)
    >42,000
    Configuration code: LB6048.585-US-SLSB-700-740
    Light distribution: [SLSB] Special linear, Side throw - 145x45°
    Delivered lumens flux: 1050 lm
    Rated input power: 10 W
    Color temperature: 4000 K CRI 70
    Control: On/Off, 0-10V
    LB6048.585-US-SLSB-700-740
    Light distribution
    [SLSB] 145x45°
    Delivered lumens flux
    1050 lm
    Rated input power
    10 W
    Color temperature
    4000 K CRI 70
    Luminaire efficacy
    105 lm/W
    Lamp
    2 LED
    Color Deviation
    3 SDCM
    BUG rating
    B1-U0-G1
    Lifetime L90 (hour)
    >42,000
    Lifetime L80 (hour)
    >42,000
    Configuration code: LB6048.585-US-SLSB-700-822
    Light distribution: [SLSB] Special linear, Side throw - 145x45°
    Delivered lumens flux: 721 lm
    Rated input power: 10 W
    Color temperature: 2200 K CRI 80
    Control: On/Off, 0-10V
    LB6048.585-US-SLSB-700-822
    Light distribution
    [SLSB] 145x45°
    Delivered lumens flux
    721 lm
    Rated input power
    10 W
    Color temperature
    2200 K CRI 80
    Luminaire efficacy
    72 lm/W
    Lamp
    2 LED
    Color Deviation
    3 SDCM
    BUG rating
    B1-U0-G1
    Lifetime L90 (hour)
    >42,000
    Lifetime L80 (hour)
    >42,000
    Configuration code: LB6048.585-US-SLSB-700-827
    Light distribution: [SLSB] Special linear, Side throw - 145x45°
    Delivered lumens flux: 896 lm
    Rated input power: 10 W
    Color temperature: 2700 K CRI 80
    Control: On/Off, 0-10V
    LB6048.585-US-SLSB-700-827
    Light distribution
    [SLSB] 145x45°
    Delivered lumens flux
    896 lm
    Rated input power
    10 W
    Color temperature
    2700 K CRI 80
    Luminaire efficacy
    89 lm/W
    Lamp
    2 LED
    Color Deviation
    3 SDCM
    BUG rating
    B1-U0-G1
    Lifetime L90 (hour)
    >42,000
    Lifetime L80 (hour)
    >42,000
    Configuration code: LB6048.585-US-SLSB-700-830
    Light distribution: [SLSB] Special linear, Side throw - 145x45°
    Delivered lumens flux: 924 lm
    Rated input power: 10 W
    Color temperature: 3000 K CRI 80
    Control: On/Off, 0-10V
    LB6048.585-US-SLSB-700-830
    Light distribution
    [SLSB] 145x45°
    Delivered lumens flux
    924 lm
    Rated input power
    10 W
    Color temperature
    3000 K CRI 80
    Luminaire efficacy
    92 lm/W
    Lamp
    2 LED
    Color Deviation
    3 SDCM
    BUG rating
    B1-U0-G1
    Lifetime L90 (hour)
    >42,000
    Lifetime L80 (hour)
    >42,000
    Configuration code: LB6048.585-US-SLSB-700-840
    Light distribution: [SLSB] Special linear, Side throw - 145x45°
    Delivered lumens flux: 994 lm
    Rated input power: 10 W
    Color temperature: 4000 K CRI 80
    Control: On/Off, 0-10V
    LB6048.585-US-SLSB-700-840
    Light distribution
    [SLSB] 145x45°
    Delivered lumens flux
    994 lm
    Rated input power
    10 W
    Color temperature
    4000 K CRI 80
    Luminaire efficacy
    99 lm/W
    Lamp
    2 LED
    Color Deviation
    3 SDCM
    BUG rating
    B1-U0-G1
    Lifetime L90 (hour)
    >42,000
    Lifetime L80 (hour)
    >42,000

    Accessories (To be ordered separately)

    Accessories (To be ordered separately)

    Anchor bolts
    628I000

    628I000

    628I000

    All flux and power values derived following appropriate IES, CIE and applicable standards.
    Descriptions
    Configurations

    Light distribution

    Drive current

    Special linear, Side throw
    [SLSB]

    Special linear, Side throw

    Drive current

    350 mA
    [350]

    350 mA

    700 mA
    [700]

    700 mA

    Color temperature

    2200 K CRI 80
    [822]

    2200 K CRI 80

    2700 K CRI 80
    [827]

    2700 K CRI 80

    3000 K CRI 80
    [830]

    3000 K CRI 80

    4000 K CRI 70
    [740]

    4000 K CRI 70

    4000 K CRI 80
    [840]

    4000 K CRI 80

    Options

    Control

    Product colors

    On/Off
    [ONOFF]

    On/Off

    0-10V
    [0-10V]

    0-10V

    Product colors

    Black
    [HM1]

    Black

    Dark gray
    [HM2]

    Dark gray

    Anthracite gray
    [HM3]

    Anthracite gray

    Light gray
    [HM4]

    Light gray

    White
    [HM5]

    White

    Bronze
    [HM6]

    Bronze

    Custom color (Please specify RAL code)
    [CC]

    Custom color (Please specify RAL code)

    Extras

    Consult the factory

    Luminaire body options

    Emergency kit
    [EK]

    Emergency kit

    Motion sensor
    [MS]

    Motion sensor

    Luminaire body options

    Double powder coating
    [DPC]

    Double powder coating
