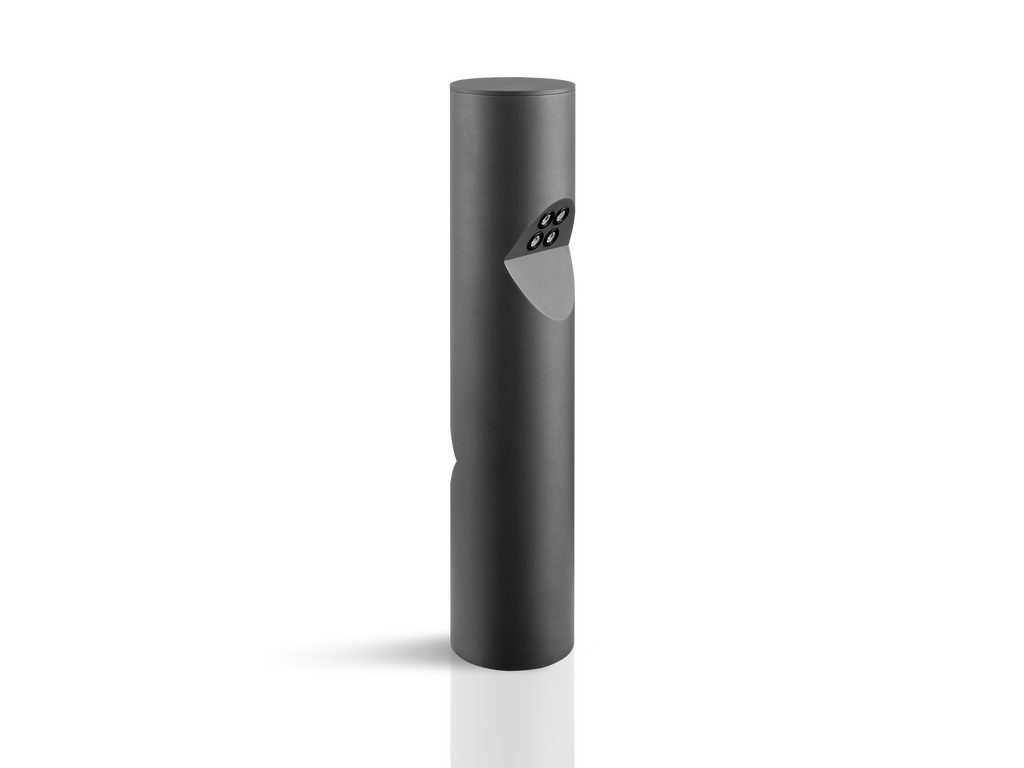

VESTA L 8 LED

VESTA L 8 LEDVESTA L 8 LED
VESTA L 8 LEDVESTA L 8 LED

LB6021.500-US

IK05IP65Class I
Configurations
Light distribution
[SLFB] 85° x 90°
Nominal LED lumens flux
2160 lm, 2080 lm
Nominal LED power
8 W (350 mA)
Color temperature
4000 K CRI 70, 3000 K CRI 80
Options
Control
On/Off
Input voltage
120-277V 50/60Hz
Insulation class
Class I
Product colors
Black (Textured)Dark gray (Textured)Anthracite gray (Textured)Light gray (Textured)White (Textured)Bronze (Textured)Custom Colour (Please specify RAL code)
Extras
Finishing option
Double coating

Housing
Corrosion resistant aluminum housing
Finishing
Electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK05
Ingress protection
IP65
Weight
18.7 lb
LED module
High power LEDs on metal-core PCB
Driver
Internal LED driver
Driver surge protection
3/3 kV
Power factor
> 0.40
Through wiring
Single cable entry
Cable
19 11/16" of flexible cable

Downloads


Configurations


Light distribution
Special linear, Forward throw
[SLFB] Special linear, Forward throw - 85° x 90°
Nominal LED lumens flux
2160 lm
2080 lm
Nominal LED power
8 W
Color temperature
4000 K CRI 70
3000 K CRI 80

Configuration code

Configurations name

Optic

Nominal LED lumens flux


Configuration code: LB6021.500-US-SLFB-350-740
Configurations name: LED 8 - 8W - 350mA - 4000K CRI 70
Optic: [SLFB] Special linear, Forward throw - 85° x 90°
Nominal LED lumens flux: 2160 lm
LB6021.500-US-SLFB-350-740
Nominal LED lumens flux
2160 lm
Nominal LED power
8 W
Rated luminaire lumens flux
800 lm
Rated luminaire power
10 W
Luminaire efficacy
80 lm/W
Lamp
8 LED
Color Deviation
3 SDCM
Configuration code: LB6021.500-US-SLFB-350-830
Configurations name: LED 8 - 8W - 350mA - 3000K CRI 80
Optic: [SLFB] Special linear, Forward throw - 85° x 90°
Nominal LED lumens flux: 2080 lm
LB6021.500-US-SLFB-350-830
Nominal LED lumens flux
2080 lm
Nominal LED power
8 W
Rated luminaire lumens flux
740 lm
Rated luminaire power
10 W
Luminaire efficacy
74 lm/W
Lamp
8 LED
Color Deviation
3 SDCM

Descriptions
Configurations

Light distribution

Drive current


Special linear, Forward throw
[SLFB]

Special linear, Forward throw

Drive current


350 mA
[350]

350 mA

Color temperature


3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Input voltage


On/Off
[ONOFF]

On/Off

Input voltage


120-277V 50/60Hz
[UNI]

120-277V 50/60Hz

Insulation class

Product colors


Class I
[C1]

Class I

Product colors


Black (Textured)
[HM1]

Black (Textured)

Dark gray (Textured)
[HM2]

Dark gray (Textured)

Anthracite gray (Textured)
[HM3]

Anthracite gray (Textured)

Light gray (Textured)
[HM4]

Light gray (Textured)

White (Textured)
[HM5]

White (Textured)

Bronze (Textured)
[HM6]

Bronze (Textured)

Custom Colour (Please specify RAL code)
[CC]

Custom Colour (Please specify RAL code)

Extras

Finishing option


Double coating
[DC]

Double coating
