AQSA 0.75 m

AQSA 0.75 mAQSA 0.75 m
AQSA 0.75 mAQSA 0.75 m

LW7034.516-EN

CEUKCAIK08IP65Class I
Variants
Light distribution
[EL] 147x106°, [EL] 41x13°, [M] 65°, [MN] 35°, [N] 20°
Delivered lumens flux
1620 - 4551 lm
Rated input power
16 - 33 W
Colour temperature
2700 K CRI 80, 3000 K CRI 80, 4000 K CRI 70, 4000 K CRI 80
Lifetime L90B50 (hour)
>102, 000
Lifetime L80B50 (hour)
>102, 000
Options
Control
On/Off, DALI
Product colours
BlackDark greyAnthracite greyLight greyWhiteBronzeCustom colour (Please specify RAL code)
Extras
Mounting options
Angle setting bracket, Long bracket
Consult the factory
120-277V 50/60Hz

Technical details



Certificates
CE, UKCA
Mounting
Surface mountable via a bracket
Housing
Corrosion resistant, extruded, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Liquid silicone
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP65
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
3.57 kg
LED module
High power LEDs on metal-core PCB
Driver
External LED driver
Driver surge protection
10/6 kV
Power factor
> 0.95
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
0.5 m of flexible cable

Downloads


Variants


Light distribution
Narrow
[N] Narrow - 20°
Medium narrow
[MN] Medium narrow - 35°
Medium
[M] Medium - 65°

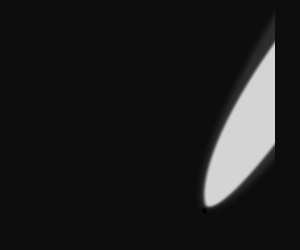

Elliptical
[EL] Elliptical - 147x106°
Elliptical
[EL] Elliptical - 41x13°
Delivered lumens flux
1620 lm
1719 lm
1745 lm
1759 lm
1847 lm
1960 lm
1990 lm
2006 lm
2077 lm
2368 lm
2993 lm
3176 lm
3223 lm
3249 lm
3550 lm
3767 lm
3824 lm
3837 lm
3855 lm
4551 lm
Rated input power
16 W
33 W
Colour temperature
2700 K CRI 80
3000 K CRI 80
4000 K CRI 70
4000 K CRI 80

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LW7034.516-EN-N-350-740
Light distribution: [N] Narrow - 20°
Delivered lumens flux: 1990 lm
Rated input power: 16 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LW7034.516-EN-N-350-740
Light distribution
[N] 20°
Delivered lumens flux
1990 lm
Rated input power
16 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
124 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-N-350-827
Light distribution: [N] Narrow - 20°
Delivered lumens flux: 1745 lm
Rated input power: 16 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-N-350-827
Light distribution
[N] 20°
Delivered lumens flux
1745 lm
Rated input power
16 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
109 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-N-350-830
Light distribution: [N] Narrow - 20°
Delivered lumens flux: 1745 lm
Rated input power: 16 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-N-350-830
Light distribution
[N] 20°
Delivered lumens flux
1745 lm
Rated input power
16 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
109 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-N-350-840
Light distribution: [N] Narrow - 20°
Delivered lumens flux: 1745 lm
Rated input power: 16 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-N-350-840
Light distribution
[N] 20°
Delivered lumens flux
1745 lm
Rated input power
16 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
109 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-N-700-740
Light distribution: [N] Narrow - 20°
Delivered lumens flux: 3824 lm
Rated input power: 33 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LW7034.516-EN-N-700-740
Light distribution
[N] 20°
Delivered lumens flux
3824 lm
Rated input power
33 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
115 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-N-700-827
Light distribution: [N] Narrow - 20°
Delivered lumens flux: 3223 lm
Rated input power: 33 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-N-700-827
Light distribution
[N] 20°
Delivered lumens flux
3223 lm
Rated input power
33 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
97 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-N-700-830
Light distribution: [N] Narrow - 20°
Delivered lumens flux: 3223 lm
Rated input power: 33 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-N-700-830
Light distribution
[N] 20°
Delivered lumens flux
3223 lm
Rated input power
33 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
97 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-N-700-840
Light distribution: [N] Narrow - 20°
Delivered lumens flux: 3223 lm
Rated input power: 33 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-N-700-840
Light distribution
[N] 20°
Delivered lumens flux
3223 lm
Rated input power
33 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
97 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-MN-350-740
Light distribution: [MN] Medium narrow - 35°
Delivered lumens flux: 1847 lm
Rated input power: 16 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LW7034.516-EN-MN-350-740
Light distribution
[MN] 35°
Delivered lumens flux
1847 lm
Rated input power
16 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
115 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-MN-350-827
Light distribution: [MN] Medium narrow - 35°
Delivered lumens flux: 1620 lm
Rated input power: 16 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-MN-350-827
Light distribution
[MN] 35°
Delivered lumens flux
1620 lm
Rated input power
16 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
101 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-MN-350-830
Light distribution: [MN] Medium narrow - 35°
Delivered lumens flux: 1620 lm
Rated input power: 16 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-MN-350-830
Light distribution
[MN] 35°
Delivered lumens flux
1620 lm
Rated input power
16 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
101 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-MN-350-840
Light distribution: [MN] Medium narrow - 35°
Delivered lumens flux: 1620 lm
Rated input power: 16 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-MN-350-840
Light distribution
[MN] 35°
Delivered lumens flux
1620 lm
Rated input power
16 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
101 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-MN-700-740
Light distribution: [MN] Medium narrow - 35°
Delivered lumens flux: 3550 lm
Rated input power: 33 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LW7034.516-EN-MN-700-740
Light distribution
[MN] 35°
Delivered lumens flux
3550 lm
Rated input power
33 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
107 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-MN-700-827
Light distribution: [MN] Medium narrow - 35°
Delivered lumens flux: 2993 lm
Rated input power: 33 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-MN-700-827
Light distribution
[MN] 35°
Delivered lumens flux
2993 lm
Rated input power
33 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
90 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-MN-700-830
Light distribution: [MN] Medium narrow - 35°
Delivered lumens flux: 2993 lm
Rated input power: 33 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-MN-700-830
Light distribution
[MN] 35°
Delivered lumens flux
2993 lm
Rated input power
33 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
90 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-MN-700-840
Light distribution: [MN] Medium narrow - 35°
Delivered lumens flux: 2993 lm
Rated input power: 33 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-MN-700-840
Light distribution
[MN] 35°
Delivered lumens flux
2993 lm
Rated input power
33 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
90 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-M-350-740
Light distribution: [M] Medium - 65°
Delivered lumens flux: 2006 lm
Rated input power: 16 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LW7034.516-EN-M-350-740
Light distribution
[M] 65°
Delivered lumens flux
2006 lm
Rated input power
16 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
125 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-M-350-827
Light distribution: [M] Medium - 65°
Delivered lumens flux: 1759 lm
Rated input power: 16 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-M-350-827
Light distribution
[M] 65°
Delivered lumens flux
1759 lm
Rated input power
16 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
109 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-M-350-830
Light distribution: [M] Medium - 65°
Delivered lumens flux: 1759 lm
Rated input power: 16 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-M-350-830
Light distribution
[M] 65°
Delivered lumens flux
1759 lm
Rated input power
16 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
109 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-M-350-840
Light distribution: [M] Medium - 65°
Delivered lumens flux: 1759 lm
Rated input power: 16 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-M-350-840
Light distribution
[M] 65°
Delivered lumens flux
1759 lm
Rated input power
16 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
109 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-M-700-740
Light distribution: [M] Medium - 65°
Delivered lumens flux: 3855 lm
Rated input power: 33 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LW7034.516-EN-M-700-740
Light distribution
[M] 65°
Delivered lumens flux
3855 lm
Rated input power
33 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
116 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-M-700-827
Light distribution: [M] Medium - 65°
Delivered lumens flux: 3249 lm
Rated input power: 33 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-M-700-827
Light distribution
[M] 65°
Delivered lumens flux
3249 lm
Rated input power
33 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
98 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-M-700-830
Light distribution: [M] Medium - 65°
Delivered lumens flux: 3249 lm
Rated input power: 33 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-M-700-830
Light distribution
[M] 65°
Delivered lumens flux
3249 lm
Rated input power
33 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
98 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-M-700-840
Light distribution: [M] Medium - 65°
Delivered lumens flux: 3249 lm
Rated input power: 33 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-M-700-840
Light distribution
[M] 65°
Delivered lumens flux
3249 lm
Rated input power
33 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
98 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-EL2-350-740
Light distribution: [EL] Elliptical - 147x106°
Delivered lumens flux: 2368 lm
Rated input power: 16 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LW7034.516-EN-EL2-350-740
Light distribution
[EL] 147x106°
Delivered lumens flux
2368 lm
Rated input power
16 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
148 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-EL2-350-827
Light distribution: [EL] Elliptical - 147x106°
Delivered lumens flux: 2077 lm
Rated input power: 16 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-EL2-350-827
Light distribution
[EL] 147x106°
Delivered lumens flux
2077 lm
Rated input power
16 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
129 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-EL2-350-830
Light distribution: [EL] Elliptical - 147x106°
Delivered lumens flux: 2077 lm
Rated input power: 16 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-EL2-350-830
Light distribution
[EL] 147x106°
Delivered lumens flux
2077 lm
Rated input power
16 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
129 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-EL2-350-840
Light distribution: [EL] Elliptical - 147x106°
Delivered lumens flux: 2077 lm
Rated input power: 16 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-EL2-350-840
Light distribution
[EL] 147x106°
Delivered lumens flux
2077 lm
Rated input power
16 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
129 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-EL2-700-740
Light distribution: [EL] Elliptical - 147x106°
Delivered lumens flux: 4551 lm
Rated input power: 33 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LW7034.516-EN-EL2-700-740
Light distribution
[EL] 147x106°
Delivered lumens flux
4551 lm
Rated input power
33 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
137 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-EL2-700-827
Light distribution: [EL] Elliptical - 147x106°
Delivered lumens flux: 3837 lm
Rated input power: 33 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-EL2-700-827
Light distribution
[EL] 147x106°
Delivered lumens flux
3837 lm
Rated input power
33 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
116 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-EL2-700-830
Light distribution: [EL] Elliptical - 147x106°
Delivered lumens flux: 3837 lm
Rated input power: 33 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-EL2-700-830
Light distribution
[EL] 147x106°
Delivered lumens flux
3837 lm
Rated input power
33 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
116 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-EL2-700-840
Light distribution: [EL] Elliptical - 147x106°
Delivered lumens flux: 3837 lm
Rated input power: 33 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-EL2-700-840
Light distribution
[EL] 147x106°
Delivered lumens flux
3837 lm
Rated input power
33 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
116 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-EL-350-740
Light distribution: [EL] Elliptical - 41x13°
Delivered lumens flux: 1960 lm
Rated input power: 16 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LW7034.516-EN-EL-350-740
Light distribution
[EL] 41x13°
Delivered lumens flux
1960 lm
Rated input power
16 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
122 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-EL-350-827
Light distribution: [EL] Elliptical - 41x13°
Delivered lumens flux: 1719 lm
Rated input power: 16 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-EL-350-827
Light distribution
[EL] 41x13°
Delivered lumens flux
1719 lm
Rated input power
16 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
107 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-EL-350-830
Light distribution: [EL] Elliptical - 41x13°
Delivered lumens flux: 1719 lm
Rated input power: 16 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-EL-350-830
Light distribution
[EL] 41x13°
Delivered lumens flux
1719 lm
Rated input power
16 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
107 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-EL-350-840
Light distribution: [EL] Elliptical - 41x13°
Delivered lumens flux: 1719 lm
Rated input power: 16 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-EL-350-840
Light distribution
[EL] 41x13°
Delivered lumens flux
1719 lm
Rated input power
16 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
107 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-EL-700-740
Light distribution: [EL] Elliptical - 41x13°
Delivered lumens flux: 3767 lm
Rated input power: 33 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LW7034.516-EN-EL-700-740
Light distribution
[EL] 41x13°
Delivered lumens flux
3767 lm
Rated input power
33 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
114 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-EL-700-827
Light distribution: [EL] Elliptical - 41x13°
Delivered lumens flux: 3176 lm
Rated input power: 33 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-EL-700-827
Light distribution
[EL] 41x13°
Delivered lumens flux
3176 lm
Rated input power
33 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
96 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-EL-700-830
Light distribution: [EL] Elliptical - 41x13°
Delivered lumens flux: 3176 lm
Rated input power: 33 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-EL-700-830
Light distribution
[EL] 41x13°
Delivered lumens flux
3176 lm
Rated input power
33 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
96 lm/W
Lamp
15 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LW7034.516-EN-EL-700-840
Light distribution: [EL] Elliptical - 41x13°
Delivered lumens flux: 3176 lm
Rated input power: 33 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
LW7034.516-EN-EL-700-840
Light distribution
[EL] 41x13°
Delivered lumens flux
3176 lm
Rated input power
33 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
96 lm/W
Lamp
15 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000

Extras


Angle setting bracket

[ASB]

Angle setting bracket

Mounting options
Long bracket

[LB]

Long bracket

Mounting options
120-277V 50/60Hz

[UNI]

120-277V 50/60Hz

Consult the factory
All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Narrow
[N]

Narrow

Medium narrow
[MN]

Medium narrow

Medium
[M]

Medium

Elliptical
[EL]

Elliptical

Drive current


350 mA
[350]

350 mA

700 mA
[700]

700 mA

Colour temperature


2700 K CRI 80
[827]

2700 K CRI 80

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

4000 K CRI 80
[840]

4000 K CRI 80

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

DALI
[DALI]

DALI

Product colours


Black
[HM1]

Black

Dark grey
[HM2]

Dark grey

Anthracite grey
[HM3]

Anthracite grey

Light grey
[HM4]

Light grey

White
[HM5]

White

Bronze
[HM6]

Bronze

Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)
