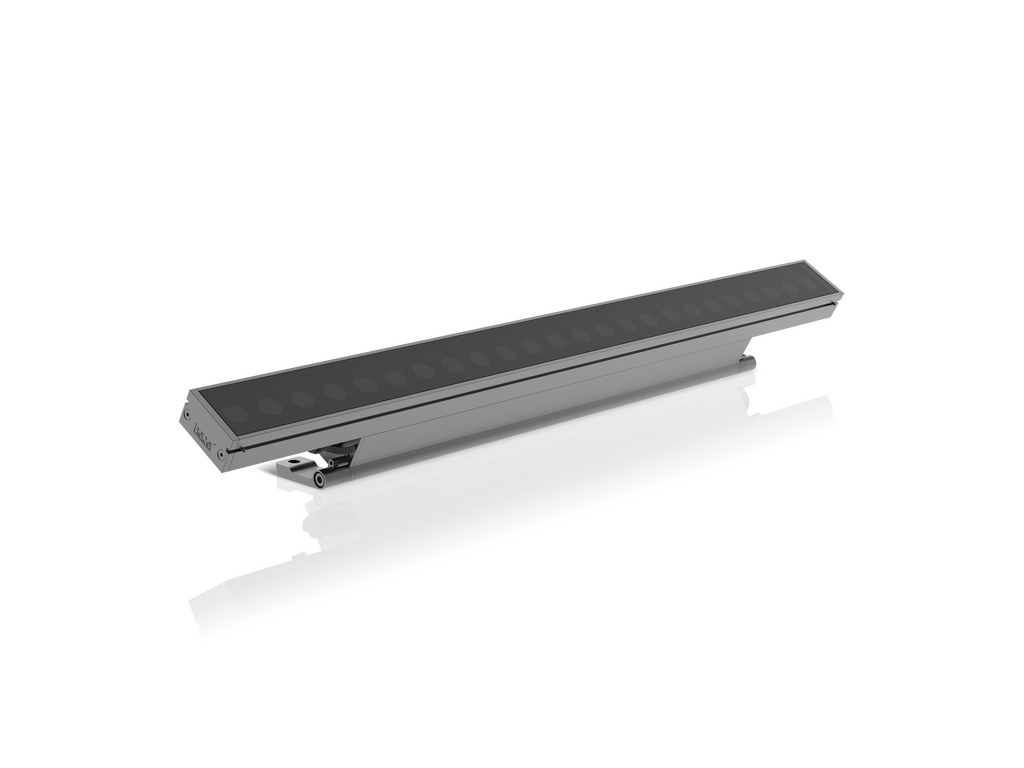

CLEO 0.60 m

Name: CLEO 0.60 m
Brand: HEPER
SKU: LW5010.602-EN
Availability: InStock

UPCOMING

LW5010.602-EN

Downloads

Light distribution

[BW] 60°, [EL] 10x60°, [EL-2] 12x35°, [VN-2] 18°, [VN] 10°, [MN] 30°

Rated input power

28 W

CCT

2700K, 3000K, 4000K

CRI

Ra80

Control

On/Off, DALI

Product colours

Colour deviation

3 SDCM, 4 SDCM

Lifetime L90B50 (hour)

>108, 000

Housing

Marine grade aluminum housing

Driver

Integral LED driver

Input voltage

220-240V 50/60Hz

Configurator

Project name

Type

Quantity

Date

Note

Variant order code

LW5010.602-EN-_-700-_-_-EN-C1-_

Variants required

Variants

Light distribution

[BW]
Batwing
60°

[EL]
Elliptical
10x60°

[EL-2]
Elliptical
12x35°

[VN-2]
Very narrow
18°

[VN]
Very narrow
10°

[MN]
Medium narrow
30°

Rated input power

[700]
28 W

Colour temperature

[827]
2700 K CRI 80

[830]
3000 K CRI 80

[840]
4000 K CRI 80

Options

Control

[ONOFF]
On/Off

[DALI]
DALI

Product colours

[HM1]

Black

[HM2]

Dark grey

[HM3]

Anthracite grey

[HM4]

Light grey

[HM5]

White

[HM6]

Bronze

[CC]

Custom colour (Please specify RAL code)

Variants required

Technical details

Certificates

CE, UKCA

Impact protection

IK06

Ingress protection

IP66

Insulation class

Class I

All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions

Variants

Light distribution

Drive current

[VN]

Very narrow

[MN]

Medium narrow

[BW]

Batwing

[EL]

Elliptical

[EL-2]

Elliptical

[VN-2]

Very narrow

Drive current

[700]

700 mA

Colour temperature

[827]

2700 K CRI 80

[830]

3000 K CRI 80

[840]

4000 K CRI 80

Options

Control

Product colours

[ONOFF]

On/Off

[DALI]

DALI

Product colours

[HM1]

Black

[HM2]

Dark grey

[HM3]

Anthracite grey

[HM4]

Light grey

[HM5]

White

[HM6]

Bronze

[CC]

Custom colour (Please specify RAL code)
