    GOLEDO-IN 16 LED

    PHASED-OUT
    GOLEDO-IN 16 LEDGOLEDO-IN 16 LED
    GOLEDO-IN 16 LEDGOLEDO-IN 16 LED

    LW2037.881-EN

    CEENECENEC+UKCAIK08IP66Class I

    Downloads

    Variants
    Light distribution
    [M] 50°, [N] 25°
    Delivered lumens flux
    2904 - 3851 lm
    Rated input power
    18 - 35 W
    Colour temperature
    3000 K CRI 80, 4000 K CRI 80
    Lifetime L90B10 (hour)
    >102, 000
    Lifetime L90B50 (hour)
    >102, 000
    Options
    Control
    On/Off, 0-10V, DALI, AutoDIM, StepDIM
    Product colours
    Custom colour (Please specify RAL code)Light grey (RAL 7035)
    Extras
    External surge protection
    10 kV
    Light output
    Constant light output
    Consult the factory
    Class II
    Luminaire body options
    Double powder coating

    Technical details


    Certificates
    CE, ENEC, ENEC+, UKCA

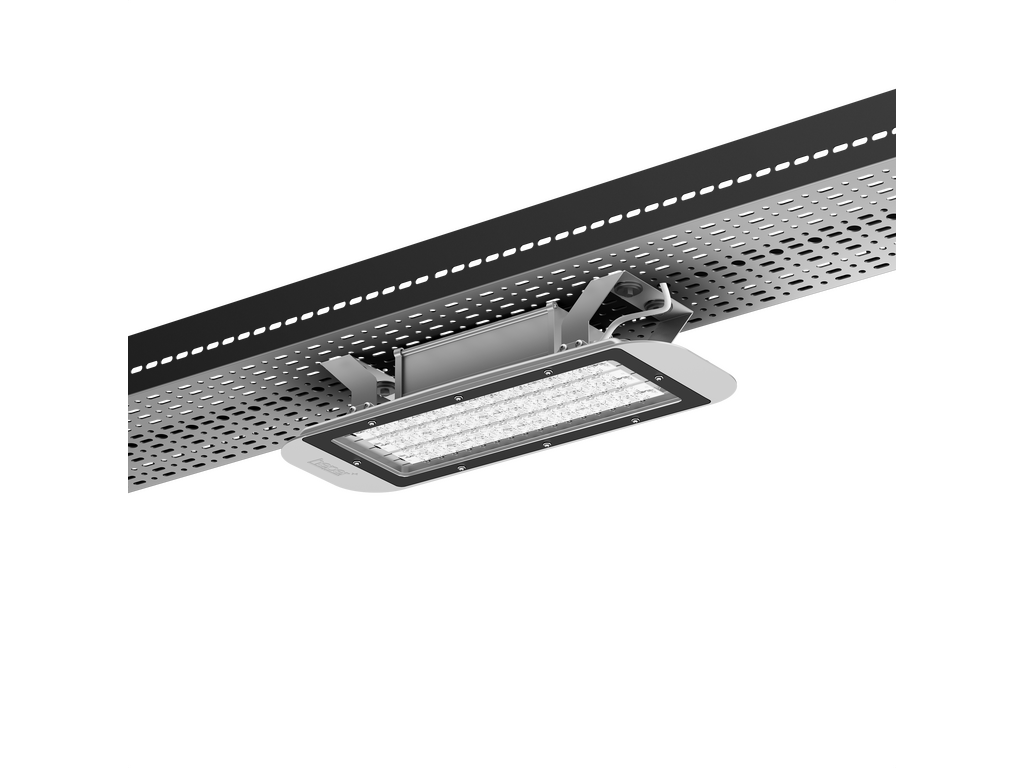

    Mounting
    Standard strap connection. Sliding mounting bracket is optional through extra
    Housing
    Corrosion resistant, die-cast, marine grade aluminum housing
    Finishing
    Chromate conversion pretreatment followed by electrostatic powder coating
    Fasteners
    Stainless steel (AISI 304 / EN 1.4301 grade)
    Gasket
    Silicone
    Lens / Reflector
    PMMA lens with high optical efficiency
    Glass / Diffusor
    Tempered safety glass
    Impact protection
    IK08
    Ingress protection
    IP66
    Input voltage
    220-240V 50/60Hz
    Insulation class
    Class I
    Weight
    8.86 kg
    LED module
    High power LEDs on metal-core PCB
    Driver
    Integral LED driver
    Driver surge protection
    10/6 kV
    Power factor
    > 0.95
    Through wiring
    Single cable entry
    Operating temperature
    -40...25°C
    Cable
    1 m of halogen-free cable
    Notes
    This product can be supplied with Insulation class (Class II) upon request. Please contact factory.

    Configurations

    Light distribution
    Narrow
    [N] Narrow - 25°
    Medium
    [M] Medium - 50°
    Delivered lumens flux
    2904 lm
    2975 lm
    3758 lm
    3851 lm
    Rated input power
    18 W
    25 W
    35 W
    Colour temperature
    3000 K CRI 80
    4000 K CRI 80

    Variant code

    Light distribution

    Delivered lumens flux

    Rated input power

    Colour temperature

    Control

    Variant code: LW2037.881-EN-N-350-830
    Light distribution: [N] Narrow - 25°
    Delivered lumens flux:
    Rated input power: 18 W
    Colour temperature:
    Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
    Variant code: LW2037.881-EN-N-350-840
    Light distribution: [N] Narrow - 25°
    Delivered lumens flux:
    Rated input power: 18 W
    Colour temperature:
    Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
    Variant code: LW2037.881-EN-N-500-830
    Light distribution: [N] Narrow - 25°
    Delivered lumens flux: 2975 lm
    Rated input power: 25 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
    Light distribution
    [N] 25°
    Delivered lumens flux
    2975 lm
    Rated input power
    25 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    129 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    3 SDCM
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LW2037.881-EN-N-500-840
    Light distribution: [N] Narrow - 25°
    Delivered lumens flux: 2975 lm
    Rated input power: 25 W
    Colour temperature: 4000 K CRI 80
    Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
    Light distribution
    [N] 25°
    Delivered lumens flux
    2975 lm
    Rated input power
    25 W
    Colour temperature
    4000 K CRI 80
    Luminaire efficacy
    129 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    3 SDCM
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LW2037.881-EN-N-700-830
    Light distribution: [N] Narrow - 25°
    Delivered lumens flux: 3851 lm
    Rated input power: 35 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
    Light distribution
    [N] 25°
    Delivered lumens flux
    3851 lm
    Rated input power
    35 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    113 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    3 SDCM
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LW2037.881-EN-N-700-840
    Light distribution: [N] Narrow - 25°
    Delivered lumens flux: 3851 lm
    Rated input power: 35 W
    Colour temperature: 4000 K CRI 80
    Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
    Light distribution
    [N] 25°
    Delivered lumens flux
    3851 lm
    Rated input power
    35 W
    Colour temperature
    4000 K CRI 80
    Luminaire efficacy
    113 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    3 SDCM
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LW2037.881-EN-M-350-830
    Light distribution: [M] Medium - 50°
    Delivered lumens flux:
    Rated input power: 18 W
    Colour temperature:
    Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
    Variant code: LW2037.881-EN-M-350-840
    Light distribution: [M] Medium - 50°
    Delivered lumens flux:
    Rated input power: 18 W
    Colour temperature:
    Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
    Variant code: LW2037.881-EN-M-500-830
    Light distribution: [M] Medium - 50°
    Delivered lumens flux: 2904 lm
    Rated input power: 25 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
    Light distribution
    [M] 50°
    Delivered lumens flux
    2904 lm
    Rated input power
    25 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    126 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    3 SDCM
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LW2037.881-EN-M-500-840
    Light distribution: [M] Medium - 50°
    Delivered lumens flux: 2904 lm
    Rated input power: 25 W
    Colour temperature: 4000 K CRI 80
    Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
    Light distribution
    [M] 50°
    Delivered lumens flux
    2904 lm
    Rated input power
    25 W
    Colour temperature
    4000 K CRI 80
    Luminaire efficacy
    126 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    3 SDCM
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LW2037.881-EN-M-700-830
    Light distribution: [M] Medium - 50°
    Delivered lumens flux: 3758 lm
    Rated input power: 35 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
    Light distribution
    [M] 50°
    Delivered lumens flux
    3758 lm
    Rated input power
    35 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    110 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    3 SDCM
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LW2037.881-EN-M-700-840
    Light distribution: [M] Medium - 50°
    Delivered lumens flux: 3758 lm
    Rated input power: 35 W
    Colour temperature: 4000 K CRI 80
    Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
    Light distribution
    [M] 50°
    Delivered lumens flux
    3758 lm
    Rated input power
    35 W
    Colour temperature
    4000 K CRI 80
    Luminaire efficacy
    110 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    3 SDCM
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000

    Extras

    10 kV

    [SP10]

    10 kV

    External surge protection
    Constant light output

    [CLO]

    Constant light output

    Light output
    Class II

    [C2]

    Class II

    Consult the factory
    Double powder coating

    [DPC]

    Double powder coating

    Luminaire body options

    Related products

    All flux and power values derived following appropriate IES, CIE and applicable standards.
    Descriptions
    Variants

    Light distribution

    Drive current

    Narrow
    [N]

    Narrow

    Medium
    [M]

    Medium

    Drive current

    500 mA
    [500]

    500 mA

    700 mA
    [700]

    700 mA

    Colour temperature

    3000 K CRI 80
    [830]

    3000 K CRI 80

    4000 K CRI 80
    [840]

    4000 K CRI 80

    Options

    Control

    Product colours

    On/Off
    [ONOFF]

    On/Off

    0-10V
    [0-10V]

    0-10V

    DALI
    [DALI]

    DALI

    AutoDIM
    [AUTO]

    AutoDIM

    StepDIM
    [STEP]

    StepDIM

    Product colours

    Custom colour (Please specify RAL code)
    [CC]

    Custom colour (Please specify RAL code)

    Light grey (RAL 7035)
    [7035]

    Light grey (RAL 7035)
