GOLEDO-T 192 LED

GOLEDO-T 192 LEDGOLEDO-T 192 LED
GOLEDO-T 192 LEDGOLEDO-T 192 LED

LT2037.887-EN

CEENECUKCAIK08IP66Class I
Variants
Light distribution
[] , [T-ASYM-A] , [T-CB-A] , [T-SYM-A]
Delivered lumens flux
34947 - 56652 lm
Rated input power
290 - 409 W
Colour temperature
3000 K CRI 70, 3000 K CRI 80, 4000 K CRI 70
Lifetime L90B50 (hour)
>102, 000
Lifetime L80B50 (hour)
>102, 000
Options
Control
On/Off, 0-10V, DALI, AutoDIM, StepDIM
Product colours
Custom colour (Please specify RAL code)Light grey (RAL 7035)
Extras
External surge protection
10 kV
Light output
Constant light output
Consult the factory
Class II, 120-277V 50/60Hz
Luminaire body options
Double powder coating

Technical details



Certificates
CE, UKCA, ENEC

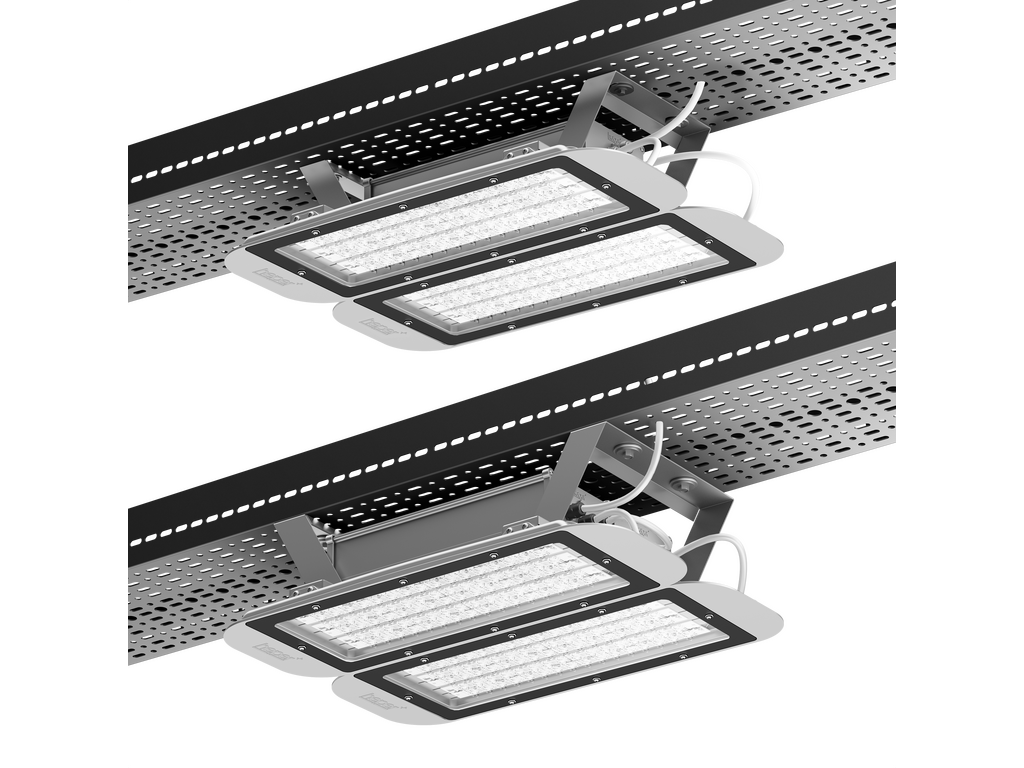

Mounting
Standard strap connection. Sliding mounting bracket is optional through extra
Housing
Corrosion resistant, die-cast, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Silicone
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP66
Input voltage
220-240V 50/60Hz
Insulation class
Class I

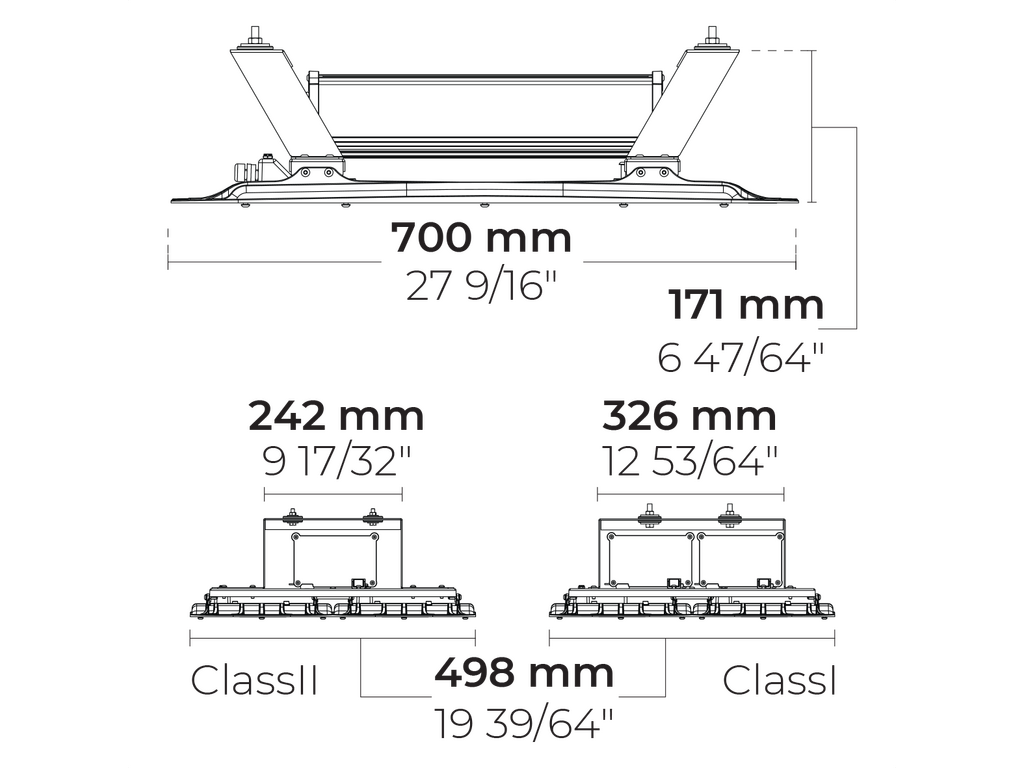

Weight
18.75 kg
LED module
High power LEDs on metal-core PCB
Driver
Internal LED driver
Driver surge protection
10/6 kV
Power factor
> 0.95
Through wiring
Single cable entry
Operating temperature
-40...25°C
Cable
1 m of halogen-free cable
Notes
This product can be supplied with Insulation class (Class II) upon request. Please contact factory.

Downloads


Variants


Light distribution
[]
Tunnel, Asymmetric, Type A
[T-ASYM-A] Tunnel, Asymmetric, Type A
Tunnel, Counter beam, Type A
[T-CB-A] Tunnel, Counter beam, Type A
Tunnel, Symmetric, Type A
[T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux
34947 lm
35080 lm
36893 lm
38700 lm
38848 lm
40855 lm
40943 lm
41098 lm
43222 lm
45100 lm
45404 lm
47750 lm
49765 lm
50101 lm
52690 lm
53542 lm
53868 lm
56652 lm
Rated input power
290 W
409 W
Colour temperature
3000 K CRI 70
3000 K CRI 80
4000 K CRI 70

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LT2037.887-EN-T-ASYM-A-350-730
Light distribution: []
Delivered lumens flux:
Rated input power:
Colour temperature:
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Variant code: LT2037.887-EN-T-ASYM-A-350-740
Light distribution: []
Delivered lumens flux:
Rated input power:
Colour temperature:
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Variant code: LT2037.887-EN-T-ASYM-A-350-830
Light distribution: []
Delivered lumens flux:
Rated input power:
Colour temperature:
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Variant code: LT2037.887-EN-T-ASYM-A-500-730
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 38848 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-A]
Delivered lumens flux
38848 lm
Rated input power
290 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
133 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.887-EN-T-ASYM-A-500-740
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 41098 lm
Rated input power: 290 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-A]
Delivered lumens flux
41098 lm
Rated input power
290 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
141 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.887-EN-T-ASYM-A-500-830
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 35080 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 80
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-A]
Delivered lumens flux
35080 lm
Rated input power
290 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
120 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.887-EN-T-ASYM-A-700-730
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 50101 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-A]
Delivered lumens flux
50101 lm
Rated input power
409 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
122 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.887-EN-T-ASYM-A-700-740
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 53868 lm
Rated input power: 409 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-A]
Delivered lumens flux
53868 lm
Rated input power
409 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
131 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.887-EN-T-ASYM-A-700-830
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 45404 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 80
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-A]
Delivered lumens flux
45404 lm
Rated input power
409 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
111 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.887-EN-T-CB-A-350-730
Light distribution: []
Delivered lumens flux:
Rated input power:
Colour temperature:
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Variant code: LT2037.887-EN-T-CB-A-350-740
Light distribution: []
Delivered lumens flux:
Rated input power:
Colour temperature:
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Variant code: LT2037.887-EN-T-CB-A-350-830
Light distribution: []
Delivered lumens flux:
Rated input power:
Colour temperature:
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Variant code: LT2037.887-EN-T-CB-A-500-730
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 40855 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-A]
Delivered lumens flux
40855 lm
Rated input power
290 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
140 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.887-EN-T-CB-A-500-740
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 43222 lm
Rated input power: 290 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-A]
Delivered lumens flux
43222 lm
Rated input power
290 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
149 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.887-EN-T-CB-A-500-830
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 36893 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 80
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-A]
Delivered lumens flux
36893 lm
Rated input power
290 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
127 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.887-EN-T-CB-A-700-730
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 52690 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-A]
Delivered lumens flux
52690 lm
Rated input power
409 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
128 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.887-EN-T-CB-A-700-740
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 56652 lm
Rated input power: 409 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-A]
Delivered lumens flux
56652 lm
Rated input power
409 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
138 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.887-EN-T-CB-A-700-830
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 47750 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 80
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-A]
Delivered lumens flux
47750 lm
Rated input power
409 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
116 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.887-EN-T-SYM-A-350-730
Light distribution: []
Delivered lumens flux:
Rated input power:
Colour temperature:
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Variant code: LT2037.887-EN-T-SYM-A-350-740
Light distribution: []
Delivered lumens flux:
Rated input power:
Colour temperature:
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Variant code: LT2037.887-EN-T-SYM-A-350-830
Light distribution: []
Delivered lumens flux:
Rated input power:
Colour temperature:
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Variant code: LT2037.887-EN-T-SYM-A-500-730
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 38700 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-A]
Delivered lumens flux
38700 lm
Rated input power
290 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
133 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.887-EN-T-SYM-A-500-740
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 40943 lm
Rated input power: 290 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-A]
Delivered lumens flux
40943 lm
Rated input power
290 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
141 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.887-EN-T-SYM-A-500-830
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 34947 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 80
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-A]
Delivered lumens flux
34947 lm
Rated input power
290 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
120 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.887-EN-T-SYM-A-700-730
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 49765 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-A]
Delivered lumens flux
49765 lm
Rated input power
409 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
122 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.887-EN-T-SYM-A-700-740
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 53542 lm
Rated input power: 409 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-A]
Delivered lumens flux
53542 lm
Rated input power
409 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
131 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.887-EN-T-SYM-A-700-830
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 45100 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 80
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-A]
Delivered lumens flux
45100 lm
Rated input power
409 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
110 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000

All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Tunnel, Asymmetric, Type A
[T-ASYM-A]

Tunnel, Asymmetric, Type A

Tunnel, Counter beam, Type A
[T-CB-A]

Tunnel, Counter beam, Type A

Tunnel, Symmetric, Type A
[T-SYM-A]

Tunnel, Symmetric, Type A

Drive current


500 mA
[500]

500 mA

700 mA
[700]

700 mA

Colour temperature


3000 K CRI 70
[730]

3000 K CRI 70

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

0-10V
[0-10V]

0-10V

DALI
[DALI]

DALI

AutoDIM
[AUTO]

AutoDIM

StepDIM
[STEP]

StepDIM

Product colours


Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)

Light grey (RAL 7035)
[7035]

Light grey (RAL 7035)

Extras

External surge protection

Light output


10 kV
[SP10]

10 kV

Light output


Constant light output
[CLO]

Constant light output

Consult the factory

Luminaire body options


Class II
[C2]

Class II

120-277V 50/60Hz
[UNI]

120-277V 50/60Hz

Luminaire body options


Double powder coating
[DPC]

Double powder coating
