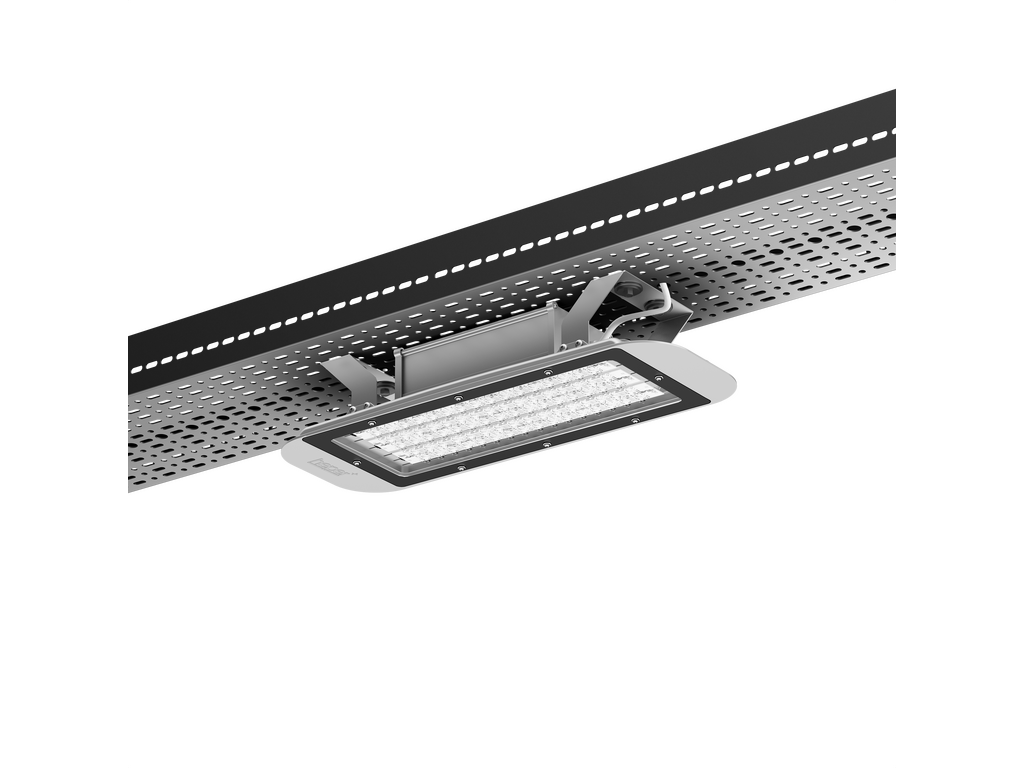

GOLEDO-T 96 LED

GOLEDO-T 96 LEDGOLEDO-T 96 LED
GOLEDO-T 96 LEDGOLEDO-T 96 LED

LT2037.886-EN

CEENEC-pendingUKCAIK08IP66Class I
Variants
Light distribution
[T-ASYM-A] , [T-ASYM-B] , [T-ASYM-C] , [T-ASYM-D] , [T-CB-A] , [T-CB-B] , [T-SYM-A] , [T-SYM-B] , [T-SYM-C] , [T-SYM-D]
Delivered lumens flux
15186 - 30969 lm
Rated input power
100 - 205 W
Colour temperature
3000 K CRI 70, 4000 K CRI 70
Lifetime L90B50 (hour)
>102, 000
Lifetime L80B50 (hour)
>102, 000
Options
Control
On/Off, 0-10V, DALI, AutoDIM, StepDIM *
Product colours
Custom colour (Please specify RAL code)Light grey (RAL 7035)
Extras
External surge protection
10 kV
Light output
Constant light output
Consult the factory
Class II, 120-277V 50/60Hz
Luminaire body options
Double powder coating
* Please check the specific variant for each control type.

Technical details



Certificates
ENEC-pending, CE, UKCA
Mounting
Standard strap connection. Sliding mounting bracket is optional through extra
Housing
Corrosion resistant, die-cast, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Silicone
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP66
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
10.2 kg
LED module
High power LEDs on metal-core PCB
Driver
Internal LED driver
Driver surge protection
10/6 kV
Power factor
> 0.95
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
1 m of halogen-free cable
Notes
This product can be supplied with Insulation class (Class II) upon request. Please contact factory.

Downloads


Variants


Light distribution
Tunnel, Asymmetric, Type A
[T-ASYM-A] Tunnel, Asymmetric, Type A
Tunnel, Asymmetric, Type B
[T-ASYM-B] Tunnel, Asymmetric, Type B
Tunnel, Asymmetric, Type C
[T-ASYM-C] Tunnel, Asymmetric, Type C
Tunnel, Asymmetric, Type D
[T-ASYM-D] Tunnel, Asymmetric, Type D
Tunnel, Counter beam, Type A
[T-CB-A] Tunnel, Counter beam, Type A
Tunnel, Counter beam, Type B
[T-CB-B] Tunnel, Counter beam, Type B
Tunnel, Symmetric, Type A
[T-SYM-A] Tunnel, Symmetric, Type A
Tunnel, Symmetric, Type B
[T-SYM-B] Tunnel, Symmetric, Type B
Tunnel, Symmetric, Type C
[T-SYM-C] Tunnel, Symmetric, Type C
Tunnel, Symmetric, Type D
[T-SYM-D] Tunnel, Symmetric, Type D
Delivered lumens flux
15186 lm
15395 lm
15512 lm
15575 lm
15681 lm
15756 lm
15862 lm
15943 lm
15960 lm
15993 lm
16472 lm
16638 lm
16713 lm
16949 lm
17023 lm
17066 lm
17067 lm
17133 lm
17193 lm
17336 lm
20621 lm
20905 lm
21064 lm
21150 lm
21293 lm
21394 lm
21539 lm
21648 lm
21672 lm
21717 lm
22367 lm
22593 lm
22694 lm
23015 lm
23115 lm
23174 lm
23176 lm
23264 lm
23345 lm
23540 lm
27185 lm
27495 lm
27710 lm
27865 lm
28015 lm
28170 lm
28385 lm
28445 lm
28570 lm
29485 lm
29785 lm
29850 lm
30277 lm
30412 lm
30452 lm
30534 lm
30657 lm
30739 lm
30969 lm
Rated input power
100 W
102 W
103 W
144 W
146 W
147 W
205 W
Colour temperature
3000 K CRI 70
4000 K CRI 70

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LT2037.886-EN-T-ASYM-A-350-730
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 15943 lm
Rated input power: 100 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-A]
Delivered lumens flux
15943 lm
Rated input power
100 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
160 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-A-350-740
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 17067 lm
Rated input power: 102 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-A]
Delivered lumens flux
17067 lm
Rated input power
102 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
167 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-A-500-730
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 21648 lm
Rated input power: 144 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-A]
Delivered lumens flux
21648 lm
Rated input power
144 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
150 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-A-500-740
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 23176 lm
Rated input power: 146 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-A]
Delivered lumens flux
23176 lm
Rated input power
146 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
158 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-A-700-730
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 28445 lm
Rated input power: 205 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-A]
Delivered lumens flux
28445 lm
Rated input power
205 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
139 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-A-700-740
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 30452 lm
Rated input power: 205 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-A]
Delivered lumens flux
30452 lm
Rated input power
205 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
149 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-B-350-730
Light distribution: [T-ASYM-C] Tunnel, Asymmetric, Type C
Delivered lumens flux: 15575 lm
Rated input power: 100 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-C]
Delivered lumens flux
15575 lm
Rated input power
100 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
156 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-B-350-740
Light distribution: [T-ASYM-C] Tunnel, Asymmetric, Type C
Delivered lumens flux: 17066 lm
Rated input power: 103 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-C]
Delivered lumens flux
17066 lm
Rated input power
103 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
166 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-B-500-730
Light distribution: [T-ASYM-C] Tunnel, Asymmetric, Type C
Delivered lumens flux: 21150 lm
Rated input power: 144 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-C]
Delivered lumens flux
21150 lm
Rated input power
144 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
147 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-B-500-740
Light distribution: [T-ASYM-C] Tunnel, Asymmetric, Type C
Delivered lumens flux: 23174 lm
Rated input power: 147 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-C]
Delivered lumens flux
23174 lm
Rated input power
147 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
158 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-B-700-730
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 27865 lm
Rated input power: 205 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-B]
Delivered lumens flux
27865 lm
Rated input power
205 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
136 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-B-700-740
Light distribution: [T-ASYM-C] Tunnel, Asymmetric, Type C
Delivered lumens flux: 30534 lm
Rated input power: 205 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-C]
Delivered lumens flux
30534 lm
Rated input power
205 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
149 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-C-350-730
Light distribution: [T-ASYM-C] Tunnel, Asymmetric, Type C
Delivered lumens flux: 15993 lm
Rated input power: 100 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-C]
Delivered lumens flux
15993 lm
Rated input power
100 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
160 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-C-350-740
Light distribution: [T-ASYM-C] Tunnel, Asymmetric, Type C
Delivered lumens flux: 17336 lm
Rated input power: 103 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-C]
Delivered lumens flux
17336 lm
Rated input power
103 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
169 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-C-500-730
Light distribution: [T-ASYM-C] Tunnel, Asymmetric, Type C
Delivered lumens flux: 21717 lm
Rated input power: 144 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-C]
Delivered lumens flux
21717 lm
Rated input power
144 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
150 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-C-500-740
Light distribution: [T-ASYM-C] Tunnel, Asymmetric, Type C
Delivered lumens flux: 23540 lm
Rated input power: 146 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-C]
Delivered lumens flux
23540 lm
Rated input power
146 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
161 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-C-700-730
Light distribution: [T-ASYM-C] Tunnel, Asymmetric, Type C
Delivered lumens flux: 28570 lm
Rated input power: 205 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-C]
Delivered lumens flux
28570 lm
Rated input power
205 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
139 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-C-700-740
Light distribution: [T-ASYM-C] Tunnel, Asymmetric, Type C
Delivered lumens flux: 30969 lm
Rated input power: 205 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-C]
Delivered lumens flux
30969 lm
Rated input power
205 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
151 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-D-350-730
Light distribution: [T-ASYM-D] Tunnel, Asymmetric, Type D
Delivered lumens flux: 15960 lm
Rated input power: 100 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-D]
Delivered lumens flux
15960 lm
Rated input power
100 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
160 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-D-350-740
Light distribution: [T-ASYM-D] Tunnel, Asymmetric, Type D
Delivered lumens flux: 16638 lm
Rated input power: 103 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-D]
Delivered lumens flux
16638 lm
Rated input power
103 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
162 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-D-500-730
Light distribution: [T-ASYM-D] Tunnel, Asymmetric, Type D
Delivered lumens flux: 21672 lm
Rated input power: 144 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-D]
Delivered lumens flux
21672 lm
Rated input power
144 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
150 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-D-500-740
Light distribution: [T-ASYM-D] Tunnel, Asymmetric, Type D
Delivered lumens flux: 22593 lm
Rated input power: 147 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-D]
Delivered lumens flux
22593 lm
Rated input power
147 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
154 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-D-700-730
Light distribution: [T-ASYM-D] Tunnel, Asymmetric, Type D
Delivered lumens flux: 28570 lm
Rated input power: 205 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-D]
Delivered lumens flux
28570 lm
Rated input power
205 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
139 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-ASYM-D-700-740
Light distribution: [T-ASYM-D] Tunnel, Asymmetric, Type D
Delivered lumens flux: 29785 lm
Rated input power: 205 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-D]
Delivered lumens flux
29785 lm
Rated input power
205 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
145 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-CB-A-350-730
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 15756 lm
Rated input power: 100 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-A]
Delivered lumens flux
15756 lm
Rated input power
100 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
158 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-CB-A-350-740
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 17133 lm
Rated input power: 103 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-A]
Delivered lumens flux
17133 lm
Rated input power
103 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
167 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-CB-A-500-730
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 21394 lm
Rated input power: 144 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-A]
Delivered lumens flux
21394 lm
Rated input power
144 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
148 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-CB-A-500-740
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 23264 lm
Rated input power: 147 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-A]
Delivered lumens flux
23264 lm
Rated input power
147 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
159 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-CB-A-700-730
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 28385 lm
Rated input power: 205 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-A]
Delivered lumens flux
28385 lm
Rated input power
205 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
138 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-CB-A-700-740
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 30657 lm
Rated input power: 205 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-A]
Delivered lumens flux
30657 lm
Rated input power
205 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
149 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-CB-B-350-730
Light distribution: [T-CB-B] Tunnel, Counter beam, Type B
Delivered lumens flux: 15186 lm
Rated input power: 100 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-B]
Delivered lumens flux
15186 lm
Rated input power
100 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
152 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-CB-B-350-740
Light distribution: [T-CB-B] Tunnel, Counter beam, Type B
Delivered lumens flux: 16713 lm
Rated input power: 102 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-B]
Delivered lumens flux
16713 lm
Rated input power
102 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
163 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-CB-B-500-730
Light distribution: [T-CB-B] Tunnel, Counter beam, Type B
Delivered lumens flux: 20621 lm
Rated input power: 144 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-B]
Delivered lumens flux
20621 lm
Rated input power
144 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
143 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-CB-B-500-740
Light distribution: [T-CB-B] Tunnel, Counter beam, Type B
Delivered lumens flux: 22694 lm
Rated input power: 146 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-B]
Delivered lumens flux
22694 lm
Rated input power
146 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
155 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-CB-B-700-730
Light distribution: [T-CB-B] Tunnel, Counter beam, Type B
Delivered lumens flux: 27495 lm
Rated input power: 205 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-B]
Delivered lumens flux
27495 lm
Rated input power
205 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
134 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-CB-B-700-740
Light distribution: [T-CB-B] Tunnel, Counter beam, Type B
Delivered lumens flux: 29850 lm
Rated input power: 205 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-B]
Delivered lumens flux
29850 lm
Rated input power
205 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
146 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-A-350-730
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 15862 lm
Rated input power: 100 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-A]
Delivered lumens flux
15862 lm
Rated input power
100 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
159 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-A-350-740
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 17023 lm
Rated input power: 103 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-SYM-A]
Delivered lumens flux
17023 lm
Rated input power
103 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
166 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-A-500-730
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 21539 lm
Rated input power: 144 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-A]
Delivered lumens flux
21539 lm
Rated input power
144 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
149 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-A-500-740
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 23115 lm
Rated input power: 146 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-A]
Delivered lumens flux
23115 lm
Rated input power
146 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
158 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-A-700-730
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 28015 lm
Rated input power: 205 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-A]
Delivered lumens flux
28015 lm
Rated input power
205 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
137 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-A-700-740
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 30412 lm
Rated input power: 205 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-A]
Delivered lumens flux
30412 lm
Rated input power
205 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
148 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-B-350-730
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 15395 lm
Rated input power: 100 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-B]
Delivered lumens flux
15395 lm
Rated input power
100 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
154 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-B-350-740
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 16949 lm
Rated input power: 103 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-SYM-B]
Delivered lumens flux
16949 lm
Rated input power
103 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
165 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-B-500-730
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 20905 lm
Rated input power: 144 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-B]
Delivered lumens flux
20905 lm
Rated input power
144 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
145 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-B-500-740
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 23015 lm
Rated input power: 146 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-B]
Delivered lumens flux
23015 lm
Rated input power
146 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
157 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-B-700-730
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 27710 lm
Rated input power: 205 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-B]
Delivered lumens flux
27710 lm
Rated input power
205 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
135 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-B-700-740
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 30277 lm
Rated input power: 205 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-B]
Delivered lumens flux
30277 lm
Rated input power
205 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
148 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-C-350-730
Light distribution: [T-SYM-C] Tunnel, Symmetric, Type C
Delivered lumens flux: 15681 lm
Rated input power: 100 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-C]
Delivered lumens flux
15681 lm
Rated input power
100 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
157 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-C-350-740
Light distribution: [T-SYM-C] Tunnel, Symmetric, Type C
Delivered lumens flux: 17193 lm
Rated input power: 100 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-C]
Delivered lumens flux
17193 lm
Rated input power
100 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
172 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-C-500-730
Light distribution: [T-SYM-C] Tunnel, Symmetric, Type C
Delivered lumens flux: 21293 lm
Rated input power: 144 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-C]
Delivered lumens flux
21293 lm
Rated input power
144 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
148 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-C-500-740
Light distribution: [T-SYM-C] Tunnel, Symmetric, Type C
Delivered lumens flux: 23345 lm
Rated input power: 147 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-C]
Delivered lumens flux
23345 lm
Rated input power
147 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
159 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-C-700-730
Light distribution: [T-SYM-C] Tunnel, Symmetric, Type C
Delivered lumens flux: 28170 lm
Rated input power: 205 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-C]
Delivered lumens flux
28170 lm
Rated input power
205 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
137 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-C-700-740
Light distribution: [T-SYM-C] Tunnel, Symmetric, Type C
Delivered lumens flux: 30739 lm
Rated input power: 205 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-C]
Delivered lumens flux
30739 lm
Rated input power
205 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
150 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-D-350-730
Light distribution: [T-SYM-D] Tunnel, Symmetric, Type D
Delivered lumens flux: 15512 lm
Rated input power: 100 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-D]
Delivered lumens flux
15512 lm
Rated input power
100 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
155 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-D-350-740
Light distribution: [T-SYM-D] Tunnel, Symmetric, Type D
Delivered lumens flux: 16472 lm
Rated input power: 100 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-D]
Delivered lumens flux
16472 lm
Rated input power
100 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
165 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-D-500-730
Light distribution: [T-SYM-D] Tunnel, Symmetric, Type D
Delivered lumens flux: 21064 lm
Rated input power: 144 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-D]
Delivered lumens flux
21064 lm
Rated input power
144 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
146 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-D-500-740
Light distribution: [T-SYM-D] Tunnel, Symmetric, Type D
Delivered lumens flux: 22367 lm
Rated input power: 147 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-D]
Delivered lumens flux
22367 lm
Rated input power
147 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
152 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-D-700-730
Light distribution: [T-SYM-D] Tunnel, Symmetric, Type D
Delivered lumens flux: 27185 lm
Rated input power: 205 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-D]
Delivered lumens flux
27185 lm
Rated input power
205 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
132 lm/W
Lamp
96 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.886-EN-T-SYM-D-700-740
Light distribution: [T-SYM-D] Tunnel, Symmetric, Type D
Delivered lumens flux: 29485 lm
Rated input power: 205 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-D]
Delivered lumens flux
29485 lm
Rated input power
205 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
144 lm/W
Lamp
96 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000

Extras


10 kV

[SP10]

10 kV

External surge protection
Constant light output

[CLO]

Constant light output

Light output
Class II

[C2]

Class II

Consult the factory
120-277V 50/60Hz

[UNI]

120-277V 50/60Hz

Consult the factory
Double powder coating

[DPC]

Double powder coating

Luminaire body options

All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Tunnel, Asymmetric, Type A
[T-ASYM-A]

Tunnel, Asymmetric, Type A

Tunnel, Asymmetric, Type B
[T-ASYM-B]

Tunnel, Asymmetric, Type B

Tunnel, Asymmetric, Type C
[T-ASYM-C]

Tunnel, Asymmetric, Type C

Tunnel, Asymmetric, Type D
[T-ASYM-D]

Tunnel, Asymmetric, Type D

Tunnel, Counter beam, Type A
[T-CB-A]

Tunnel, Counter beam, Type A

Tunnel, Counter beam, Type B
[T-CB-B]

Tunnel, Counter beam, Type B

Tunnel, Symmetric, Type A
[T-SYM-A]

Tunnel, Symmetric, Type A

Tunnel, Symmetric, Type B
[T-SYM-B]

Tunnel, Symmetric, Type B

Tunnel, Symmetric, Type C
[T-SYM-C]

Tunnel, Symmetric, Type C

Tunnel, Symmetric, Type D
[T-SYM-D]

Tunnel, Symmetric, Type D

Drive current


350 mA
[350]

350 mA

500 mA
[500]

500 mA

700 mA
[700]

700 mA

Colour temperature


3000 K CRI 70
[730]

3000 K CRI 70

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

0-10V
[0-10V]

0-10V

DALI
[DALI]

DALI

AutoDIM
[AUTO]

AutoDIM

StepDIM
[STEP]

StepDIM

Product colours


Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)

Light grey (RAL 7035)
[7035]

Light grey (RAL 7035)
