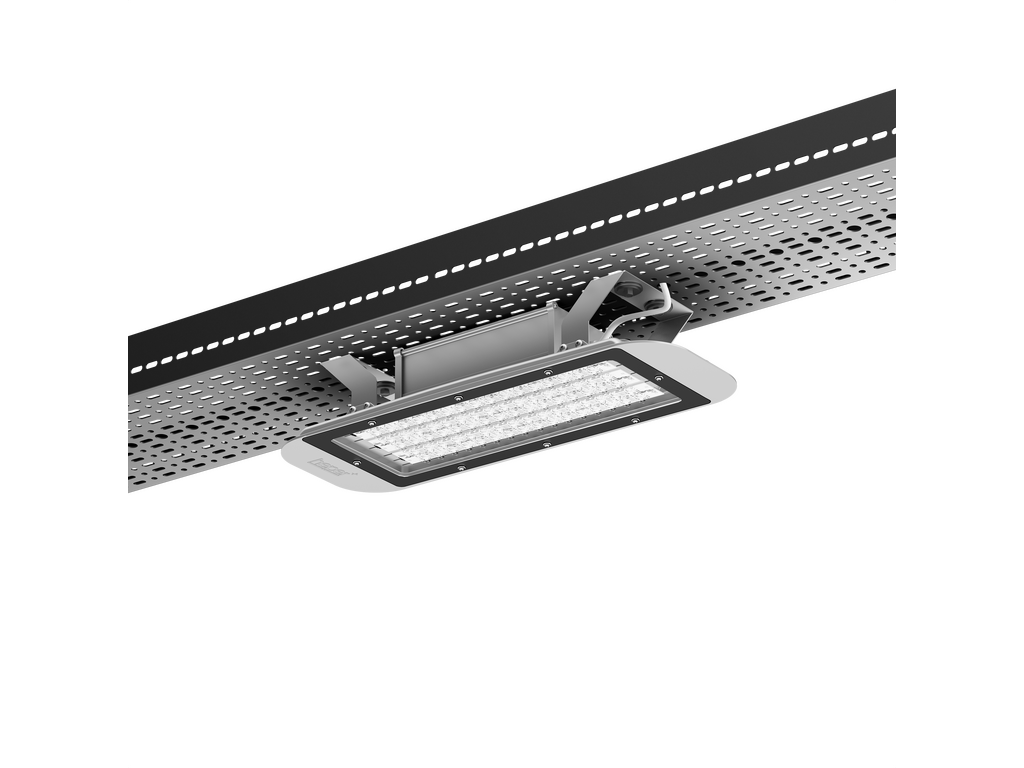

GOLEDO-T 32 LED

GOLEDO-T 32 LEDGOLEDO-T 32 LED
GOLEDO-T 32 LEDGOLEDO-T 32 LED

LT2037.882-EN

CEENEC-pendingUKCAIK08IP66Class I
Variants
Light distribution
[T-ASYM-A] , [T-ASYM-B] , [T-ASYM-C] , [T-ASYM-D] , [T-CB-A] , [T-CB-B] , [T-SYM-A] , [T-SYM-B] , [T-SYM-C] , [T-SYM-D]
Delivered lumens flux
5707 - 10325 lm
Rated input power
34 - 68 W
Colour temperature
3000 K CRI 70, 3000 K CRI 80, 4000 K CRI 70
BUG rating
B4-U0-G4, B3-U0-G3, B5-U0-G4, B4-U0-G3
Lifetime L90B50 (hour)
>102, 000
Lifetime L80B50 (hour)
>102, 000
Options
Control
On/Off, 0-10V, DALI, AutoDIM, StepDIM *
Product colours
Custom colour (Please specify RAL code)Light grey (RAL 7035)
Extras
External surge protection
10 kV
Light output
Constant light output
Consult the factory
Class II, 120-277V 50/60Hz
Luminaire body options
Double powder coating
* Please check the specific variant for each control type.

Technical details



Certificates
ENEC-pending, CE, UKCA
Mounting
Standard strap connection. Sliding mounting bracket is optional through extra
Housing
Corrosion resistant, die-cast, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Silicone
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP66
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
8.86 kg
LED module
High power LEDs on metal-core PCB
Driver
Internal LED driver
Driver surge protection
10/6 kV
Power factor
> 0.95
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
1 m of halogen-free cable
Notes
This product can be supplied with Insulation class (Class II) upon request. Please contact factory.

Downloads


Variants


Light distribution
Tunnel, Asymmetric, Type A
[T-ASYM-A] Tunnel, Asymmetric, Type A
Tunnel, Asymmetric, Type B
[T-ASYM-B] Tunnel, Asymmetric, Type B
Tunnel, Asymmetric, Type C
[T-ASYM-C] Tunnel, Asymmetric, Type C
Tunnel, Asymmetric, Type D
[T-ASYM-D] Tunnel, Asymmetric, Type D
Tunnel, Counter beam, Type A
[T-CB-A] Tunnel, Counter beam, Type A
Tunnel, Counter beam, Type B
[T-CB-B] Tunnel, Counter beam, Type B
Tunnel, Symmetric, Type A
[T-SYM-A] Tunnel, Symmetric, Type A
Tunnel, Symmetric, Type B
[T-SYM-B] Tunnel, Symmetric, Type B
Tunnel, Symmetric, Type C
[T-SYM-C] Tunnel, Symmetric, Type C
Tunnel, Symmetric, Type D
[T-SYM-D] Tunnel, Symmetric, Type D
Delivered lumens flux
5707 lm
5741 lm
5810 lm
5852 lm
5856 lm
5903 lm
5921 lm
5923 lm
5964 lm
6520 lm
6595 lm
6650 lm
6685 lm
6725 lm
6760 lm
6810 lm
6825 lm
6855 lm
7295 lm
7350 lm
7375 lm
7435 lm
7470 lm
7515 lm
7555 lm
7615 lm
7630 lm
7665 lm
8560 lm
8612 lm
8715 lm
8778 lm
8783 lm
8855 lm
8881 lm
8884 lm
8947 lm
8958 lm
9060 lm
9165 lm
9235 lm
9290 lm
9340 lm
9390 lm
9460 lm
9480 lm
9525 lm
9875 lm
9955 lm
10045 lm
10125 lm
10195 lm
10230 lm
10265 lm
10275 lm
10320 lm
10325 lm
Rated input power
34 W
45 W
48 W
49 W
50 W
68 W
Colour temperature
3000 K CRI 70
3000 K CRI 80
4000 K CRI 70

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LT2037.882-EN-T-ASYM-A-350-730
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 8958 lm
Rated input power: 50 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-ASYM-A]
Delivered lumens flux
8958 lm
Rated input power
50 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
179 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-A-350-740
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 5852 lm
Rated input power: 34 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-A]
Delivered lumens flux
5852 lm
Rated input power
34 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
172 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-A-350-830
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux:
Rated input power:
Colour temperature: 3000 K CRI 80
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-A]
Colour temperature
3000 K CRI 80
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-A-500-730
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 6825 lm
Rated input power: 45 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-A]
Delivered lumens flux
6825 lm
Rated input power
45 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
151 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B4-U0-G4
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-A-500-740
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 7630 lm
Rated input power: 49 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-A]
Delivered lumens flux
7630 lm
Rated input power
49 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
157 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G3
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-A-700-730
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 9480 lm
Rated input power: 68 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-A]
Delivered lumens flux
9480 lm
Rated input power
68 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
139 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-A-700-740
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 10265 lm
Rated input power: 68 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-A]
Delivered lumens flux
10265 lm
Rated input power
68 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
151 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G3
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-B-350-730
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 8855 lm
Rated input power: 50 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-ASYM-B]
Delivered lumens flux
8855 lm
Rated input power
50 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
177 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-B-350-740
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 5903 lm
Rated input power: 34 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-B]
Delivered lumens flux
5903 lm
Rated input power
34 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
174 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-B-500-730
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 6685 lm
Rated input power: 45 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-B]
Delivered lumens flux
6685 lm
Rated input power
45 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
148 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B4-U0-G4
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-B-500-740
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 7470 lm
Rated input power: 49 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-B]
Delivered lumens flux
7470 lm
Rated input power
49 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
154 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G3
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-B-700-730
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 9290 lm
Rated input power: 68 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-B]
Delivered lumens flux
9290 lm
Rated input power
68 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
137 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-B-700-740
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 10230 lm
Rated input power: 68 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-B]
Delivered lumens flux
10230 lm
Rated input power
68 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
151 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G3
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-C-350-730
Light distribution: [T-ASYM-C] Tunnel, Asymmetric, Type C
Delivered lumens flux: 8947 lm
Rated input power: 50 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-ASYM-C]
Delivered lumens flux
8947 lm
Rated input power
50 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
179 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-C-350-740
Light distribution: [T-ASYM-C] Tunnel, Asymmetric, Type C
Delivered lumens flux: 5964 lm
Rated input power: 34 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-C]
Delivered lumens flux
5964 lm
Rated input power
34 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
176 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-C-500-730
Light distribution: [T-ASYM-C] Tunnel, Asymmetric, Type C
Delivered lumens flux: 6855 lm
Rated input power: 45 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-C]
Delivered lumens flux
6855 lm
Rated input power
45 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
151 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-C-500-740
Light distribution: [T-ASYM-C] Tunnel, Asymmetric, Type C
Delivered lumens flux: 7665 lm
Rated input power: 49 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-C]
Delivered lumens flux
7665 lm
Rated input power
49 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
158 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G3
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-C-700-730
Light distribution: [T-ASYM-C] Tunnel, Asymmetric, Type C
Delivered lumens flux: 9525 lm
Rated input power: 68 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-C]
Delivered lumens flux
9525 lm
Rated input power
68 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
140 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B5-U0-G4
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-C-700-740
Light distribution: [T-ASYM-C] Tunnel, Asymmetric, Type C
Delivered lumens flux: 10320 lm
Rated input power: 68 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-C]
Delivered lumens flux
10320 lm
Rated input power
68 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
152 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-D-350-730
Light distribution: [T-ASYM-D] Tunnel, Asymmetric, Type D
Delivered lumens flux: 8715 lm
Rated input power: 50 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-ASYM-D]
Delivered lumens flux
8715 lm
Rated input power
50 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
174 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-D-350-740
Light distribution: [T-ASYM-D] Tunnel, Asymmetric, Type D
Delivered lumens flux: 5810 lm
Rated input power: 34 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-D]
Delivered lumens flux
5810 lm
Rated input power
34 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
171 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-D-500-730
Light distribution: [T-ASYM-D] Tunnel, Asymmetric, Type D
Delivered lumens flux: 6855 lm
Rated input power: 45 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-D]
Delivered lumens flux
6855 lm
Rated input power
45 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
151 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-D-500-740
Light distribution: [T-ASYM-D] Tunnel, Asymmetric, Type D
Delivered lumens flux: 7350 lm
Rated input power: 49 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-D]
Delivered lumens flux
7350 lm
Rated input power
49 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
151 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G3
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-D-700-730
Light distribution: [T-ASYM-D] Tunnel, Asymmetric, Type D
Delivered lumens flux: 9525 lm
Rated input power: 68 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-D]
Delivered lumens flux
9525 lm
Rated input power
68 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
140 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B5-U0-G4
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-ASYM-D-700-740
Light distribution: [T-ASYM-D] Tunnel, Asymmetric, Type D
Delivered lumens flux: 10045 lm
Rated input power: 68 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-ASYM-D]
Delivered lumens flux
10045 lm
Rated input power
68 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
148 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-CB-A-350-730
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 8884 lm
Rated input power: 50 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-A]
Delivered lumens flux
8884 lm
Rated input power
50 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
178 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-CB-A-350-740
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 5923 lm
Rated input power: 34 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-A]
Delivered lumens flux
5923 lm
Rated input power
34 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
175 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-CB-A-350-830
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux:
Rated input power:
Colour temperature: 3000 K CRI 80
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-A]
Colour temperature
3000 K CRI 80
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-CB-A-500-730
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 6810 lm
Rated input power: 45 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-A]
Delivered lumens flux
6810 lm
Rated input power
45 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
151 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G3
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-CB-A-500-740
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 7615 lm
Rated input power: 48 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-A]
Delivered lumens flux
7615 lm
Rated input power
48 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
158 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-CB-A-700-730
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 9460 lm
Rated input power: 68 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-A]
Delivered lumens flux
9460 lm
Rated input power
68 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
140 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B5-U0-G4
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-CB-A-700-740
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 10325 lm
Rated input power: 68 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-A]
Delivered lumens flux
10325 lm
Rated input power
68 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
153 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G3
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-CB-B-350-730
Light distribution: [T-CB-B] Tunnel, Counter beam, Type B
Delivered lumens flux: 8612 lm
Rated input power: 50 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-B]
Delivered lumens flux
8612 lm
Rated input power
50 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
172 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-CB-B-350-740
Light distribution: [T-CB-B] Tunnel, Counter beam, Type B
Delivered lumens flux: 5741 lm
Rated input power: 34 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-B]
Delivered lumens flux
5741 lm
Rated input power
34 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
170 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-CB-B-500-730
Light distribution: [T-CB-B] Tunnel, Counter beam, Type B
Delivered lumens flux: 6595 lm
Rated input power: 45 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-B]
Delivered lumens flux
6595 lm
Rated input power
45 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
147 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G3
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-CB-B-500-740
Light distribution: [T-CB-B] Tunnel, Counter beam, Type B
Delivered lumens flux: 7375 lm
Rated input power: 48 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-B]
Delivered lumens flux
7375 lm
Rated input power
48 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
153 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-CB-B-700-730
Light distribution: [T-CB-B] Tunnel, Counter beam, Type B
Delivered lumens flux: 9165 lm
Rated input power: 68 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-B]
Delivered lumens flux
9165 lm
Rated input power
68 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
136 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B5-U0-G4
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-CB-B-700-740
Light distribution: [T-CB-B] Tunnel, Counter beam, Type B
Delivered lumens flux: 9955 lm
Rated input power: 68 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-CB-B]
Delivered lumens flux
9955 lm
Rated input power
68 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
147 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G3
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-A-350-730
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 8783 lm
Rated input power: 50 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-SYM-A]
Delivered lumens flux
8783 lm
Rated input power
50 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
176 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-A-350-740
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 5856 lm
Rated input power: 34 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-SYM-A]
Delivered lumens flux
5856 lm
Rated input power
34 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
173 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-A-350-830
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux:
Rated input power:
Colour temperature: 3000 K CRI 80
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-A]
Colour temperature
3000 K CRI 80
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-A-500-730
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 6725 lm
Rated input power: 45 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-A]
Delivered lumens flux
6725 lm
Rated input power
45 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
149 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G3
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-A-500-740
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 7515 lm
Rated input power: 48 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-A]
Delivered lumens flux
7515 lm
Rated input power
48 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
156 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B4-U0-G4
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-A-700-730
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 9340 lm
Rated input power: 68 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-A]
Delivered lumens flux
9340 lm
Rated input power
68 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
138 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-A-700-740
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 10195 lm
Rated input power: 68 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-A]
Delivered lumens flux
10195 lm
Rated input power
68 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
151 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B4-U0-G3
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-B-350-730
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 8778 lm
Rated input power: 50 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-SYM-B]
Delivered lumens flux
8778 lm
Rated input power
50 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
176 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-B-350-740
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 5852 lm
Rated input power: 34 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-SYM-B]
Delivered lumens flux
5852 lm
Rated input power
34 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
172 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-B-500-730
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 6650 lm
Rated input power: 45 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-B]
Delivered lumens flux
6650 lm
Rated input power
45 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
147 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G3
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-B-500-740
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 7435 lm
Rated input power: 49 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-B]
Delivered lumens flux
7435 lm
Rated input power
49 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
153 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B4-U0-G4
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-B-700-730
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 9235 lm
Rated input power: 68 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-B]
Delivered lumens flux
9235 lm
Rated input power
68 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
136 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-B-700-740
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 10125 lm
Rated input power: 68 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-B]
Delivered lumens flux
10125 lm
Rated input power
68 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
149 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B4-U0-G3
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-C-350-730
Light distribution: [T-SYM-C] Tunnel, Symmetric, Type C
Delivered lumens flux: 8881 lm
Rated input power: 50 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-SYM-C]
Delivered lumens flux
8881 lm
Rated input power
50 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
178 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-C-350-740
Light distribution: [T-SYM-C] Tunnel, Symmetric, Type C
Delivered lumens flux: 5921 lm
Rated input power: 34 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-SYM-C]
Delivered lumens flux
5921 lm
Rated input power
34 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
174 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-C-500-730
Light distribution: [T-SYM-C] Tunnel, Symmetric, Type C
Delivered lumens flux: 6760 lm
Rated input power: 45 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-C]
Delivered lumens flux
6760 lm
Rated input power
45 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
149 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-C-500-740
Light distribution: [T-SYM-C] Tunnel, Symmetric, Type C
Delivered lumens flux: 7555 lm
Rated input power: 49 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-C]
Delivered lumens flux
7555 lm
Rated input power
49 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
156 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B4-U0-G4
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-C-700-730
Light distribution: [T-SYM-C] Tunnel, Symmetric, Type C
Delivered lumens flux: 9390 lm
Rated input power: 68 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-C]
Delivered lumens flux
9390 lm
Rated input power
68 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
138 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B4-U0-G4
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-C-700-740
Light distribution: [T-SYM-C] Tunnel, Symmetric, Type C
Delivered lumens flux: 10275 lm
Rated input power: 68 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-C]
Delivered lumens flux
10275 lm
Rated input power
68 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
151 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-D-350-730
Light distribution: [T-SYM-D] Tunnel, Symmetric, Type D
Delivered lumens flux: 8560 lm
Rated input power: 50 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-SYM-D]
Delivered lumens flux
8560 lm
Rated input power
50 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
171 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-D-350-740
Light distribution: [T-SYM-D] Tunnel, Symmetric, Type D
Delivered lumens flux: 5707 lm
Rated input power: 34 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-SYM-D]
Delivered lumens flux
5707 lm
Rated input power
34 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
168 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-D-500-730
Light distribution: [T-SYM-D] Tunnel, Symmetric, Type D
Delivered lumens flux: 6520 lm
Rated input power: 45 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-D]
Delivered lumens flux
6520 lm
Rated input power
45 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
144 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-D-500-740
Light distribution: [T-SYM-D] Tunnel, Symmetric, Type D
Delivered lumens flux: 7295 lm
Rated input power: 49 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-D]
Delivered lumens flux
7295 lm
Rated input power
49 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
150 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
BUG rating
B4-U0-G4
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-D-700-730
Light distribution: [T-SYM-D] Tunnel, Symmetric, Type D
Delivered lumens flux: 9060 lm
Rated input power: 68 W
Colour temperature: 3000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-D]
Delivered lumens flux
9060 lm
Rated input power
68 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
133 lm/W
Lamp
32 LED
MacAdam Ellipse
3 SDCM
BUG rating
B4-U0-G4
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT2037.882-EN-T-SYM-D-700-740
Light distribution: [T-SYM-D] Tunnel, Symmetric, Type D
Delivered lumens flux: 9875 lm
Rated input power: 68 W
Colour temperature: 4000 K CRI 70
Control: On/Off, 0-10V, DALI, AutoDIM, StepDIM
Light distribution
[T-SYM-D]
Delivered lumens flux
9875 lm
Rated input power
68 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
145 lm/W
Lamp
32 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000

Extras


10 kV

[SP10]

10 kV

External surge protection
Constant light output

[CLO]

Constant light output

Light output
Class II

[C2]

Class II

Consult the factory
120-277V 50/60Hz

[UNI]

120-277V 50/60Hz

Consult the factory
Double powder coating

[DPC]

Double powder coating

Luminaire body options

All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Tunnel, Asymmetric, Type A
[T-ASYM-A]

Tunnel, Asymmetric, Type A

Tunnel, Asymmetric, Type B
[T-ASYM-B]

Tunnel, Asymmetric, Type B

Tunnel, Asymmetric, Type C
[T-ASYM-C]

Tunnel, Asymmetric, Type C

Tunnel, Asymmetric, Type D
[T-ASYM-D]

Tunnel, Asymmetric, Type D

Tunnel, Counter beam, Type A
[T-CB-A]

Tunnel, Counter beam, Type A

Tunnel, Counter beam, Type B
[T-CB-B]

Tunnel, Counter beam, Type B

Tunnel, Symmetric, Type A
[T-SYM-A]

Tunnel, Symmetric, Type A

Tunnel, Symmetric, Type B
[T-SYM-B]

Tunnel, Symmetric, Type B

Tunnel, Symmetric, Type C
[T-SYM-C]

Tunnel, Symmetric, Type C

Tunnel, Symmetric, Type D
[T-SYM-D]

Tunnel, Symmetric, Type D

Drive current


350 mA
[350]

350 mA

500 mA
[500]

500 mA

700 mA
[700]

700 mA

Colour temperature


3000 K CRI 70
[730]

3000 K CRI 70

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

0-10V
[0-10V]

0-10V

DALI
[DALI]

DALI

AutoDIM
[AUTO]

AutoDIM

StepDIM
[STEP]

StepDIM

Product colours


Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)

Light grey (RAL 7035)
[7035]

Light grey (RAL 7035)
