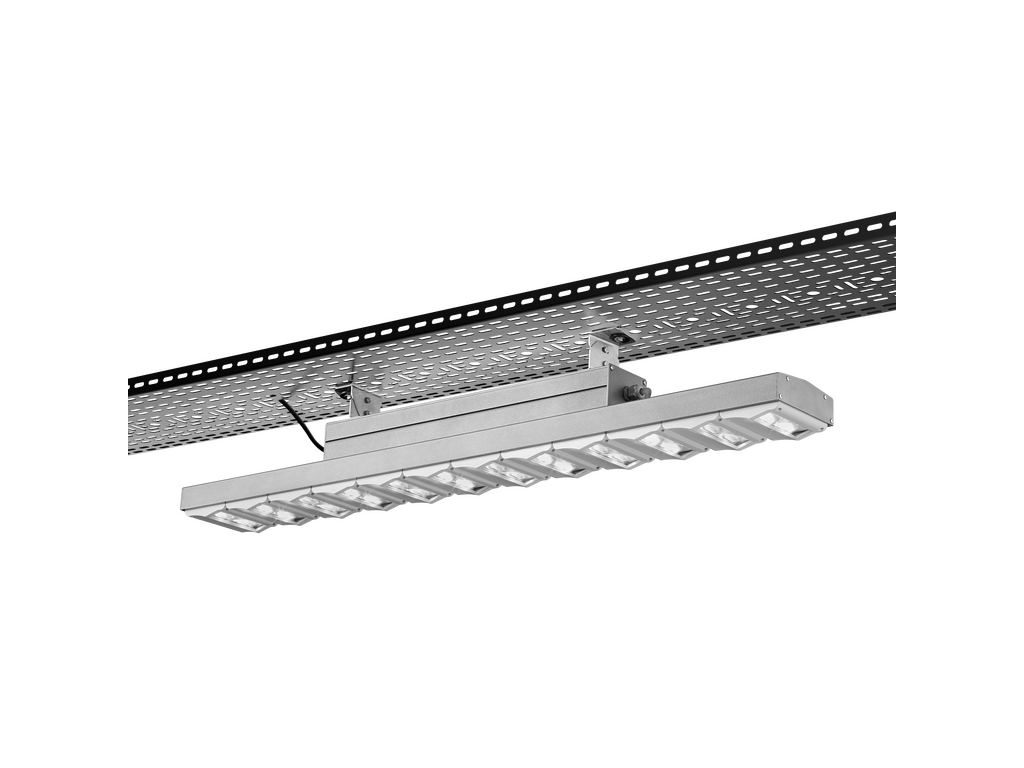

T-LIGHT 12 CB Module

T-LIGHT 12 CB ModuleT-LIGHT 12 CB Module
T-LIGHT 12 CB ModuleT-LIGHT 12 CB Module

LT2029.653-EN

CEIK08IP66Class IClass II
Variants
Light distribution
[T-CB-C] 130° x 85°
Nominal LED lumens flux
26760 - 28800 lm
Nominal LED power
190 W (700 mA)
Rated luminaire lumens flux
22182 - 23850 lm
Rated luminaire power
210 W
Colour temperature
4000 K CRI 70, 3000 K CRI 80
BUG rating
B3-U0-G3, B3-U0-G2
Options
Control
On/Off, DALI, StepDIM
Input voltage
220-240V 50/60Hz, 120-277V 50/60Hz
Insulation class
Class I, Class II
Product colours
Black (Textured)Dark grey (Textured)Anthracite grey (Textured)Light grey (Textured)White (Textured)Bronze (Textured)Custom Colour (Please specify RAL code)
Extras
Finishing options
Double coating
Light output
Constant light output

Mounting
Direct tray mountable
Housing
Corrosion resistant aluminum housing
Finishing
Electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Gasket
Silicone
Lens / Reflector
High reflectance aluminium coating, multifaceted micro reflector
Glass / Diffusor
Bio-based, enriched with bisphenol A diffusor
Impact protection
IK08
Ingress protection
IP66
Weight
15.47 kg
LED module
Multi-chip high power LEDs on metal-core PCB
Driver
Thermally-separated internal LED driver
Driver surge protection
8/6 kV
Power factor
> 0.99
Through wiring
Single cable entry
Cable
1 m of halogen-free cable

Downloads


Variants


Light distribution
Tunnel, Counter beam, Type C
[T-CB-C] Tunnel, Counter beam, Type C - 130° x 85°
Nominal LED lumens flux
28800 lm
26760 lm
Nominal LED power
190 W
Colour temperature
4000 K CRI 70
3000 K CRI 80

Variant code

Variant name

Optic

Nominal LED lumens flux


Variant code: LT2029.653-EN-T-CB-C-700-740
Variant name: MILESTONE 24 - 190W - 700mA - 4000K CRI 70
Optic: [T-CB-C] Tunnel, Counter beam, Type C - 130° x 85°
Nominal LED lumens flux: 28800 lm
Nominal LED lumens flux
28800 lm
Nominal LED power
190 W
Rated luminaire lumens flux
23850 lm
Rated luminaire power
210 W
Luminaire efficacy
114 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G3
Variant code: LT2029.653-EN-T-CB-C-700-830
Variant name: MILESTONE 24 - 190W - 700mA - 3000K CRI 80
Optic: [T-CB-C] Tunnel, Counter beam, Type C - 130° x 85°
Nominal LED lumens flux: 26760 lm
Nominal LED lumens flux
26760 lm
Nominal LED power
190 W
Rated luminaire lumens flux
22182 lm
Rated luminaire power
210 W
Luminaire efficacy
106 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G2
All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Tunnel, Counter beam, Type C
[T-CB-C]

Tunnel, Counter beam, Type C

Drive current


700 mA
[700]

700 mA

Colour temperature


3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Input voltage


On/Off
[ONOFF]

On/Off

DALI
[DALI]

DALI

StepDIM
[STEP]

StepDIM

Input voltage


220-240V 50/60Hz
[EN]

220-240V 50/60Hz

120-277V 50/60Hz
[UNI]

120-277V 50/60Hz

Insulation class

Product colours


Class I
[C1]

Class I

Class II
[C2]

Class II

Product colours


Black (Textured)
[HM1]

Black (Textured)

Dark grey (Textured)
[HM2]

Dark grey (Textured)

Anthracite grey (Textured)
[HM3]

Anthracite grey (Textured)

Light grey (Textured)
[HM4]

Light grey (Textured)

White (Textured)
[HM5]

White (Textured)

Bronze (Textured)
[HM6]

Bronze (Textured)

Custom Colour (Please specify RAL code)
[CC]

Custom Colour (Please specify RAL code)

Extras

Finishing options

Light output


Double coating
[DC]

Double coating

Light output


Constant light output
[CLO]

Constant light output
