NOX 192 LED

NEW
NOX 192 LEDNOX 192 LED
NOX 192 LEDNOX 192 LED

LT1010.770-EN

CEUKCAIK10IP66Class I
Variants
Light distribution
[T-ASYM-A] , [T-ASYM-B] , [T-CB-A] , [T-CB-D] , [T-CB-E] , [T-SYM-A] , [T-SYM-B]
Delivered lumens flux
24125 - 59063 lm
Rated input power
207 - 409 W
Colour temperature
3000 K CRI 70, 3000 K CRI 80, 4000 K CRI 70
Lifetime L90B50 (hour)
>102, 000
Lifetime L80B50 (hour)
>102, 000
Options
Product colours
Stainless steel
Extras
Light output
Constant light output
Consult the factory
Class II, 120-277V 50/60Hz

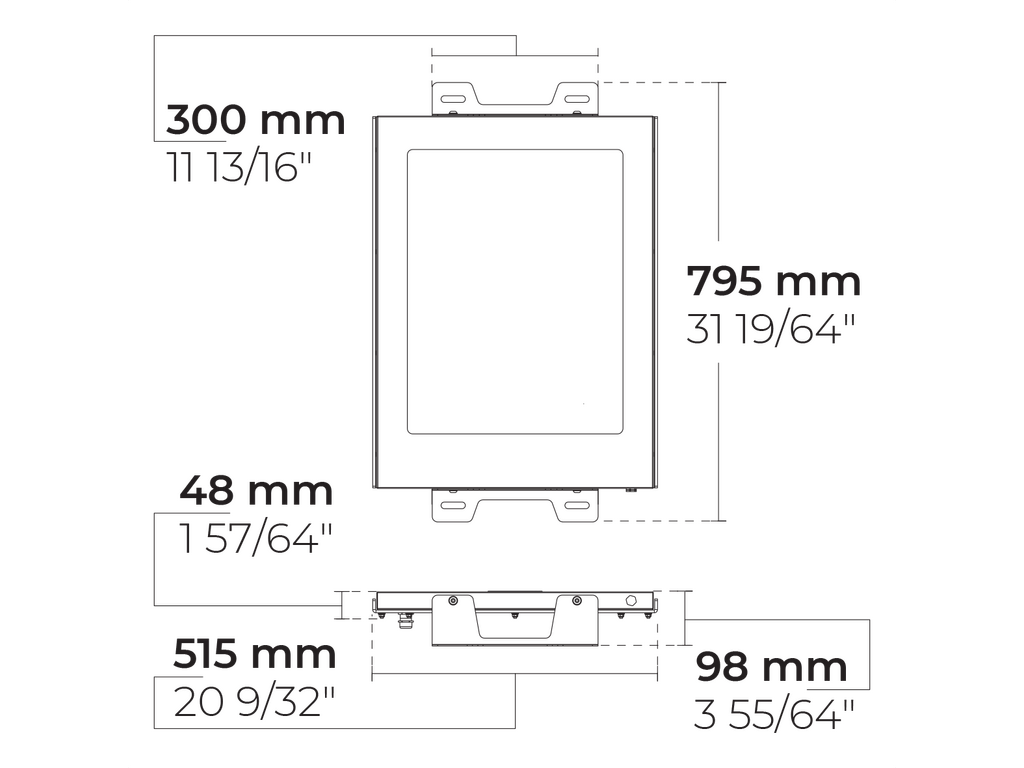

Technical details



Certificates
CE, UKCA
Mounting
Standard strap connection.
Housing
Corrosion resistant stainless steel housing (AISI 316 / EN 1.4401 grade) combined with aluminum alloy heatsink
Finishing
Polished stainless steel , anodized aluminum
Fasteners
Stainless steel (AISI 316 / EN 1.4401 grade)
Gasket
EPDM gasket (Shore A 25-30)
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK10
Ingress protection
IP66
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
13.40 kg
LED module
High power LEDs on metal-core PCB
Driver
External LED driver
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
1 m of halogen-free cable
Notes
Other stainless steel grades are available upon request, This product can be supplied with Insulation class (Class II) upon request. Please contact factory., This product is compatible with 4-20 mA signal to further benefit advanced tunnel control systems such as data reading from luminance meters.

Downloads


Variants


Light distribution
Tunnel, Asymmetric, Type A
[T-ASYM-A] Tunnel, Asymmetric, Type A
Tunnel, Asymmetric, Type B
[T-ASYM-B] Tunnel, Asymmetric, Type B
Tunnel, Counter beam, Type A
[T-CB-A] Tunnel, Counter beam, Type A
Tunnel, Counter beam, Type D
[T-CB-D] Tunnel, Counter beam, Type D
Tunnel, Counter beam, Type E
[T-CB-E] Tunnel, Counter beam, Type E
Tunnel, Symmetric, Type A
[T-SYM-A] Tunnel, Symmetric, Type A
Tunnel, Symmetric, Type B
[T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux
24125 lm
24184 lm
24468 lm
24561 lm
24657 lm
24774 lm
25830 lm
25853 lm
25918 lm
26223 lm
26322 lm
26425 lm
26551 lm
27604 lm
27683 lm
27813 lm
27929 lm
28035 lm
28144 lm
28278 lm
29484 lm
34457 lm
34541 lm
34947 lm
35080 lm
35217 lm
35385 lm
36893 lm
38155 lm
38250 lm
38700 lm
38848 lm
38999 lm
39185 lm
40466 lm
40774 lm
40855 lm
40943 lm
41098 lm
41258 lm
41455 lm
43222 lm
44706 lm
45100 lm
45404 lm
45581 lm
45798 lm
47750 lm
49331 lm
49765 lm
49775 lm
50101 lm
50296 lm
50536 lm
52690 lm
53040 lm
53542 lm
53868 lm
54078 lm
54336 lm
54925 lm
56652 lm
59063 lm
Rated input power
207 W
290 W
409 W
Colour temperature
3000 K CRI 70
3000 K CRI 80
4000 K CRI 70

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LT1010.770-EN-T-ASYM-A-350-730
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 26322 lm
Rated input power: 207 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-ASYM-A]
Delivered lumens flux
26322 lm
Rated input power
207 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
127 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-ASYM-A-350-740
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 28035 lm
Rated input power: 207 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-A]
Delivered lumens flux
28035 lm
Rated input power
207 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
135 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-ASYM-A-350-830
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 24561 lm
Rated input power: 207 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-ASYM-A]
Delivered lumens flux
24561 lm
Rated input power
207 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
118 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-ASYM-A-500-730
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 38848 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-ASYM-A]
Delivered lumens flux
38848 lm
Rated input power
290 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
133 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-ASYM-A-500-740
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 41098 lm
Rated input power: 290 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-A]
Delivered lumens flux
41098 lm
Rated input power
290 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
141 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-ASYM-A-500-830
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 35080 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-ASYM-A]
Delivered lumens flux
35080 lm
Rated input power
290 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
120 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-ASYM-A-700-730
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 50101 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-ASYM-A]
Delivered lumens flux
50101 lm
Rated input power
409 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
122 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-ASYM-A-700-740
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 53868 lm
Rated input power: 409 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-A]
Delivered lumens flux
53868 lm
Rated input power
409 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
131 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-ASYM-A-700-830
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 45404 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-ASYM-A]
Delivered lumens flux
45404 lm
Rated input power
409 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
111 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-ASYM-B-350-730
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 26425 lm
Rated input power: 207 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-ASYM-B]
Delivered lumens flux
26425 lm
Rated input power
207 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
127 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-ASYM-B-350-740
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 28144 lm
Rated input power: 207 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-B]
Delivered lumens flux
28144 lm
Rated input power
207 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
135 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-ASYM-B-350-830
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 24657 lm
Rated input power: 207 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-ASYM-B]
Delivered lumens flux
24657 lm
Rated input power
207 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
119 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-ASYM-B-500-730
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 38999 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-ASYM-B]
Delivered lumens flux
38999 lm
Rated input power
290 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
134 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-ASYM-B-500-740
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 41258 lm
Rated input power: 290 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-B]
Delivered lumens flux
41258 lm
Rated input power
290 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
143 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-ASYM-B-500-830
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 35217 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-ASYM-B]
Delivered lumens flux
35217 lm
Rated input power
290 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
121 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-ASYM-B-700-730
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 54078 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-ASYM-B]
Delivered lumens flux
54078 lm
Rated input power
409 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
132 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-ASYM-B-700-740
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 50296 lm
Rated input power: 409 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-B]
Delivered lumens flux
50296 lm
Rated input power
409 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
122 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-ASYM-B-700-830
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 45581 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-ASYM-B]
Delivered lumens flux
45581 lm
Rated input power
409 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
111 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-A-350-730
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 27683 lm
Rated input power: 207 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-A]
Delivered lumens flux
27683 lm
Rated input power
207 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
133 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-A-350-740
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 29484 lm
Rated input power: 207 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-A]
Delivered lumens flux
29484 lm
Rated input power
207 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
142 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-A-350-830
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 25830 lm
Rated input power: 207 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-CB-A]
Delivered lumens flux
25830 lm
Rated input power
207 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
124 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-A-500-730
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 40855 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-A]
Delivered lumens flux
40855 lm
Rated input power
290 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
140 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-A-500-740
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 43222 lm
Rated input power: 290 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-A]
Delivered lumens flux
43222 lm
Rated input power
290 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
149 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-A-500-830
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 36893 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-CB-A]
Delivered lumens flux
36893 lm
Rated input power
290 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
127 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-A-700-730
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 52690 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-A]
Delivered lumens flux
52690 lm
Rated input power
409 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
128 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-A-700-740
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 56652 lm
Rated input power: 409 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-A]
Delivered lumens flux
56652 lm
Rated input power
409 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
138 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-A-700-830
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 47750 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-CB-A]
Delivered lumens flux
47750 lm
Rated input power
409 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
116 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-D-350-730
Light distribution: [T-CB-D] Tunnel, Counter beam, Type D
Delivered lumens flux: 25853 lm
Rated input power: 207 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-D]
Delivered lumens flux
25853 lm
Rated input power
207 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
131 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-D-350-740
Light distribution: [T-CB-D] Tunnel, Counter beam, Type D
Delivered lumens flux: 27813 lm
Rated input power: 207 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-D]
Delivered lumens flux
27813 lm
Rated input power
207 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
141 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-D-350-830
Light distribution: [T-CB-D] Tunnel, Counter beam, Type D
Delivered lumens flux: 24125 lm
Rated input power: 207 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-CB-D]
Delivered lumens flux
24125 lm
Rated input power
207 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
122 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-D-500-730
Light distribution: [T-CB-D] Tunnel, Counter beam, Type D
Delivered lumens flux: 38155 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-D]
Delivered lumens flux
38155 lm
Rated input power
290 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
134 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-D-500-740
Light distribution: [T-CB-D] Tunnel, Counter beam, Type D
Delivered lumens flux: 40774 lm
Rated input power: 290 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-D]
Delivered lumens flux
40774 lm
Rated input power
290 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
143 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-D-500-830
Light distribution: [T-CB-D] Tunnel, Counter beam, Type D
Delivered lumens flux: 34457 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-CB-D]
Delivered lumens flux
34457 lm
Rated input power
290 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
121 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-D-700-730
Light distribution: [T-CB-D] Tunnel, Counter beam, Type D
Delivered lumens flux: 54925 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-D]
Delivered lumens flux
54925 lm
Rated input power
409 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
131 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-D-700-740
Light distribution: [T-CB-D] Tunnel, Counter beam, Type D
Delivered lumens flux: 59063 lm
Rated input power: 409 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-D]
Delivered lumens flux
59063 lm
Rated input power
409 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
141 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-D-700-830
Light distribution: [T-CB-D] Tunnel, Counter beam, Type D
Delivered lumens flux: 49775 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-CB-D]
Delivered lumens flux
49775 lm
Rated input power
409 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
119 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-E-350-730
Light distribution: [T-CB-E] Tunnel, Counter beam, Type E
Delivered lumens flux: 26551 lm
Rated input power: 207 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-E]
Delivered lumens flux
26551 lm
Rated input power
207 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
128 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-E-350-740
Light distribution: [T-CB-E] Tunnel, Counter beam, Type E
Delivered lumens flux: 28278 lm
Rated input power: 207 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-E]
Delivered lumens flux
28278 lm
Rated input power
207 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
136 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-E-350-830
Light distribution: [T-CB-E] Tunnel, Counter beam, Type E
Delivered lumens flux: 24774 lm
Rated input power: 207 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-CB-E]
Delivered lumens flux
24774 lm
Rated input power
207 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
119 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-E-500-730
Light distribution: [T-CB-E] Tunnel, Counter beam, Type E
Delivered lumens flux: 39185 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-E]
Delivered lumens flux
39185 lm
Rated input power
290 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
135 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-E-500-740
Light distribution: [T-CB-E] Tunnel, Counter beam, Type E
Delivered lumens flux: 41455 lm
Rated input power: 290 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-E]
Delivered lumens flux
41455 lm
Rated input power
290 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
142 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-E-500-830
Light distribution: [T-CB-E] Tunnel, Counter beam, Type E
Delivered lumens flux: 35385 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-CB-E]
Delivered lumens flux
35385 lm
Rated input power
290 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
122 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-E-700-730
Light distribution: [T-CB-E] Tunnel, Counter beam, Type E
Delivered lumens flux: 50536 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-E]
Delivered lumens flux
50536 lm
Rated input power
409 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
123 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-E-700-740
Light distribution: [T-CB-E] Tunnel, Counter beam, Type E
Delivered lumens flux: 54336 lm
Rated input power: 409 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-E]
Delivered lumens flux
54336 lm
Rated input power
409 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
132 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-CB-E-700-830
Light distribution: [T-CB-E] Tunnel, Counter beam, Type E
Delivered lumens flux: 45798 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-CB-E]
Delivered lumens flux
45798 lm
Rated input power
409 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
111 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-SYM-A-350-730
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 26223 lm
Rated input power: 207 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-SYM-A]
Delivered lumens flux
26223 lm
Rated input power
207 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
126 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-SYM-A-350-740
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 27929 lm
Rated input power: 207 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-SYM-A]
Delivered lumens flux
27929 lm
Rated input power
207 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
134 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-SYM-A-350-830
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 24468 lm
Rated input power: 207 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-SYM-A]
Delivered lumens flux
24468 lm
Rated input power
207 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
118 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-SYM-A-500-730
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 38700 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-SYM-A]
Delivered lumens flux
38700 lm
Rated input power
290 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
133 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-SYM-A-500-740
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 40943 lm
Rated input power: 290 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-SYM-A]
Delivered lumens flux
40943 lm
Rated input power
290 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
141 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-SYM-A-500-830
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 34947 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-SYM-A]
Delivered lumens flux
34947 lm
Rated input power
290 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
120 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-SYM-A-700-730
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 49765 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-SYM-A]
Delivered lumens flux
49765 lm
Rated input power
409 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
122 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-SYM-A-700-740
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 53542 lm
Rated input power: 409 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-SYM-A]
Delivered lumens flux
53542 lm
Rated input power
409 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
131 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-SYM-A-700-830
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 45100 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-SYM-A]
Delivered lumens flux
45100 lm
Rated input power
409 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
110 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-SYM-B-350-730
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 25918 lm
Rated input power: 207 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-SYM-B]
Delivered lumens flux
25918 lm
Rated input power
207 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
125 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-SYM-B-350-740
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 27604 lm
Rated input power: 207 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-SYM-B]
Delivered lumens flux
27604 lm
Rated input power
207 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
133 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-SYM-B-350-830
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 24184 lm
Rated input power: 207 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-SYM-B]
Delivered lumens flux
24184 lm
Rated input power
207 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
116 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-SYM-B-500-730
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 38250 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-SYM-B]
Delivered lumens flux
38250 lm
Rated input power
290 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
131 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-SYM-B-500-740
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 40466 lm
Rated input power: 290 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-SYM-B]
Delivered lumens flux
40466 lm
Rated input power
290 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
139 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-SYM-B-500-830
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 34541 lm
Rated input power: 290 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-SYM-B]
Delivered lumens flux
34541 lm
Rated input power
290 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
119 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-SYM-B-700-730
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 49331 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-SYM-B]
Delivered lumens flux
49331 lm
Rated input power
409 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
120 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-SYM-B-700-740
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 53040 lm
Rated input power: 409 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-SYM-B]
Delivered lumens flux
53040 lm
Rated input power
409 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
129 lm/W
Lamp
192 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.770-EN-T-SYM-B-700-830
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 44706 lm
Rated input power: 409 W
Colour temperature: 3000 K CRI 80
Control:
Light distribution
[T-SYM-B]
Delivered lumens flux
44706 lm
Rated input power
409 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
109 lm/W
Lamp
192 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000

Accessories (To be ordered separately)


All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Tunnel, Asymmetric, Type A
[T-ASYM-A]

Tunnel, Asymmetric, Type A

Tunnel, Asymmetric, Type B
[T-ASYM-B]

Tunnel, Asymmetric, Type B

Tunnel, Counter beam, Type A
[T-CB-A]

Tunnel, Counter beam, Type A

Tunnel, Counter beam, Type D
[T-CB-D]

Tunnel, Counter beam, Type D

Tunnel, Counter beam, Type E
[T-CB-E]

Tunnel, Counter beam, Type E

Tunnel, Symmetric, Type A
[T-SYM-A]

Tunnel, Symmetric, Type A

Tunnel, Symmetric, Type B
[T-SYM-B]

Tunnel, Symmetric, Type B

Drive current


350 mA
[350]

350 mA

500 mA
[500]

500 mA

700 mA
[700]

700 mA

Colour temperature


3000 K CRI 70
[730]

3000 K CRI 70

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Product colours


Product colours


Stainless steel
[SS]

Stainless steel

Extras

Light output

Consult the factory


Constant light output
[CLO]

Constant light output

Consult the factory


Class II
[C2]

Class II

120-277V 50/60Hz
[UNI]

120-277V 50/60Hz
