NOX 80 LED

NEW
NOX 80 LEDNOX 80 LED
NOX 80 LEDNOX 80 LED

LT1010.764-EN

CEUKCAIK10IP66Class I
Variants
Light distribution
[T-ASYM-A] , [T-ASYM-B] , [T-CB-A] , [T-CB-D] , [T-CB-E] , [T-SYM-A] , [T-SYM-B]
Delivered lumens flux
10772 - 24610 lm
Rated input power
87 - 170 W
Colour temperature
3000 K CRI 70, 4000 K CRI 70
Lifetime L90B50 (hour)
>102, 000
Lifetime L80B50 (hour)
>102, 000
Options
Product colours
Stainless steel
Extras
Light output
Constant light output
Consult the factory
Class II, 120-277V 50/60Hz

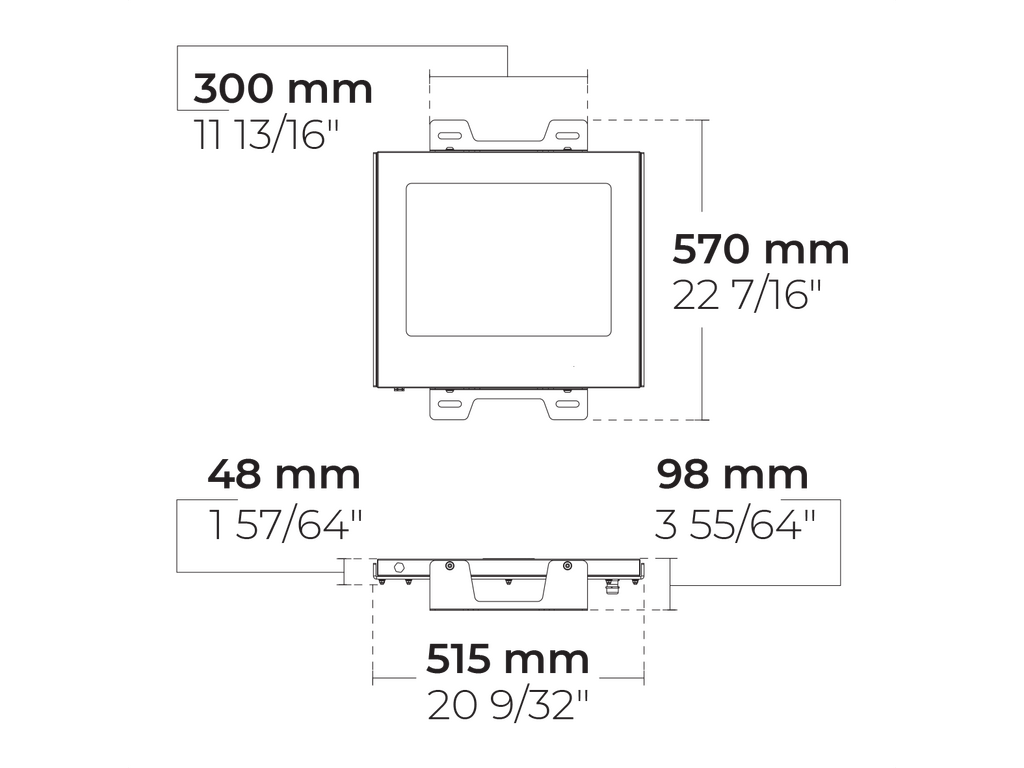

Technical details



Certificates
CE, UKCA
Mounting
Standard strap connection.
Housing
Corrosion resistant stainless steel housing (AISI 316 / EN 1.4401 grade) combined with aluminum alloy heatsink
Finishing
Polished stainless steel , anodized aluminum
Fasteners
Stainless steel (AISI 316 / EN 1.4401 grade)
Gasket
EPDM gasket (Shore A 25-30)
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK10
Ingress protection
IP66
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
10.50 kg
LED module
High power LEDs on metal-core PCB
Driver
External LED driver
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
1 m of halogen-free cable
Notes
Other stainless steel grades are available upon request, This product can be supplied with Insulation class (Class II) upon request. Please contact factory., This product is compatible with 4-20 mA signal to further benefit advanced tunnel control systems such as data reading from luminance meters.

Downloads


Variants


Light distribution
Tunnel, Asymmetric, Type A
[T-ASYM-A] Tunnel, Asymmetric, Type A
Tunnel, Asymmetric, Type B
[T-ASYM-B] Tunnel, Asymmetric, Type B
Tunnel, Counter beam, Type A
[T-CB-A] Tunnel, Counter beam, Type A
Tunnel, Counter beam, Type D
[T-CB-D] Tunnel, Counter beam, Type D
Tunnel, Counter beam, Type E
[T-CB-E] Tunnel, Counter beam, Type E
Tunnel, Symmetric, Type A
[T-SYM-A] Tunnel, Symmetric, Type A
Tunnel, Symmetric, Type B
[T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux
10772 lm
10799 lm
10926 lm
10968 lm
11010 lm
11063 lm
11502 lm
11535 lm
11589 lm
11637 lm
11681 lm
11727 lm
11783 lm
12285 lm
15898 lm
15938 lm
16125 lm
16186 lm
16250 lm
16327 lm
16861 lm
16989 lm
17023 lm
17059 lm
17124 lm
17191 lm
17273 lm
18009 lm
20554 lm
20735 lm
20875 lm
20957 lm
21057 lm
21954 lm
22100 lm
22309 lm
22445 lm
22532 lm
22640 lm
22885 lm
23605 lm
24610 lm
Rated input power
87 W
121 W
170 W
Colour temperature
3000 K CRI 70
4000 K CRI 70

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LT1010.764-EN-T-ASYM-A-350-730
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 10968 lm
Rated input power: 87 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-ASYM-A]
Delivered lumens flux
10968 lm
Rated input power
87 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
126 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-ASYM-A-350-740
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 11681 lm
Rated input power: 87 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-A]
Delivered lumens flux
11681 lm
Rated input power
87 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
134 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-ASYM-A-500-730
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 16186 lm
Rated input power: 121 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-ASYM-A]
Delivered lumens flux
16186 lm
Rated input power
121 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
133 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-ASYM-A-500-740
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 17124 lm
Rated input power: 121 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-A]
Delivered lumens flux
17124 lm
Rated input power
121 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
141 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-ASYM-A-700-730
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 20875 lm
Rated input power: 170 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-ASYM-A]
Delivered lumens flux
20875 lm
Rated input power
170 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
122 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-ASYM-A-700-740
Light distribution: [T-ASYM-A] Tunnel, Asymmetric, Type A
Delivered lumens flux: 22445 lm
Rated input power: 170 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-A]
Delivered lumens flux
22445 lm
Rated input power
170 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
132 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-ASYM-B-350-730
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 11010 lm
Rated input power: 87 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-ASYM-B]
Delivered lumens flux
11010 lm
Rated input power
87 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
126 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-ASYM-B-350-740
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 11727 lm
Rated input power: 87 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-B]
Delivered lumens flux
11727 lm
Rated input power
87 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
134 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-ASYM-B-500-730
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 16250 lm
Rated input power: 121 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-ASYM-B]
Delivered lumens flux
16250 lm
Rated input power
121 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
135 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-ASYM-B-500-740
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 17191 lm
Rated input power: 121 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-B]
Delivered lumens flux
17191 lm
Rated input power
121 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
144 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-ASYM-B-700-730
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 22532 lm
Rated input power: 170 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-ASYM-B]
Delivered lumens flux
22532 lm
Rated input power
170 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
132 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-ASYM-B-700-740
Light distribution: [T-ASYM-B] Tunnel, Asymmetric, Type B
Delivered lumens flux: 20957 lm
Rated input power: 170 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-ASYM-B]
Delivered lumens flux
20957 lm
Rated input power
170 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
123 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-CB-A-350-730
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 11535 lm
Rated input power: 87 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-A]
Delivered lumens flux
11535 lm
Rated input power
87 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
132 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-CB-A-350-740
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 12285 lm
Rated input power: 87 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-A]
Delivered lumens flux
12285 lm
Rated input power
87 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
141 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-CB-A-500-730
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 17023 lm
Rated input power: 121 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-A]
Delivered lumens flux
17023 lm
Rated input power
121 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
140 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-CB-A-500-740
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 18009 lm
Rated input power: 121 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-A]
Delivered lumens flux
18009 lm
Rated input power
121 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
148 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-CB-A-700-730
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 21954 lm
Rated input power: 170 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-A]
Delivered lumens flux
21954 lm
Rated input power
170 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
129 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-CB-A-700-740
Light distribution: [T-CB-A] Tunnel, Counter beam, Type A
Delivered lumens flux: 23605 lm
Rated input power: 170 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-A]
Delivered lumens flux
23605 lm
Rated input power
170 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
138 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-CB-D-350-730
Light distribution: [T-CB-D] Tunnel, Counter beam, Type D
Delivered lumens flux: 10772 lm
Rated input power: 87 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-D]
Delivered lumens flux
10772 lm
Rated input power
87 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
131 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-CB-D-350-740
Light distribution: [T-CB-D] Tunnel, Counter beam, Type D
Delivered lumens flux: 11589 lm
Rated input power: 87 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-D]
Delivered lumens flux
11589 lm
Rated input power
87 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
141 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-CB-D-500-730
Light distribution: [T-CB-D] Tunnel, Counter beam, Type D
Delivered lumens flux: 15898 lm
Rated input power: 121 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-D]
Delivered lumens flux
15898 lm
Rated input power
121 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
135 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-CB-D-500-740
Light distribution: [T-CB-D] Tunnel, Counter beam, Type D
Delivered lumens flux: 16989 lm
Rated input power: 121 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-D]
Delivered lumens flux
16989 lm
Rated input power
121 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
144 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-CB-D-700-730
Light distribution: [T-CB-D] Tunnel, Counter beam, Type D
Delivered lumens flux: 22885 lm
Rated input power: 170 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-D]
Delivered lumens flux
22885 lm
Rated input power
170 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
135 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-CB-D-700-740
Light distribution: [T-CB-D] Tunnel, Counter beam, Type D
Delivered lumens flux: 24610 lm
Rated input power: 170 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-D]
Delivered lumens flux
24610 lm
Rated input power
170 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
144 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-CB-E-350-730
Light distribution: [T-CB-E] Tunnel, Counter beam, Type E
Delivered lumens flux: 11063 lm
Rated input power: 87 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-E]
Delivered lumens flux
11063 lm
Rated input power
87 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
127 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-CB-E-350-740
Light distribution: [T-CB-E] Tunnel, Counter beam, Type E
Delivered lumens flux: 11783 lm
Rated input power: 87 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-E]
Delivered lumens flux
11783 lm
Rated input power
87 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
135 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-CB-E-500-730
Light distribution: [T-CB-E] Tunnel, Counter beam, Type E
Delivered lumens flux: 16327 lm
Rated input power: 121 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-E]
Delivered lumens flux
16327 lm
Rated input power
121 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
134 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-CB-E-500-740
Light distribution: [T-CB-E] Tunnel, Counter beam, Type E
Delivered lumens flux: 17273 lm
Rated input power: 121 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-E]
Delivered lumens flux
17273 lm
Rated input power
121 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
142 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-CB-E-700-730
Light distribution: [T-CB-E] Tunnel, Counter beam, Type E
Delivered lumens flux: 21057 lm
Rated input power: 170 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-CB-E]
Delivered lumens flux
21057 lm
Rated input power
170 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
123 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-CB-E-700-740
Light distribution: [T-CB-E] Tunnel, Counter beam, Type E
Delivered lumens flux: 22640 lm
Rated input power: 170 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-CB-E]
Delivered lumens flux
22640 lm
Rated input power
170 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
133 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-SYM-A-350-730
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 10926 lm
Rated input power: 87 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-SYM-A]
Delivered lumens flux
10926 lm
Rated input power
87 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
125 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-SYM-A-350-740
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 11637 lm
Rated input power: 87 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-SYM-A]
Delivered lumens flux
11637 lm
Rated input power
87 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
133 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-SYM-A-500-730
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 16125 lm
Rated input power: 121 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-SYM-A]
Delivered lumens flux
16125 lm
Rated input power
121 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
133 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-SYM-A-500-740
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 17059 lm
Rated input power: 121 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-SYM-A]
Delivered lumens flux
17059 lm
Rated input power
121 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
140 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-SYM-A-700-730
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 20735 lm
Rated input power: 170 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-SYM-A]
Delivered lumens flux
20735 lm
Rated input power
170 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
122 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-SYM-A-700-740
Light distribution: [T-SYM-A] Tunnel, Symmetric, Type A
Delivered lumens flux: 22309 lm
Rated input power: 170 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-SYM-A]
Delivered lumens flux
22309 lm
Rated input power
170 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
131 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-SYM-B-350-730
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 10799 lm
Rated input power: 87 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-SYM-B]
Delivered lumens flux
10799 lm
Rated input power
87 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
124 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-SYM-B-350-740
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 11502 lm
Rated input power: 87 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-SYM-B]
Delivered lumens flux
11502 lm
Rated input power
87 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
132 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-SYM-B-500-730
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 15938 lm
Rated input power: 121 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-SYM-B]
Delivered lumens flux
15938 lm
Rated input power
121 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
131 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-SYM-B-500-740
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 16861 lm
Rated input power: 121 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-SYM-B]
Delivered lumens flux
16861 lm
Rated input power
121 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
139 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-SYM-B-700-730
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 20554 lm
Rated input power: 170 W
Colour temperature: 3000 K CRI 70
Control:
Light distribution
[T-SYM-B]
Delivered lumens flux
20554 lm
Rated input power
170 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
120 lm/W
Lamp
80 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LT1010.764-EN-T-SYM-B-700-740
Light distribution: [T-SYM-B] Tunnel, Symmetric, Type B
Delivered lumens flux: 22100 lm
Rated input power: 170 W
Colour temperature: 4000 K CRI 70
Control:
Light distribution
[T-SYM-B]
Delivered lumens flux
22100 lm
Rated input power
170 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
130 lm/W
Lamp
80 LED
MacAdam Ellipse
4 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000

Accessories (To be ordered separately)


Extras


Constant light output

[CLO]

Constant light output

Light output
Class II

[C2]

Class II

Consult the factory
120-277V 50/60Hz

[UNI]

120-277V 50/60Hz

Consult the factory
All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Tunnel, Asymmetric, Type A
[T-ASYM-A]

Tunnel, Asymmetric, Type A

Tunnel, Asymmetric, Type B
[T-ASYM-B]

Tunnel, Asymmetric, Type B

Tunnel, Counter beam, Type A
[T-CB-A]

Tunnel, Counter beam, Type A

Tunnel, Counter beam, Type D
[T-CB-D]

Tunnel, Counter beam, Type D

Tunnel, Counter beam, Type E
[T-CB-E]

Tunnel, Counter beam, Type E

Tunnel, Symmetric, Type A
[T-SYM-A]

Tunnel, Symmetric, Type A

Tunnel, Symmetric, Type B
[T-SYM-B]

Tunnel, Symmetric, Type B

Drive current


350 mA
[350]

350 mA

500 mA
[500]

500 mA

700 mA
[700]

700 mA

Colour temperature


3000 K CRI 70
[730]

3000 K CRI 70

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Product colours


Product colours


Stainless steel
[SS]

Stainless steel
