ZEROX S Dyno

QUICK-SHIP
ZEROX S DynoZEROX S Dyno
ZEROX S DynoZEROX S Dyno

LR9016.521-EN

CEUKCAIK10IP67Class I
Variants
Light distribution
[WW] 46x25°
Delivered lumens flux
294 - 345 lm
Rated input power
4 W
Colour temperature
2700 K CRI 80, 3000 K CRI 80, 4000 K CRI 70, 4000 K CRI 80
Lifetime L90B50 (hour)
>42, 000
Lifetime L80B50 (hour)
>42, 000
Options
Control
On/Off
Product colours
Stainless steel
Extras
Consult the factory
120-277V 50/60Hz

Technical details



Certificates
CE, UKCA
Mounting
Ground recessed mountable
Housing
Corrosion resistant stainless steel housing (AISI 316L / EN 1.4571 grade)
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Silicone
Lens / Reflector
High reflectance aluminium coating, multifaceted micro reflector
Glass / Diffusor
Tempered safety glass
Impact protection
IK10
Ingress protection
IP67
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
2.81 kg
LED module
High power LEDs on metal-core PCB
Driver
Integral LED driver
Driver surge protection
3/3 kV
Power factor
> 0.40
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
0.3 m of rubber-sheated cable
Notes
QUICK SHIP: Some variants will be delivered faster. Please consult the factory.

Downloads


Variants


Light distribution

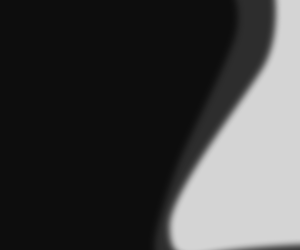

Wall-wash
[WW] Wall-wash - 46x25°
Delivered lumens flux
294 lm
303 lm
326 lm
345 lm
Rated input power
4 W
Colour temperature
2700 K CRI 80
3000 K CRI 80
4000 K CRI 70
4000 K CRI 80

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LR9016.521-EN-WW-350-740
Light distribution: [WW] Wall-wash - 46x25°
Delivered lumens flux: 345 lm
Rated input power: 4 W
Colour temperature: 4000 K CRI 70
Control: On/Off
LR9016.521-EN-WW-350-740
Light distribution
[WW] 46x25°
Delivered lumens flux
345 lm
Rated input power
4 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
86 lm/W
Lamp
1 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>42,000
Lifetime L80B50 (hour)
>42,000
Variant code: LR9016.521-EN-WW-350-827
Light distribution: [WW] Wall-wash - 46x25°
Delivered lumens flux: 294 lm
Rated input power: 4 W
Colour temperature: 2700 K CRI 80
Control: On/Off
LR9016.521-EN-WW-350-827
Light distribution
[WW] 46x25°
Delivered lumens flux
294 lm
Rated input power
4 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
73 lm/W
Lamp
1 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>42,000
Lifetime L80B50 (hour)
>42,000
Variant code: LR9016.521-EN-WW-350-830
Light distribution: [WW] Wall-wash - 46x25°
Delivered lumens flux: 303 lm
Rated input power: 4 W
Colour temperature: 3000 K CRI 80
Control: On/Off
LR9016.521-EN-WW-350-830
Light distribution
[WW] 46x25°
Delivered lumens flux
303 lm
Rated input power
4 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
75 lm/W
Lamp
1 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>42,000
Lifetime L80B50 (hour)
>42,000
Variant code: LR9016.521-EN-WW-350-840
Light distribution: [WW] Wall-wash - 46x25°
Delivered lumens flux: 326 lm
Rated input power: 4 W
Colour temperature: 4000 K CRI 80
Control: On/Off
LR9016.521-EN-WW-350-840
Light distribution
[WW] 46x25°
Delivered lumens flux
326 lm
Rated input power
4 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
81 lm/W
Lamp
1 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>42,000
Lifetime L80B50 (hour)
>42,000

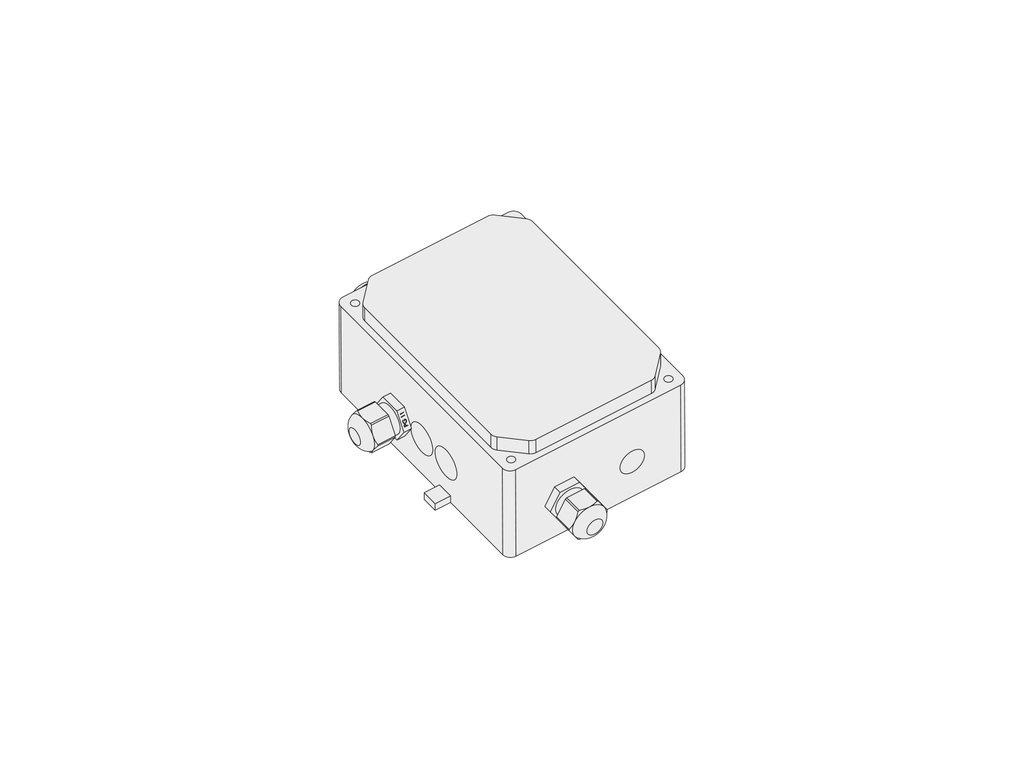

Accessories (To be ordered separately)


Accessories (To be ordered separately)


Extras


120-277V 50/60Hz

[UNI]

120-277V 50/60Hz

Consult the factory
All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Wall-wash
[WW]

Wall-wash

Drive current


350 mA
[350]

350 mA

Colour temperature


2700 K CRI 80
[827]

2700 K CRI 80

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

4000 K CRI 80
[840]

4000 K CRI 80

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

Product colours


Stainless steel
[SS]

Stainless steel
