MINIMO 3x90°

MINIMO 3x90°MINIMO 3x90°
MINIMO 3x90°MINIMO 3x90°

LR9015.515-3x90-US

IK08IP67Class I
Variants
Light distribution
[C3-90] 180° x 50°
Nominal LED lumens flux
270 lm, 260 lm
Nominal LED power
1 W (350 mA)
Colour temperature
4000 K CRI 70, 3000 K CRI 80
Options
Control
On/Off
Input voltage
120-277V 50/60Hz
Insulation class
Class I
Product colours
Black (Textured)Dark grey (Textured)Anthracite grey (Textured)Light grey (Textured)White (Textured)Bronze (Textured)Custom Colour (Please specify RAL code)

Mounting
Ground recessed mountable
Housing
Corrosion resistant aluminum housing
Finishing
Electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Gasket
Silicone rubber
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP67
Weight
1 lb
LED module
High power LEDs on metal-core PCB
Driver
Internal LED driver
Driver surge protection
3/3 kV
Power factor
> 0.40
Through wiring
Single cable entry
Cable
0.3 m of rubber-sheated cable

Downloads


Variants


Light distribution

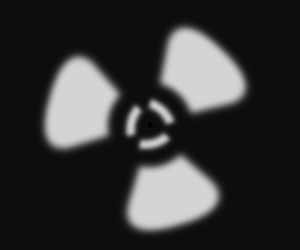

Controlled, 3 sides, 3x90°
[C3-90] Controlled, 3 sides, 3x90° - 180° x 50°
Nominal LED lumens flux
270 lm
260 lm
Nominal LED power
1 W
Colour temperature
4000 K CRI 70
3000 K CRI 80

Variant code

Variant name

Optic

Nominal LED lumens flux


Variant code: LR9015.515-3x90-US-C3-90-350-740
Variant name: LED 1 - 1W - 350mA - 4000K CRI 70
Optic: [C3-90] Controlled, 3 sides, 3x90° - 180° x 50°
Nominal LED lumens flux: 270 lm
LR9015.515-3x90-US-C3-90-350-740
Nominal LED lumens flux
270 lm
Nominal LED power
1 W
Rated luminaire lumens flux
2 lm
Rated luminaire power
2 W
Luminaire efficacy
130 lm/W
Lamp
1 LED
MacAdam Ellipse
3 SDCM
Variant code: LR9015.515-3x90-US-C3-90-350-830
Variant name: LED 1 - 1W - 350mA - 3000K CRI 80
Optic: [C3-90] Controlled, 3 sides, 3x90° - 180° x 50°
Nominal LED lumens flux: 260 lm
LR9015.515-3x90-US-C3-90-350-830
Nominal LED lumens flux
260 lm
Nominal LED power
1 W
Rated luminaire lumens flux
2 lm
Rated luminaire power
2 W
Luminaire efficacy
125 lm/W
Lamp
1 LED
MacAdam Ellipse
3 SDCM

Descriptions
Variants

Light distribution

Drive current


Controlled, 3 sides, 3x90°
[C3-90]

Controlled, 3 sides, 3x90°

Drive current


350 mA
[350]

350 mA

Colour temperature


3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Input voltage


On/Off
[ONOFF]

On/Off

Input voltage


120-277V 50/60Hz
[UNI]

120-277V 50/60Hz

Insulation class

Product colours


Class I
[C1]

Class I

Product colours


Black (Textured)
[HM1]

Black (Textured)

Dark grey (Textured)
[HM2]

Dark grey (Textured)

Anthracite grey (Textured)
[HM3]

Anthracite grey (Textured)

Light grey (Textured)
[HM4]

Light grey (Textured)

White (Textured)
[HM5]

White (Textured)

Bronze (Textured)
[HM6]

Bronze (Textured)

Custom Colour (Please specify RAL code)
[CC]

Custom Colour (Please specify RAL code)
