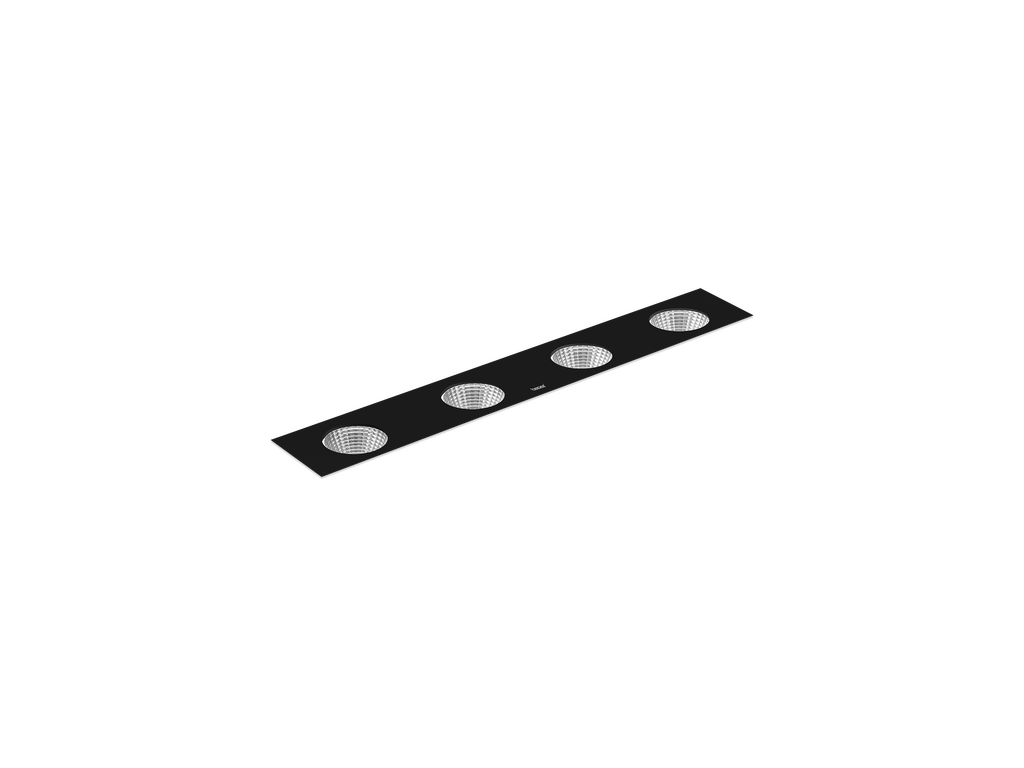

MOLTO 4 Hybrid

PHASED-OUT
MOLTO 4 HybridMOLTO 4 Hybrid
MOLTO 4 HybridMOLTO 4 Hybrid

LR9012.695-EN

CEUKCAIK08IP67Class I
Variants
Light distribution
[N] 26°, [S] 7°
Delivered lumens flux
3355 - 4076 lm
Rated input power
35 W
Colour temperature
2700 K CRI 80, 3000 K CRI 80, 4000 K CRI 70, 4000 K CRI 80
Lifetime L90B50 (hour)
>72, 600
Options
Control
On/Off, DALI
Product colours
Stainless steel

Technical details



Certificates
CE, UKCA

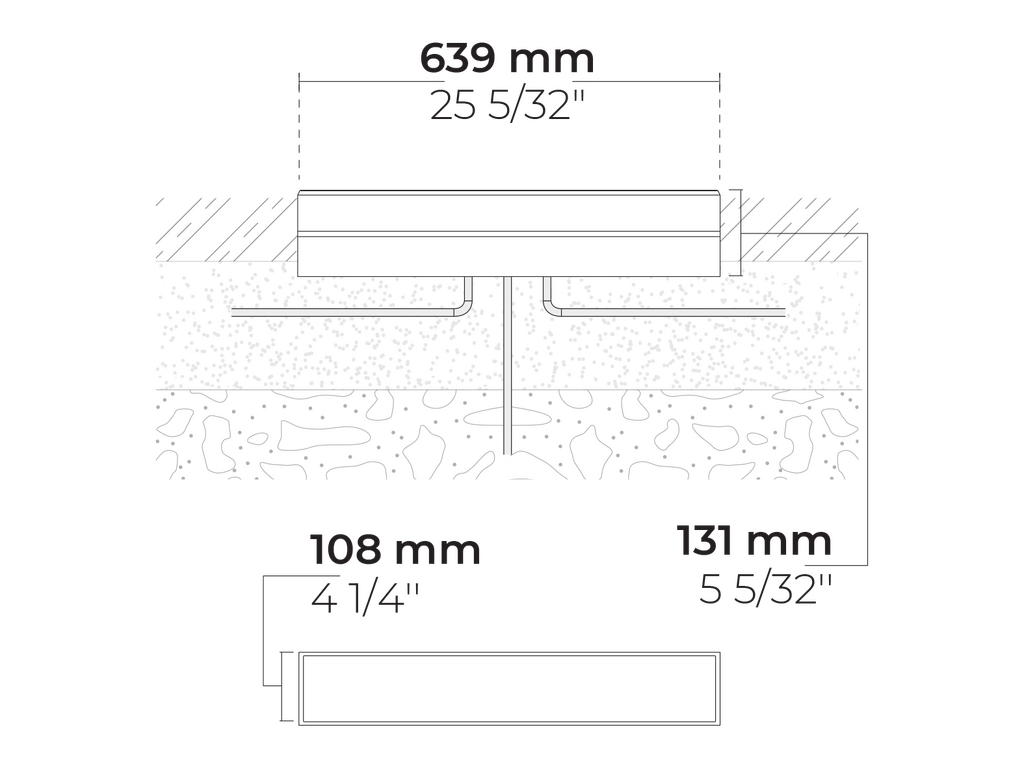

Mounting
Ground recessed mountable
Housing
Corrosion resistant stainless steel housing (AISI 316L / EN 1.4571 grade)
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Silicone
Lens / Reflector
High reflectance aluminium coating
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP67
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
5.37 kg
LED module
Multi-chip high power LEDs on metal-core PCB
Driver
Integral LED driver
Driver surge protection
4/4 kV
Power factor
> 0.97
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
0.3 m of rubber-sheated cable

Downloads


Variants


Light distribution
Spot
[S] Spot - 7°
Narrow
[N] Narrow - 26°
Delivered lumens flux
3355 lm
3397 lm
3810 lm
4076 lm
Rated input power
35 W
Colour temperature
2700 K CRI 80
3000 K CRI 80
4000 K CRI 70
4000 K CRI 80

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LR9012.695-EN-S-700-740
Light distribution: [S] Spot - 7°
Delivered lumens flux: 4076 lm
Rated input power: 35 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LR9012.695-EN-S-700-740
Light distribution
[S] 7°
Delivered lumens flux
4076 lm
Rated input power
35 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
101 lm/W
Lamp
4 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B50 (hour)
>72,600
Variant code: LR9012.695-EN-S-700-827
Light distribution: [S] Spot - 7°
Delivered lumens flux: 3355 lm
Rated input power: 35 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LR9012.695-EN-S-700-827
Light distribution
[S] 7°
Delivered lumens flux
3355 lm
Rated input power
35 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
83 lm/W
Lamp
4 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B50 (hour)
>72,600
Variant code: LR9012.695-EN-S-700-830
Light distribution: [S] Spot - 7°
Delivered lumens flux: 3397 lm
Rated input power: 35 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LR9012.695-EN-S-700-830
Light distribution
[S] 7°
Delivered lumens flux
3397 lm
Rated input power
35 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
84 lm/W
Lamp
4 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B50 (hour)
>72,600
Variant code: LR9012.695-EN-S-700-840
Light distribution: [S] Spot - 7°
Delivered lumens flux: 3810 lm
Rated input power: 35 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
LR9012.695-EN-S-700-840
Light distribution
[S] 7°
Delivered lumens flux
3810 lm
Rated input power
35 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
95 lm/W
Lamp
4 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B50 (hour)
>72,600
Variant code: LR9012.695-EN-N-700-740
Light distribution: [N] Narrow - 26°
Delivered lumens flux: 4076 lm
Rated input power: 35 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LR9012.695-EN-N-700-740
Light distribution
[N] 26°
Delivered lumens flux
4076 lm
Rated input power
35 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
101 lm/W
Lamp
4 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B50 (hour)
>72,600
Variant code: LR9012.695-EN-N-700-827
Light distribution: [N] Narrow - 26°
Delivered lumens flux: 3355 lm
Rated input power: 35 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LR9012.695-EN-N-700-827
Light distribution
[N] 26°
Delivered lumens flux
3355 lm
Rated input power
35 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
83 lm/W
Lamp
4 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B50 (hour)
>72,600
Variant code: LR9012.695-EN-N-700-830
Light distribution: [N] Narrow - 26°
Delivered lumens flux: 3397 lm
Rated input power: 35 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LR9012.695-EN-N-700-830
Light distribution
[N] 26°
Delivered lumens flux
3397 lm
Rated input power
35 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
84 lm/W
Lamp
4 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B50 (hour)
>72,600
Variant code: LR9012.695-EN-N-700-840
Light distribution: [N] Narrow - 26°
Delivered lumens flux: 3810 lm
Rated input power: 35 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
LR9012.695-EN-N-700-840
Light distribution
[N] 26°
Delivered lumens flux
3810 lm
Rated input power
35 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
95 lm/W
Lamp
4 LED
MacAdam Ellipse
5 SDCM
Lifetime L90B50 (hour)
>72,600

Accessories (Included)

Accessories (To be ordered separately)


All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Spot
[S]

Spot

Narrow
[N]

Narrow

Drive current


700 mA
[700]

700 mA

Colour temperature


2700 K CRI 80
[827]

2700 K CRI 80

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

4000 K CRI 80
[840]

4000 K CRI 80

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

DALI
[DALI]

DALI

Product colours


Stainless steel
[SS]

Stainless steel
