ZETA 8 Dyno

ZETA 8 DynoZETA 8 Dyno
ZETA 8 DynoZETA 8 Dyno

LR9012.583-EN

CEUKCAIK08IP67Class I
Variants
Light distribution
[WW] 45x85°
Delivered lumens flux
1592 - 1866 lm
Rated input power
20 W
Colour temperature
2700 K CRI 80, 3000 K CRI 80, 4000 K CRI 70, 4000 K CRI 80
Lifetime L90B50 (hour)
>42, 000
Lifetime L80B50 (hour)
>42, 000
Options
Control
On/Off, DALI
Product colours
Stainless steel

Technical details



Certificates
CE, UKCA
Mounting
Ground recessed mountable
Housing
Corrosion resistant stainless steel housing (AISI 316L / EN 1.4571 grade)
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Silicone
Lens / Reflector
High reflectance aluminium coating, multifaceted micro reflector
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP67
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
5.48 kg
LED module
High power LEDs on metal-core PCB
Driver
Internal LED driver
Driver surge protection
1/1 kV
Power factor
> 0.90
Through wiring
Single cable entry
Operating temperature
-20...50°C
Cable
0.3 m of rubber-sheated cable

Downloads


Variants


Light distribution
Wall-wash
[WW] Wall-wash - 45x85°
Delivered lumens flux
1592 lm
1642 lm
1766 lm
1866 lm
Rated input power
20 W
Colour temperature
2700 K CRI 80
3000 K CRI 80
4000 K CRI 70
4000 K CRI 80

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LR9012.583-EN-WW-350-740
Light distribution: [WW] Wall-wash - 45x85°
Delivered lumens flux: 1866 lm
Rated input power: 20 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LR9012.583-EN-WW-350-740
Light distribution
[WW] 45x85°
Delivered lumens flux
1866 lm
Rated input power
20 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
93 lm/W
Lamp
8 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>42,000
Lifetime L80B50 (hour)
>42,000
Variant code: LR9012.583-EN-WW-350-827
Light distribution: [WW] Wall-wash - 45x85°
Delivered lumens flux: 1592 lm
Rated input power: 20 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LR9012.583-EN-WW-350-827
Light distribution
[WW] 45x85°
Delivered lumens flux
1592 lm
Rated input power
20 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
76 lm/W
Lamp
8 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>42,000
Lifetime L80B50 (hour)
>42,000
Variant code: LR9012.583-EN-WW-350-830
Light distribution: [WW] Wall-wash - 45x85°
Delivered lumens flux: 1642 lm
Rated input power: 20 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LR9012.583-EN-WW-350-830
Light distribution
[WW] 45x85°
Delivered lumens flux
1642 lm
Rated input power
20 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
82 lm/W
Lamp
8 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>42,000
Lifetime L80B50 (hour)
>42,000
Variant code: LR9012.583-EN-WW-350-840
Light distribution: [WW] Wall-wash - 45x85°
Delivered lumens flux: 1766 lm
Rated input power: 20 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
LR9012.583-EN-WW-350-840
Light distribution
[WW] 45x85°
Delivered lumens flux
1766 lm
Rated input power
20 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
88 lm/W
Lamp
8 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>42,000
Lifetime L80B50 (hour)
>42,000

Accessories (Included)

Accessories (To be ordered separately)


Accessories (To be ordered separately)

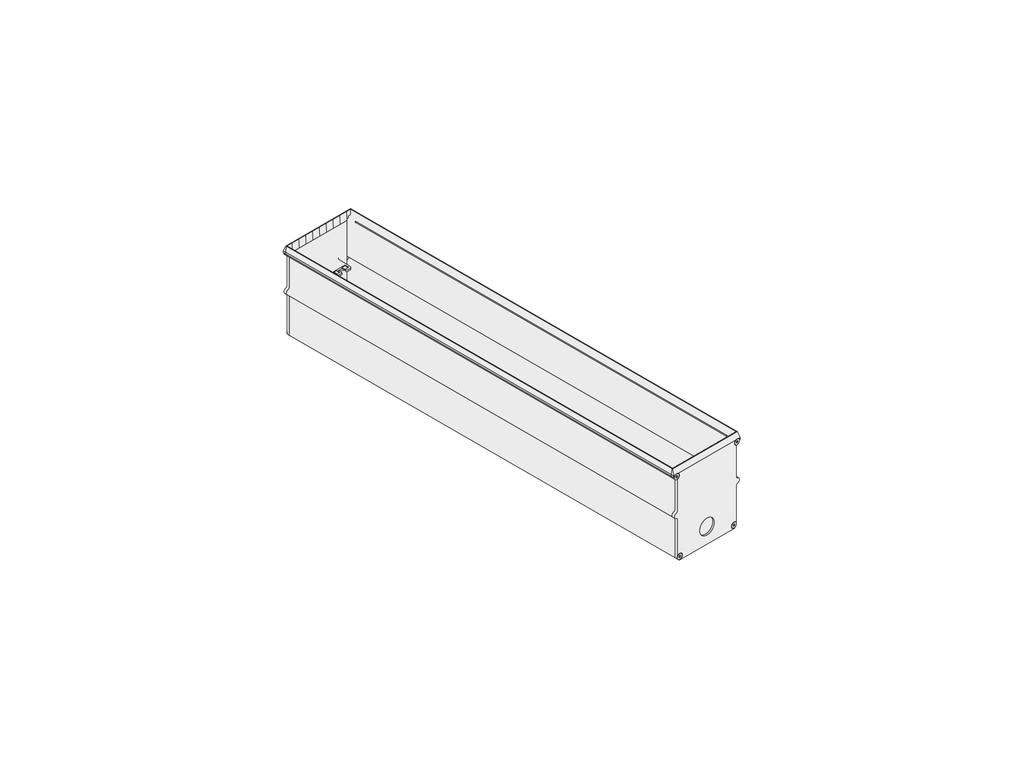

Mounting accessories
Junction Box

Junction Box

141901135

All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Wall-wash
[WW]

Wall-wash

Drive current


350 mA
[350]

350 mA

Colour temperature


2700 K CRI 80
[827]

2700 K CRI 80

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

4000 K CRI 80
[840]

4000 K CRI 80

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

DALI
[DALI]

DALI

Product colours


Stainless steel
[SS]

Stainless steel
