ZETA 4 Dyno

ZETA 4 DynoZETA 4 Dyno
ZETA 4 DynoZETA 4 Dyno

LR9012.582-EN

CEIK08IP67Class I
Variants
Light distribution
[WW] 85° x 90°
Nominal LED lumens flux
1400 lm, 1270 lm
Nominal LED power
8 W (350 mA)
Colour temperature
4000 K CRI 70, 3000 K CRI 80
Options
Control
On/Off
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Product colours
Stainless steel

Mounting
Ground recessed mountable
Housing
Corrosion resistant stainless steel housing
Fasteners
Stainless steel (grade 304)
Gasket
Silicone
Lens / Reflector
High reflectance aluminium coating, multifaceted micro reflector
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP67
Weight
2.77 kg
LED module
High power LEDs on metal-core PCB
Driver
External LED driver
Driver surge protection
1/1 kV
Power factor
> 0.90
Through wiring
Single cable entry
Cable
0.3 m of rubber-sheated cable

Downloads


Variants


Light distribution
Wall-wash
[WW] Wall-wash - 85° x 90°
Nominal LED lumens flux
1400 lm
1270 lm
Nominal LED power
8 W
Colour temperature
4000 K CRI 70
3000 K CRI 80

Variant code

Variant name

Optic

Nominal LED lumens flux


Variant code: LR9012.582-EN-WW-350-740
Variant name: DYNO 4 - 8W - 350mA - 4000K CRI 70
Optic: [WW] Wall-wash - 85° x 90°
Nominal LED lumens flux: 1400 lm
LR9012.582-EN-WW-350-740
Rated luminaire lumens flux
870 lm
Rated luminaire power
10 W
Luminaire efficacy
87 lm/W
Lamp
4 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G0
Variant code: LR9012.582-EN-WW-350-830
Variant name: DYNO 4 - 8W - 350mA - 3000K CRI 80
Optic: [WW] Wall-wash - 85° x 90°
Nominal LED lumens flux: 1270 lm
LR9012.582-EN-WW-350-830
Rated luminaire lumens flux
762 lm
Rated luminaire power
10 W
Luminaire efficacy
76 lm/W
Lamp
4 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G0

Accessories (Included)

Accessories (To be ordered separately)


Accessories (To be ordered separately)

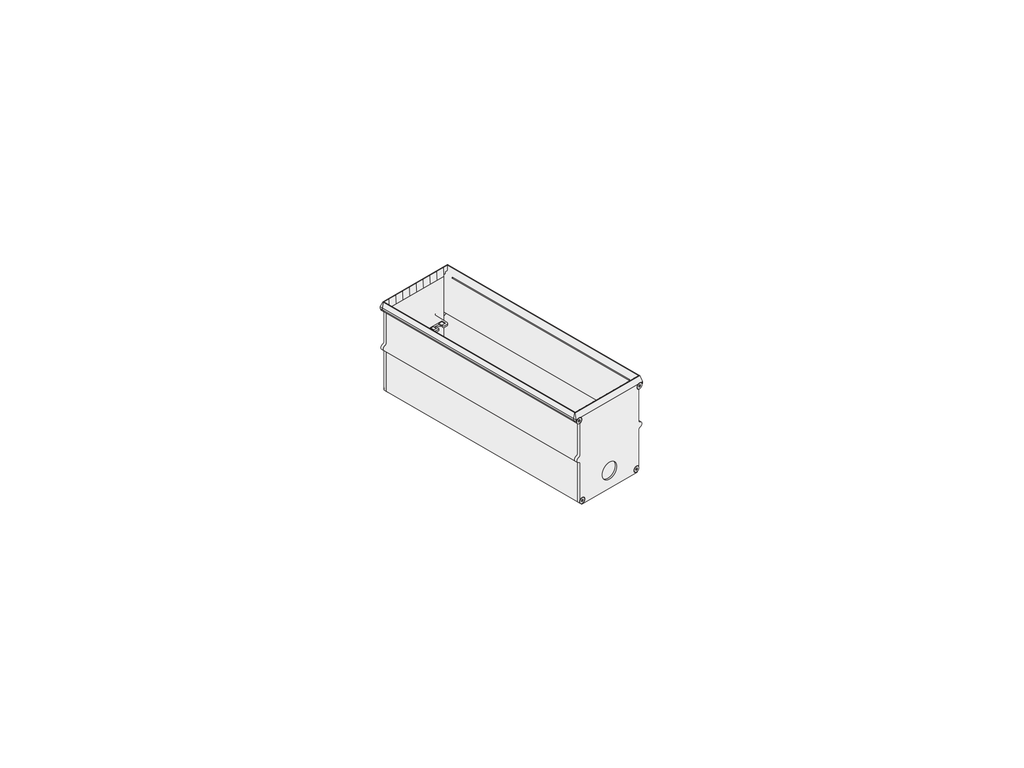

Mounting accessories
Case removing vacuum

Case removing vacuum

160404012


Descriptions
Variants

Light distribution

Drive current


Wall-wash
[WW]

Wall-wash

Drive current


350 mA
[350]

350 mA

Colour temperature


3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Input voltage


On/Off
[ONOFF]

On/Off

Input voltage


220-240V 50/60Hz
[EN]

220-240V 50/60Hz

Insulation class

Product colours


Class I
[C1]

Class I

Product colours


Stainless steel
[SS]

Stainless steel
