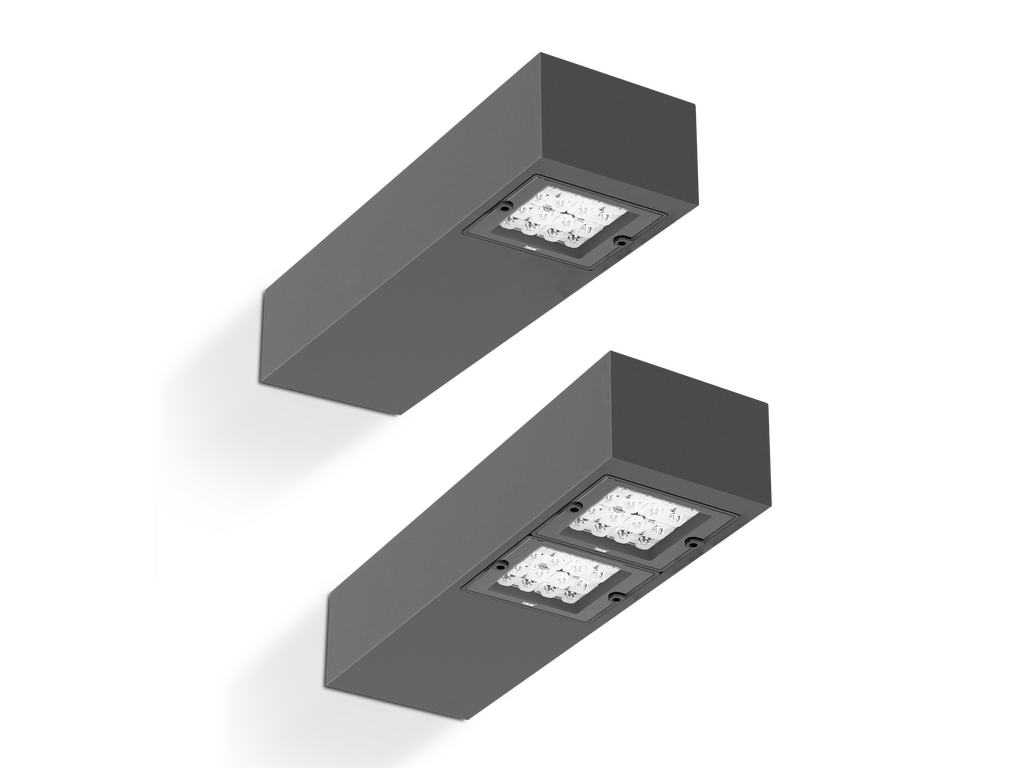

DOMINO AFX 2 Module Duo

Name: DOMINO AFX 2 Module Duo
Brand: HEPER
SKU: LP4091.862-EN
Availability: InStock

LP4091.862-EN

Downloads

Photometry files (IES)

3.62 MB ZIP

Photometry files (LDT)

3.11 MB ZIP

Technical drawing

0.09 MB PDF

Technical drawing (Image)

Light distribution

[P4] 20x78°, [T1] 111x48°, [T2] 133x48°, [T2-2] 133x48°, [T3] 143x63°, [T4] 117x64°, [T5] 117°

Luminaire luminous flux

7565 - 15290 lm

Rated input power

68 - 135 W

CCT

2700K, 3000K, 4000K

CRI

Ra80

Control

On/Off, DALI, AutoDIM, StepDIM

Product colours

Height

3m, 4m, 5m, 6m, Custom height (Please specify)

Extras

Connectivity

Motion sensor

Light output

Backlight Shield, Constant light output, Prismatic Glass

Consult the factory

120-277V 50/60Hz

Cut-out

Pole mounted cut-out junction box (IP44)

Luminaire body options

Double powder coating

Luminaire efficacy

99 - 125 lm/W

Colour deviation

3 SDCM

BUG rating

B2-U0-G1, B1-U0-G0, B1-U0-G1, B2-U0-G0, B3-U0-G1, B1-U1-G1, B2-U1-G1, B3-U0-G0

Lifetime L90B10 (hour)

>102, 000

Housing

Marine grade aluminum housing

Driver

Integral LED driver

Input voltage

220-240V 50/60Hz

Notes

3000K CCT or warmer must be selected to be DarkSky International certified. Prismatic Glass enhances visual comfort and alters light distribution, reducing delivered lumens by approximately 10%. For specifications with Prismatic Glass and photometry files, please contact the factory. The photometry download contains two separate files, each representing one side of the lighting fixture. To accurately obtain the lighting characteristics for a double-headed layout, both files must be imported into the design software. For specifications with Turtle Friendly options and photometry files, please contact the factory.

Configurator

Project name

Type

Quantity

Date

Note

Variant order code

LP4091.862-EN-_-_-_-_-EN-C1-_-_-_-_-_-_-___

Variants required

Variants

Light distribution

[P4]
Special pedestrian road distribution-right side traffic
20x78°

[T1]
Type I, Asymmetric, Side throw
111x48°

[T2]
Type II, Asymmetric, Side throw
133x48°

[T2-2]
Type II, Asymmetric, Side throw
133x48°

[T3]
Type III, Asymmetric, Side throw
143x63°

[T4]
Type IV, Asymmetric, Forward throw
117x64°

[T5]
Type V, Symmetric
117°

Rated input power

[350]
68 W

[500]
97 W

[700]
135 W

Colour temperature

[827]
2700 K CRI 80

[830]
3000 K CRI 80

[840]
4000 K CRI 80

Options

Control

[ONOFF]
On/Off

[DALI]
DALI

[AUTO]
AutoDIM

[STEP]
StepDIM

Product colours

[HM1]

Black

[HM2]

Dark grey

[HM3]

Anthracite grey

[HM4]

Light grey

[HM5]

White

[HM6]

Bronze

[CC]

Custom colour (Please specify RAL code)

Height

[H03]
3m

[H04]
4m

[H05]
5m

[H06]
6m

[HC]
Custom height (Please specify)

Extras

Connectivity

[MS]
Motion sensor

Light output

[BS]
Backlight Shield

[CLO]
Constant light output

[PG]
Prismatic Glass

Consult the factory

[UNI]
120-277V 50/60Hz

Cut-out

[PMCJ]
Pole mounted cut-out junction box (IP44)

Luminaire body options

[DPC]
Double powder coating

Variants required

Technical details

Certificates

CE, UKCA, DarkSky Approved, Turtle Friendly

Mounting

Surface mountable

Finishing

Chromate conversion pretreatment followed by electrostatic powder coating

Fasteners

Stainless steel (AISI 304 / EN 1.4301 grade)

Gasket

Liquid silicone

Lens / Reflector

PMMA lens with high optical efficiency

Glass / Diffusor

Tempered safety glass

Impact protection

IK08

Ingress protection

IP66

Insulation class

Class I

Weight

53.95 kg (4 m), 59.05 kg (5 m), 64.15 kg (6 m)

LED module

High power LEDs on metal-core PCB

Driver surge protection

10/6 kV

Power factor

> 0.95

Through wiring

Single cable entry

Operating temperature

-40...50°C

Cable

0.5 m of flexible cable

Pole detail

Poles are supplied with flange plate. Flange cover and anchorage can be ordered separately. Embedded base is optional

Extras

[MS]

Motion sensor

Connectivity

[BS]

Backlight Shield

Light output

[CLO]

Constant light output

Light output

[PG]

Prismatic Glass

Light output

[UNI]

120-277V 50/60Hz

Consult the factory

[PMCJ]

Pole mounted cut-out junction box (IP44)

Cut-out

[DPC]

Double powder coating

Luminaire body options

Poles (Included)

Product specific poles with flange plate

Product code

Height

Diameter / Dimensions

Spigot diameter

Product code: PAFD.DMN-EN-H03

Height: 3m

Diameter / Dimensions: 186*120mm

Spigot diameter:

Product code: PAFD.DMN-EN-H04

Height: 4m

Diameter / Dimensions: 186*120mm

Spigot diameter:

Product code: PAFD.DMN-EN-H05

Height: 5m

Diameter / Dimensions: 186*120mm

Spigot diameter:

Product code: PAFD.DMN-EN-H06

Height: 6m

Diameter / Dimensions: 186*120mm

Spigot diameter:
