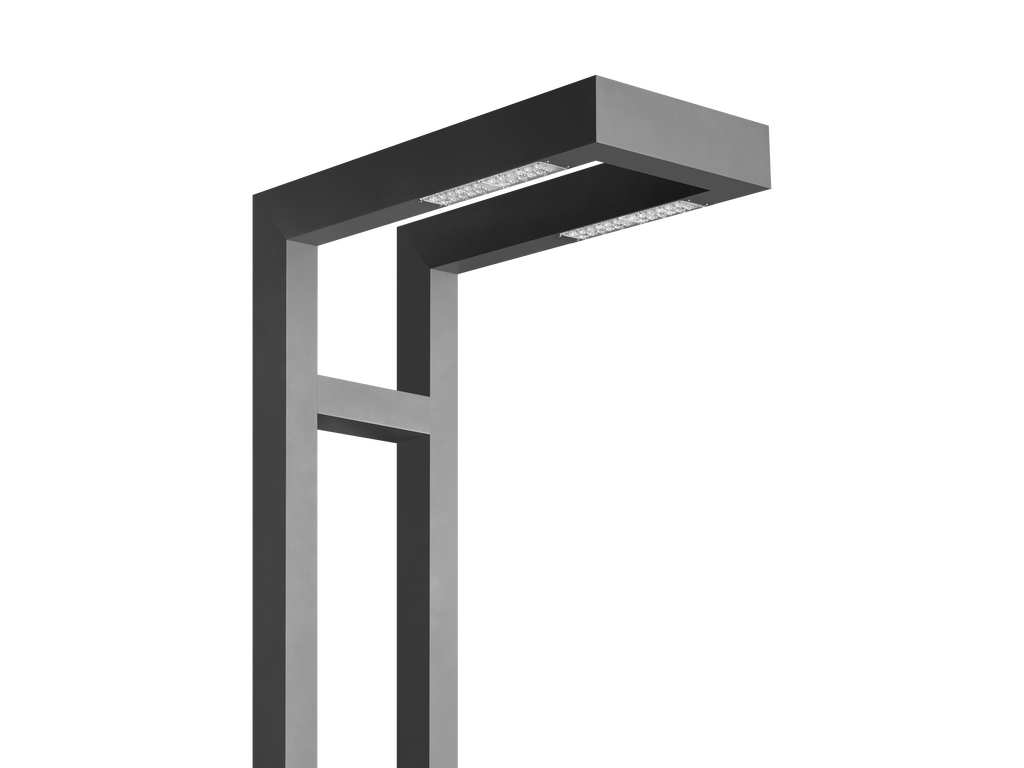

    TOLENA

    PHASED-OUT
    TOLENATOLENA

    LP4071.554-EN

    CEUKCAIK05IP65Class I

    Downloads

    TOLENATOLENA
    Light distribution
    [T2] 150x40°
    Luminaire luminous flux
    7062 - 7556 lm
    Rated input power
    55 W
    CCT
    3000K, 4000K
    CRI
    Ra70, Ra80
    Control
    On/Off
    Product colours
    BlackDark greyAnthracite greyLight greyWhiteBronzeCustom colour (Please specify RAL code)
    Height
    3m, 4m
    Extras
    Consult the factory
    120-277V 50/60Hz
    Luminaire body options
    Double powder coating

    Luminaire efficacy
    128 - 137 lm/W
    Colour deviation
    3 SDCM, 4 SDCM
    BUG rating
    B2-U0-G2
    Lifetime L90B10 (hour)
    >102, 000
    Housing
    Marine grade aluminum housing
    Driver
    Integral LED driver
    Input voltage
    220-240V 50/60Hz
    Configurator
    Project name
    Type
    Quantity
    Date
    Note
    Variant order code

    LP4071.554-EN-T2-350-___-ONOFF-EN-C1-___-___-___-___

    Variants required



    Variants
    Light distribution
    [T2]
    Type II, Asymmetric, Side throw
    150x40°

    Rated input power
    [350]
    55 W

    Colour temperature
    [830]
    3000 K CRI 80
    [740]
    4000 K CRI 70
    Options
    Control
    [ONOFF]
    On/Off

    Product colours
    [HM1]Black
    Black
    [HM2]Dark grey
    Dark grey
    [HM3]Anthracite grey
    Anthracite grey
    [HM4]Light grey
    Light grey
    [HM5]White
    White
    [HM6]Bronze
    Bronze
    [CC]Custom colour (Please specify RAL code)
    Custom colour (Please specify RAL code)

    Height
    [H03]
    3m
    [H04]
    4m
    Extras
    Consult the factory
    [UNI]
    120-277V 50/60Hz
    Luminaire body options
    [DPC]
    Double powder coating


    Variants required

    Technical details


    Certificates
    CE, UKCA
    Finishing
    Chromate conversion pretreatment followed by electrostatic powder coating
    Fasteners
    Stainless steel (AISI 304 / EN 1.4301 grade)
    Gasket
    Silicone
    Lens / Reflector
    PMMA lens with high optical efficiency
    Glass / Diffusor
    Tempered safety glass
    Impact protection
    IK05
    Ingress protection
    IP65
    Insulation class
    Class I
    Weight
    52.19 kg (4 m), 58.47 kg (5 m), 64.75 kg (6 m)
    LED module
    High power LEDs on metal-core PCB
    Driver surge protection
    6/6 kV
    Power factor
    > 0.95
    Through wiring
    Single cable entry
    Operating temperature
    -40...50°C
    Pole detail
    Poles are supplied with flange plate. Flange cover and anchorage can be ordered separately. Embedded base is optional

    Extras

    120-277V 50/60Hz

    [UNI]

    120-277V 50/60Hz

    Consult the factory
    Double powder coating

    [DPC]

    Double powder coating

    Luminaire body options
    All flux and power values derived following appropriate IES, CIE and applicable standards.
    Descriptions
    Variants

    Light distribution

    Drive current

    Type II, Asymmetric, Side throw
    [T2]

    Type II, Asymmetric, Side throw

    Drive current

    350 mA
    [350]

    350 mA

    Colour temperature

    3000 K CRI 80
    [830]

    3000 K CRI 80

    4000 K CRI 70
    [740]

    4000 K CRI 70

    Options

    Control

    Product colours

    On/Off
    [ONOFF]

    On/Off

    Product colours

    Black
    [HM1]

    Black

    Dark grey
    [HM2]

    Dark grey

    Anthracite grey
    [HM3]

    Anthracite grey

    Light grey
    [HM4]

    Light grey

    White
    [HM5]

    White

    Bronze
    [HM6]

    Bronze

    Custom colour (Please specify RAL code)
    [CC]

    Custom colour (Please specify RAL code)
