DOMINO AFX 3 Module

NEW
QUICK-SHIP
DOMINO AFX 3 ModuleDOMINO AFX 3 Module
DOMINO AFX 3 ModuleDOMINO AFX 3 Module

LP4034.863-EN

CEDarkSky FriendlyUKCAIK08IP66Class I
Variants
Light distribution
[P4] 20x78°, [T1] 111x48°, [T2] 133x48°, [T2] 149x54°, [T3] 143x63°, [T4] 117x64°, [T5] 117°
Delivered lumens flux
4475 - 13800 lm
Rated input power
50 - 100 W
Colour temperature
2200 K CRI 80, 2700 K CRI 80, 3000 K CRI 80, 4000 K CRI 70, 4000 K CRI 80
BUG rating
B2-U0-G1, B3-U1-G1, B1-U0-G1, B2-U0-G0, B2-U1-G1, B1-U1-G1, B3-U0-G1, B3-U0-G0, B3-U1-G2, B2-U1-G2, B0-U1-G0, B1-U1-G0
Lifetime L90B50 (hour)
>102, 000
Lifetime L80B50 (hour)
>102, 000
Options
Control
On/Off, DALI, AutoDIM, StepDIM
Product colours
BlackDark greyAnthracite greyLight greyWhiteBronzeCustom colour (Please specify RAL code)
Height
4m, 5m, 6m
Extras
Light output
Backlight Shield, Constant light output
Consult the factory
120-277V 50/60Hz
Luminaire body options
Double powder coating

Technical details



Certificates
CE, UKCA, DarkSky Friendly
Mounting
Surface mountable
Housing
Corrosion resistant, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Liquid silicone
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP66
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
70.3 kg (4 m), 75.4 kg (5 m), 80.5 kg (6 m)
LED module
High power LEDs on metal-core PCB
Driver
Internal LED driver
Driver surge protection
10/6 kV
Power factor
> 0.95
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
0.5 m of flexible cable
Packing box dimensions
20*16*115 cm
Pole detail
Poles are supplied with flange plate. Flange cover and anchorage can be ordered separately. Embedded base is optional
Notes
3000K CCT or warmer must be selected to be DarkSky International certified., QUICK SHIP: Some variants will be delivered faster. Please consult the factory.

Downloads


Variants


Light distribution
Type I, Asymmetric, Side throw
[T1] Type I, Asymmetric, Side throw - 111x48°
Type II, Asymmetric, Side throw
[T2] Type II, Asymmetric, Side throw - 133x48°
Type II, Asymmetric, Side throw
[T2] Type II, Asymmetric, Side throw - 149x54°
Type III, Asymmetric, Side throw

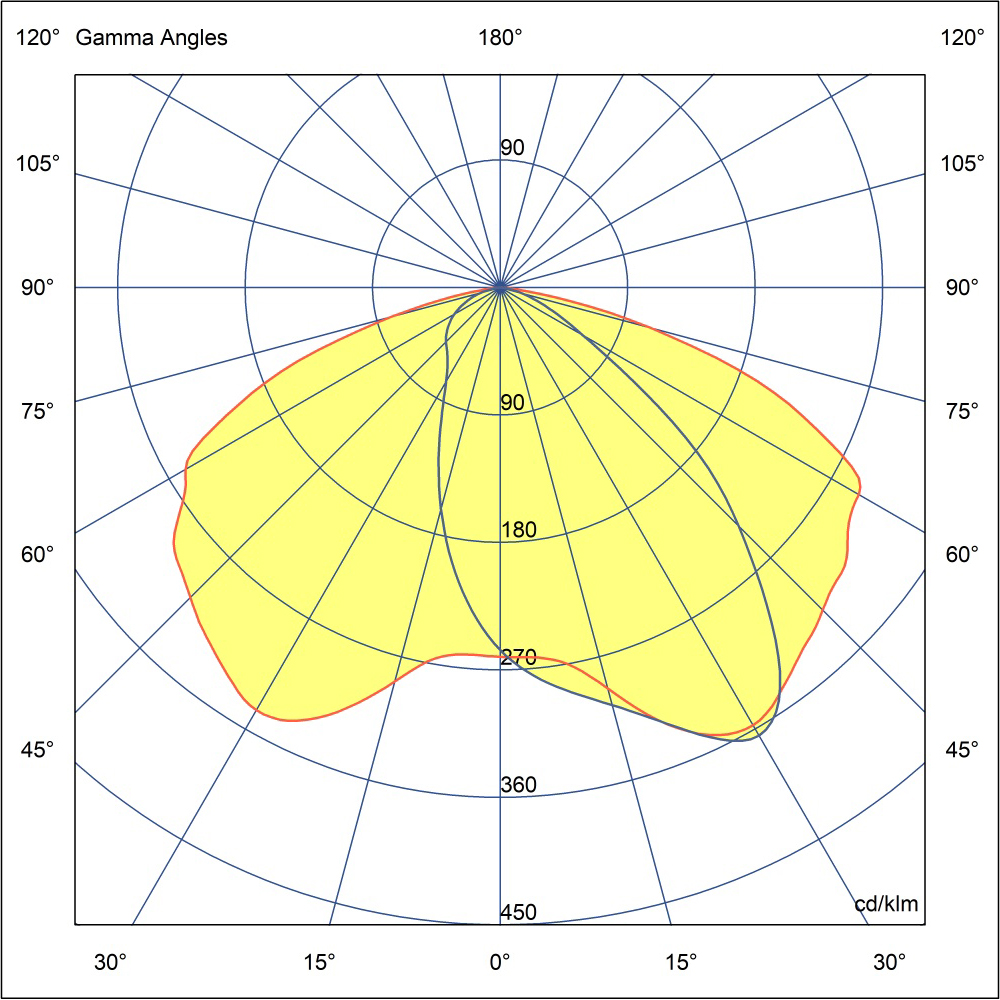

[T3] Type III, Asymmetric, Side throw - 143x63°
Type IV, Asymmetric, Forward throw
[T4] Type IV, Asymmetric, Forward throw - 117x64°
Type V, Symmetric
[T5] Type V, Symmetric - 117°
Special pedestrian road distribution-right side traffic
[P4] Special pedestrian road distribution-right side traffic - 20x78°
Delivered lumens flux
4475 lm
4685 lm
4855 lm
4895 lm
4900 lm
4930 lm
5015 lm
5675 lm
5930 lm
5945 lm
6030 lm
6170 lm
6245 lm
6350 lm
6470 lm
6535 lm
6760 lm
6775 lm
6835 lm
6870 lm
6880 lm
6890 lm
6995 lm
7035 lm
7240 lm
8055 lm
8430 lm
8505 lm
8795 lm
8800 lm
8815 lm
8820 lm
8870 lm
8910 lm
9000 lm
9020 lm
9025 lm
9040 lm
9130 lm
9380 lm
9510 lm
9550 lm
10005 lm
10150 lm
10530 lm
10615 lm
10675 lm
10800 lm
11020 lm
11230 lm
11375 lm
11550 lm
11635 lm
11665 lm
11715 lm
11810 lm
12155 lm
12250 lm
12323 lm
12345 lm
12935 lm
13120 lm
13610 lm
13720 lm
13800 lm
Rated input power
50 W
72 W
100 W
Colour temperature
2200 K CRI 80
2700 K CRI 80
3000 K CRI 80
4000 K CRI 70
4000 K CRI 80

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control

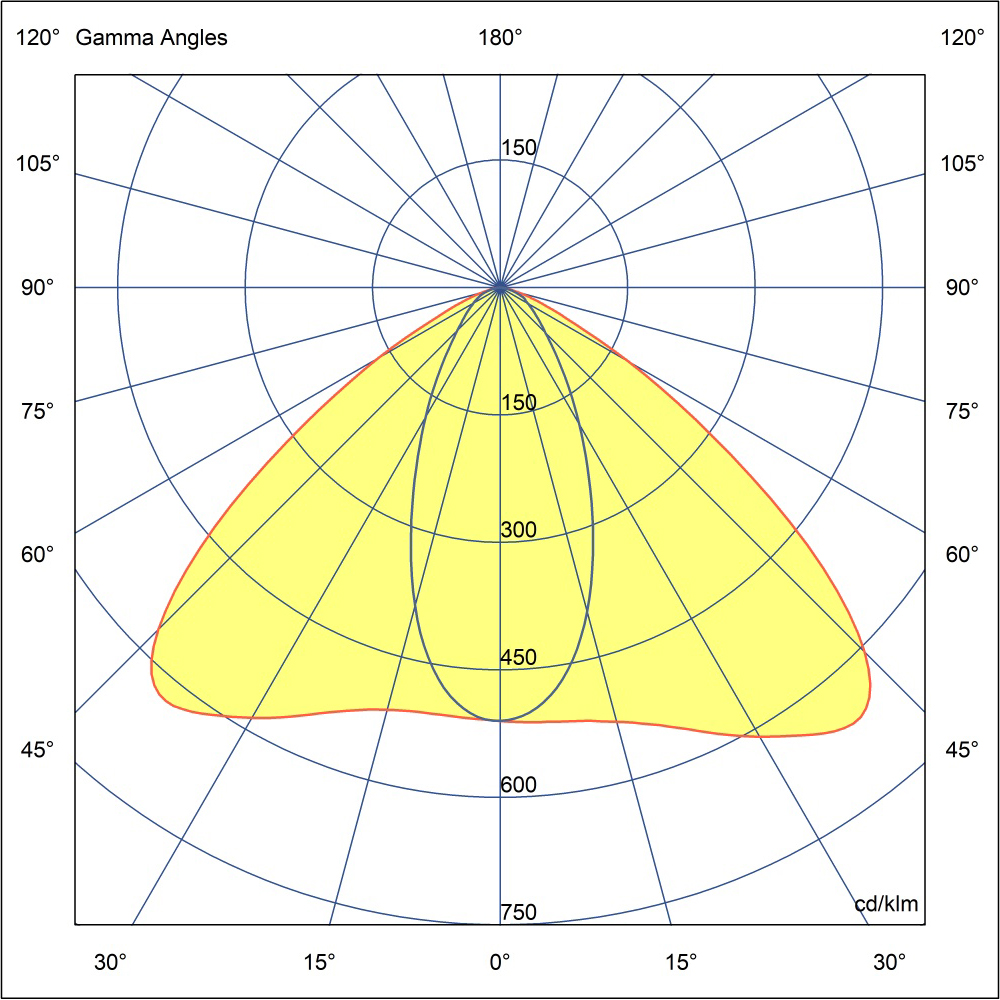

Variant code: LP4034.863-EN-T1-350-740
Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
Delivered lumens flux: 7240 lm
Rated input power: 50 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T1-350-740
Light distribution
[T1] 111x48°
Delivered lumens flux
7240 lm
Rated input power
50 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
142 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T1-350-822
Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
Delivered lumens flux: 5015 lm
Rated input power: 50 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[T1] 111x48°
Delivered lumens flux
5015 lm
Rated input power
50 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
100 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T1-350-827
Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
Delivered lumens flux: 6350 lm
Rated input power: 50 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T1-350-827
Light distribution
[T1] 111x48°
Delivered lumens flux
6350 lm
Rated input power
50 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
125 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T1-350-830
Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
Delivered lumens flux: 6350 lm
Rated input power: 50 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T1-350-830
Light distribution
[T1] 111x48°
Delivered lumens flux
6350 lm
Rated input power
50 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
125 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T1-350-840
Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
Delivered lumens flux: 6350 lm
Rated input power: 50 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T1-350-840
Light distribution
[T1] 111x48°
Delivered lumens flux
6350 lm
Rated input power
50 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
125 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T1-500-740
Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
Delivered lumens flux: 10150 lm
Rated input power: 72 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T1-500-740
Light distribution
[T1] 111x48°
Delivered lumens flux
10150 lm
Rated input power
72 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
135 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T1-500-822
Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
Delivered lumens flux: 6995 lm
Rated input power: 72 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[T1] 111x48°
Delivered lumens flux
6995 lm
Rated input power
72 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
97 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T1-500-827
Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
Delivered lumens flux: 9000 lm
Rated input power: 72 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T1-500-827
Light distribution
[T1] 111x48°
Delivered lumens flux
9000 lm
Rated input power
72 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
120 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T1-500-830
Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
Delivered lumens flux: 9040 lm
Rated input power: 72 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T1-500-830
Light distribution
[T1] 111x48°
Delivered lumens flux
9040 lm
Rated input power
72 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
120 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T1-500-840
Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
Delivered lumens flux: 9000 lm
Rated input power: 72 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T1-500-840
Light distribution
[T1] 111x48°
Delivered lumens flux
9000 lm
Rated input power
72 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
120 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T1-700-740
Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
Delivered lumens flux: 13120 lm
Rated input power: 100 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T1-700-740
Light distribution
[T1] 111x48°
Delivered lumens flux
13120 lm
Rated input power
100 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
127 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U1-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T1-700-822
Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
Delivered lumens flux: 9025 lm
Rated input power: 100 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[T1] 111x48°
Delivered lumens flux
9025 lm
Rated input power
100 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
90 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T1-700-827
Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
Delivered lumens flux: 11635 lm
Rated input power: 100 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T1-700-827
Light distribution
[T1] 111x48°
Delivered lumens flux
11635 lm
Rated input power
100 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
112 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T1-700-830
Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
Delivered lumens flux: 11715 lm
Rated input power: 100 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T1-700-830
Light distribution
[T1] 111x48°
Delivered lumens flux
11715 lm
Rated input power
100 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
111 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T1-700-840
Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
Delivered lumens flux: 11635 lm
Rated input power: 100 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T1-700-840
Light distribution
[T1] 111x48°
Delivered lumens flux
11635 lm
Rated input power
100 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
120 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-350-740
Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
Delivered lumens flux: 6760 lm
Rated input power: 50 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-350-740
Light distribution
[T2] 133x48°
Delivered lumens flux
6760 lm
Rated input power
50 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
133 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-350-822
Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
Delivered lumens flux: 4900 lm
Rated input power: 50 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[T2] 133x48°
Delivered lumens flux
4900 lm
Rated input power
50 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
98 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B0-U1-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-350-827
Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
Delivered lumens flux: 5930 lm
Rated input power: 50 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-350-827
Light distribution
[T2] 133x48°
Delivered lumens flux
5930 lm
Rated input power
50 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
116 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-350-830
Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
Delivered lumens flux: 5930 lm
Rated input power: 50 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-350-830
Light distribution
[T2] 133x48°
Delivered lumens flux
5930 lm
Rated input power
50 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
116 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-350-840
Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
Delivered lumens flux: 5930 lm
Rated input power: 50 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-350-840
Light distribution
[T2] 133x48°
Delivered lumens flux
5930 lm
Rated input power
50 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
116 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-500-740
Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
Delivered lumens flux: 10675 lm
Rated input power: 72 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-500-740
Light distribution
[T2] 133x48°
Delivered lumens flux
10675 lm
Rated input power
72 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
142 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-500-822
Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
Delivered lumens flux: 6835 lm
Rated input power: 72 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[T2] 133x48°
Delivered lumens flux
6835 lm
Rated input power
72 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
95 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B0-U1-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-500-827
Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
Delivered lumens flux: 9020 lm
Rated input power: 72 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-500-827
Light distribution
[T2] 133x48°
Delivered lumens flux
9020 lm
Rated input power
72 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
120 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-500-830
Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
Delivered lumens flux: 9510 lm
Rated input power: 72 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-500-830
Light distribution
[T2] 133x48°
Delivered lumens flux
9510 lm
Rated input power
72 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
126 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-500-840
Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
Delivered lumens flux: 9020 lm
Rated input power: 72 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-500-840
Light distribution
[T2] 133x48°
Delivered lumens flux
9020 lm
Rated input power
72 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
120 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-700-740
Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
Delivered lumens flux: 13800 lm
Rated input power: 100 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-700-740
Light distribution
[T2] 133x48°
Delivered lumens flux
13800 lm
Rated input power
100 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
131 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U1-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-700-822
Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
Delivered lumens flux: 8820 lm
Rated input power: 100 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[T2] 133x48°
Delivered lumens flux
8820 lm
Rated input power
100 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
88 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B0-U1-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-700-827
Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
Delivered lumens flux: 11665 lm
Rated input power: 100 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-700-827
Light distribution
[T2] 133x48°
Delivered lumens flux
11665 lm
Rated input power
100 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
101 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-700-830
Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
Delivered lumens flux: 12323 lm
Rated input power: 100 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-700-830
Light distribution
[T2] 133x48°
Delivered lumens flux
12323 lm
Rated input power
100 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
117 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-700-840
Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
Delivered lumens flux: 11665 lm
Rated input power: 100 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-700-840
Light distribution
[T2] 133x48°
Delivered lumens flux
11665 lm
Rated input power
100 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
120 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-2-350-740
Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
Delivered lumens flux: 6870 lm
Rated input power: 50 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-2-350-740
Light distribution
[T2] 149x54°
Delivered lumens flux
6870 lm
Rated input power
50 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
135 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-2-350-822
Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
Delivered lumens flux: 4895 lm
Rated input power: 50 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[T2] 149x54°
Delivered lumens flux
4895 lm
Rated input power
50 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
98 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-2-350-827
Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
Delivered lumens flux: 6030 lm
Rated input power: 50 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-2-350-827
Light distribution
[T2] 149x54°
Delivered lumens flux
6030 lm
Rated input power
50 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
118 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-2-350-830
Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
Delivered lumens flux: 6030 lm
Rated input power: 50 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-2-350-830
Light distribution
[T2] 149x54°
Delivered lumens flux
6030 lm
Rated input power
50 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
118 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-2-350-840
Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
Delivered lumens flux: 6030 lm
Rated input power: 50 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-2-350-840
Light distribution
[T2] 149x54°
Delivered lumens flux
6030 lm
Rated input power
50 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
118 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-2-500-740
Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
Delivered lumens flux: 10150 lm
Rated input power: 72 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-2-500-740
Light distribution
[T2] 149x54°
Delivered lumens flux
10150 lm
Rated input power
72 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
135 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-2-500-822
Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
Delivered lumens flux: 6835 lm
Rated input power: 72 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[T2] 149x54°
Delivered lumens flux
6835 lm
Rated input power
72 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
95 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-2-500-827
Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
Delivered lumens flux: 8800 lm
Rated input power: 72 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-2-500-827
Light distribution
[T2] 149x54°
Delivered lumens flux
8800 lm
Rated input power
72 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
117 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-2-500-830
Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
Delivered lumens flux: 9040 lm
Rated input power: 72 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-2-500-830
Light distribution
[T2] 149x54°
Delivered lumens flux
9040 lm
Rated input power
72 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
120 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-2-500-840
Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
Delivered lumens flux: 8800 lm
Rated input power: 72 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-2-500-840
Light distribution
[T2] 149x54°
Delivered lumens flux
8800 lm
Rated input power
72 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
117 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-2-700-740
Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
Delivered lumens flux: 13120 lm
Rated input power: 100 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-2-700-740
Light distribution
[T2] 149x54°
Delivered lumens flux
13120 lm
Rated input power
100 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
125 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U1-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-2-700-822
Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
Delivered lumens flux: 8815 lm
Rated input power: 100 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[T2] 149x54°
Delivered lumens flux
8815 lm
Rated input power
100 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
88 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-2-700-827
Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
Delivered lumens flux: 11375 lm
Rated input power: 100 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-2-700-827
Light distribution
[T2] 149x54°
Delivered lumens flux
11375 lm
Rated input power
100 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
108 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-2-700-830
Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
Delivered lumens flux: 11715 lm
Rated input power: 100 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-2-700-830
Light distribution
[T2] 149x54°
Delivered lumens flux
11715 lm
Rated input power
100 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
111 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T2-2-700-840
Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
Delivered lumens flux: 11375 lm
Rated input power: 100 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T2-2-700-840
Light distribution
[T2] 149x54°
Delivered lumens flux
11375 lm
Rated input power
100 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
117 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T3-350-740
Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
Delivered lumens flux: 6470 lm
Rated input power: 50 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T3-350-740
Light distribution
[T3] 143x63°
Delivered lumens flux
6470 lm
Rated input power
50 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
127 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T3-350-822
Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
Delivered lumens flux: 4475 lm
Rated input power: 50 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[T3] 143x63°
Delivered lumens flux
4475 lm
Rated input power
50 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
90 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B0-U1-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T3-350-827
Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
Delivered lumens flux: 5675 lm
Rated input power: 50 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T3-350-827
Light distribution
[T3] 143x63°
Delivered lumens flux
5675 lm
Rated input power
50 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
111 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T3-350-830
Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
Delivered lumens flux: 5675 lm
Rated input power: 50 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T3-350-830
Light distribution
[T3] 143x63°
Delivered lumens flux
5675 lm
Rated input power
50 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
111 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T3-350-840
Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
Delivered lumens flux: 5675 lm
Rated input power: 50 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T3-350-840
Light distribution
[T3] 143x63°
Delivered lumens flux
5675 lm
Rated input power
50 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
111 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T3-500-740
Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
Delivered lumens flux: 9550 lm
Rated input power: 72 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T3-500-740
Light distribution
[T3] 143x63°
Delivered lumens flux
9550 lm
Rated input power
72 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
127 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T3-500-822
Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
Delivered lumens flux: 6245 lm
Rated input power: 72 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[T3] 143x63°
Delivered lumens flux
6245 lm
Rated input power
72 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
87 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B0-U1-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T3-500-830
Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
Delivered lumens flux: 8505 lm
Rated input power: 72 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T3-500-830
Light distribution
[T3] 143x63°
Delivered lumens flux
8505 lm
Rated input power
72 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
113 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T3-700-740
Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
Delivered lumens flux: 12345 lm
Rated input power: 100 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T3-700-740
Light distribution
[T3] 143x63°
Delivered lumens flux
12345 lm
Rated input power
100 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
118 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U1-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T3-700-822
Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
Delivered lumens flux: 8055 lm
Rated input power: 100 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[T3] 143x63°
Delivered lumens flux
8055 lm
Rated input power
100 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
81 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B0-U1-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T3-700-827
Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
Delivered lumens flux: 10800 lm
Rated input power: 100 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T3-700-827
Light distribution
[T3] 143x63°
Delivered lumens flux
10800 lm
Rated input power
100 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
102 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U1-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T3-700-830
Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
Delivered lumens flux: 11020 lm
Rated input power: 100 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T3-700-830
Light distribution
[T3] 143x63°
Delivered lumens flux
11020 lm
Rated input power
100 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
105 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U1-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T3-700-840
Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
Delivered lumens flux: 10800 lm
Rated input power: 100 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T3-700-840
Light distribution
[T3] 143x63°
Delivered lumens flux
10800 lm
Rated input power
100 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
111 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U1-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T4-350-740
Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Delivered lumens flux: 6775 lm
Rated input power: 50 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T4-350-740
Light distribution
[T4] 117x64°
Delivered lumens flux
6775 lm
Rated input power
50 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
133 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T4-350-822
Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Delivered lumens flux: 4685 lm
Rated input power: 50 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[T4] 117x64°
Delivered lumens flux
4685 lm
Rated input power
50 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
94 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B0-U1-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T4-350-827
Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Delivered lumens flux: 5945 lm
Rated input power: 50 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T4-350-827
Light distribution
[T4] 117x64°
Delivered lumens flux
5945 lm
Rated input power
50 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
117 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T4-350-830
Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Delivered lumens flux: 5945 lm
Rated input power: 50 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T4-350-830
Light distribution
[T4] 117x64°
Delivered lumens flux
5945 lm
Rated input power
50 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
117 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T4-350-840
Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Delivered lumens flux: 5945 lm
Rated input power: 50 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T4-350-840
Light distribution
[T4] 117x64°
Delivered lumens flux
5945 lm
Rated input power
50 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
117 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T4-500-740
Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Delivered lumens flux: 10005 lm
Rated input power: 72 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T4-500-740
Light distribution
[T4] 117x64°
Delivered lumens flux
10005 lm
Rated input power
72 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
133 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T4-500-822
Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Delivered lumens flux: 6535 lm
Rated input power: 72 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[T4] 117x64°
Delivered lumens flux
6535 lm
Rated input power
72 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
91 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B0-U1-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T4-500-827
Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Delivered lumens flux: 8795 lm
Rated input power: 72 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T4-500-827
Light distribution
[T4] 117x64°
Delivered lumens flux
8795 lm
Rated input power
72 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
117 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T4-500-830
Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Delivered lumens flux: 8910 lm
Rated input power: 72 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T4-500-830
Light distribution
[T4] 117x64°
Delivered lumens flux
8910 lm
Rated input power
72 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
118 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T4-500-840
Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Delivered lumens flux: 8795 lm
Rated input power: 72 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T4-500-840
Light distribution
[T4] 117x64°
Delivered lumens flux
8795 lm
Rated input power
72 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
117 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T4-700-740
Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Delivered lumens flux: 12935 lm
Rated input power: 100 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T4-700-740
Light distribution
[T4] 117x64°
Delivered lumens flux
12935 lm
Rated input power
100 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
124 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U1-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T4-700-822
Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Delivered lumens flux: 8430 lm
Rated input power: 100 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[T4] 117x64°
Delivered lumens flux
8430 lm
Rated input power
100 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
84 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B0-U1-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T4-700-827
Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Delivered lumens flux: 11230 lm
Rated input power: 100 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T4-700-827
Light distribution
[T4] 117x64°
Delivered lumens flux
11230 lm
Rated input power
100 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
106 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U1-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T4-700-830
Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Delivered lumens flux: 11550 lm
Rated input power: 100 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T4-700-830
Light distribution
[T4] 117x64°
Delivered lumens flux
11550 lm
Rated input power
100 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
110 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U1-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T4-700-840
Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
Delivered lumens flux: 11230 lm
Rated input power: 100 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T4-700-840
Light distribution
[T4] 117x64°
Delivered lumens flux
11230 lm
Rated input power
100 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
117 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U1-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T5-350-740
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 7035 lm
Rated input power: 50 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T5-350-740
Light distribution
[T5] 117°
Delivered lumens flux
7035 lm
Rated input power
50 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
138 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T5-350-822
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 4930 lm
Rated input power: 50 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[T5] 117°
Delivered lumens flux
4930 lm
Rated input power
50 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
99 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U1-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T5-350-827
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 6170 lm
Rated input power: 50 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T5-350-827
Light distribution
[T5] 117°
Delivered lumens flux
6170 lm
Rated input power
50 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
121 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T5-350-830
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 6170 lm
Rated input power: 50 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T5-350-830
Light distribution
[T5] 117°
Delivered lumens flux
6170 lm
Rated input power
50 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
121 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T5-350-840
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 6170 lm
Rated input power: 50 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T5-350-840
Light distribution
[T5] 117°
Delivered lumens flux
6170 lm
Rated input power
50 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
121 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T5-500-740
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 10615 lm
Rated input power: 72 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T5-500-740
Light distribution
[T5] 117°
Delivered lumens flux
10615 lm
Rated input power
72 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
141 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T5-500-822
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 6880 lm
Rated input power: 72 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[T5] 117°
Delivered lumens flux
6880 lm
Rated input power
72 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
96 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U1-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T5-500-827
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 9130 lm
Rated input power: 72 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T5-500-827
Light distribution
[T5] 117°
Delivered lumens flux
9130 lm
Rated input power
72 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
121 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T5-500-830
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 9380 lm
Rated input power: 72 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T5-500-830
Light distribution
[T5] 117°
Delivered lumens flux
9380 lm
Rated input power
72 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
125 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T5-500-840
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 9130 lm
Rated input power: 72 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T5-500-840
Light distribution
[T5] 117°
Delivered lumens flux
9130 lm
Rated input power
72 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
121 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T5-700-740
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 13720 lm
Rated input power: 100 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T5-700-740
Light distribution
[T5] 117°
Delivered lumens flux
13720 lm
Rated input power
100 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
131 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T5-700-822
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 8870 lm
Rated input power: 100 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[T5] 117°
Delivered lumens flux
8870 lm
Rated input power
100 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
89 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U1-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T5-700-827
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 11810 lm
Rated input power: 100 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T5-700-827
Light distribution
[T5] 117°
Delivered lumens flux
11810 lm
Rated input power
100 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
112 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T5-700-830
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 12250 lm
Rated input power: 100 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T5-700-830
Light distribution
[T5] 117°
Delivered lumens flux
12250 lm
Rated input power
100 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
116 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-T5-700-840
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 11810 lm
Rated input power: 100 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-T5-700-840
Light distribution
[T5] 117°
Delivered lumens flux
11810 lm
Rated input power
100 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
112 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-P4-350-740
Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Delivered lumens flux: 7035 lm
Rated input power: 50 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-P4-350-740
Light distribution
[P4] 20x78°
Delivered lumens flux
7035 lm
Rated input power
50 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
138 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-P4-350-822
Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Delivered lumens flux: 4855 lm
Rated input power: 50 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[P4] 20x78°
Delivered lumens flux
4855 lm
Rated input power
50 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
97 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-P4-350-827
Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Delivered lumens flux: 6170 lm
Rated input power: 50 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-P4-350-827
Light distribution
[P4] 20x78°
Delivered lumens flux
6170 lm
Rated input power
50 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
121 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-P4-350-830
Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Delivered lumens flux: 6170 lm
Rated input power: 50 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-P4-350-830
Light distribution
[P4] 20x78°
Delivered lumens flux
6170 lm
Rated input power
50 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
121 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-P4-350-840
Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Delivered lumens flux: 6170 lm
Rated input power: 50 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-P4-350-840
Light distribution
[P4] 20x78°
Delivered lumens flux
6170 lm
Rated input power
50 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
121 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-P4-500-740
Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Delivered lumens flux: 10530 lm
Rated input power: 72 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-P4-500-740
Light distribution
[P4] 20x78°
Delivered lumens flux
10530 lm
Rated input power
72 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
140 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-P4-500-822
Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Delivered lumens flux: 6890 lm
Rated input power: 72 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[P4] 20x78°
Delivered lumens flux
6890 lm
Rated input power
72 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
96 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-P4-500-827
Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Delivered lumens flux: 9020 lm
Rated input power: 72 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-P4-500-827
Light distribution
[P4] 20x78°
Delivered lumens flux
9020 lm
Rated input power
72 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
120 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-P4-500-830
Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Delivered lumens flux: 9380 lm
Rated input power: 72 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-P4-500-830
Light distribution
[P4] 20x78°
Delivered lumens flux
9380 lm
Rated input power
72 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
125 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-P4-500-840
Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Delivered lumens flux: 9020 lm
Rated input power: 72 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-P4-500-840
Light distribution
[P4] 20x78°
Delivered lumens flux
9020 lm
Rated input power
72 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
120 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-P4-700-740
Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Delivered lumens flux: 13610 lm
Rated input power: 100 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-P4-700-740
Light distribution
[P4] 20x78°
Delivered lumens flux
13610 lm
Rated input power
100 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
130 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U1-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-P4-700-822
Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Delivered lumens flux: 8910 lm
Rated input power: 100 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
Light distribution
[P4] 20x78°
Delivered lumens flux
8910 lm
Rated input power
100 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
89 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-P4-700-827
Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Delivered lumens flux: 11635 lm
Rated input power: 100 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-P4-700-827
Light distribution
[P4] 20x78°
Delivered lumens flux
11635 lm
Rated input power
100 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
110 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U1-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-P4-700-830
Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Delivered lumens flux: 12155 lm
Rated input power: 100 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-P4-700-830
Light distribution
[P4] 20x78°
Delivered lumens flux
12155 lm
Rated input power
100 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
115 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U1-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LP4034.863-EN-P4-700-840
Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
Delivered lumens flux: 11635 lm
Rated input power: 100 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LP4034.863-EN-P4-700-840
Light distribution
[P4] 20x78°
Delivered lumens flux
11635 lm
Rated input power
100 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
120 lm/W
Lamp
48 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U1-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000

Extras


Backlight Shield

[BS]

Backlight Shield

Light output
Constant light output

[CLO]

Constant light output

Light output
120-277V 50/60Hz

[UNI]

120-277V 50/60Hz

Consult the factory
Double powder coating

[DPC]

Double powder coating

Luminaire body options

Poles (Included)



All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Type I, Asymmetric, Side throw
[T1]

Type I, Asymmetric, Side throw

Type II, Asymmetric, Side throw
[T2]

Type II, Asymmetric, Side throw

Type III, Asymmetric, Side throw
[T3]

Type III, Asymmetric, Side throw

Type IV, Asymmetric, Forward throw
[T4]

Type IV, Asymmetric, Forward throw

Type V, Symmetric
[T5]

Type V, Symmetric

Special pedestrian road distribution-right side traffic
[P4]

Special pedestrian road distribution-right side traffic

Drive current


350 mA
[350]

350 mA

500 mA
[500]

500 mA

700 mA
[700]

700 mA

Colour temperature


2200 K CRI 80
[822]

2200 K CRI 80

2700 K CRI 80
[827]

2700 K CRI 80

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

4000 K CRI 80
[840]

4000 K CRI 80

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

DALI
[DALI]

DALI

AutoDIM
[AUTO]

AutoDIM

StepDIM
[STEP]

StepDIM

Product colours


Black
[HM1]

Black

Dark grey
[HM2]

Dark grey

Anthracite grey
[HM3]

Anthracite grey

Light grey
[HM4]

Light grey

White
[HM5]

White

Bronze
[HM6]

Bronze

Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)
