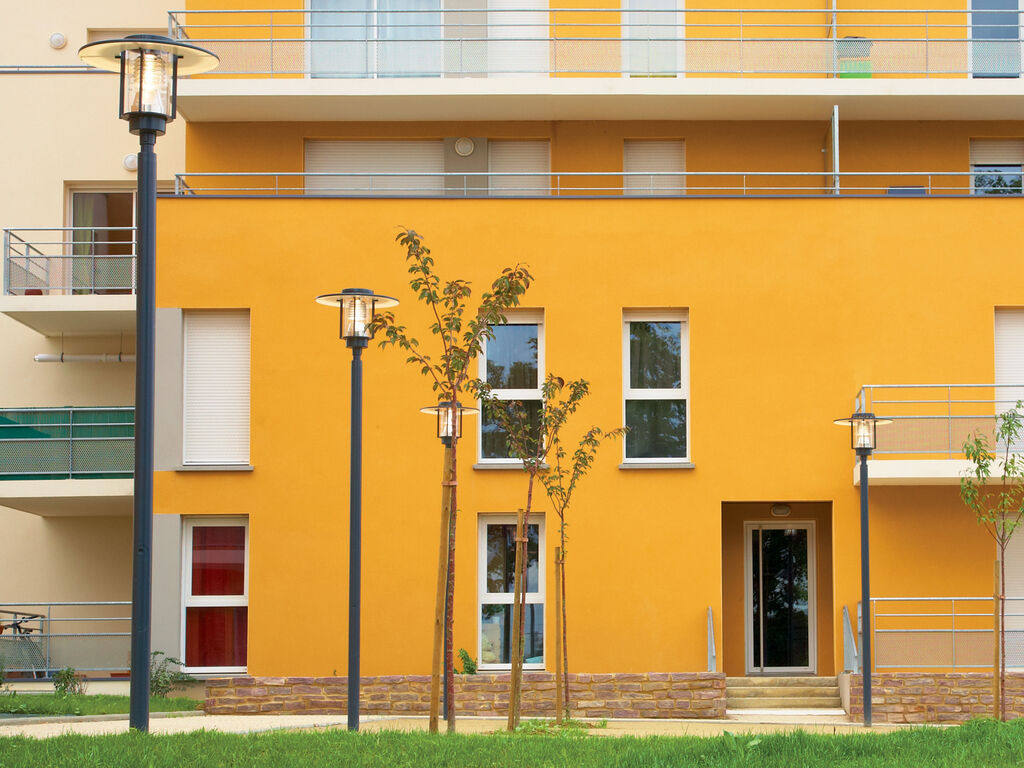

    TERRA Asym

    TERRA AsymTERRA AsymTERRA Asym

    LP4024.537-EN

    CEUKCAIK05IP65Class I

    Downloads

    TERRA AsymTERRA AsymTERRA Asym
    Light distribution
    [ASYM-LE] 107x109°
    Luminaire luminous flux
    2366 - 2808 lm
    Rated input power
    28 W
    CCT
    2700K, 3000K, 4000K
    CRI
    Ra70, Ra80
    Control
    On/Off, DALI, AutoDIM, StepDIM
    Product colours
    BlackDark greyAnthracite greyLight greyWhiteBronzeCustom colour (Please specify RAL code)
    Extras
    Light output
    Constant light output
    Consult the factory
    IK07 Option, 120-277V 50/60Hz
    Luminaire body options
    Double powder coating

    Luminaire efficacy
    84 - 100 lm/W
    Colour deviation
    3 SDCM, 4 SDCM
    ULOR (%)
    12.4
    Lifetime L90B10 (hour)
    >102, 000
    Housing
    Marine grade aluminum housing
    Driver
    Integral LED driver
    Input voltage
    220-240V 50/60Hz
    Configurator
    Project name
    Type
    Quantity
    Date
    Note
    Variant order code

    LP4024.537-EN-ASYM-LE-700-___-___-EN-C1-___-___-___-___




    Variants
    Light distribution
    [ASYM-LE]
    Asymmetric, Special effect: Leaf
    107x109°

    Rated input power
    [700]
    28 W

    Colour temperature
    [827]
    2700 K CRI 80
    [830]
    3000 K CRI 80
    [740]
    4000 K CRI 70
    [840]
    4000 K CRI 80
    Options
    Control
    [ONOFF]
    On/Off
    [DALI]
    DALI
    [AUTO]
    AutoDIM
    [STEP]
    StepDIM

    Product colours
    [HM1]Black
    Black
    [HM2]Dark grey
    Dark grey
    [HM3]Anthracite grey
    Anthracite grey
    [HM4]Light grey
    Light grey
    [HM5]White
    White
    [HM6]Bronze
    Bronze
    [CC]Custom colour (Please specify RAL code)
    Custom colour (Please specify RAL code)
    Extras
    Light output
    [CLO]
    Constant light output
    Consult the factory
    [IK07]
    IK07 Option
    [UNI]
    120-277V 50/60Hz
    Luminaire body options
    [DPC]
    Double powder coating


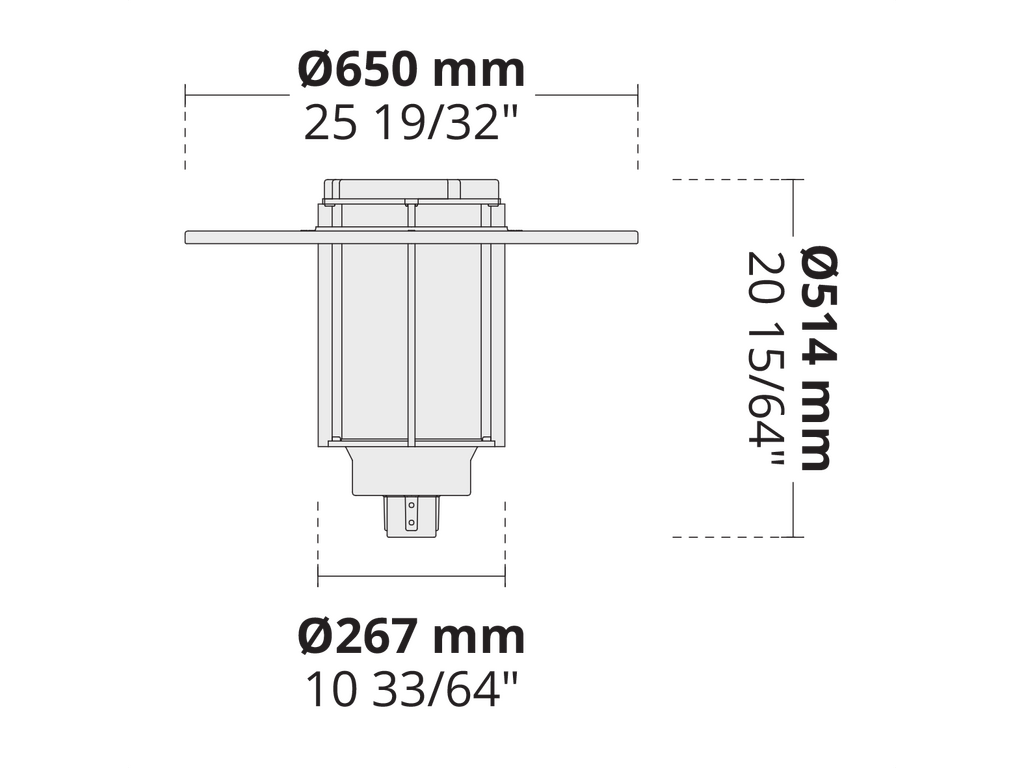

    Technical details


    Certificates
    CE, UKCA
    Mounting
    Direct pole or side bracket mountable. Spigot: Ø60 mm x 100 mm
    Finishing
    Chromate conversion pretreatment followed by electrostatic powder coating
    Fasteners
    Stainless steel (AISI 304 / EN 1.4301 grade)
    Gasket
    EPDM gasket (Shore A 20-25)
    Lens / Reflector
    PMMA lens with high optical efficiency
    Glass / Diffusor
    Tempered safety glass
    Impact protection
    IK05
    Ingress protection
    IP65
    Insulation class
    Class I
    Wind catching area (EPA)
    0.1 m²
    Weight
    7.02 kg
    LED module
    High power LEDs on metal-core PCB
    Driver surge protection
    10/6 kV
    Power factor
    > 0.95
    Through wiring
    Single cable entry
    Operating temperature
    -40...50°C
    Cable
    0.5 m of flexible cable

    Extras

    Constant light output

    [CLO]

    Constant light output

    Light output
    IK07 Option

    [IK07]

    IK07 Option

    Consult the factory
    120-277V 50/60Hz

    [UNI]

    120-277V 50/60Hz

    Consult the factory
    Double powder coating

    [DPC]

    Double powder coating

    Luminaire body options

    Poles (To be ordered separately)

    Cylindrical aluminum poles with flange plate
    Diameter / Dimensions
    Height
    Spigot diameter
    Diameter / Dimensions: Ø114mm, Ø122mm, Ø148mm, Ø165mm
    Height: 3m, 4m, 5m, 6m, 7m, 8m, 9m
    Spigot diameter: Ø114mm, Ø122mm, Ø148mm, Ø165mm
    Conical aluminum poles with embedded base
    Diameter / Dimensions
    Height
    Spigot diameter
    Diameter / Dimensions: Ø114mm, Ø122mm, Ø148mm, Ø165mm, Ø180mm, Ø200mm
    Height: 3m, 4m, 5m, 6m, 7m, 8m, 9m, 10m, 11m, 12m
    Spigot diameter: Ø60mm, Ø76mm, Ø90mm
    Conical aluminum poles with flange plate
    Diameter / Dimensions
    Height
    Spigot diameter
    Diameter / Dimensions: Ø114mm, Ø122mm, Ø148mm, Ø165mm, Ø180mm, Ø200mm
    Height: 3m, 4m, 5m, 6m, 7m, 8m, 9m, 10m, 11m, 12m
    Spigot diameter: Ø60mm, Ø76mm, Ø90mm
    Cylindrical aluminium poles with embedded base
    Diameter / Dimensions
    Height
    Spigot diameter
    Diameter / Dimensions: Ø114mm, Ø122mm, Ø148mm, Ø165mm
    Height: 3m, 4m, 5m, 6m, 7m, 8m, 9m
    Spigot diameter: Ø114mm, Ø122mm, Ø148mm, Ø165mm
    All flux and power values derived following appropriate IES, CIE and applicable standards.
