TURA 4x12 LED

TURA 4x12 LEDTURA 4x12 LED
TURA 4x12 LEDTURA 4x12 LED

LL2036.754-EN

CEENECIK08IP66Class IClass II
Variants
Light distribution
[T4-S] 125x70°, [T3-S] 145x70°, [T2-S] 140x45°, [T2-M] 150x65°, [T1-VS] 150x65°, [P4] 85x50°
Nominal LED lumens flux
15744 - 16512 lm
Nominal LED power
96 W (700 mA)
Rated luminaire lumens flux
11105 - 12587 lm
Rated luminaire power
105 W
Colour temperature
3000 K CRI 80, 4000 K CRI 70
BUG rating
B2-U0-G2, B3-U0-G3, B3-U0-G2, B2-U0-G1
Lifetime L90B50
>145, 000
Lifetime L80B50
>145, 000
Options
Control
On/Off, 1-10V, DALI, AstroDIM, StepDIM
Input voltage
220-240V 50/60Hz, 120-277V 50/60Hz
Insulation class
Class I, Class II
Product colours
Black (Textured)Dark grey (Textured)Anthracite grey (Textured)Light grey (Textured)White (Textured)Bronze (Textured)Custom Colour (Please specify RAL code)
Extras
Connectivity
NEMA 7 Socket
Finishing options
Marine grade coating
Light output
Constant light output

Technical details



Mounting
Direct pole or side bracket mountable. Spigot: Ø60 mm x 100 mm

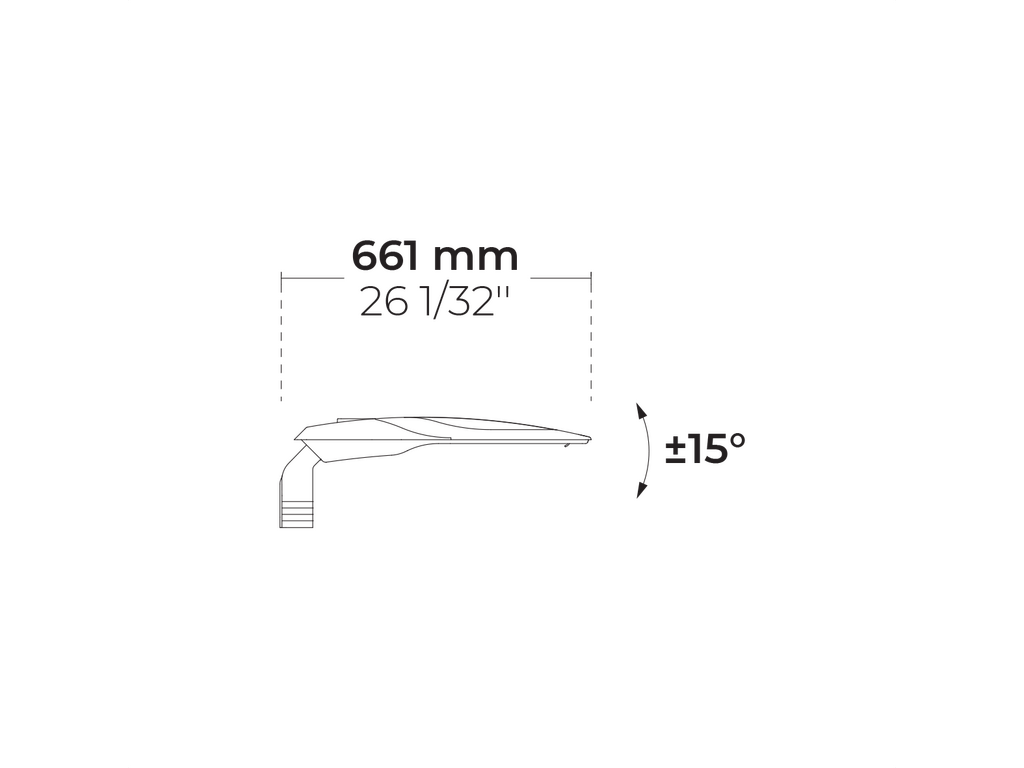

Tilt angle
-15°/+15°
Housing
Corrosion resistant aluminum housing
Finishing
Electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Gasket
EPDM gasket (Shore A 20-25)
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP66
Wind catching area (EPA)
0.25 m²
Weight
10 kg
LED module
High power LEDs on metal-core PCB
Driver
Thermally-separated internal LED driver
Driver surge protection
8/6 kV
Power factor
> 0.95
Through wiring
Single cable entry
Operating temperature
-40...50°C

Downloads


Variants


Light distribution
Special pedestrian road distribution-right side traffic
[P4] Special pedestrian road distribution-right side traffic - 85x50°
Asymmetric, Side throw, Very short
[T1-VS] Asymmetric, Side throw, Very short - 150x65°
Asymmetric, Side throw, Medium
[T2-M] Asymmetric, Side throw, Medium - 150x65°
Asymmetric, Side throw, Short
[T2-S] Asymmetric, Side throw, Short - 140x45°
Asymmetric, Side throw, Short
[T3-S] Asymmetric, Side throw, Short - 145x70°
Asymmetric, Forward throw, Short
[T4-S] Asymmetric, Forward throw, Short - 125x70°
Nominal LED lumens flux
15744 lm
16512 lm
Nominal LED power
96 W
Colour temperature
3000 K CRI 80
4000 K CRI 70

Variant code

Variant name

Optic

Nominal LED lumens flux




Variant code: LL2036.754-EN-P4-700-740
Variant name: LED 48 - 96W - 700mA - 4000K CRI 70
Optic: [P4] Special pedestrian road distribution-right side traffic - 85x50°
Nominal LED lumens flux: 16512 lm
LL2036.754-EN-P4-700-740
Nominal LED lumens flux
16512 lm
Nominal LED power
96 W
Rated luminaire lumens flux
12209 lm
Rated luminaire power
105 W
Luminaire efficacy
116 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.754-EN-P4-700-830
Variant name: LED 48 - 96W - 700mA - 3000K CRI 80
Optic: [P4] Special pedestrian road distribution-right side traffic - 85x50°
Nominal LED lumens flux: 15744 lm
LL2036.754-EN-P4-700-830
Nominal LED lumens flux
15744 lm
Nominal LED power
96 W
Rated luminaire lumens flux
11826 lm
Rated luminaire power
105 W
Luminaire efficacy
113 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.754-EN-T1-VS-700-740
Variant name: LED 48 - 96W - 700mA - 4000K CRI 70
Optic: [T1-VS] Asymmetric, Side throw, Very short - 150x65°
Nominal LED lumens flux: 16512 lm
LL2036.754-EN-T1-VS-700-740
Nominal LED lumens flux
16512 lm
Nominal LED power
96 W
Rated luminaire lumens flux
12454 lm
Rated luminaire power
105 W
Luminaire efficacy
119 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G2
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.754-EN-T1-VS-700-830
Variant name: LED 48 - 96W - 700mA - 3000K CRI 80
Optic: [T1-VS] Asymmetric, Side throw, Very short - 150x65°
Nominal LED lumens flux: 15744 lm
LL2036.754-EN-T1-VS-700-830
Nominal LED lumens flux
15744 lm
Nominal LED power
96 W
Rated luminaire lumens flux
12116 lm
Rated luminaire power
105 W
Luminaire efficacy
115 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G2
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.754-EN-T2-M-700-740
Variant name: LED 48 - 96W - 700mA - 4000K CRI 70
Optic: [T2-M] Asymmetric, Side throw, Medium - 150x65°
Nominal LED lumens flux: 16512 lm
LL2036.754-EN-T2-M-700-740
Nominal LED lumens flux
16512 lm
Nominal LED power
96 W
Rated luminaire lumens flux
12044 lm
Rated luminaire power
105 W
Luminaire efficacy
115 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.754-EN-T2-M-700-830
Variant name: LED 48 - 96W - 700mA - 3000K CRI 80
Optic: [T2-M] Asymmetric, Side throw, Medium - 150x65°
Nominal LED lumens flux: 15744 lm
LL2036.754-EN-T2-M-700-830
Nominal LED lumens flux
15744 lm
Nominal LED power
96 W
Rated luminaire lumens flux
11472 lm
Rated luminaire power
105 W
Luminaire efficacy
109 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G3
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.754-EN-T2-S-700-740
Variant name: LED 48 - 96W - 700mA - 4000K CRI 70
Optic: [T2-S] Asymmetric, Side throw, Short - 140x45°
Nominal LED lumens flux: 16512 lm
LL2036.754-EN-T2-S-700-740
Nominal LED lumens flux
16512 lm
Nominal LED power
96 W
Rated luminaire lumens flux
12587 lm
Rated luminaire power
105 W
Luminaire efficacy
120 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.754-EN-T2-S-700-830
Variant name: LED 48 - 96W - 700mA - 3000K CRI 80
Optic: [T2-S] Asymmetric, Side throw, Short - 140x45°
Nominal LED lumens flux: 15744 lm
LL2036.754-EN-T2-S-700-830
Nominal LED lumens flux
15744 lm
Nominal LED power
96 W
Rated luminaire lumens flux
12130 lm
Rated luminaire power
105 W
Luminaire efficacy
116 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.754-EN-T3-S-700-740
Variant name: LED 48 - 96W - 700mA - 4000K CRI 70
Optic: [T3-S] Asymmetric, Side throw, Short - 145x70°
Nominal LED lumens flux: 16512 lm
LL2036.754-EN-T3-S-700-740
Nominal LED lumens flux
16512 lm
Nominal LED power
96 W
Rated luminaire lumens flux
11289 lm
Rated luminaire power
105 W
Luminaire efficacy
108 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.754-EN-T3-S-700-830
Variant name: LED 48 - 96W - 700mA - 3000K CRI 80
Optic: [T3-S] Asymmetric, Side throw, Short - 145x70°
Nominal LED lumens flux: 15744 lm
LL2036.754-EN-T3-S-700-830
Nominal LED lumens flux
15744 lm
Nominal LED power
96 W
Rated luminaire lumens flux
11105 lm
Rated luminaire power
105 W
Luminaire efficacy
106 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.754-EN-T4-S-700-740
Variant name: LED 48 - 96W - 700mA - 4000K CRI 70
Optic: [T4-S] Asymmetric, Forward throw, Short - 125x70°
Nominal LED lumens flux: 16512 lm
LL2036.754-EN-T4-S-700-740
Nominal LED lumens flux
16512 lm
Nominal LED power
96 W
Rated luminaire lumens flux
11730 lm
Rated luminaire power
105 W
Luminaire efficacy
112 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.754-EN-T4-S-700-830
Variant name: LED 48 - 96W - 700mA - 3000K CRI 80
Optic: [T4-S] Asymmetric, Forward throw, Short - 125x70°
Nominal LED lumens flux: 15744 lm
LL2036.754-EN-T4-S-700-830
Nominal LED lumens flux
15744 lm
Nominal LED power
96 W
Rated luminaire lumens flux
11353 lm
Rated luminaire power
105 W
Luminaire efficacy
108 lm/W
Lamp
48 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000

Poles (To be ordered separately)


Poles (To be ordered separately)


All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Special pedestrian road distribution-right side traffic
[P4]

Special pedestrian road distribution-right side traffic

Asymmetric, Side throw, Very short
[T1-VS]

Asymmetric, Side throw, Very short

Asymmetric, Side throw, Medium
[T2-M]

Asymmetric, Side throw, Medium

Asymmetric, Side throw, Short
[T2-S]

Asymmetric, Side throw, Short

Asymmetric, Side throw, Short
[T3-S]

Asymmetric, Side throw, Short

Asymmetric, Forward throw, Short
[T4-S]

Asymmetric, Forward throw, Short

Drive current


700 mA
[700]

700 mA

Colour temperature


3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Input voltage


On/Off
[ONOFF]

On/Off

1-10V
[1-10V]

1-10V

DALI
[DALI]

DALI

AstroDIM
[ASTRO]

AstroDIM

StepDIM
[STEP]

StepDIM

Input voltage


220-240V 50/60Hz
[EN]

220-240V 50/60Hz

120-277V 50/60Hz
[UNI]

120-277V 50/60Hz

Insulation class

Product colours


Class I
[C1]

Class I

Class II
[C2]

Class II

Product colours


Black (Textured)
[HM1]

Black (Textured)

Dark grey (Textured)
[HM2]

Dark grey (Textured)

Anthracite grey (Textured)
[HM3]

Anthracite grey (Textured)

Light grey (Textured)
[HM4]

Light grey (Textured)

White (Textured)
[HM5]

White (Textured)

Bronze (Textured)
[HM6]

Bronze (Textured)

Custom Colour (Please specify RAL code)
[CC]

Custom Colour (Please specify RAL code)

Extras

Connectivity

Finishing options


NEMA 7 Socket
[NM7]

NEMA 7 Socket

Finishing options


Marine grade coating
[MG]

Marine grade coating

Light output


Constant light output
[CLO]

Constant light output
