TURA 2x12 LED

TURA 2x12 LEDTURA 2x12 LED
TURA 2x12 LEDTURA 2x12 LED

LL2036.752-EN

CEENECUKCAIK08IP66Class I
Variants
Light distribution
[P4] 22x77°, [T1] 113x48°, [T2] 137x52°, [T2] 150x60°, [T2BL] 128x48°, [T3] 143x68°, [T3] 158x59°, [T3BL] 128x50°, [T4] 121x70°, [T4BL] 111x38°
Delivered lumens flux
4872 - 6891 lm
Rated input power
52 W
Colour temperature
3000 K CRI 70, 3000 K CRI 80, 4000 K CRI 70
BUG rating
B2-U0-G2, B3-U0-G1, B1-U0-G1, B2-U1-G2, B2-U0-G1, B3-U1-G3
Lifetime L90B50 (hour)
>102, 000
Lifetime L80B50 (hour)
>102, 000
Options
Control
On/Off, DALI, AutoDIM, StepDIM
Product colours
Anthracite greyLight greyCustom colour (Please specify RAL code)
Extras
External surge protection
10 kV
Connectivity
NEMA socket - 7 Pin
Light output
Constant light output
Consult the factory
Class II, 120-277V 50/60Hz
Luminaire body options
Double powder coating

Technical details



Certificates
CE, ENEC, UKCA
Mounting
Direct pole or side bracket mountable. Spigot: Ø60 mm x 100 mm
Tilt angle
+15°/-15°
Housing
Corrosion resistant, die-cast, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
EPDM gasket (Shore A 20-25)
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP66
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Wind catching area (EPA)
0.25 m²
Weight
10 kg
LED module
High power LEDs on metal-core PCB
Driver
Integral LED driver
Driver surge protection
8/6 kV
Power factor
> 0.95
Through wiring
Single cable entry
Operating temperature
-40...50°C
Notes
This product can be supplied with Insulation class (Class II) upon request. Please contact factory.

Downloads


Variants


Light distribution

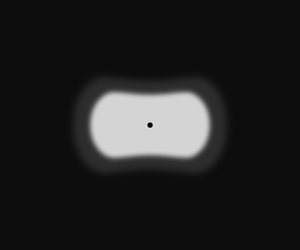

Type I, Asymmetric, Side throw
[T1] Type I, Asymmetric, Side throw - 113x48°

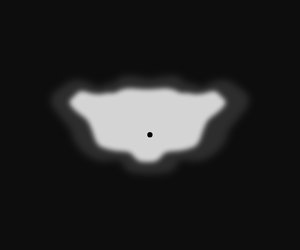

Type II, Asymmetric, Side throw
[T2] Type II, Asymmetric, Side throw - 137x52°
Type II, Asymmetric, Side throw
[T2] Type II, Asymmetric, Side throw - 150x60°
Type II, Asymmetric, Side throw with Backlight shield
[T2BL] Type II, Asymmetric, Side throw with Backlight shield - 128x48°

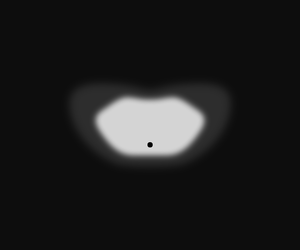

Type III, Asymmetric, Side throw
[T3] Type III, Asymmetric, Side throw - 143x68°
Type III, Asymmetric, Side throw
[T3] Type III, Asymmetric, Side throw - 158x59°
Type III, Asymmetric, Side throw with Backlight shield
[T3BL] Type III, Asymmetric, Side throw with Backlight shield - 128x50°

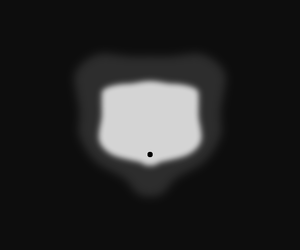

Type IV, Asymmetric, Forward throw
[T4] Type IV, Asymmetric, Forward throw - 121x70°
Type IV, Asymmetric, Forward throw with Backlight shield
[T4BL] Type IV, Asymmetric, Forward throw with Backlight shield - 111x38°

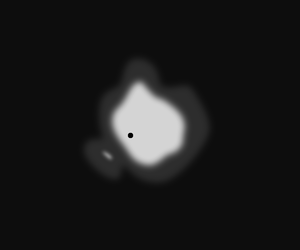

Special pedestrian road distribution-right side traffic
[P4] Special pedestrian road distribution-right side traffic - 22x77°
Delivered lumens flux
4872 lm
4893 lm
5046 lm
5150 lm
5164 lm
5189 lm
5283 lm
5376 lm
5399 lm
5429 lm
5478 lm
5568 lm
5683 lm
5699 lm
5726 lm
5792 lm
5796 lm
5821 lm
5829 lm
5990 lm
6003 lm
6044 lm
6127 lm
6144 lm
6174 lm
6285 lm
6391 lm
6458 lm
6516 lm
6891 lm
Rated input power
52 W
Colour temperature
3000 K CRI 70
3000 K CRI 80
4000 K CRI 70

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LL2036.752-EN-T1-700-730
Light distribution: [T1] Type I, Asymmetric, Side throw - 113x48°
Delivered lumens flux: 6044 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T1-700-730
Light distribution
[T1] 113x48°
Delivered lumens flux
6044 lm
Rated input power
52 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
116 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T1-700-740
Light distribution: [T1] Type I, Asymmetric, Side throw - 113x48°
Delivered lumens flux: 6516 lm
Rated input power: 52 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T1-700-740
Light distribution
[T1] 113x48°
Delivered lumens flux
6516 lm
Rated input power
52 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
125 lm/W
Lamp
24 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T1-700-830
Light distribution: [T1] Type I, Asymmetric, Side throw - 113x48°
Delivered lumens flux: 5478 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T1-700-830
Light distribution
[T1] 113x48°
Delivered lumens flux
5478 lm
Rated input power
52 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
105 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T2-700-730
Light distribution: [T2] Type II, Asymmetric, Side throw - 137x52°
Delivered lumens flux: 5699 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T2-700-730
Light distribution
[T2] 137x52°
Delivered lumens flux
5699 lm
Rated input power
52 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
109 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T2-700-740
Light distribution: [T2] Type II, Asymmetric, Side throw - 137x52°
Delivered lumens flux: 6144 lm
Rated input power: 52 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T2-700-740
Light distribution
[T2] 137x52°
Delivered lumens flux
6144 lm
Rated input power
52 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
118 lm/W
Lamp
24 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T2-700-830
Light distribution: [T2] Type II, Asymmetric, Side throw - 137x52°
Delivered lumens flux: 5164 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T2-700-830
Light distribution
[T2] 137x52°
Delivered lumens flux
5164 lm
Rated input power
52 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
99 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T2-2-700-730
Light distribution: [T2] Type II, Asymmetric, Side throw - 150x60°
Delivered lumens flux: 5829 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T2-2-700-730
Light distribution
[T2] 150x60°
Delivered lumens flux
5829 lm
Rated input power
52 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
112 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T2-2-700-740
Light distribution: [T2] Type II, Asymmetric, Side throw - 150x60°
Delivered lumens flux: 6285 lm
Rated input power: 52 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T2-2-700-740
Light distribution
[T2] 150x60°
Delivered lumens flux
6285 lm
Rated input power
52 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
120 lm/W
Lamp
24 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T2-2-700-830
Light distribution: [T2] Type II, Asymmetric, Side throw - 150x60°
Delivered lumens flux: 5283 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T2-2-700-830
Light distribution
[T2] 150x60°
Delivered lumens flux
5283 lm
Rated input power
52 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
101 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T2BL-700-730
Light distribution: [T2BL] Type II, Asymmetric, Side throw with Backlight shield - 128x48°
Delivered lumens flux: 5376 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T2BL-700-730
Light distribution
[T2BL] 128x48°
Delivered lumens flux
5376 lm
Rated input power
52 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
103 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T2BL-700-740
Light distribution: [T2BL] Type II, Asymmetric, Side throw with Backlight shield - 128x48°
Delivered lumens flux: 5796 lm
Rated input power: 52 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T2BL-700-740
Light distribution
[T2BL] 128x48°
Delivered lumens flux
5796 lm
Rated input power
52 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
111 lm/W
Lamp
24 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U1-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T2BL-700-830
Light distribution: [T2BL] Type II, Asymmetric, Side throw with Backlight shield - 128x48°
Delivered lumens flux: 4872 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T2BL-700-830
Light distribution
[T2BL] 128x48°
Delivered lumens flux
4872 lm
Rated input power
52 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
93 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T3-700-730
Light distribution: [T3] Type III, Asymmetric, Side throw - 143x68°
Delivered lumens flux: 5726 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T3-700-730
Light distribution
[T3] 143x68°
Delivered lumens flux
5726 lm
Rated input power
52 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
110 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T3-700-740
Light distribution: [T3] Type III, Asymmetric, Side throw - 143x68°
Delivered lumens flux: 6174 lm
Rated input power: 52 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T3-700-740
Light distribution
[T3] 143x68°
Delivered lumens flux
6174 lm
Rated input power
52 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
118 lm/W
Lamp
24 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T3-700-830
Light distribution: [T3] Type III, Asymmetric, Side throw - 143x68°
Delivered lumens flux: 5189 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T3-700-830
Light distribution
[T3] 143x68°
Delivered lumens flux
5189 lm
Rated input power
52 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
99 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T3-2-700-730
Light distribution: [T3] Type III, Asymmetric, Side throw - 158x59°
Delivered lumens flux: 6391 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T3-2-700-730
Light distribution
[T3] 158x59°
Delivered lumens flux
6391 lm
Rated input power
52 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
122 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U1-G3
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T3-2-700-740
Light distribution: [T3] Type III, Asymmetric, Side throw - 158x59°
Delivered lumens flux: 6891 lm
Rated input power: 52 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T3-2-700-740
Light distribution
[T3] 158x59°
Delivered lumens flux
6891 lm
Rated input power
52 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
132 lm/W
Lamp
24 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U1-G3
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T3-2-700-830
Light distribution: [T3] Type III, Asymmetric, Side throw - 158x59°
Delivered lumens flux: 5792 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T3-2-700-830
Light distribution
[T3] 158x59°
Delivered lumens flux
5792 lm
Rated input power
52 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
111 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U1-G3
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T3BL-700-730
Light distribution: [T3BL] Type III, Asymmetric, Side throw with Backlight shield - 128x50°
Delivered lumens flux: 5399 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T3BL-700-730
Light distribution
[T3BL] 128x50°
Delivered lumens flux
5399 lm
Rated input power
52 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
103 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T3BL-700-740
Light distribution: [T3BL] Type III, Asymmetric, Side throw with Backlight shield - 128x50°
Delivered lumens flux: 5821 lm
Rated input power: 52 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T3BL-700-740
Light distribution
[T3BL] 128x50°
Delivered lumens flux
5821 lm
Rated input power
52 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
111 lm/W
Lamp
24 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T3BL-700-830
Light distribution: [T3BL] Type III, Asymmetric, Side throw with Backlight shield - 128x50°
Delivered lumens flux: 4893 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T3BL-700-830
Light distribution
[T3BL] 128x50°
Delivered lumens flux
4893 lm
Rated input power
52 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
94 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T4-700-730
Light distribution: [T4] Type IV, Asymmetric, Forward throw - 121x70°
Delivered lumens flux: 5683 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T4-700-730
Light distribution
[T4] 121x70°
Delivered lumens flux
5683 lm
Rated input power
52 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
109 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T4-700-740
Light distribution: [T4] Type IV, Asymmetric, Forward throw - 121x70°
Delivered lumens flux: 6127 lm
Rated input power: 52 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T4-700-740
Light distribution
[T4] 121x70°
Delivered lumens flux
6127 lm
Rated input power
52 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
117 lm/W
Lamp
24 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T4-700-830
Light distribution: [T4] Type IV, Asymmetric, Forward throw - 121x70°
Delivered lumens flux: 5150 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T4-700-830
Light distribution
[T4] 121x70°
Delivered lumens flux
5150 lm
Rated input power
52 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
99 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T4BL-700-730
Light distribution: [T4BL] Type IV, Asymmetric, Forward throw with Backlight shield - 111x38°
Delivered lumens flux: 5568 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T4BL-700-730
Light distribution
[T4BL] 111x38°
Delivered lumens flux
5568 lm
Rated input power
52 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
107 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T4BL-700-740
Light distribution: [T4BL] Type IV, Asymmetric, Forward throw with Backlight shield - 111x38°
Delivered lumens flux: 6003 lm
Rated input power: 52 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T4BL-700-740
Light distribution
[T4BL] 111x38°
Delivered lumens flux
6003 lm
Rated input power
52 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
115 lm/W
Lamp
24 LED
MacAdam Ellipse
4 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-T4BL-700-830
Light distribution: [T4BL] Type IV, Asymmetric, Forward throw with Backlight shield - 111x38°
Delivered lumens flux: 5046 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-T4BL-700-830
Light distribution
[T4BL] 111x38°
Delivered lumens flux
5046 lm
Rated input power
52 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
97 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-P4-700-730
Light distribution: [P4] Special pedestrian road distribution-right side traffic - 22x77°
Delivered lumens flux: 5990 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-P4-700-730
Light distribution
[P4] 22x77°
Delivered lumens flux
5990 lm
Rated input power
52 W
Colour temperature
3000 K CRI 70
Luminaire efficacy
115 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-P4-700-740
Light distribution: [P4] Special pedestrian road distribution-right side traffic - 22x77°
Delivered lumens flux: 6458 lm
Rated input power: 52 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-P4-700-740
Light distribution
[P4] 22x77°
Delivered lumens flux
6458 lm
Rated input power
52 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
124 lm/W
Lamp
24 LED
MacAdam Ellipse
4 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LL2036.752-EN-P4-700-830
Light distribution: [P4] Special pedestrian road distribution-right side traffic - 22x77°
Delivered lumens flux: 5429 lm
Rated input power: 52 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI, AutoDIM, StepDIM
LL2036.752-EN-P4-700-830
Light distribution
[P4] 22x77°
Delivered lumens flux
5429 lm
Rated input power
52 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
104 lm/W
Lamp
24 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000

Extras


10 kV

[SP10]

10 kV

External surge protection
NEMA socket - 7 Pin

[NM7]

NEMA socket - 7 Pin

Connectivity
Constant light output

[CLO]

Constant light output

Light output
Class II

[C2]

Class II

Consult the factory
120-277V 50/60Hz

[UNI]

120-277V 50/60Hz

Consult the factory
Double powder coating

[DPC]

Double powder coating

Luminaire body options

Poles (To be ordered separately)


All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Type I, Asymmetric, Side throw
[T1]

Type I, Asymmetric, Side throw

Type II, Asymmetric, Side throw
[T2]

Type II, Asymmetric, Side throw

Type II, Asymmetric, Side throw with Backlight shield
[T2BL]

Type II, Asymmetric, Side throw with Backlight shield

Type III, Asymmetric, Side throw
[T3]

Type III, Asymmetric, Side throw

Type III, Asymmetric, Side throw with Backlight shield
[T3BL]

Type III, Asymmetric, Side throw with Backlight shield

Type IV, Asymmetric, Forward throw
[T4]

Type IV, Asymmetric, Forward throw

Type IV, Asymmetric, Forward throw with Backlight shield
[T4BL]

Type IV, Asymmetric, Forward throw with Backlight shield

Special pedestrian road distribution-right side traffic
[P4]

Special pedestrian road distribution-right side traffic

Drive current


700 mA
[700]

700 mA

Colour temperature


3000 K CRI 70
[730]

3000 K CRI 70

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

DALI
[DALI]

DALI

AutoDIM
[AUTO]

AutoDIM

StepDIM
[STEP]

StepDIM

Product colours


Anthracite grey
[HM3]

Anthracite grey

Light grey
[HM4]

Light grey

Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)
